Home >> Subaru >> 1999 >> Legacy Outback AWD F4-2.5L DOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> DTC 38 >> Transmission Control Systems

Transmission Control Systems

TROUBLE CODE 38-TORQUE CONTROL SIGNAL

DIAGNOSIS: The signal circuit is open or shorted.

TROUBLE SYMPTOM: Excessive shift shock.

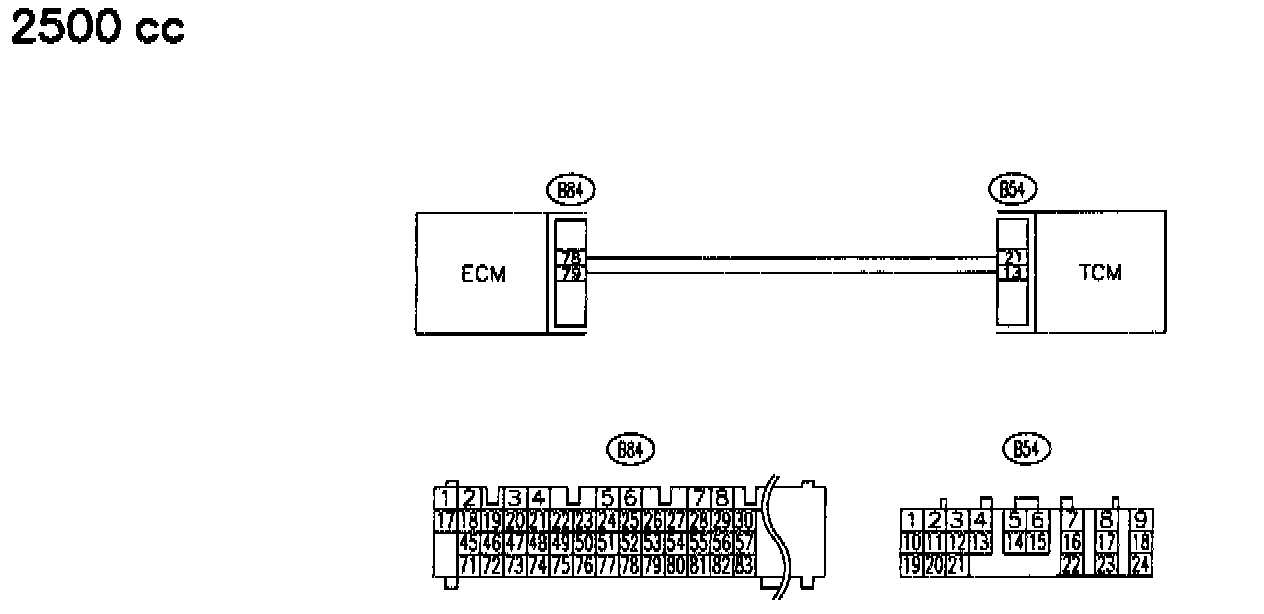

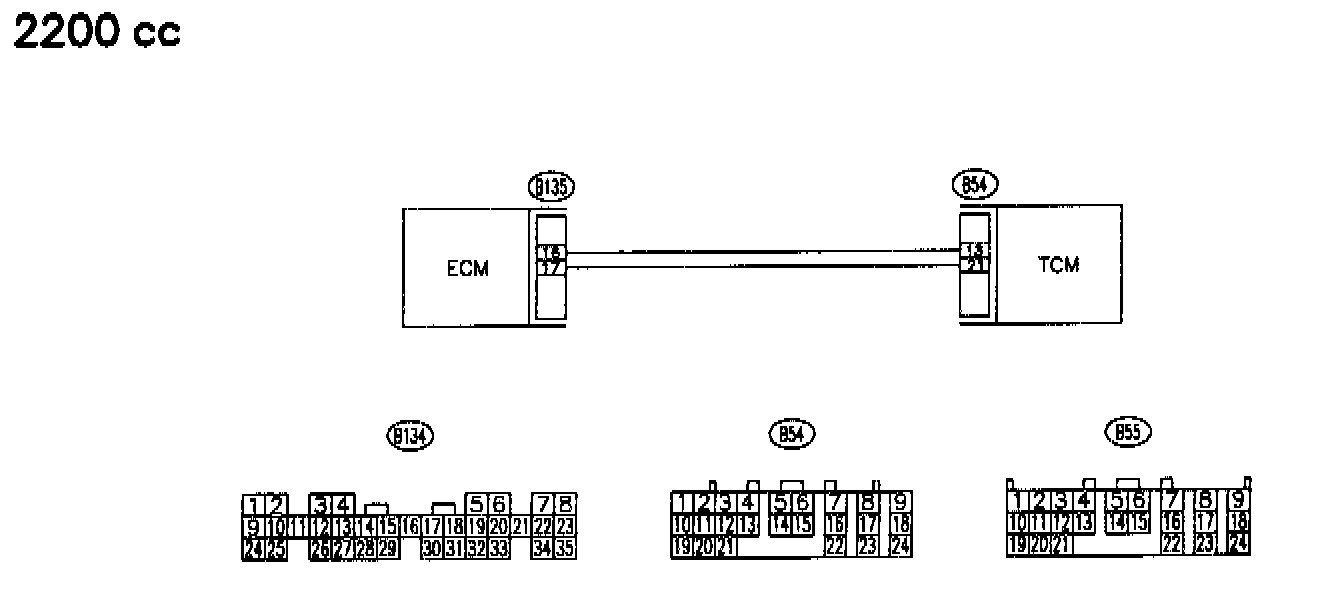

WIRING DIAGRAM:
