Transmission Control Systems

TROUBLE CODE 36 TORQUE CONVERTER TURBINE SPEED SENSOR














DIAGNOSIS: Input signal circuit of TCM is open or shorted.

TROUBLE SYMPTOM: Excessive shift shock.

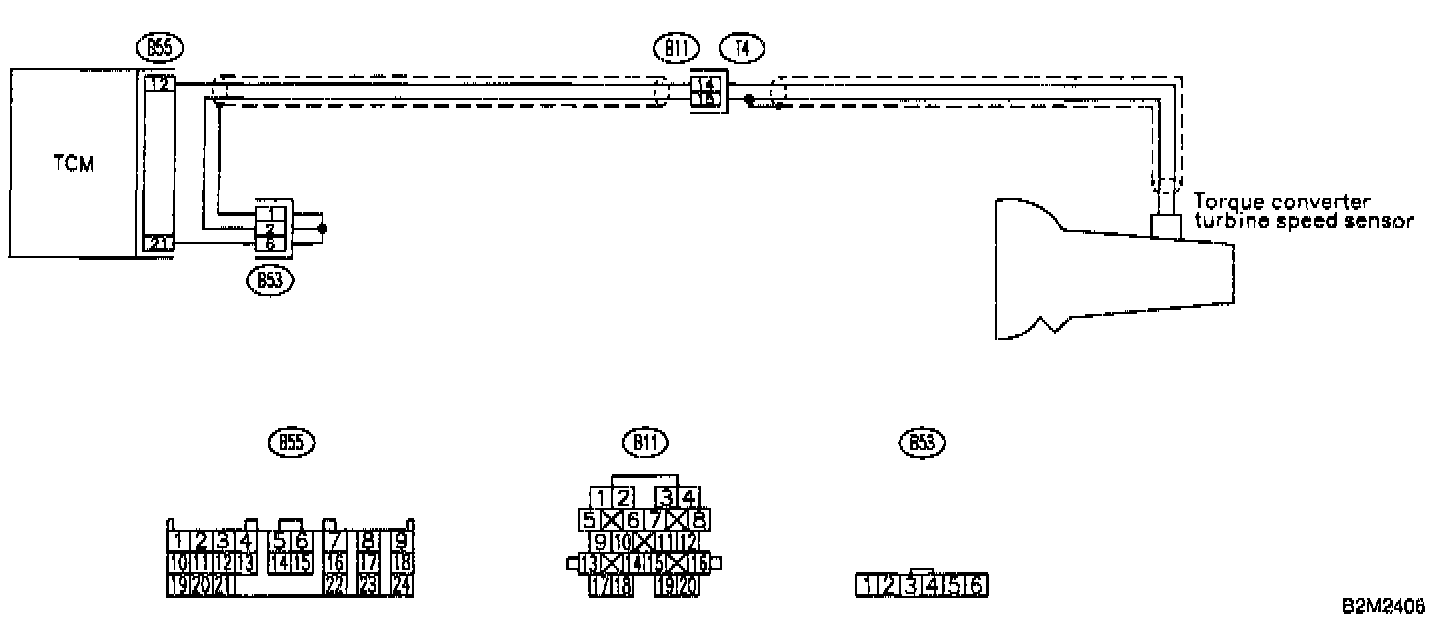

WIRING DIAGRAM:
