ABS Trouble Code Charts For Warning Light Codes

NOTE: Trouble code 32 (Front RH), Trouble code 34 (Front LH), Trouble code 36 (Rear RH), Trouble code 38 (Rear LH) - Abnormal outlet solenoid valve circuit(s) in ABS Control Module And Hydraulic Control Unit (ABSCM & H/U)

DIAGNOSIS:
Faulty harness/connector
Faulty outlet solenoid valve in ABSCM&H/U

TROUBLE SYMPTOM:
ABS does not operate.

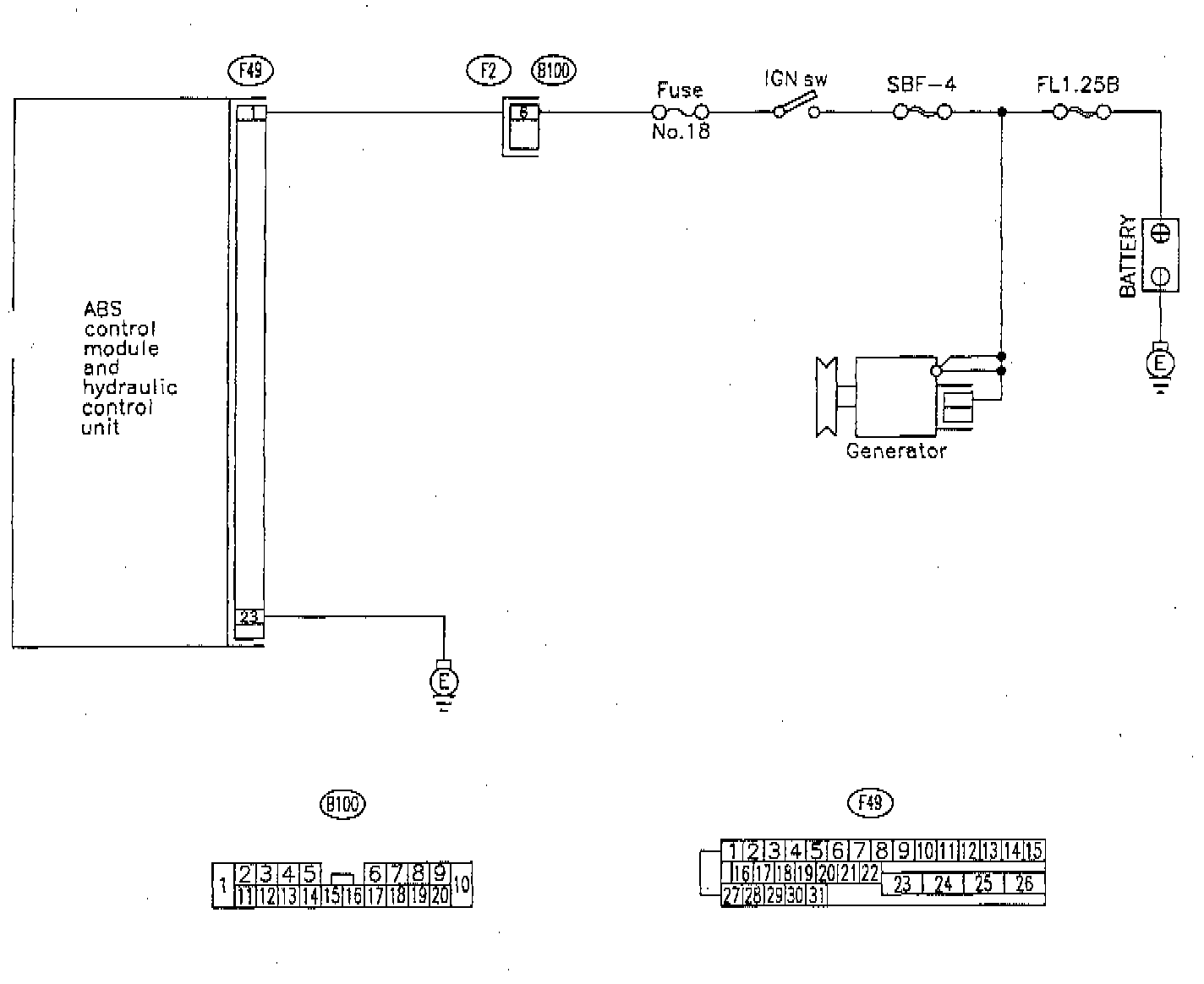

WIRING DIAGRAM:
