Transmission Control Systems

TROUBLE CODE 31-THROTTLE POSITION SENSOR
































DIAGNOSIS: Input signal circuit of throttle position sensor is open or shorted.

TROUBLE SYMPTOM: Shift point too high or too low; engine brake not effected in "3" range: excessive shift shock; excessive tight corner "braking".

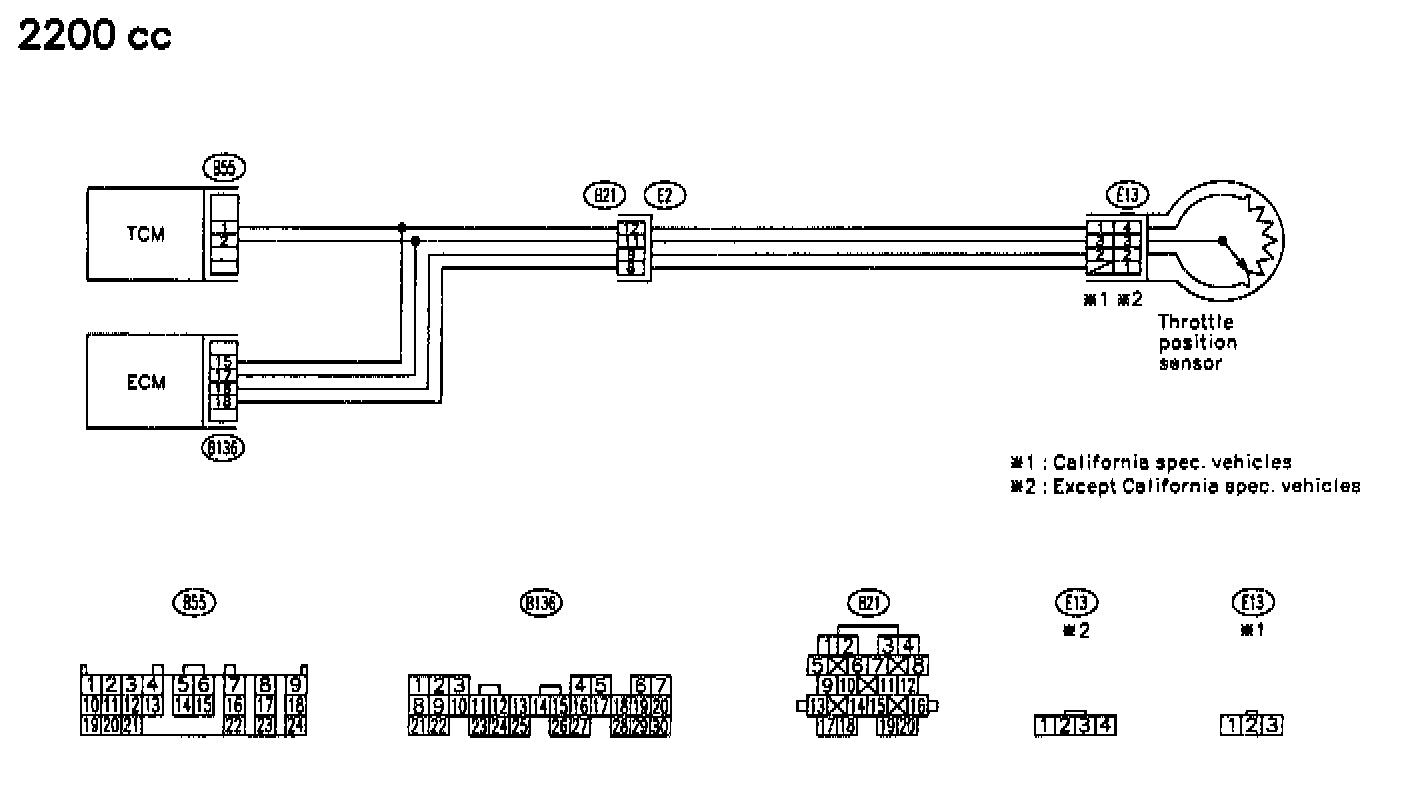

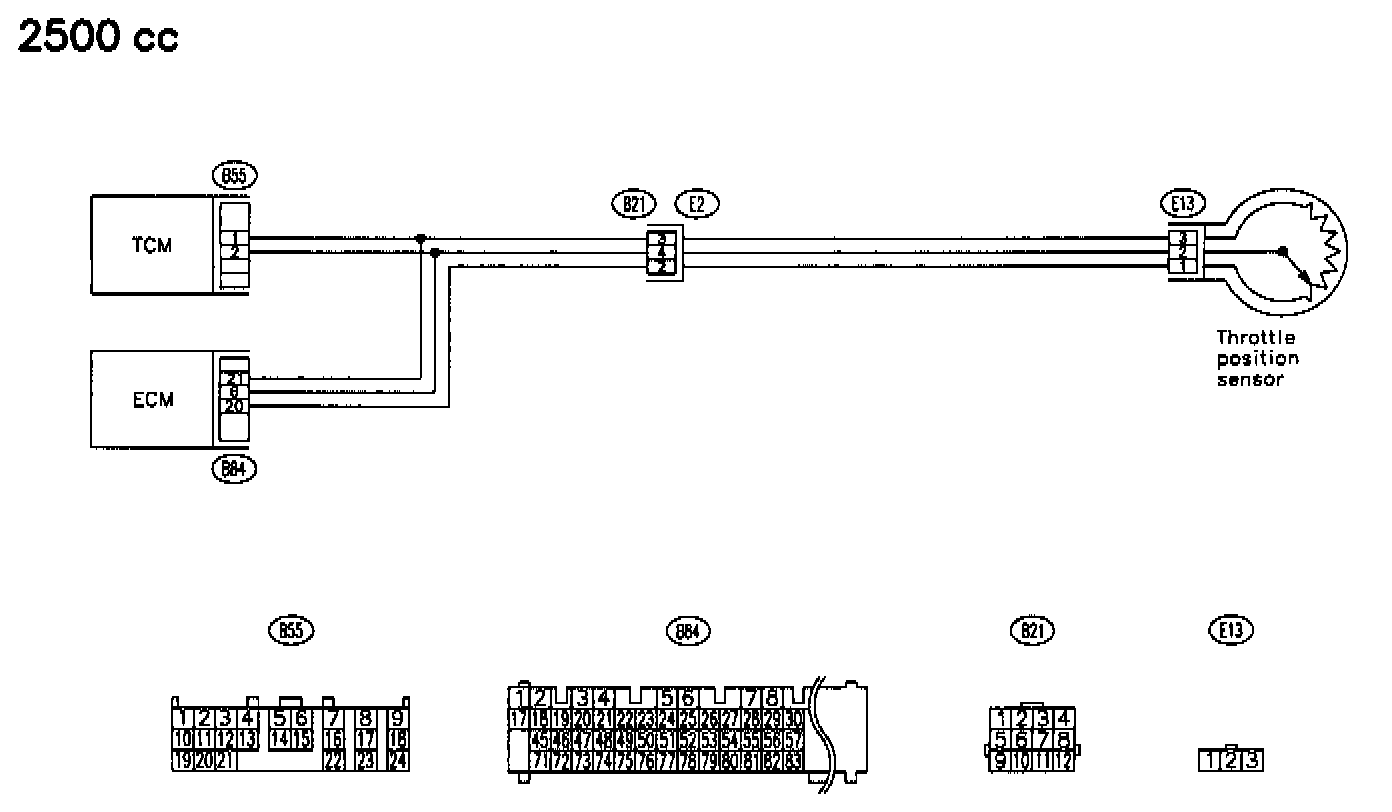

WIRING DIAGRAM:
