ABS Trouble Code Charts For Warning Light Codes

Part 1 Of 2:

Part 2 Of 2:

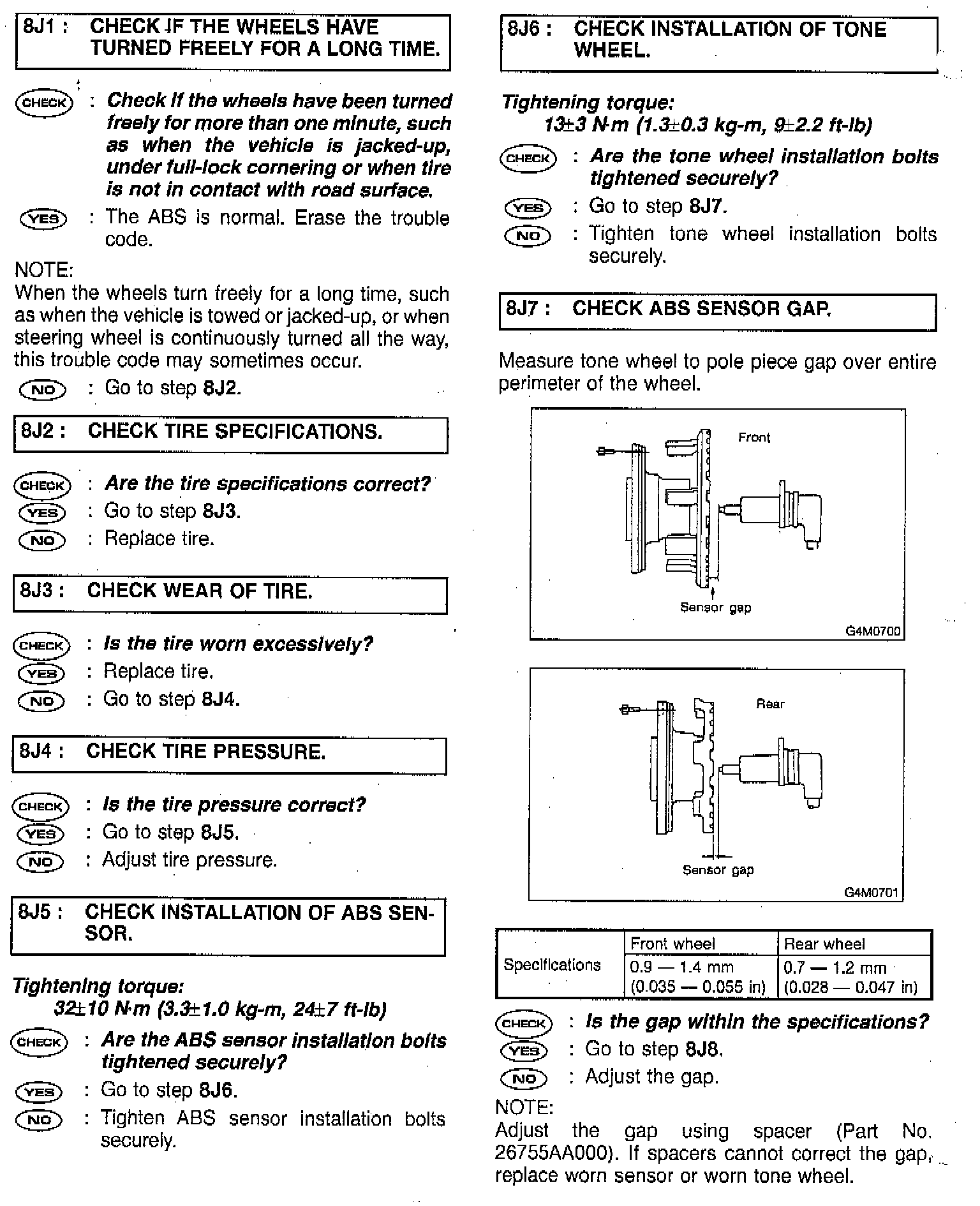

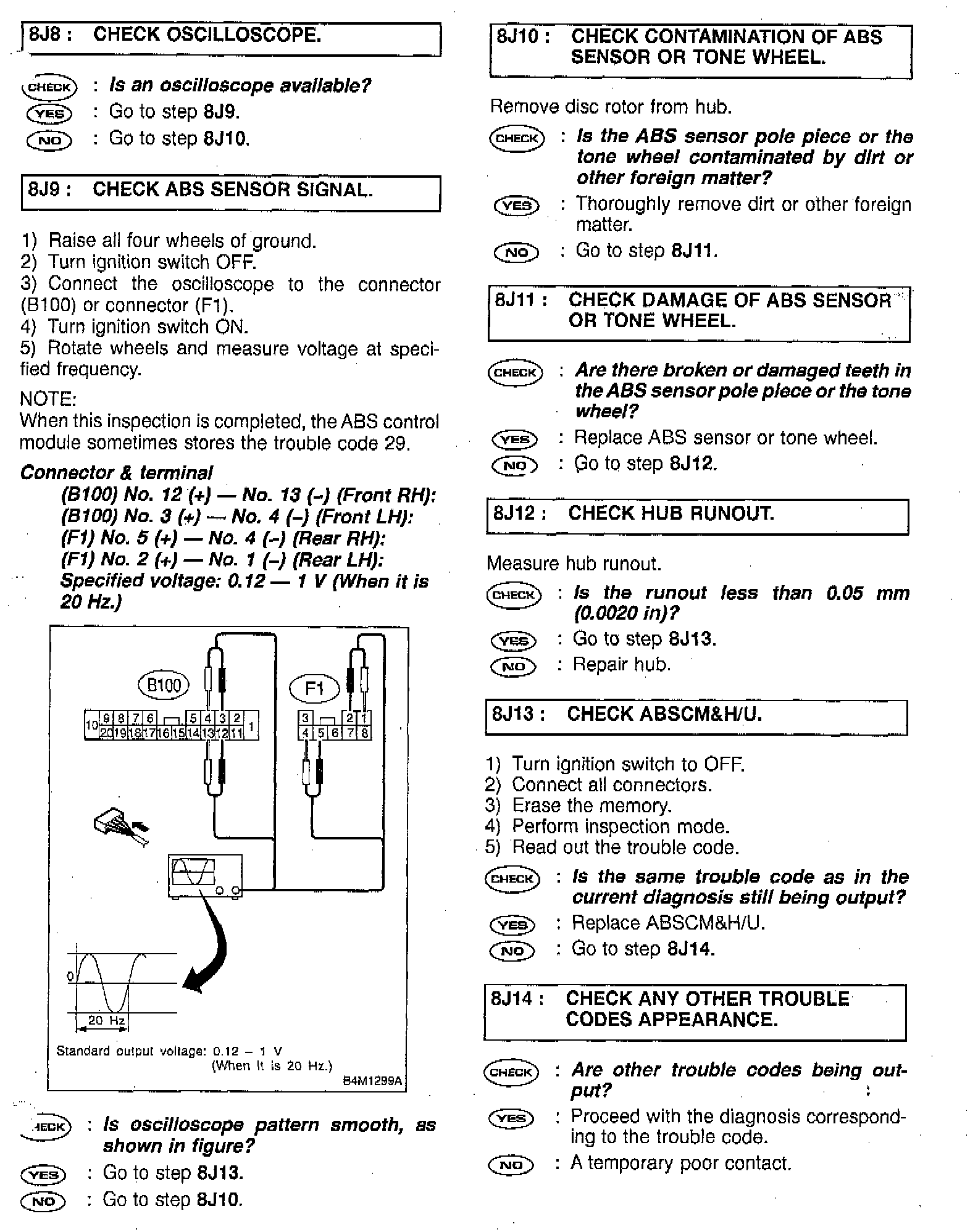

DIAGNOSIS:
Faulty ABS sensor signal (noise, irregular signal, etc.)
Faulty tone wheel
Wheels turning freely for a long time

TROUBLE SYMPTOM:
ABS does not operate.

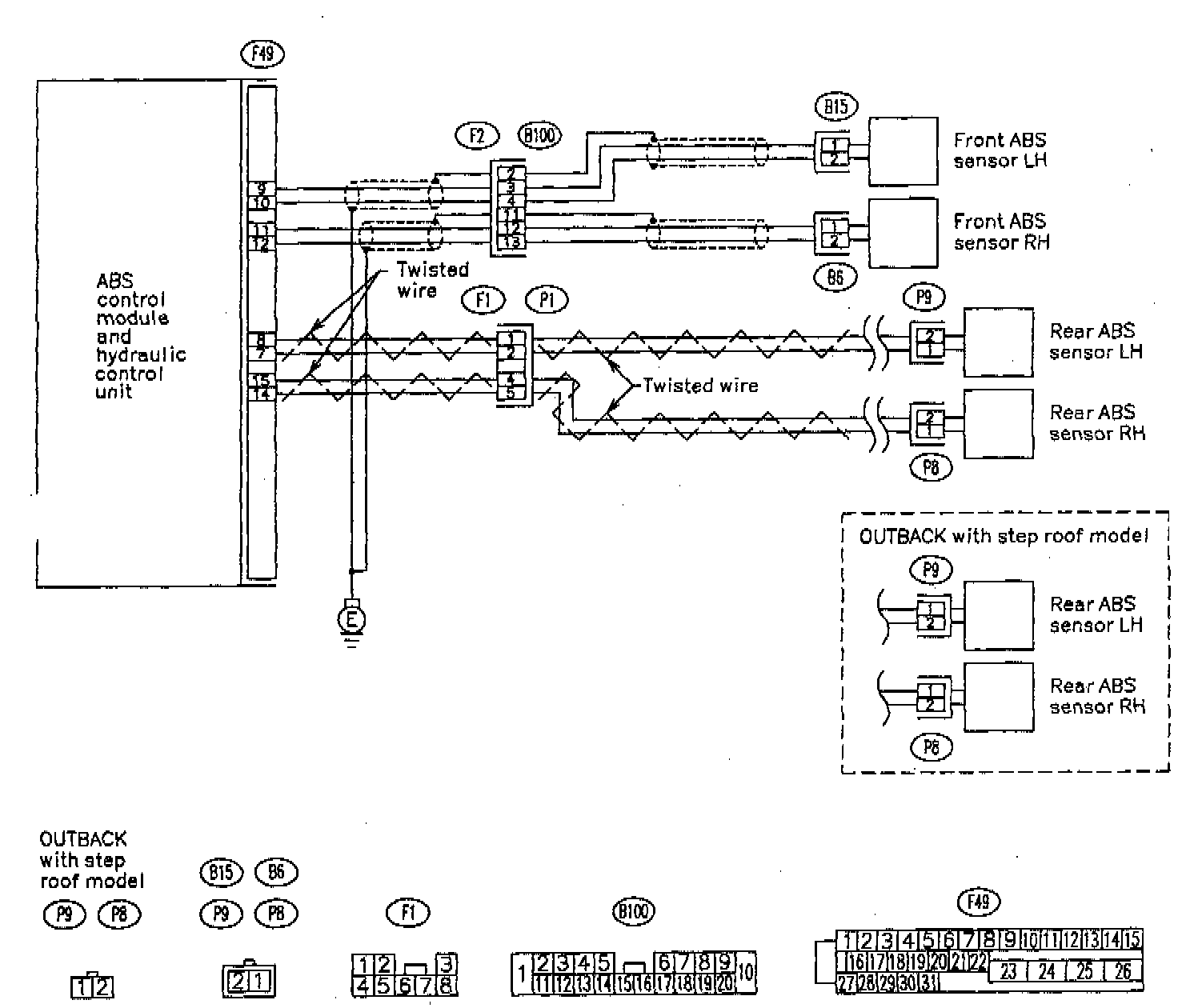

WIRING DIAGRAM:
