Restraint Systems

DIAGNOSIS:
- Airbag main harness circuit is open.
- Passenger's airbag module harness circuit is open.
- Airbag control module is faulty.

CAUTION: Before performing diagnostics on airbag system, turn ignition switch "OFF", disconnect battery ground cable and then wait at least 20 seconds.

5M1: AIRBAG MAIN HARNESS INSPECTION
1. Remove front pillar lower trim (Passenger side).
2. Disconnect connector (AB9) and (AB10) and connect connector (AB9) to test harness F connector (1F).
3. Disconnect connector (AB6) from airbag control module, and connect it to test harness E connector (1E) terminal.

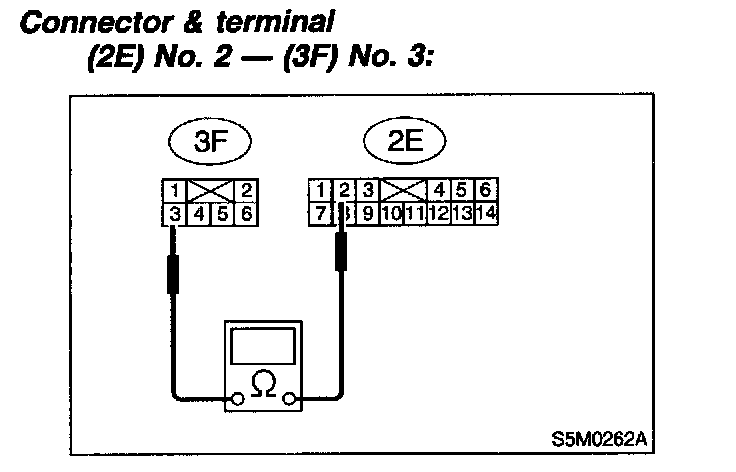

4. Measure resistance between test harness E connector (2E) and test harness F connector (3F) terminals.

CHECK: Is resistance less than 10 Ohms?

YES: Go to step 5M2.

NO: Replace airbag main harness.

5M2: AIRBAG MAIN HARNESS INSPECTION

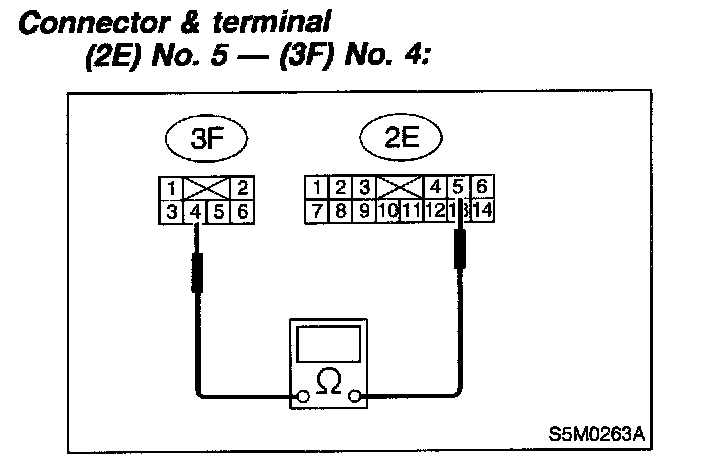

Measure resistance between test harness E connector (2E) and test harness F connector (3F) terminals.

CHECK: Is resistance less than 10 Ohms?

YES: Replace airbag control module.

NO: Replace airbag main harness.
