Transmission Control Systems

TROUBLE CODE 11-ENGINE SPEED SIGNAL














DIAGNOSIS: Engine speed input signal circuit is open or shorted.

TROUBLE SYMPTOM:
- No lock-up (after engine warm-up).
- AT OIL TEMP indicator remains on when vehicle speed is "0".

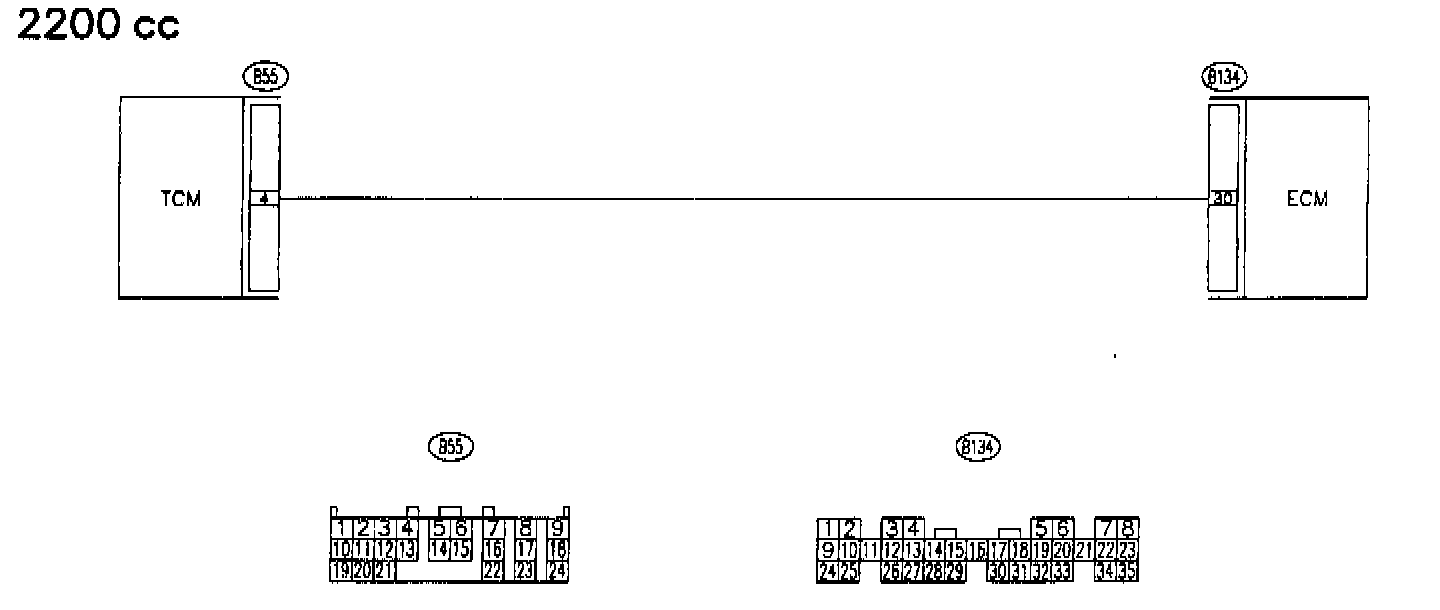

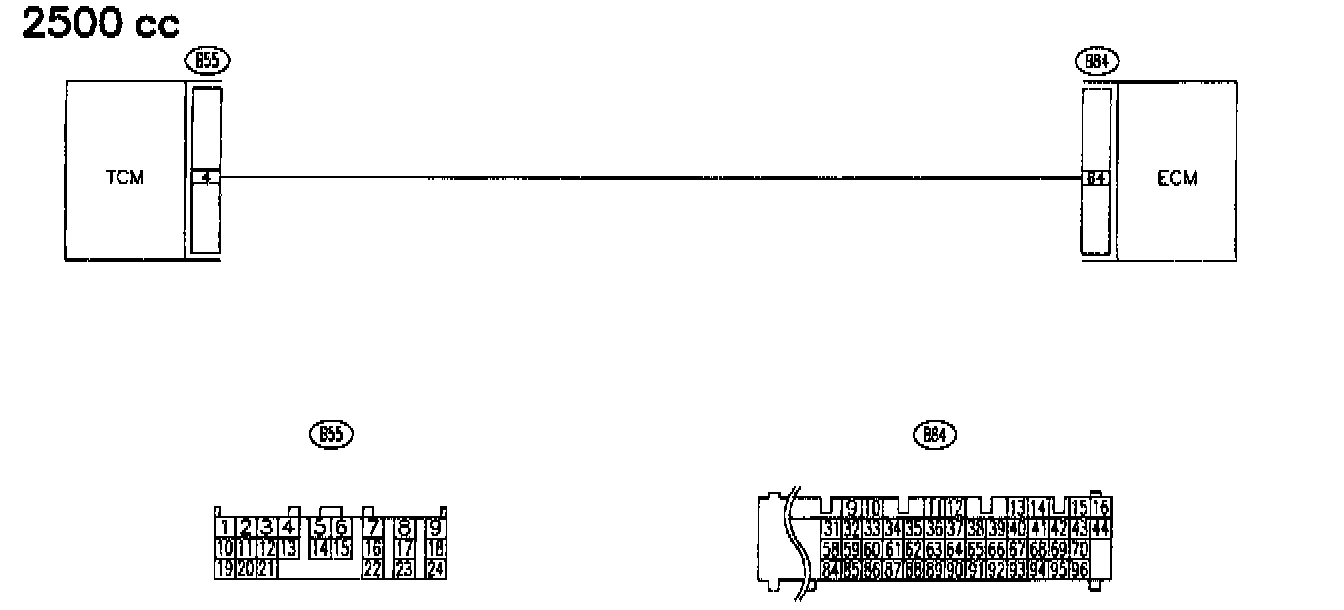

WIRING DIAGRAM:
