Valve Body: Description and Operation

18. HYDRAULIC CONTROL VALVE
The hydraulic control system consists of an oil pump, control valve bodies, clutches, brakes and connecting passages and pipes. When it is activated manually, or automatically by the electronic control system, it hydraulically controls the gearshifting mechanism.

Construction





- Overall

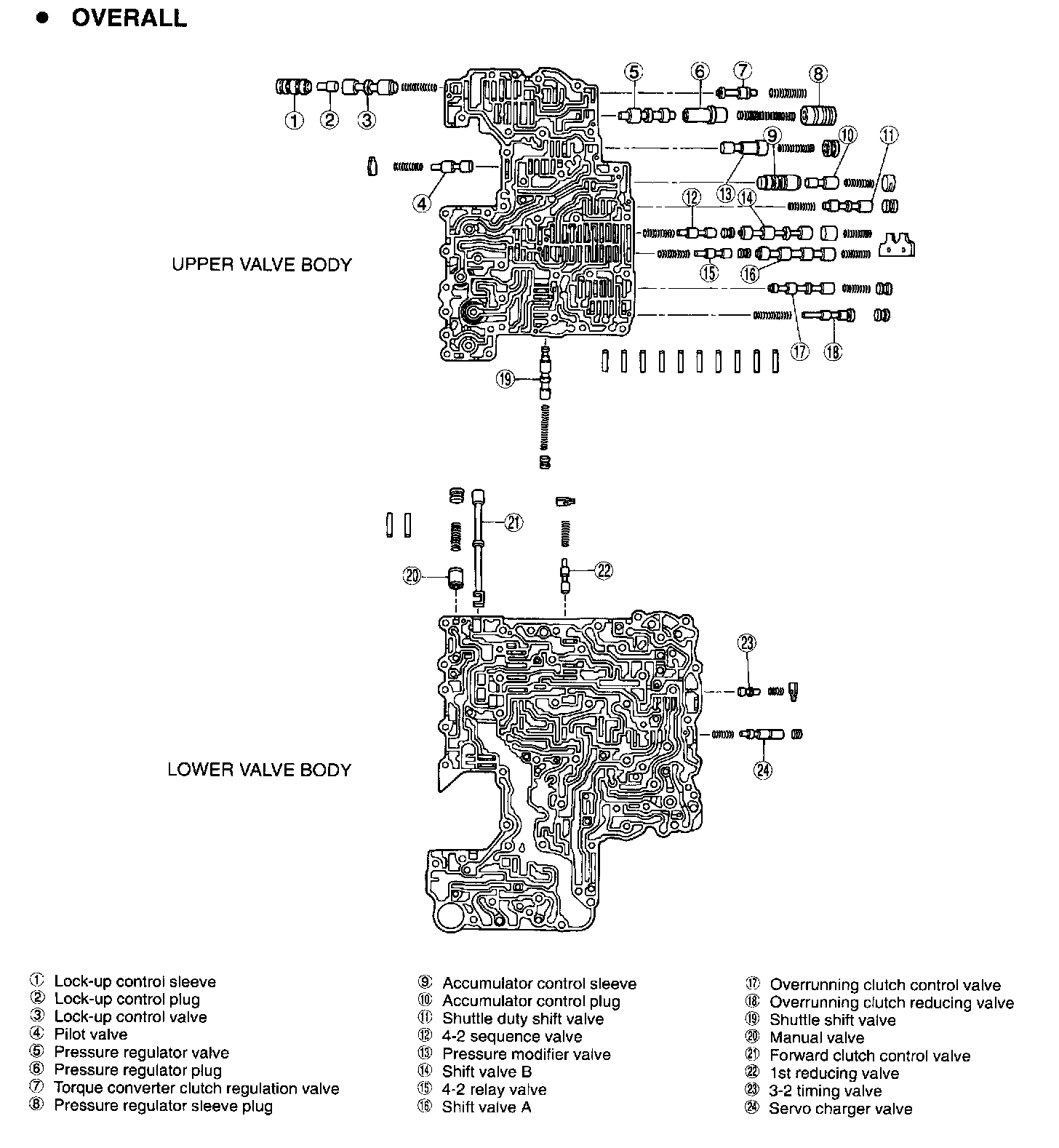

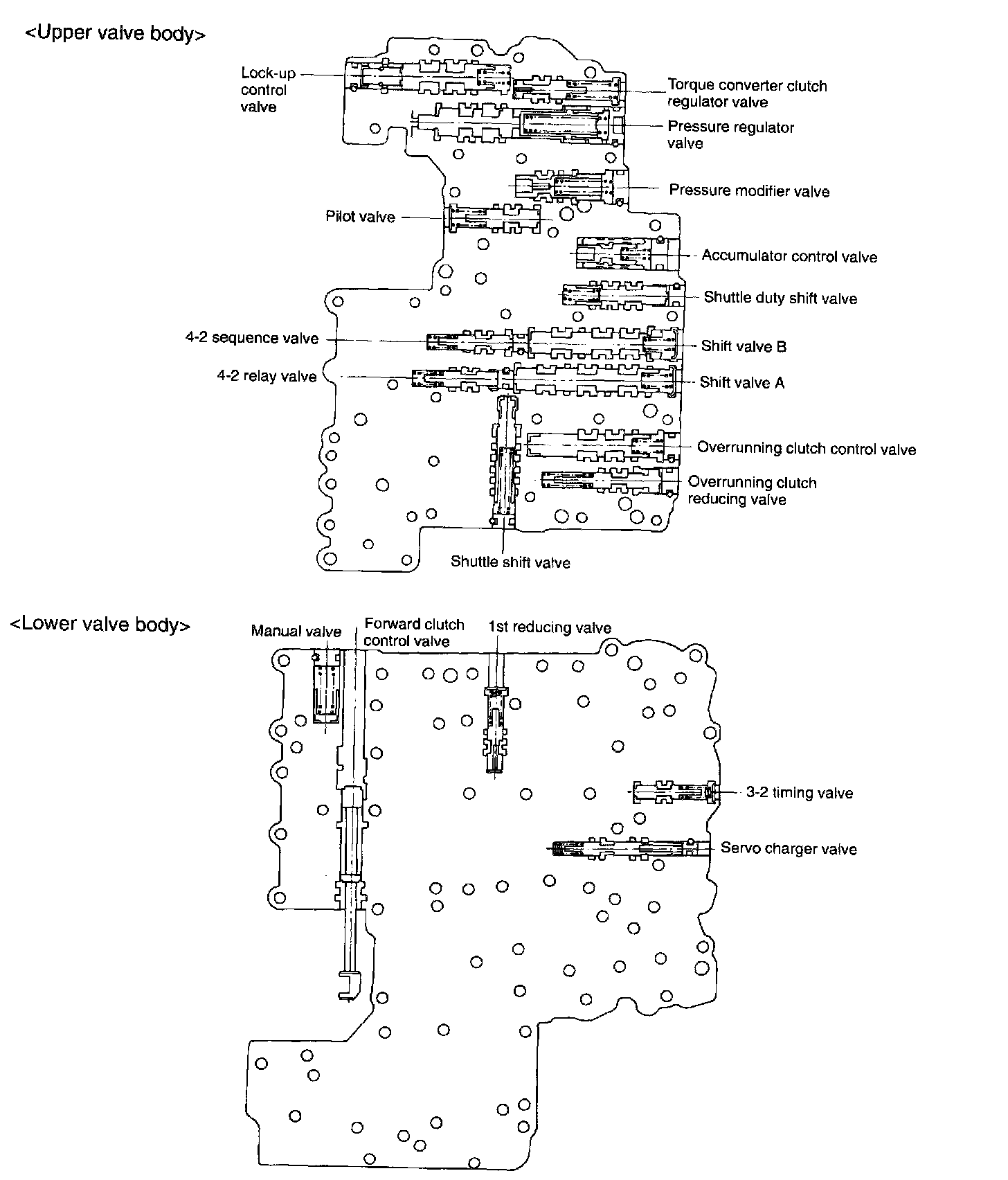

- Valve Body Configuration

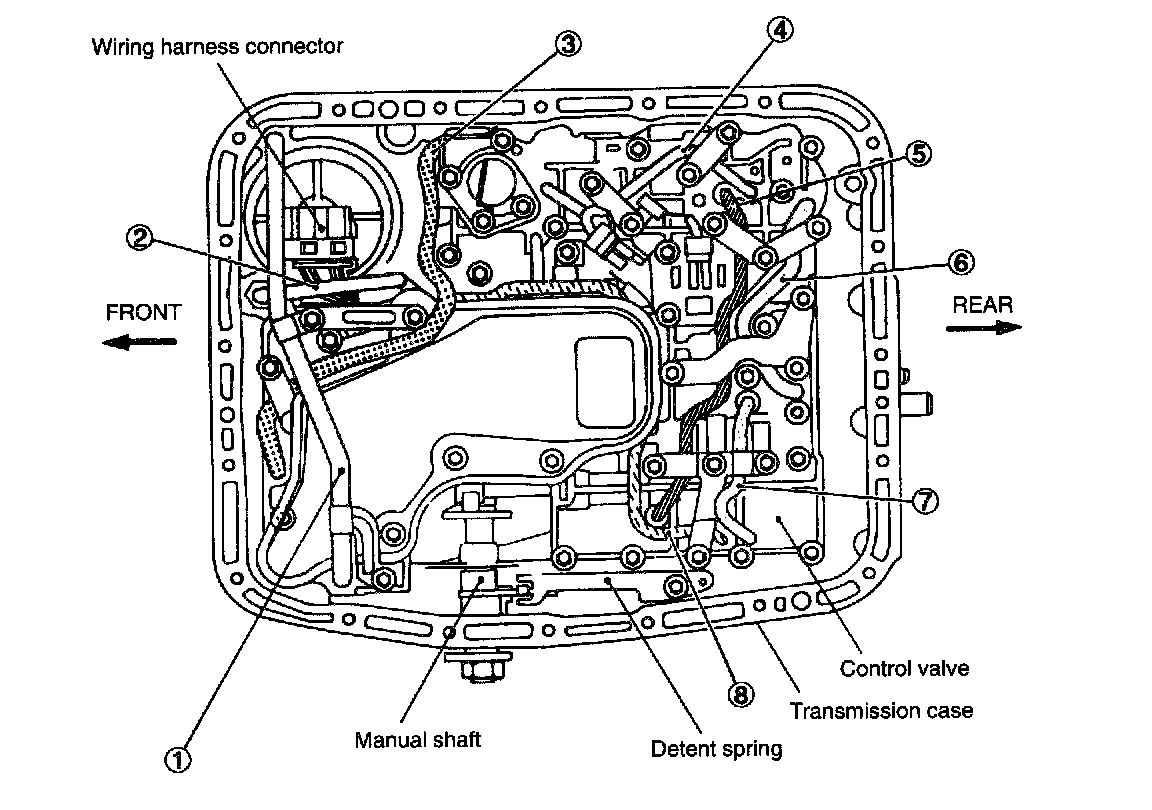

Related Parts (1)

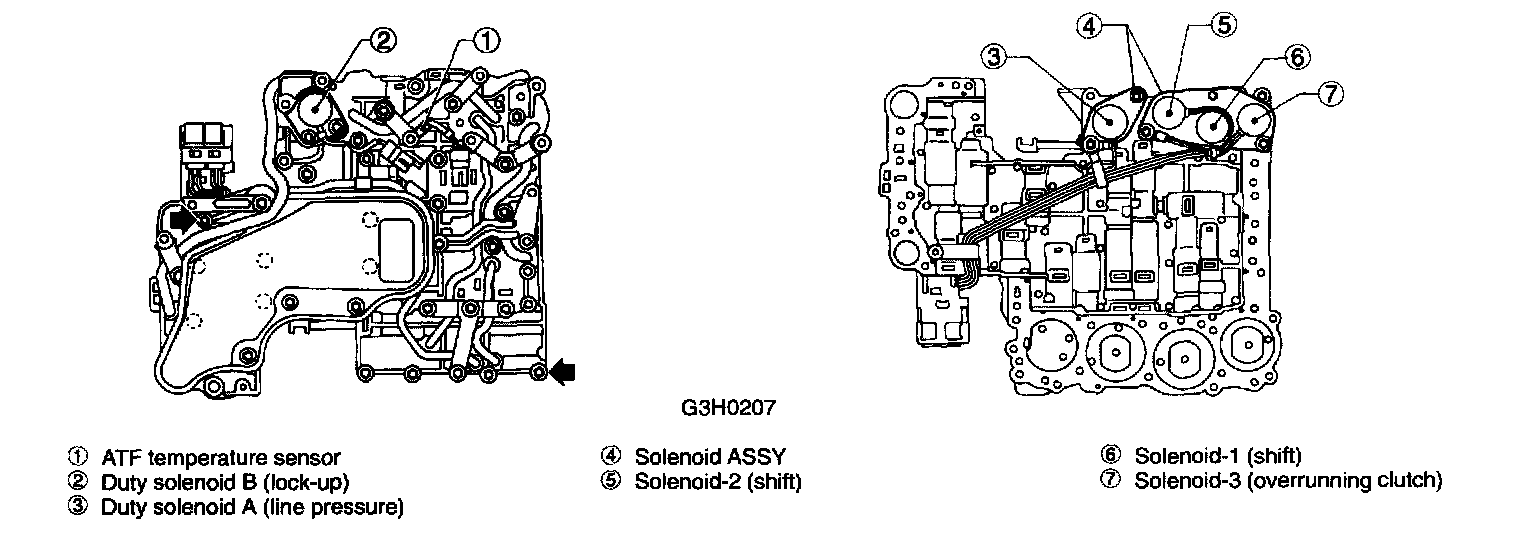

The control valve body is fitted with Solenoid 1 (shift), Solenoid 2 (shift), Solenoid 3 (overrunning clutch), Duty solenoid A (line pressure), Duty solenoid B (lock-up) and an ATF temperature sensor.





Related Parts (2)

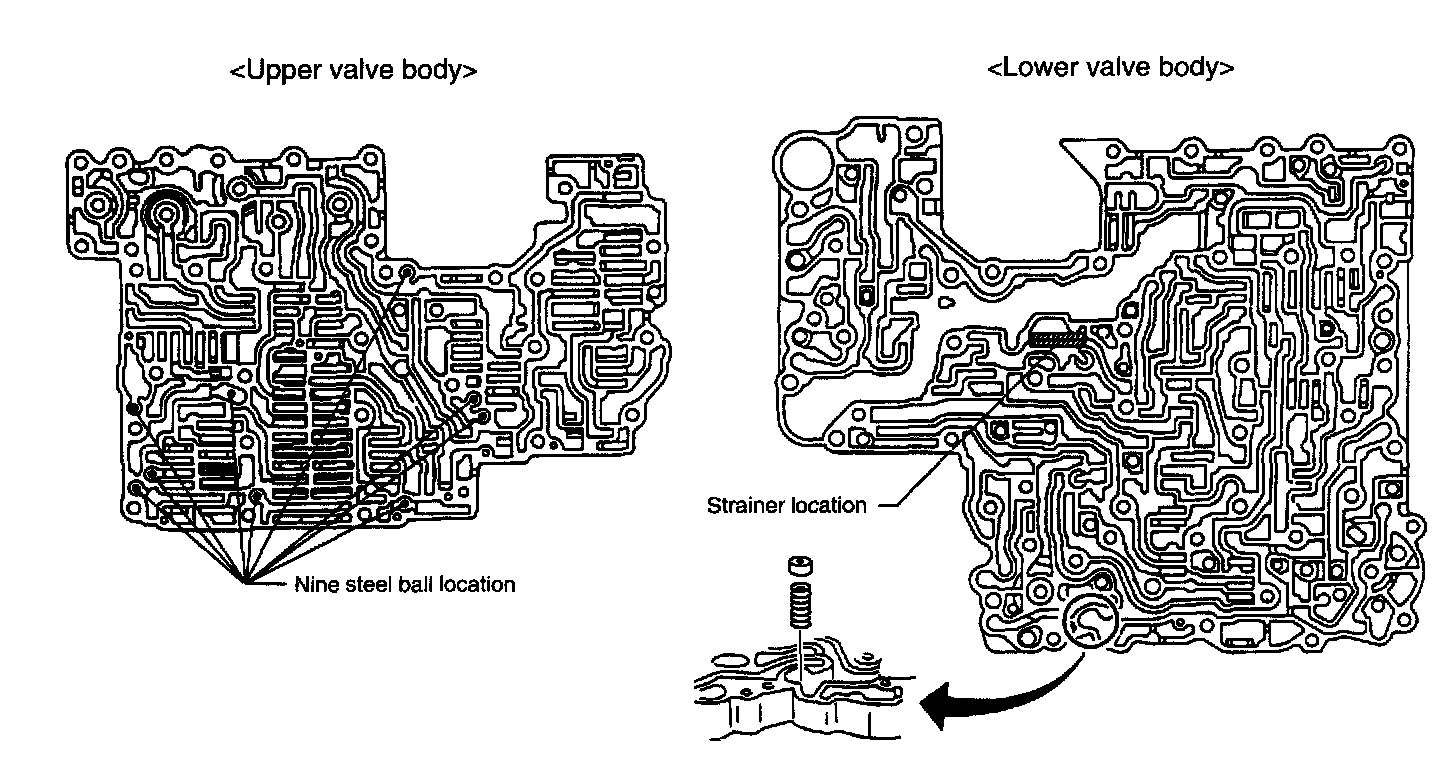

Related Parts (3)

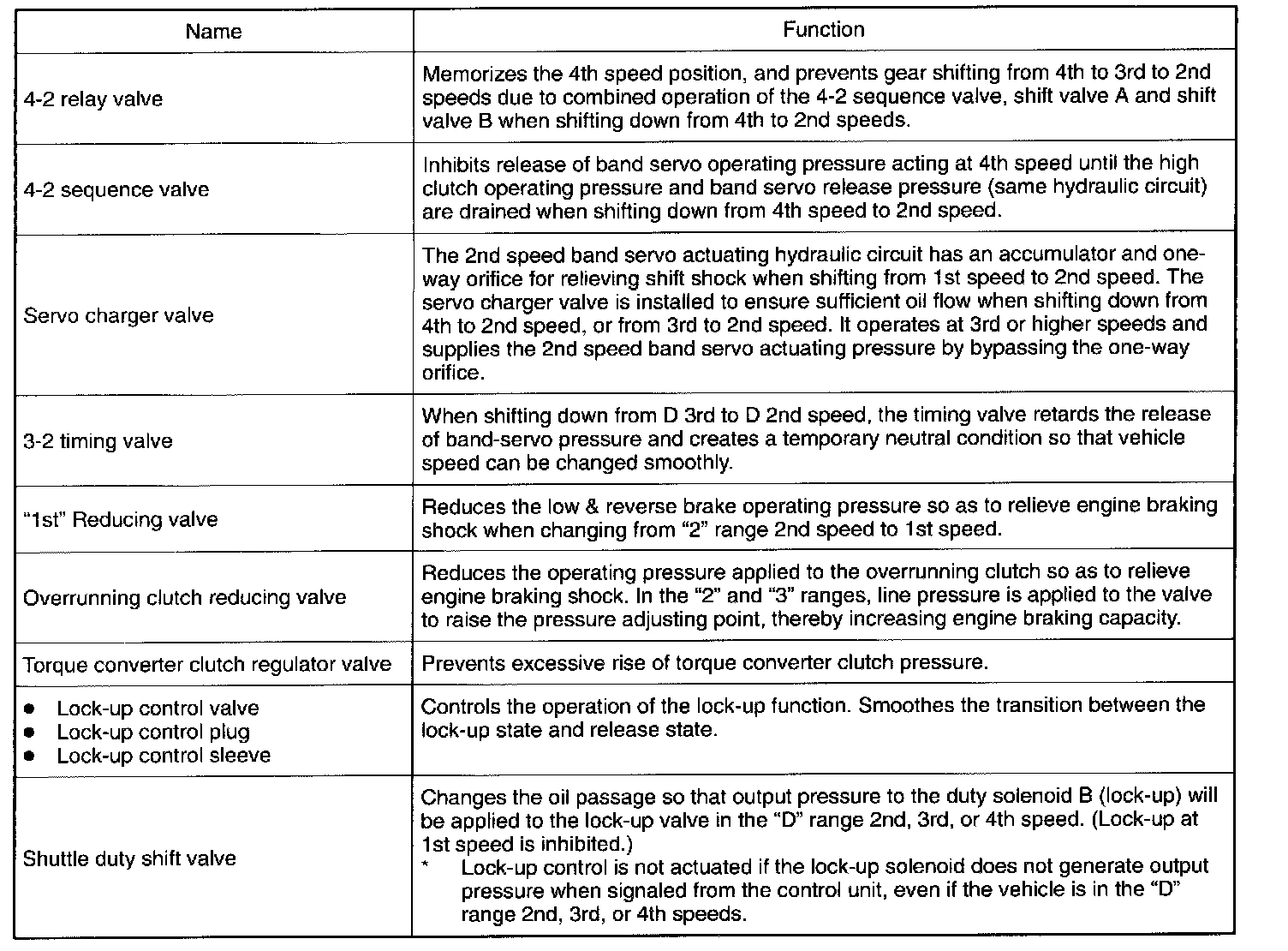

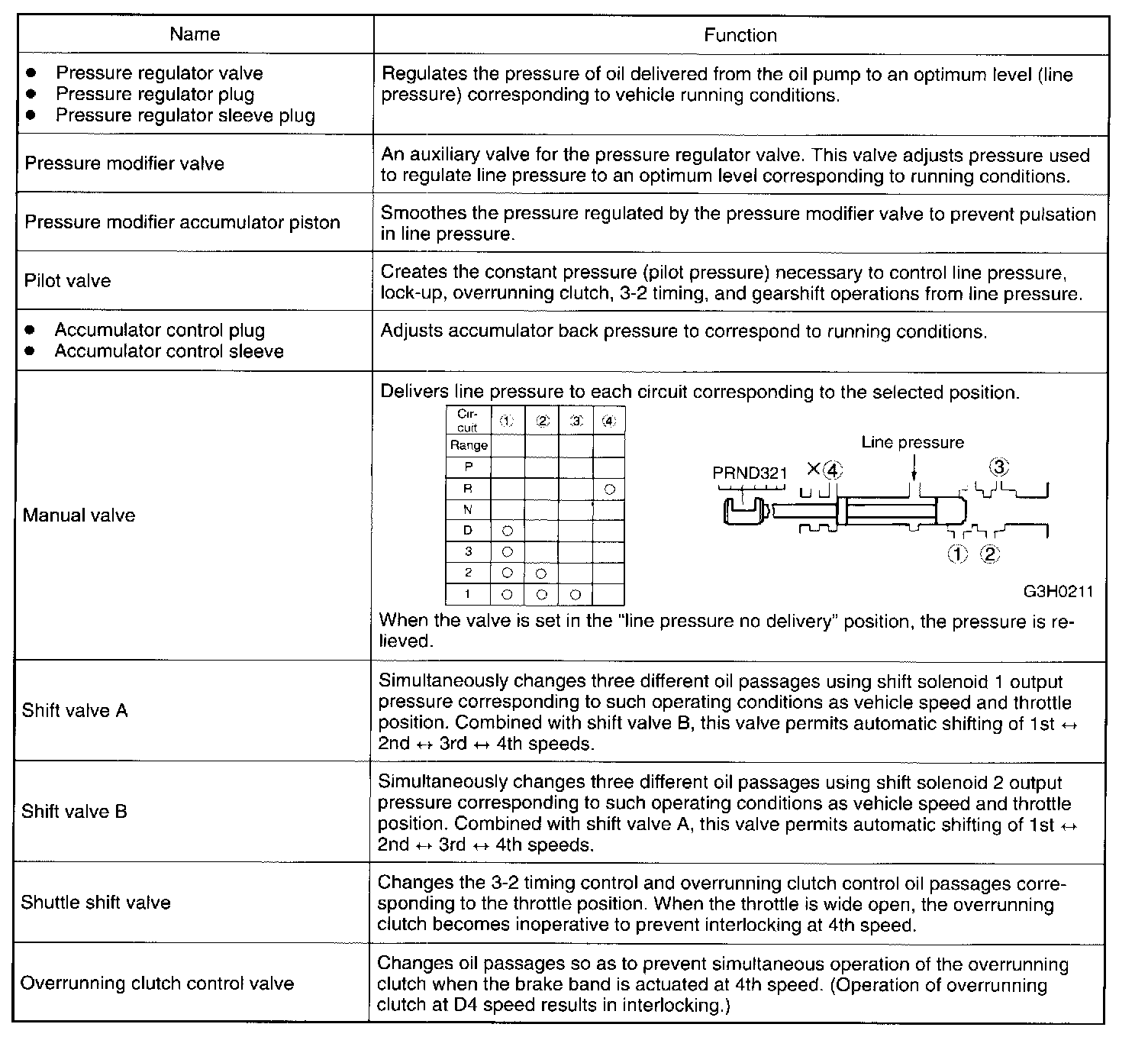

Function
