Shift Interlock: Testing and Inspection

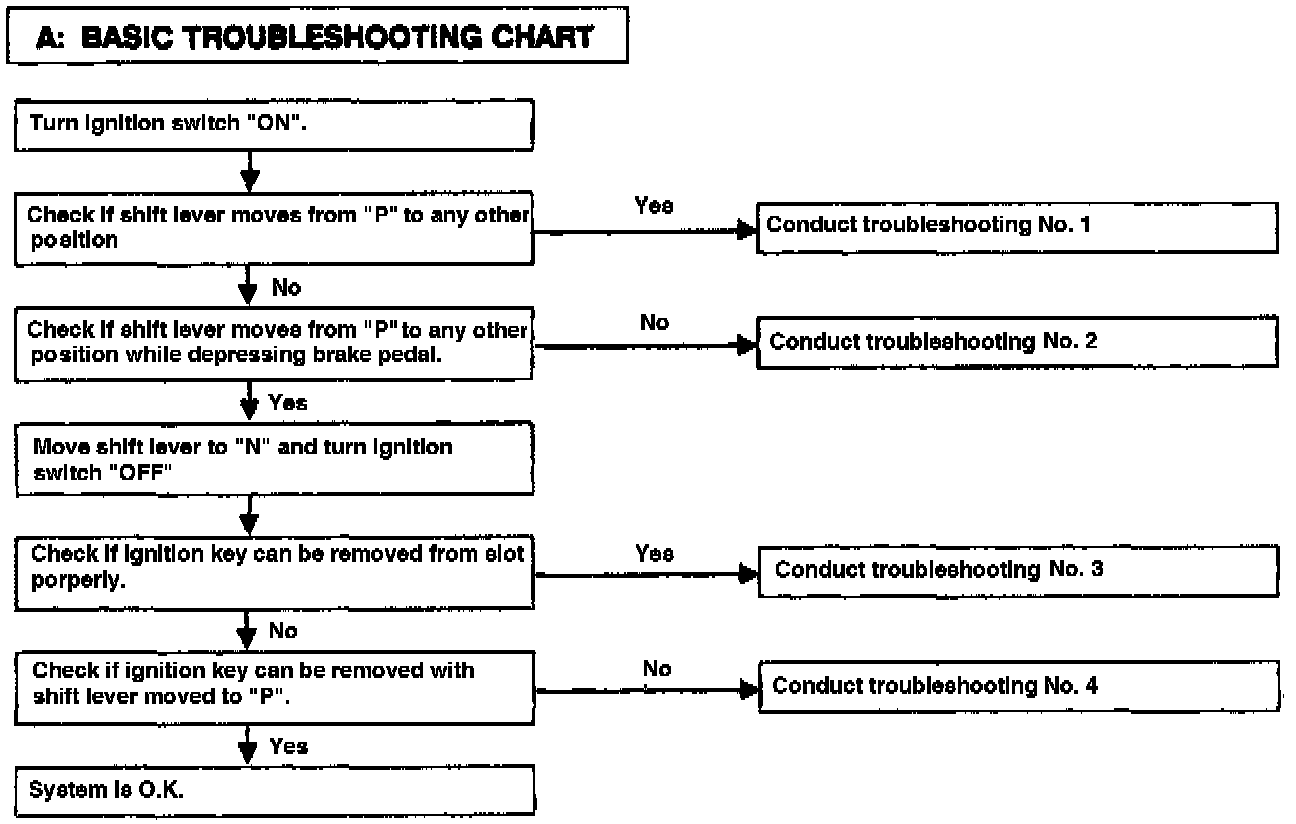

Fig. 9.1 - Basic Troubleshooting Chart:

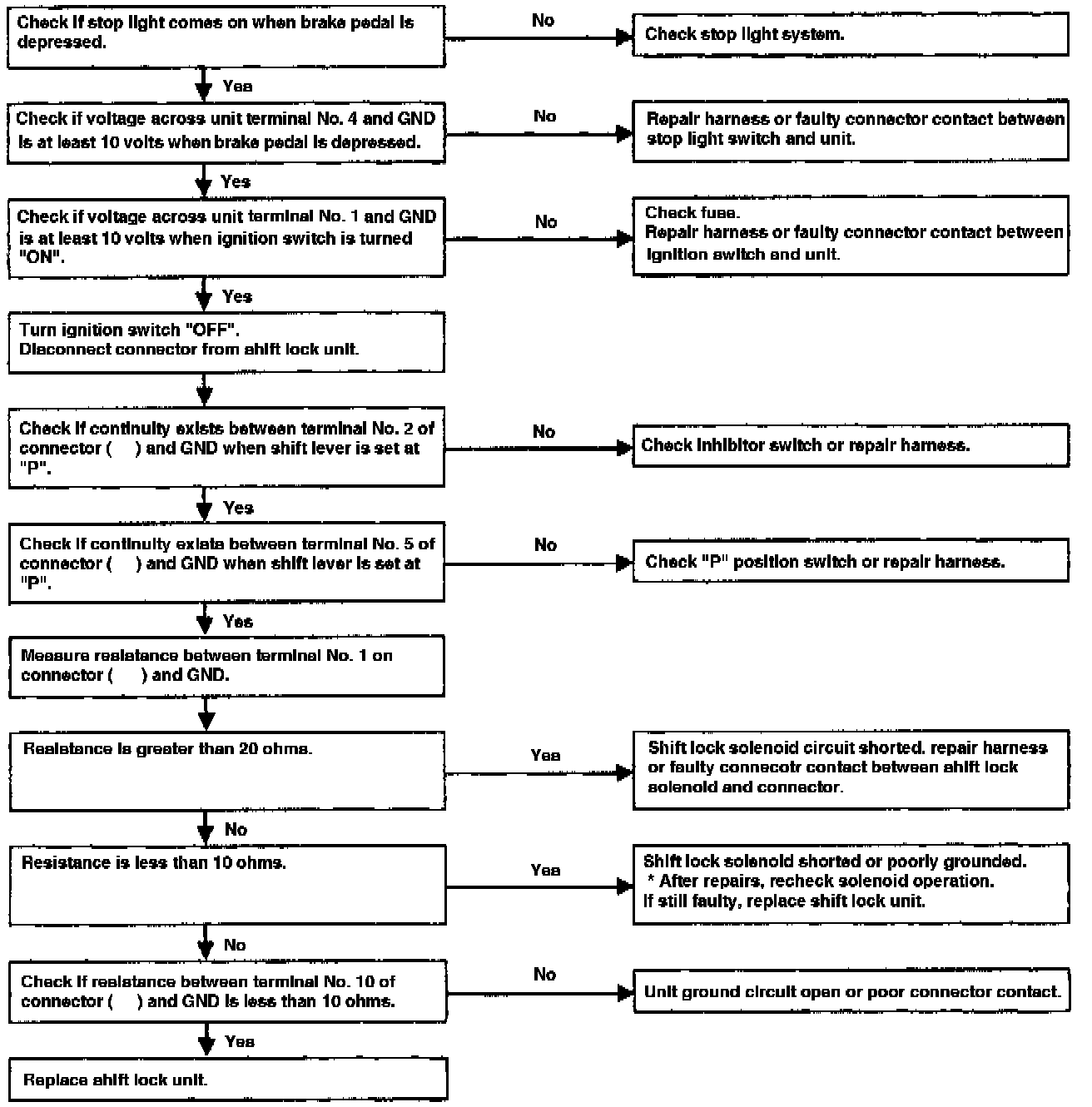

Fig. 9.2 - Troubleshooting Procedure 1:

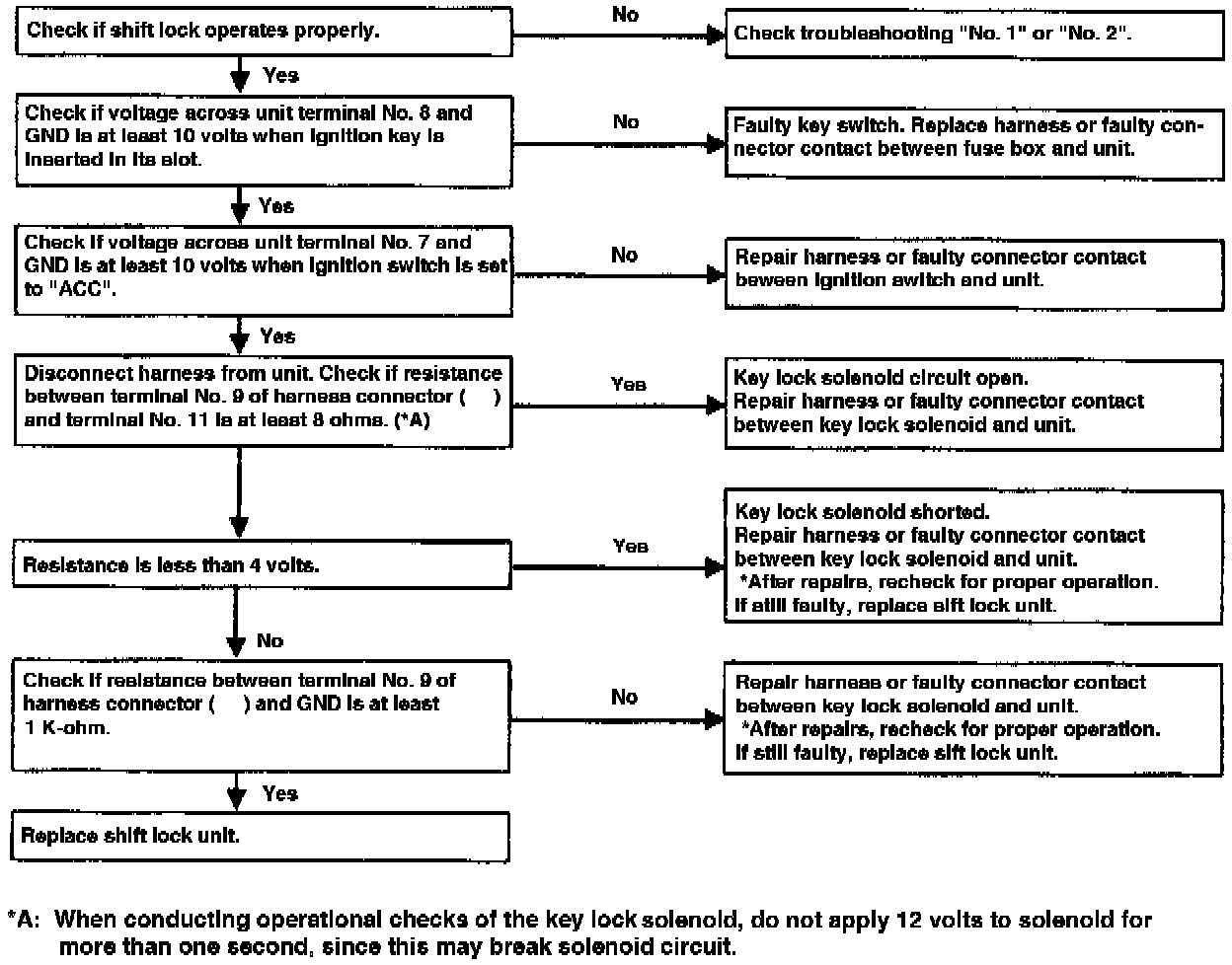

Fig. 9.3 - Troubleshooting Procedure 2:

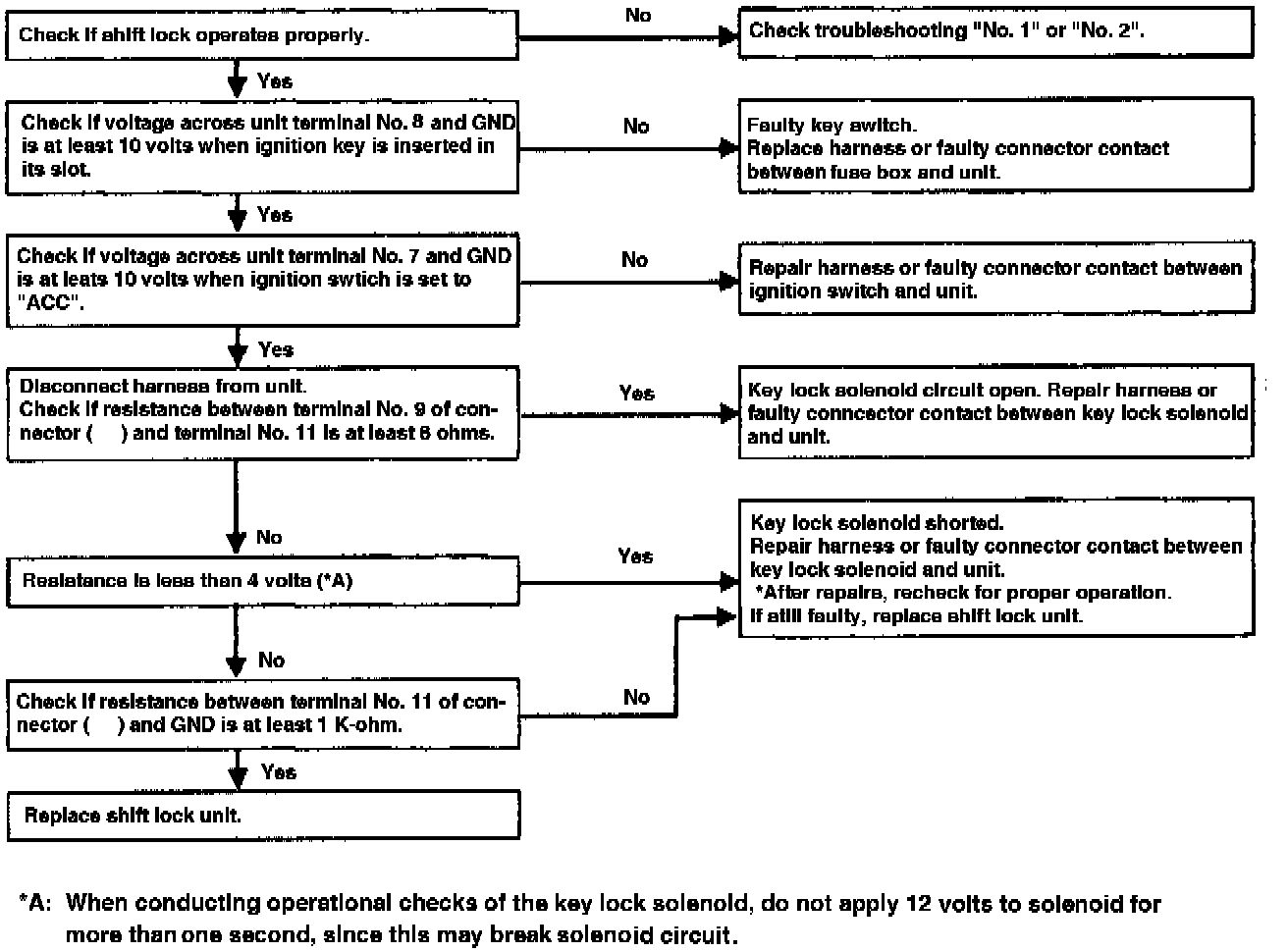

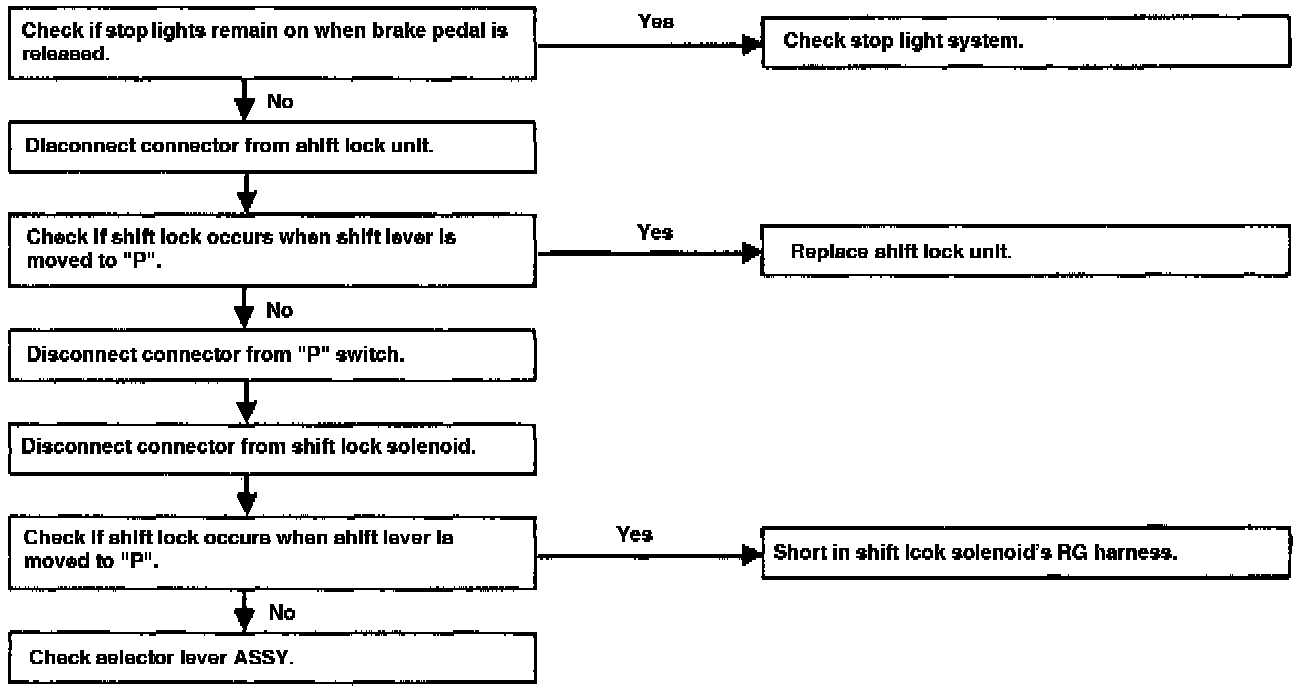

Fig. 9.4 - Troubleshooting Procedure 3:

Fig. 9.5 - Troubleshooting Procedure 4:

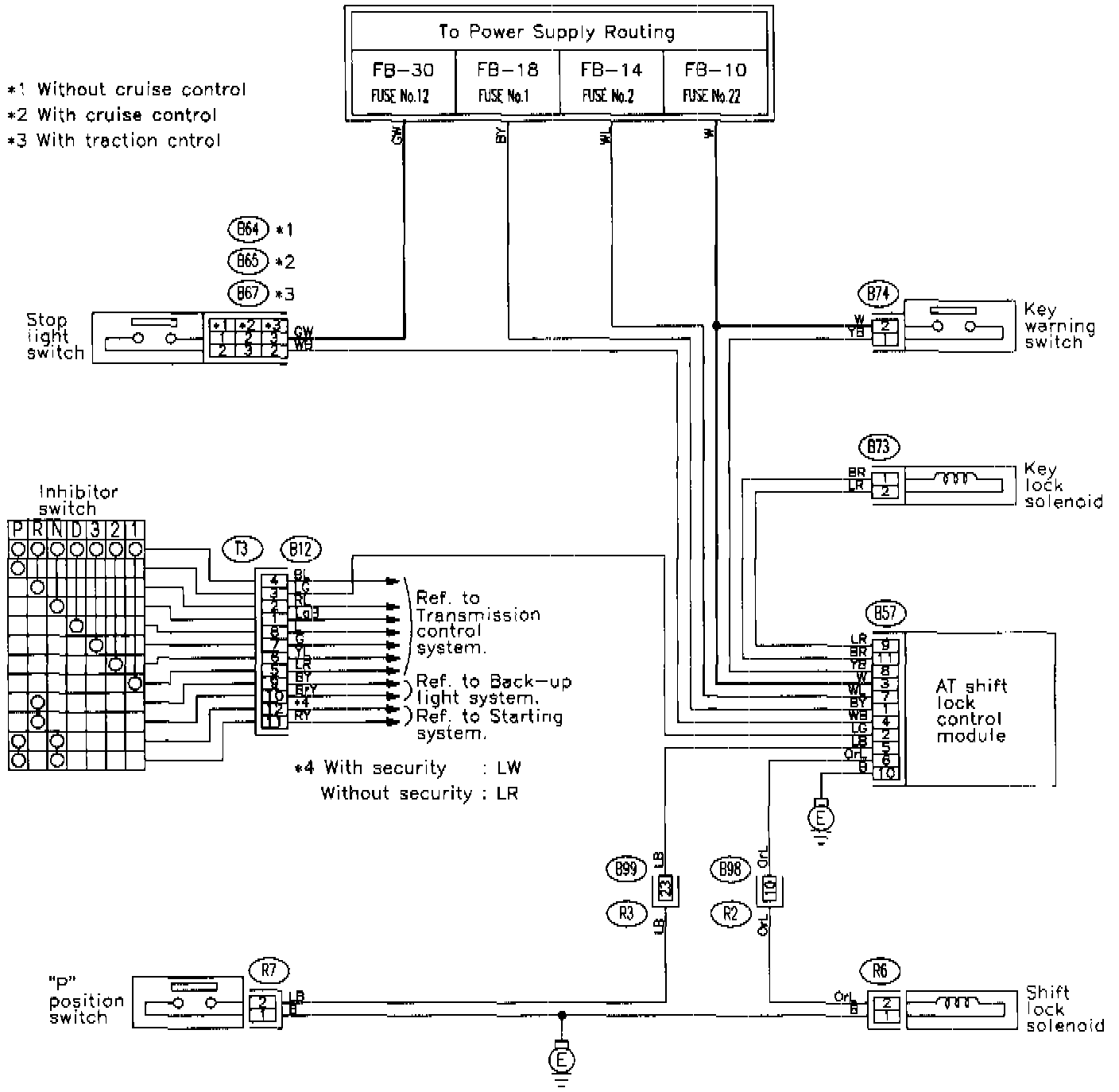

A/T Shift Lock System:
