One-Way Clutch Outer Race

A: DISASSEMBLY

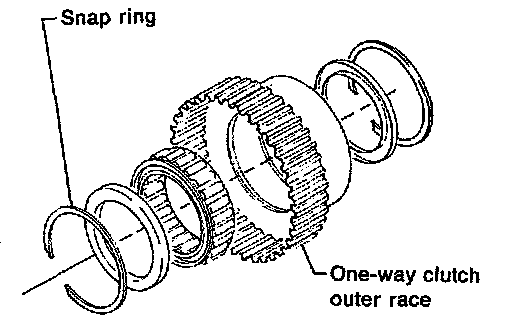

Remove the snap ring. Then remove the one-way clutch (3-4).

B: INSPECTION
Check the sliding surface and one-way clutch (3-4) for any harmful cuts, damage, or other faults.

C: ASSEMBLY





1. Assemble the one-way clutch (3-4), and secure with the snap ring.

NOTE:
Pay attention to the orientation of the one-way clutch (3-4).

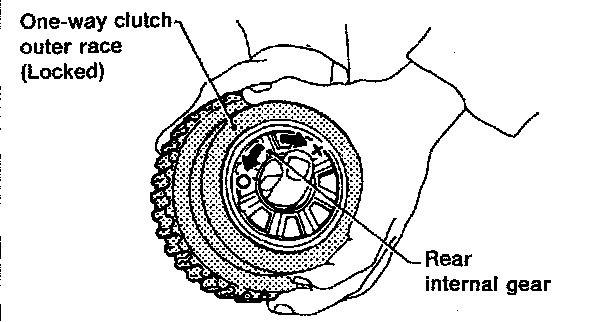

2. Assemble the rear internal gear, and secure the outer race. Make sure that the internal gear is locked in the clockwise direction, and free to rotate in the counterclockwise direction.
