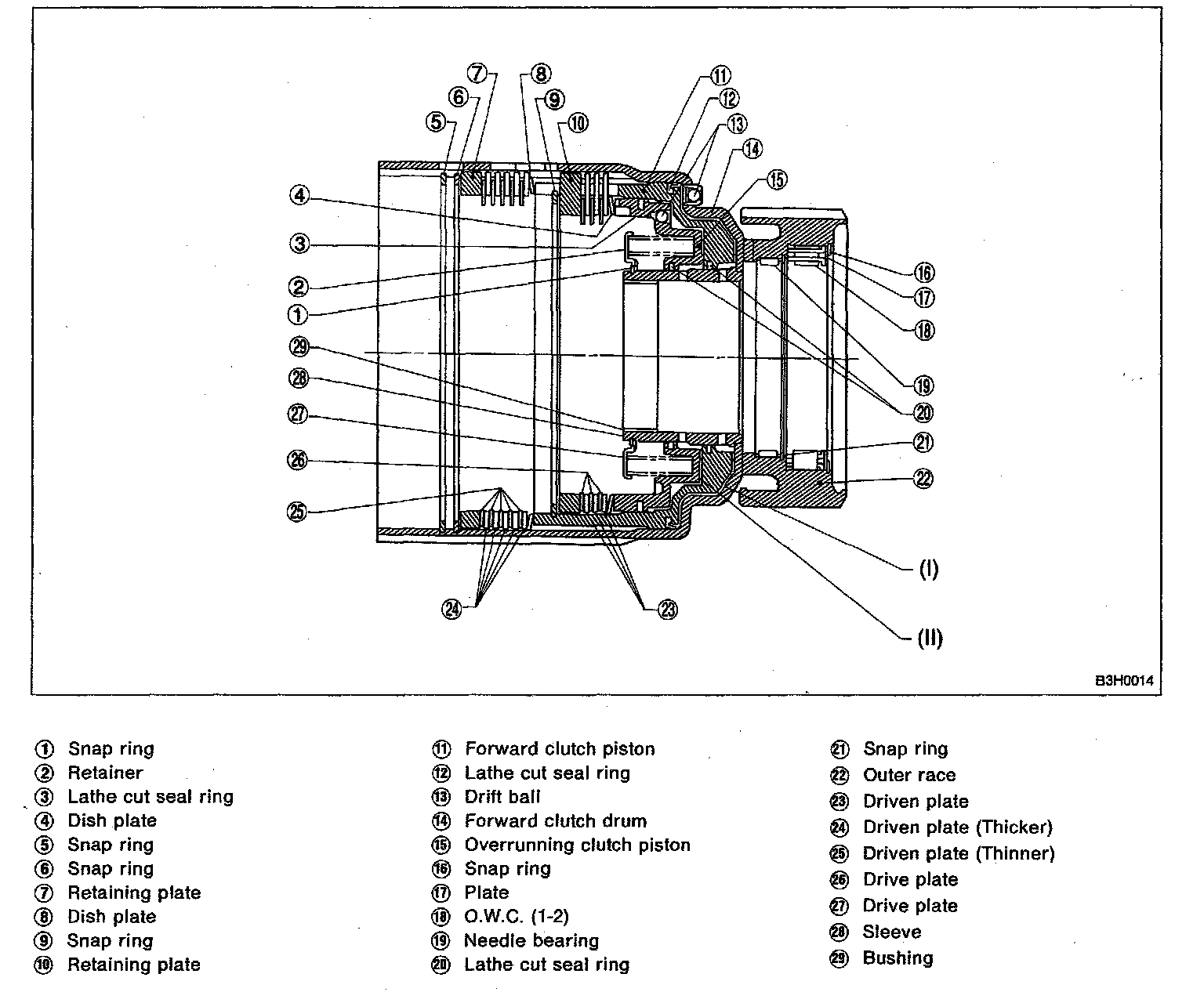

Forward Clutch Drum

A: DISASSEMBLY

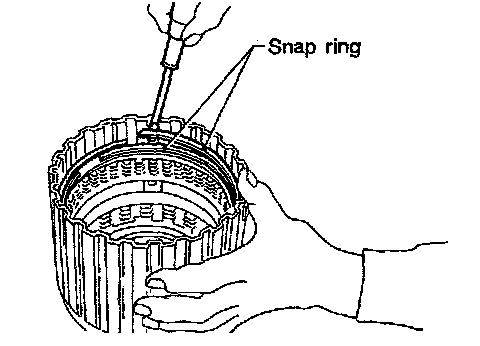

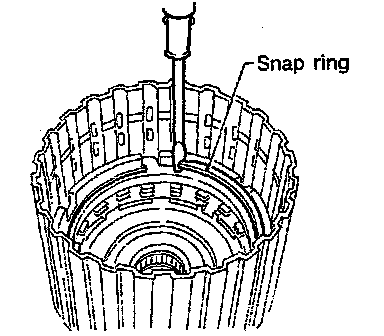

1. Remove two snap rings from the forward clutch drum.
2. Remove the retaining plate, drive plates, driven plates and dish plate. (Forward clutch)





3. Remove the snap ring from the forward clutch drum.
4. Remove the retaining plate, drive plates, driven plates and dish plate. (Overrunning clutch)

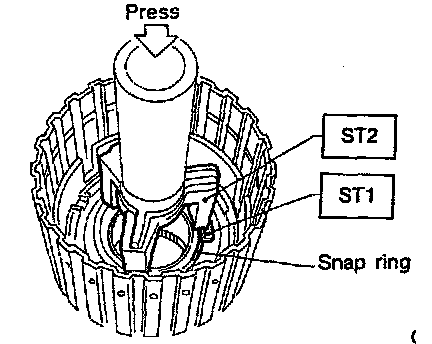

5. Compress the spring retainer, and remove the snap ring from the forward clutch, by using Special Service Tool(SST)1 and (SST)2.
SST1 498627100 SEAT
SST2 398673600 COMPRESSOR

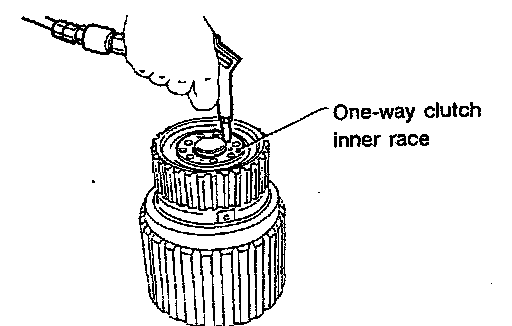

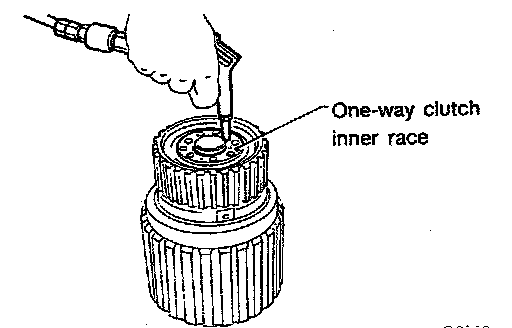

6. Install the one-way clutch inner race to the forward clutch drum, and apply compressed air to remove the overrunning piston and forward piston.





7. Remove the one-way clutch after taking out the snap ring.

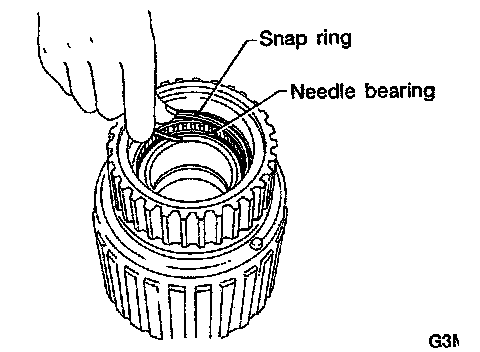

8. Remove the needle bearing after taking out the snap ring.

B: INSPECTION
1. Drive plate facing for wear and damage
2. Snap ring for wear, return spring for setting and breakage, and snap ring retainer for deformation
3. Lip seal and lathe cut ring for damage
4. Piston and drum check ball for operation

C: ASSEMBLY

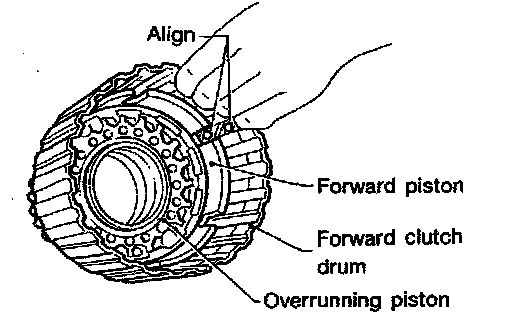

1. Fit the forward piston and overrunning piston to the forward clutch drum.

NOTE: Align the forward piston cut-out portion with the spline of the drum.





2. Set the retainer on the piston with a press using SST1 and SST2,.and attach the snap ring.
SST1 498627000 SEAT
SST2 398673600 COMPRESSOR

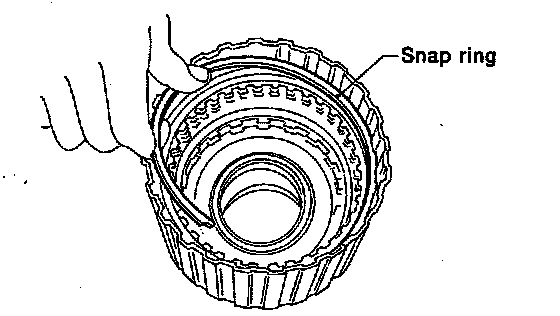

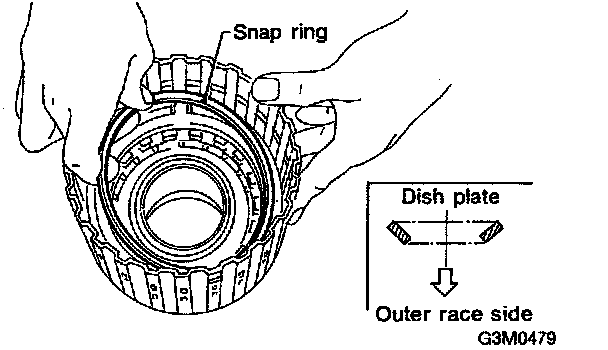

3. Install the dish plate, driven plates, drive plates, and retaining plate, and secure with the snap ring. (Overrunning clutch)

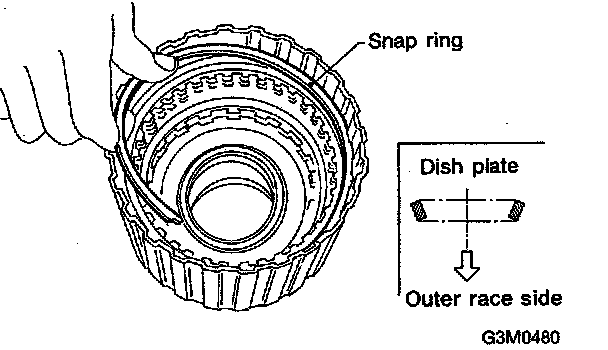

NOTE: Pay attention to the orientation of the dish plate.





4. Install the dish plates, driven plates, drive plates, and retaining plate, and secure with the snap ring. (Forward clutch)

NOTE: Pay attention to the orientation of the dish plate.





5. Install the snap ring (for front planetary carrier).





6. Check the forward clutch and overrunning clutch for operation.
Set the one-way clutch inner race, and apply compressed air for checking.

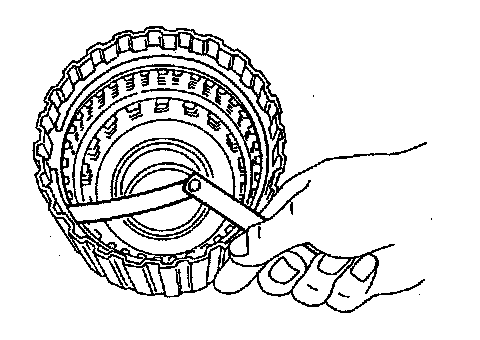

7. Checking clearance:
- Forward clutch

Standard value:
0.45 - 0.85 mm (0.0177 - 0.0335 inch)
Allowable limit:
1.6 mm (0.063 inch)

- Overrunning clutch

Standard value:
1.0 - 1.4 mm (0.039 - 0.055 inch)
Allowable limit:
2.0 mm (0.079 inch)

NOTE:
Before measuring clearance, place the same thickness of shim on both sides to prevent retaining plate from tilting.

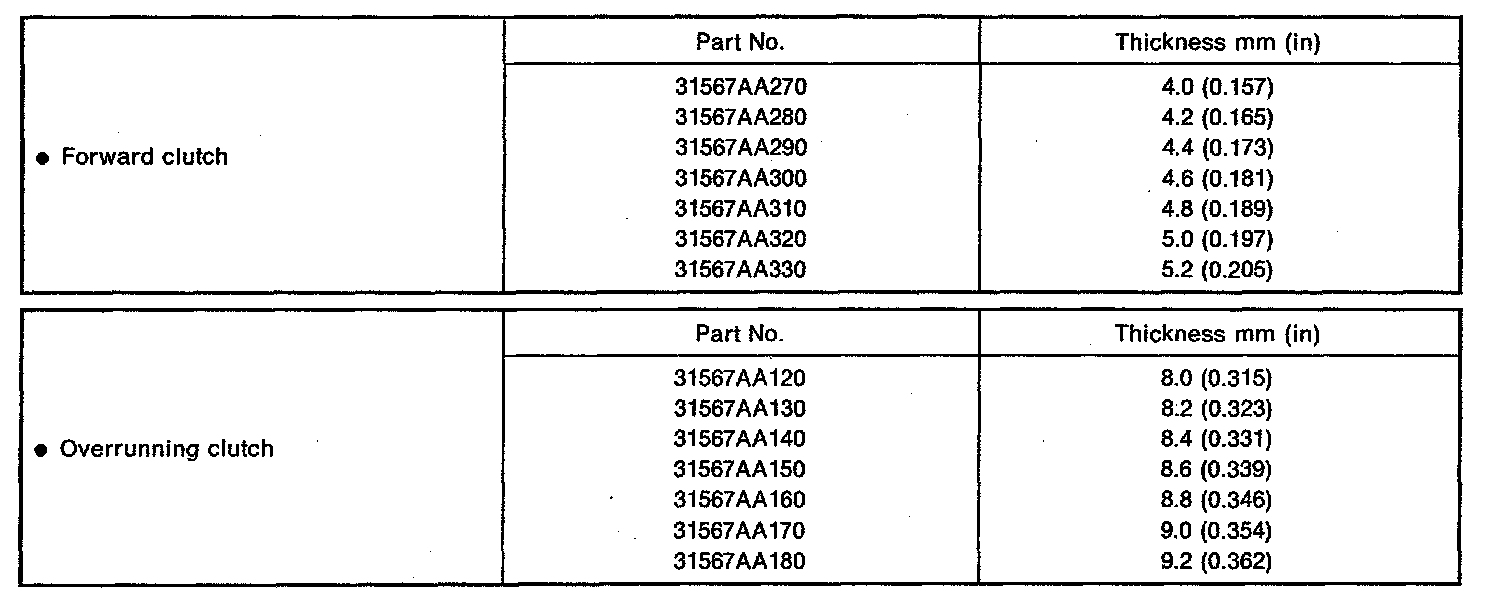

If the clearance is out of the specified range, select a proper retaining plate so that the standard clearance can be obtained.





8. Install the needle bearing, and secure with the snap ring.

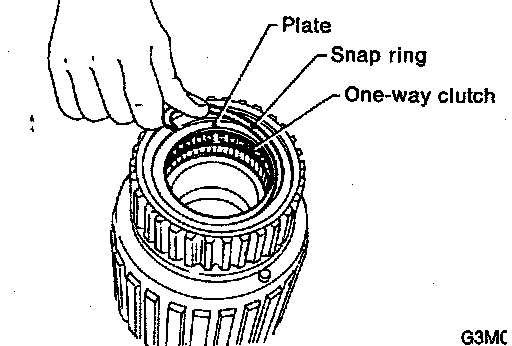

9. Install the one-way clutch (1-2) and plate, and secure with the snap ring.

NOTE:

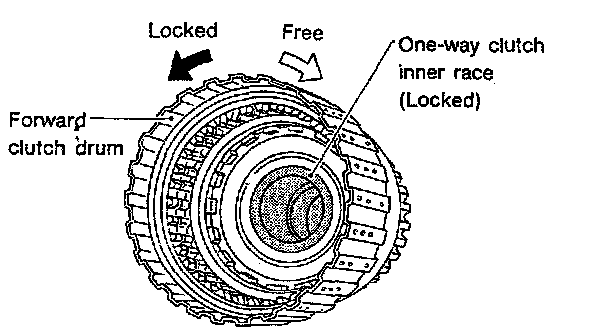

Set the inner race. Make sure that the forward clutch is free in the clockwise direction and locked in the counterclockwise direction, as viewed from the front of the vehicle.
