Band: Adjustments

1. Brake Band

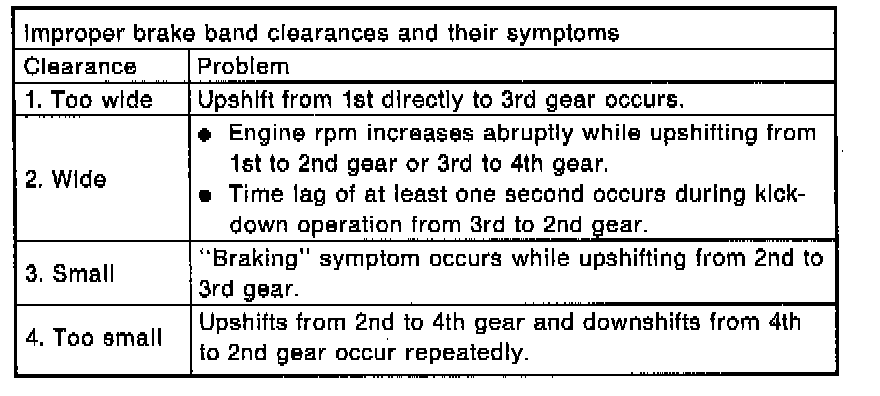

If the following abnormal shifting conditions are noted in a road test, the brake band must be adjusted.

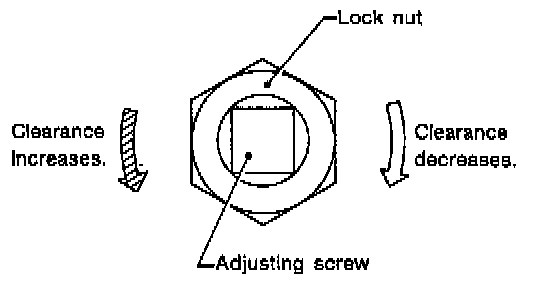

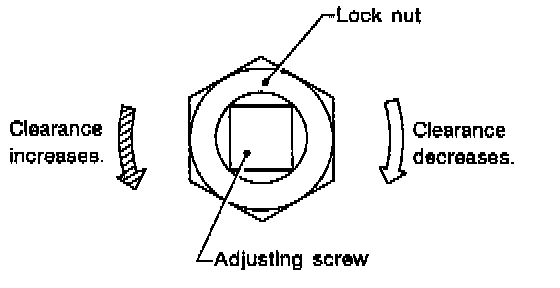

Adjustment of the adjusting screw

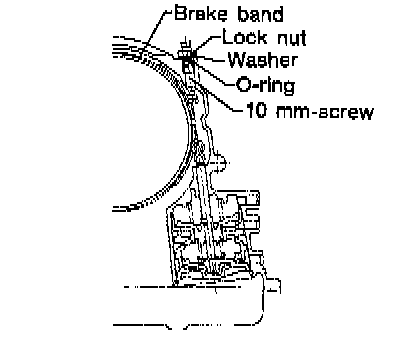

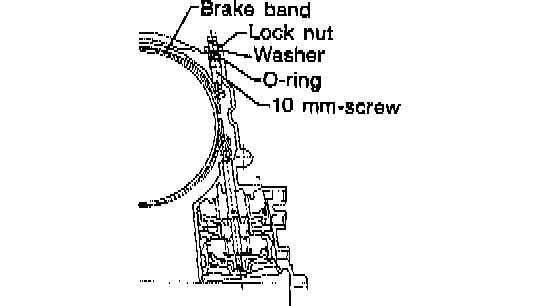

1. Using a ST, immobilize the end of the 10 mm-screw projecting on the left side of the transmission case, and loosen the nut with a double-end wrench. In the case of occurrence of problems 2. and 3. mentioned previously, perform the adjustment by loosening or tightening the nut within a range of 3/4 turn from this state.
ST 398603610 SOCKET WRENCH

CAUTION: Do not loosen excessively; otherwise, the band strut on the servo piston will drop off.





2. In case of the occurrence of problems 1. and 4. mentioned previously, perform the adjustment as follows:
Adjusting procedure: Tighten adjust screw to 9 Nm (0.9 kg-m, 6.5 ft. lbs.) torque, then back off three turns.

CAUTION: Do not tighten the adjusting screw with an excessively large torque.





3. With the adjusting screw immobilized, tighten the lock nut.

Tightening torque: 26 ± 2 Nm (19.5 ± 1.4 ft. lbs.)
