Manual Corrections: 98 Legacy..
NUMBER: 18-41-97DATE: 11-20-97
APPLICABILITY
1998 Legacy Service Manual
SUBJECT
Service Manual Correction

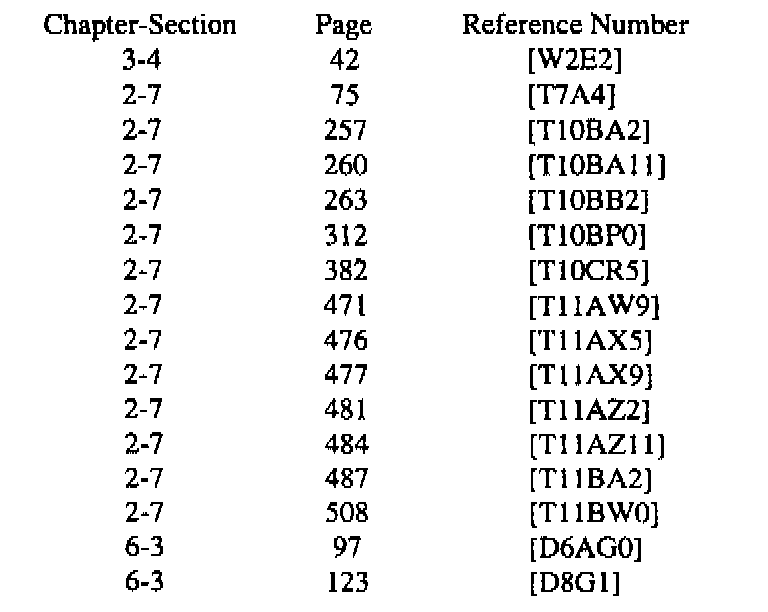

Please locate and replace the affected pages.
The reference numbers of the new pages may change, however the page number will always match.
Please perform this correction as soon as possible to ensure the most correct information is conveyed each time the Service Manual is use.

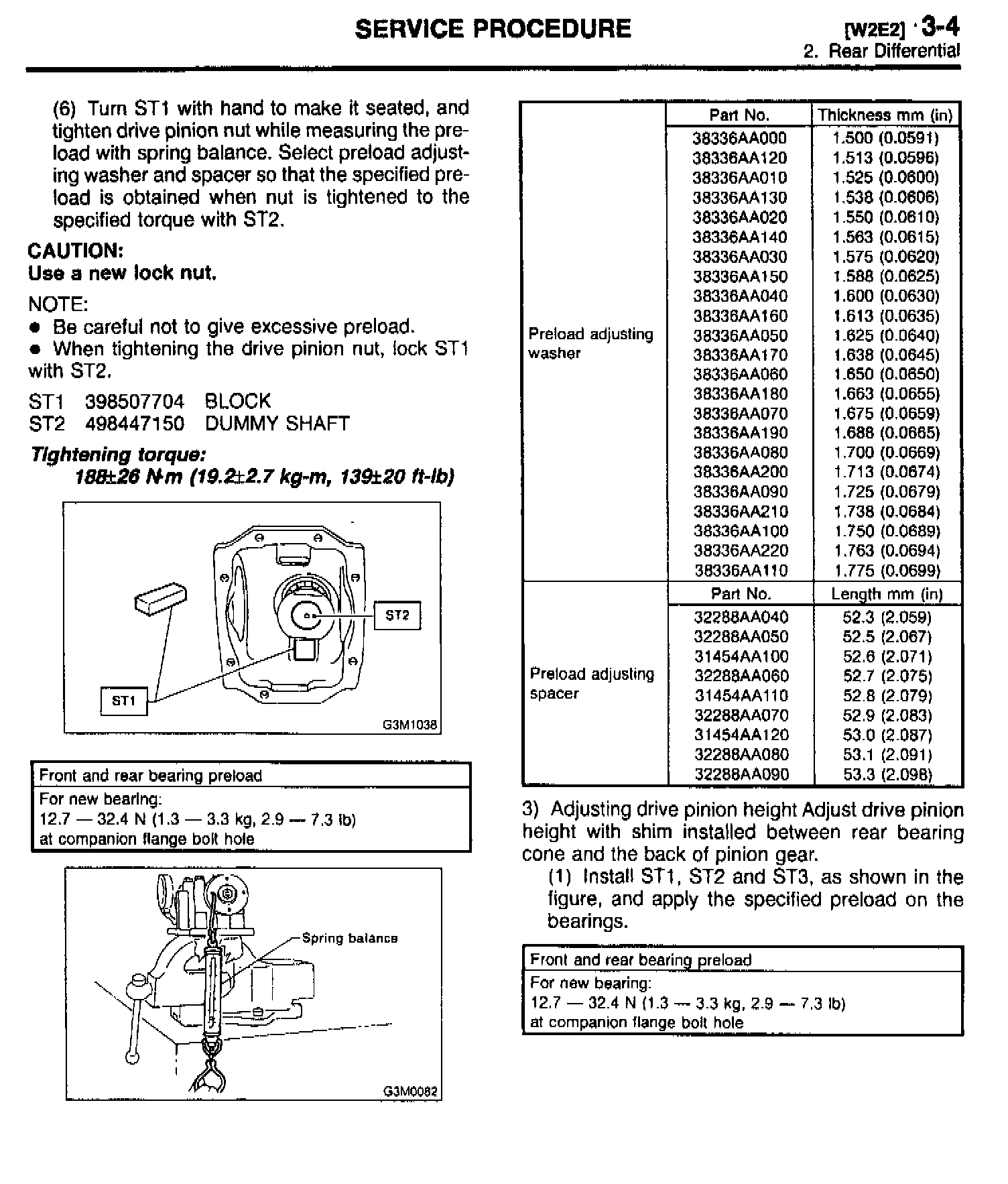

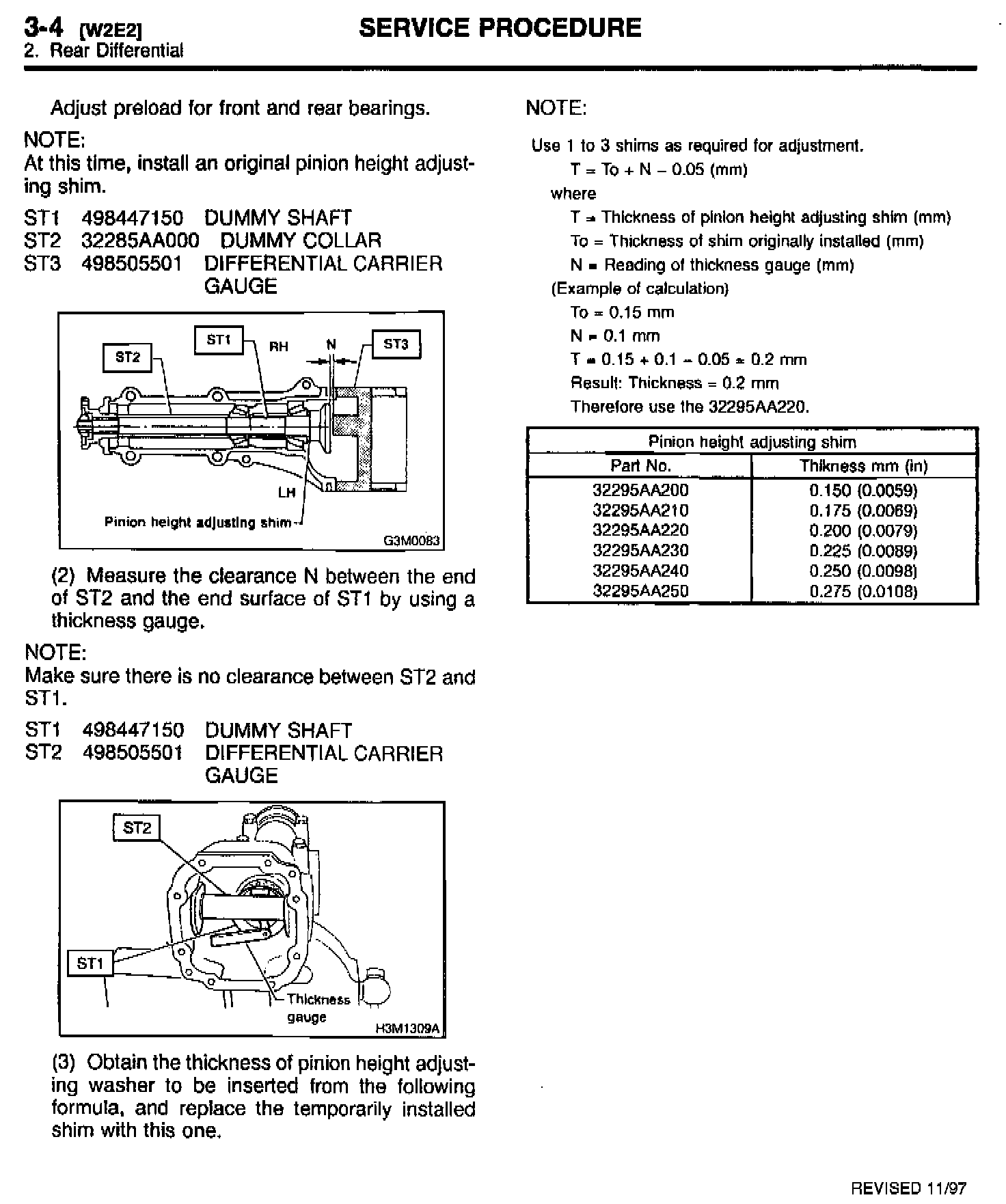

Service Procedure [W2E2] 3-4
3-4 [W2E2] Service Procedure

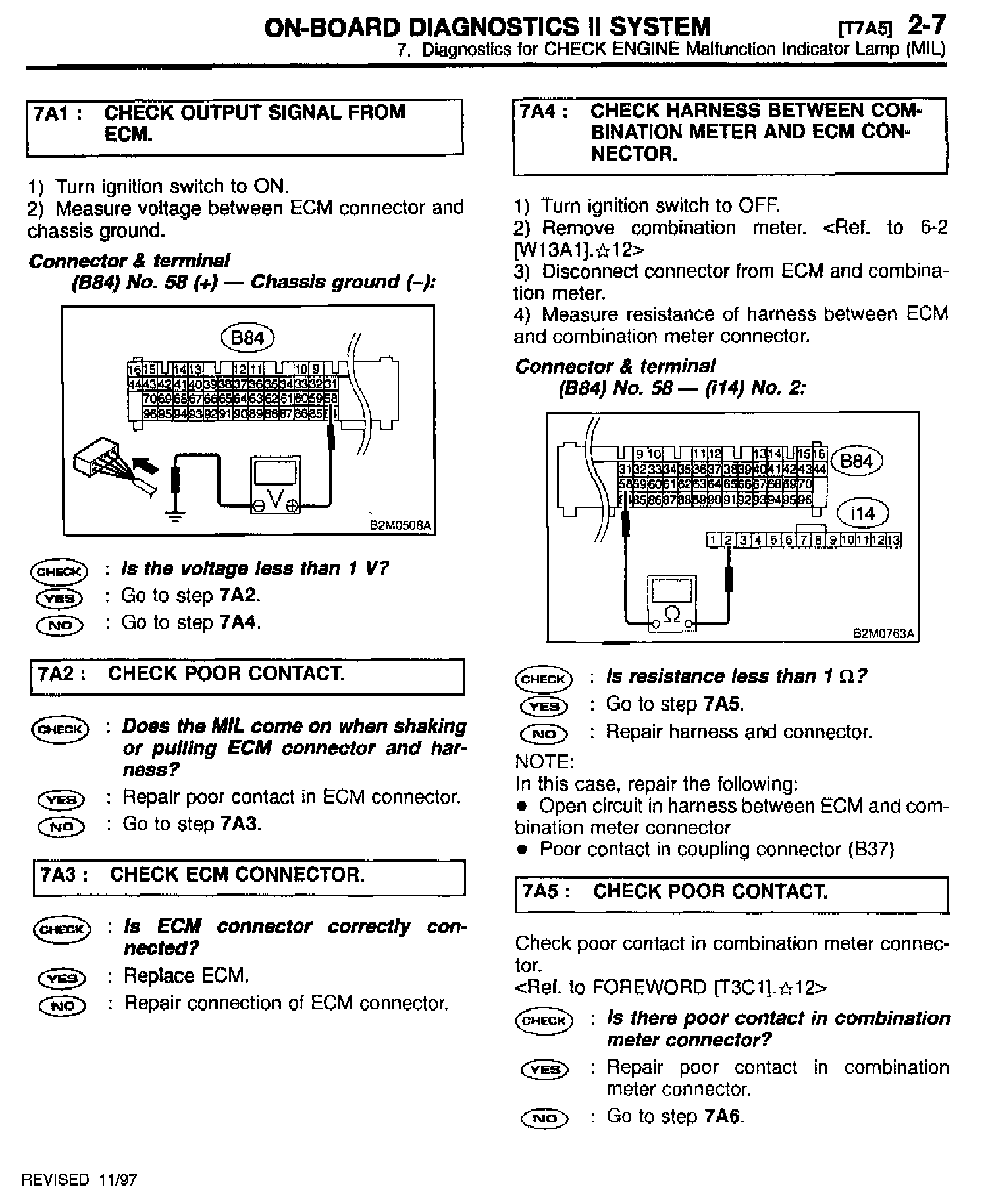

On-Board Diagnostics II System [T7A5] 2-7

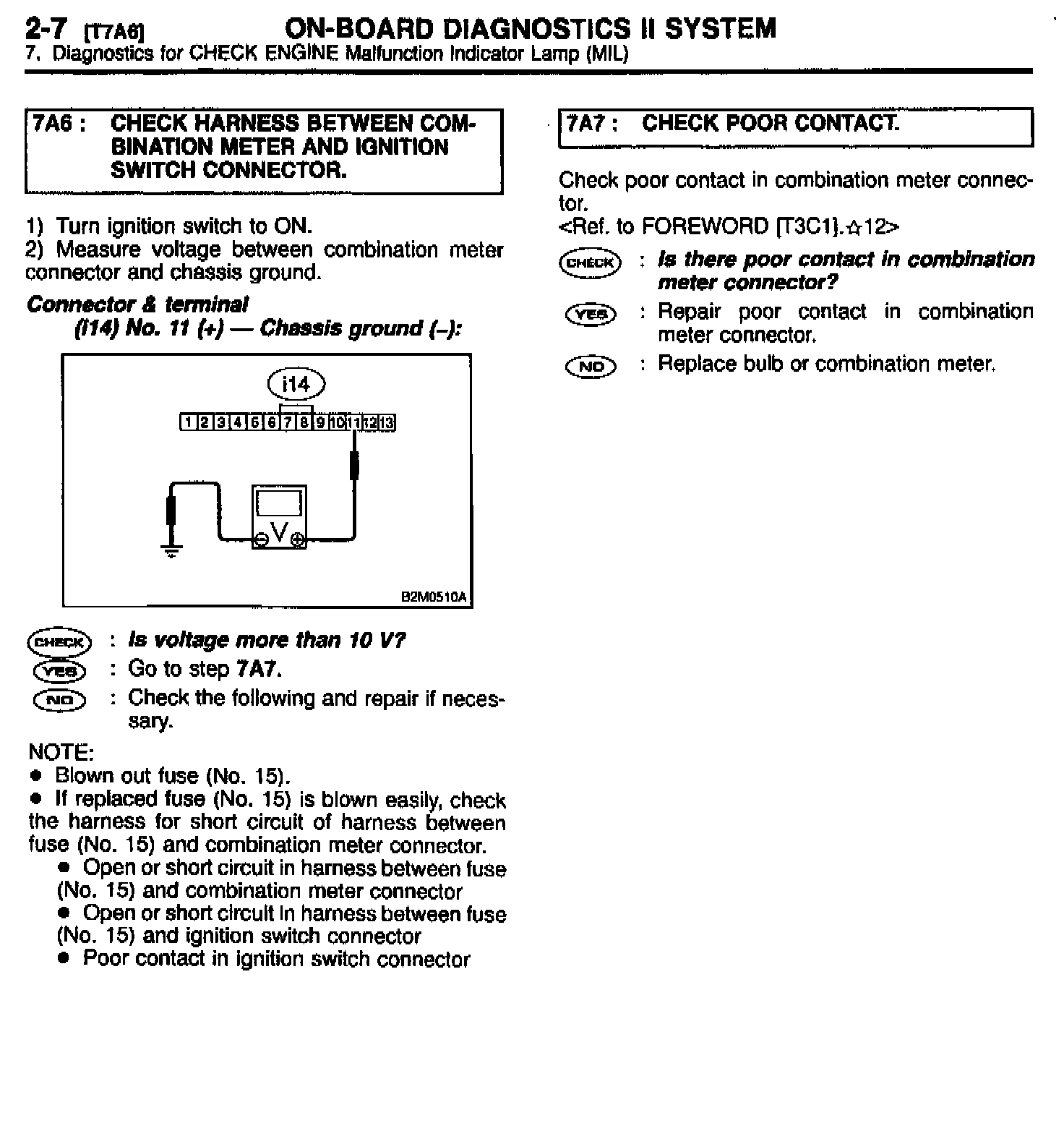

2-7 [T7A6] On-Board Diagnostics II System

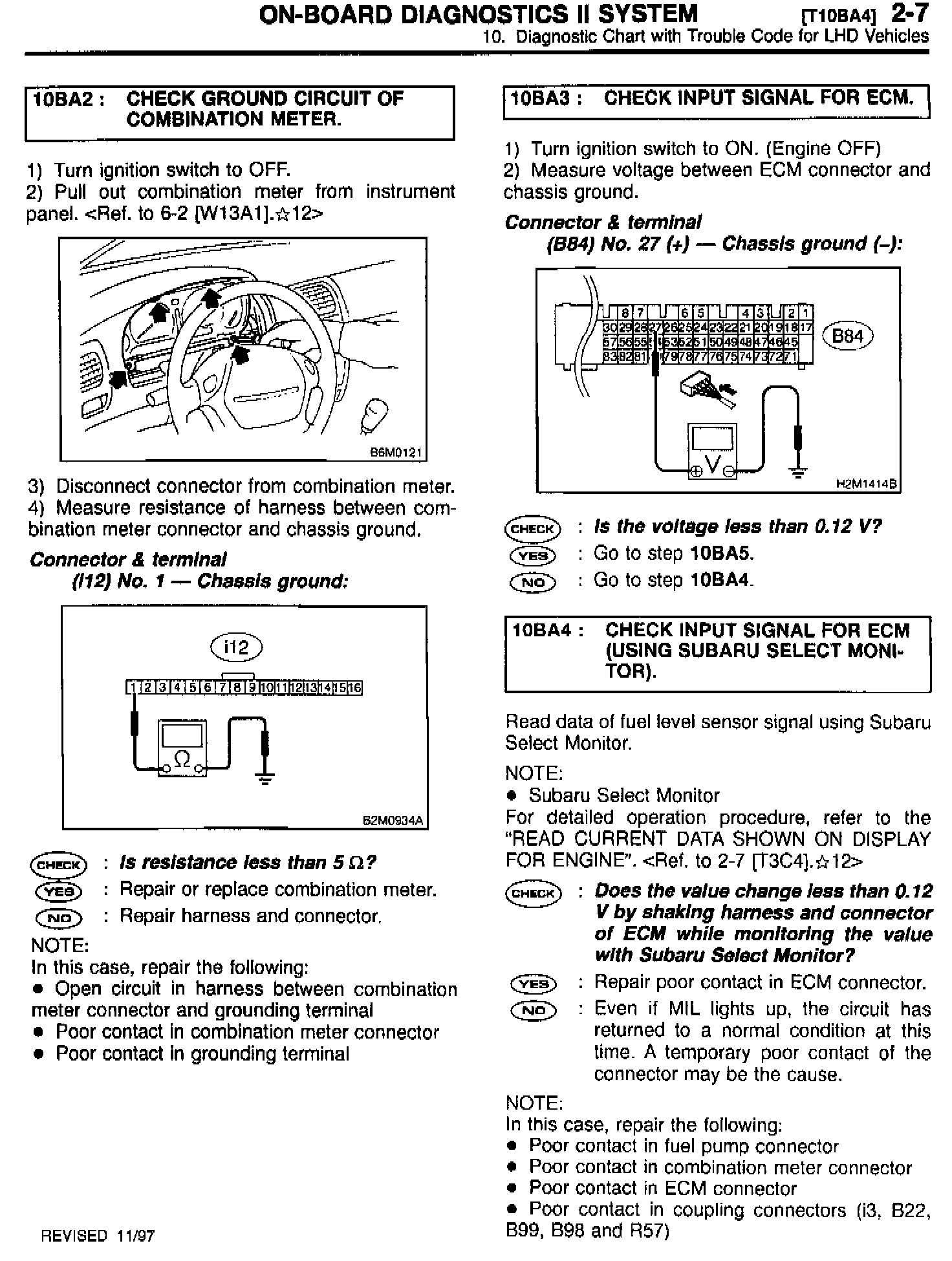

On-Board Diagnostics II System [T10BA4] 2-7

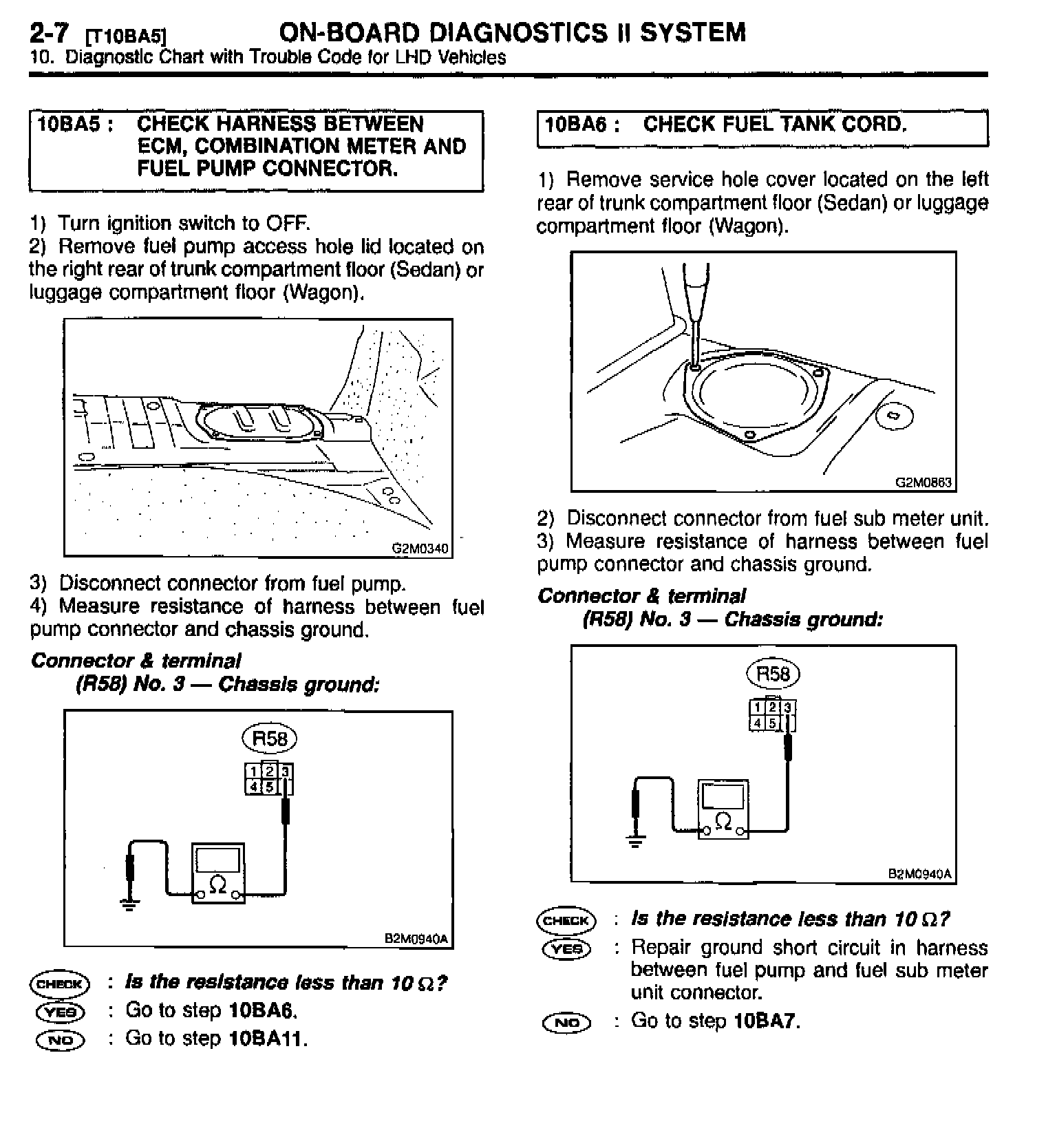

2-7 [T10BA5] On-Board Diagnostics II System

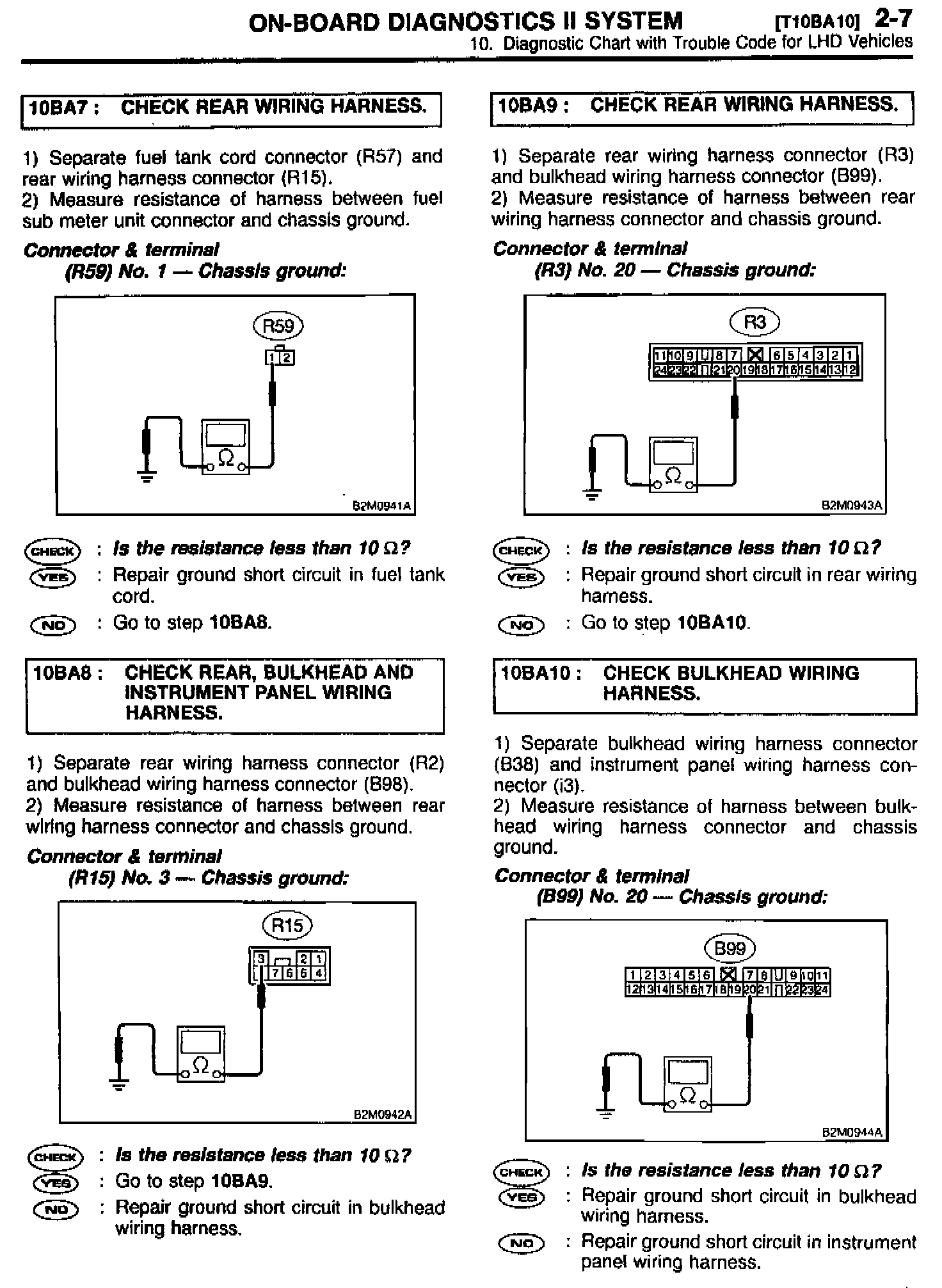

On-Board Diagnostics II System [T10BA10] 2-7

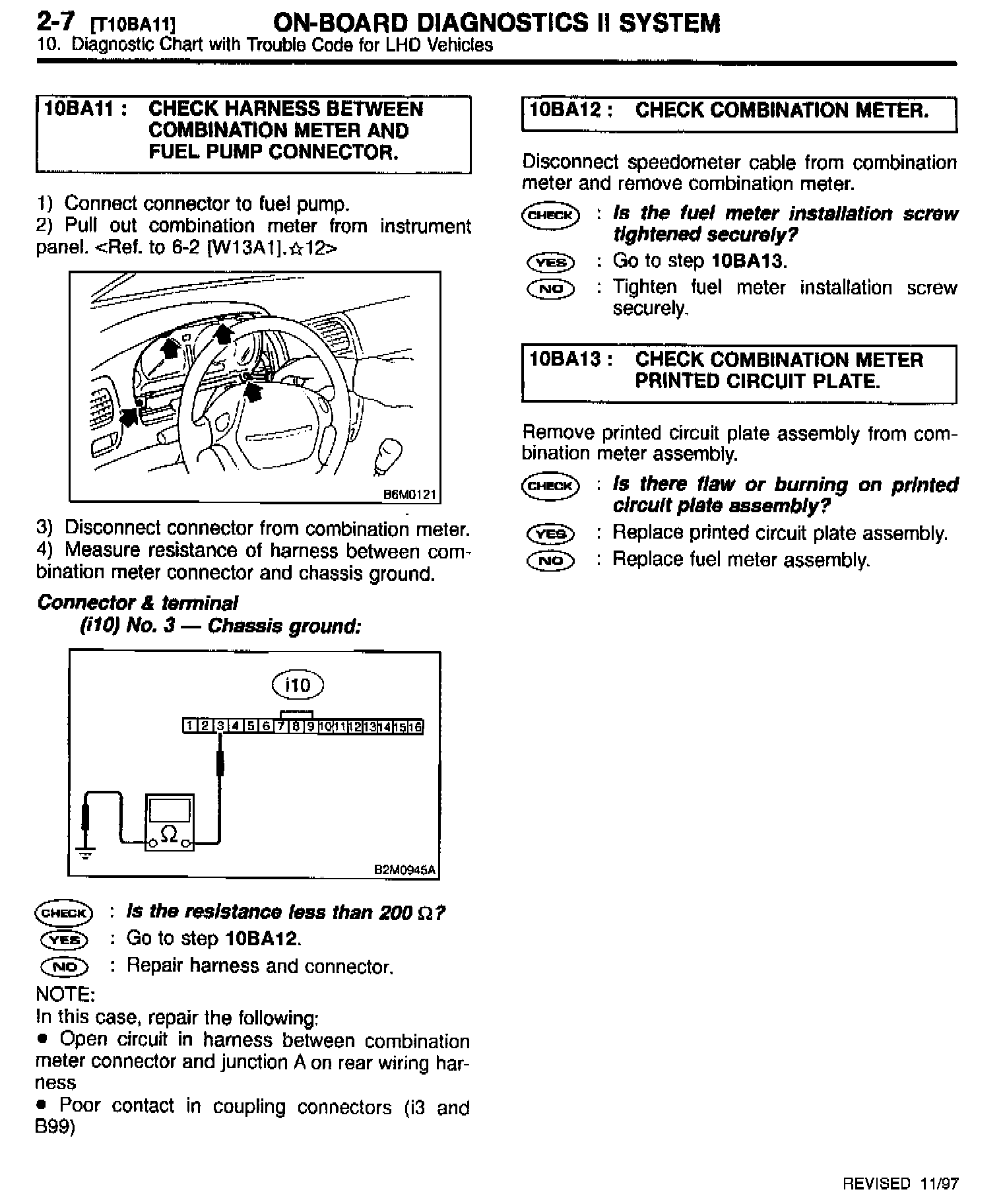

2-7 [T10BA11] On-Board Diagnostics II System

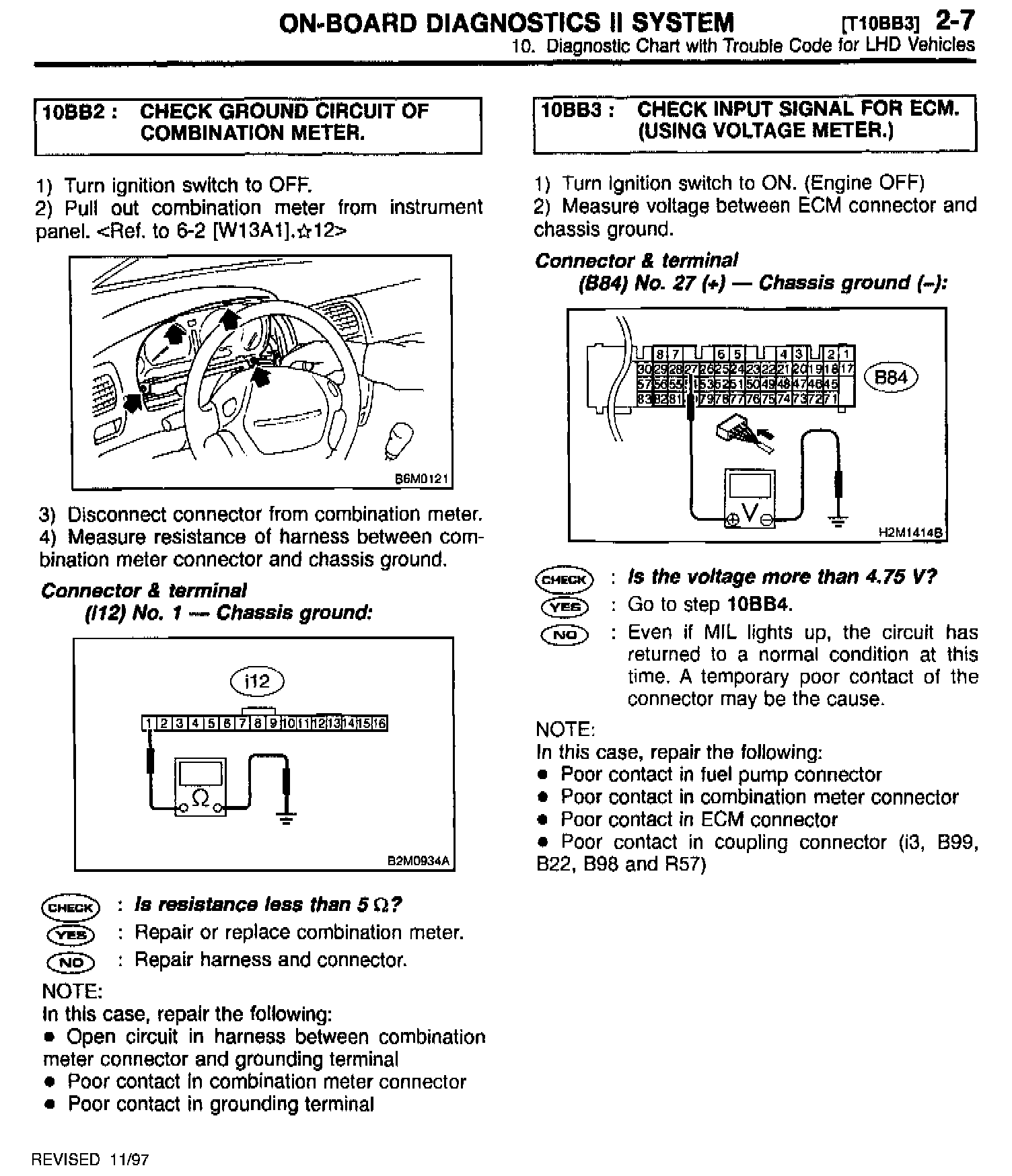

On-Board Diagnostics II System [T10BB3] 2-7
2-7 [T10BB4] On-Board Diagnostics II System

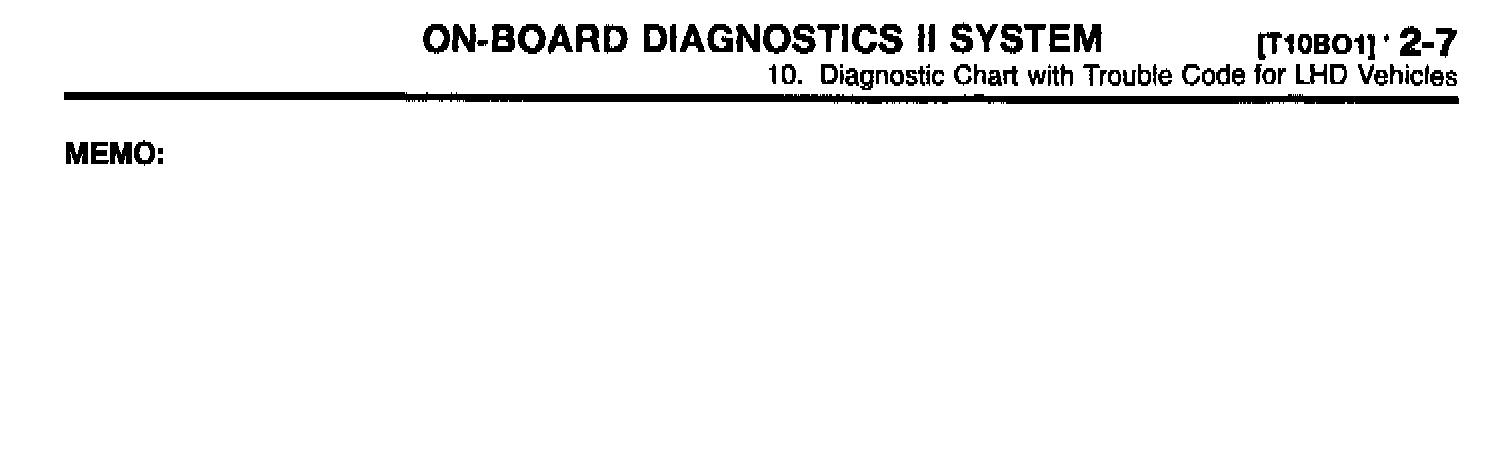

On-Board Diagnostics II System [T10B01] 2-7

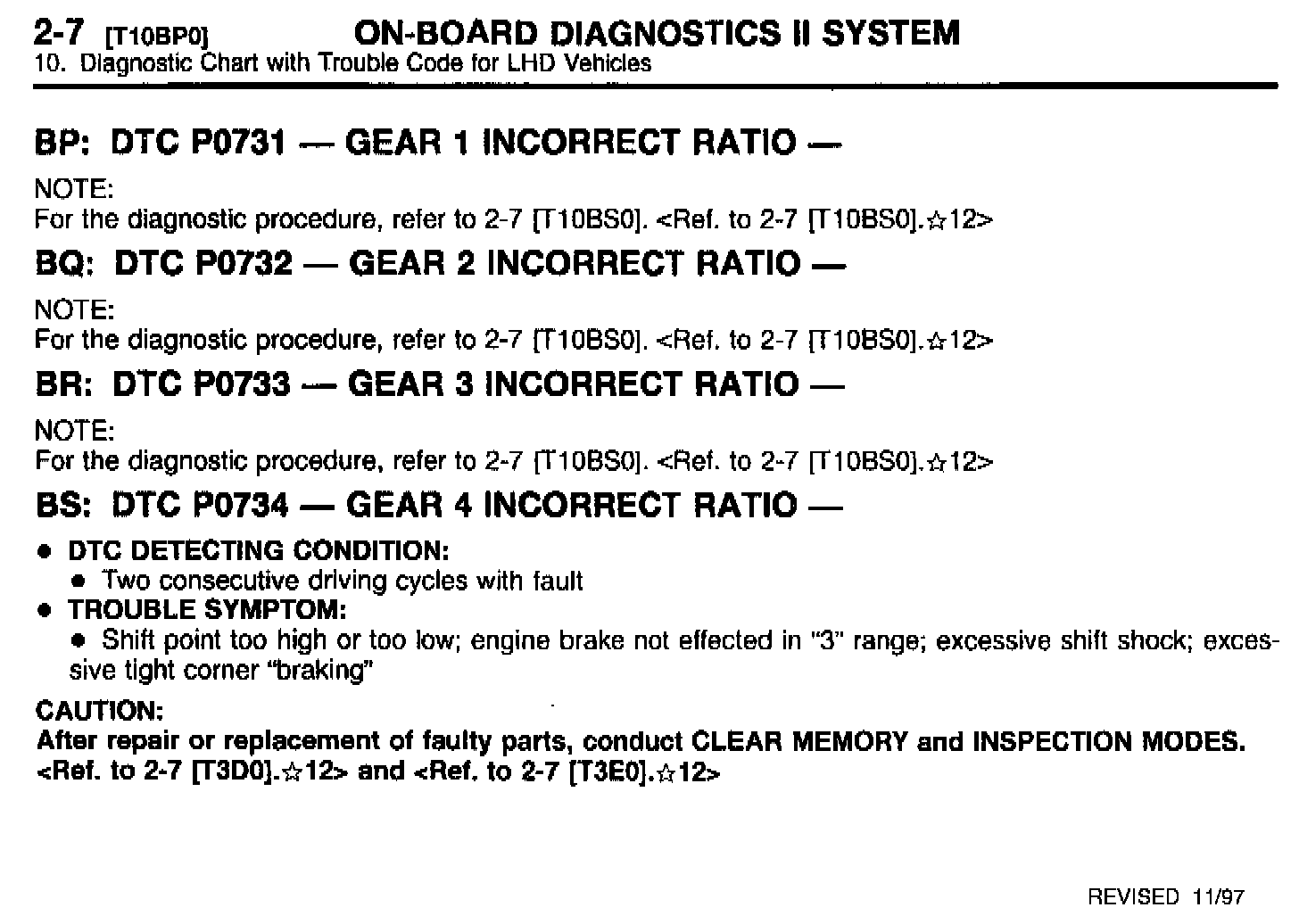

2-7 [T10BP0] On-Board Diagnostics II System

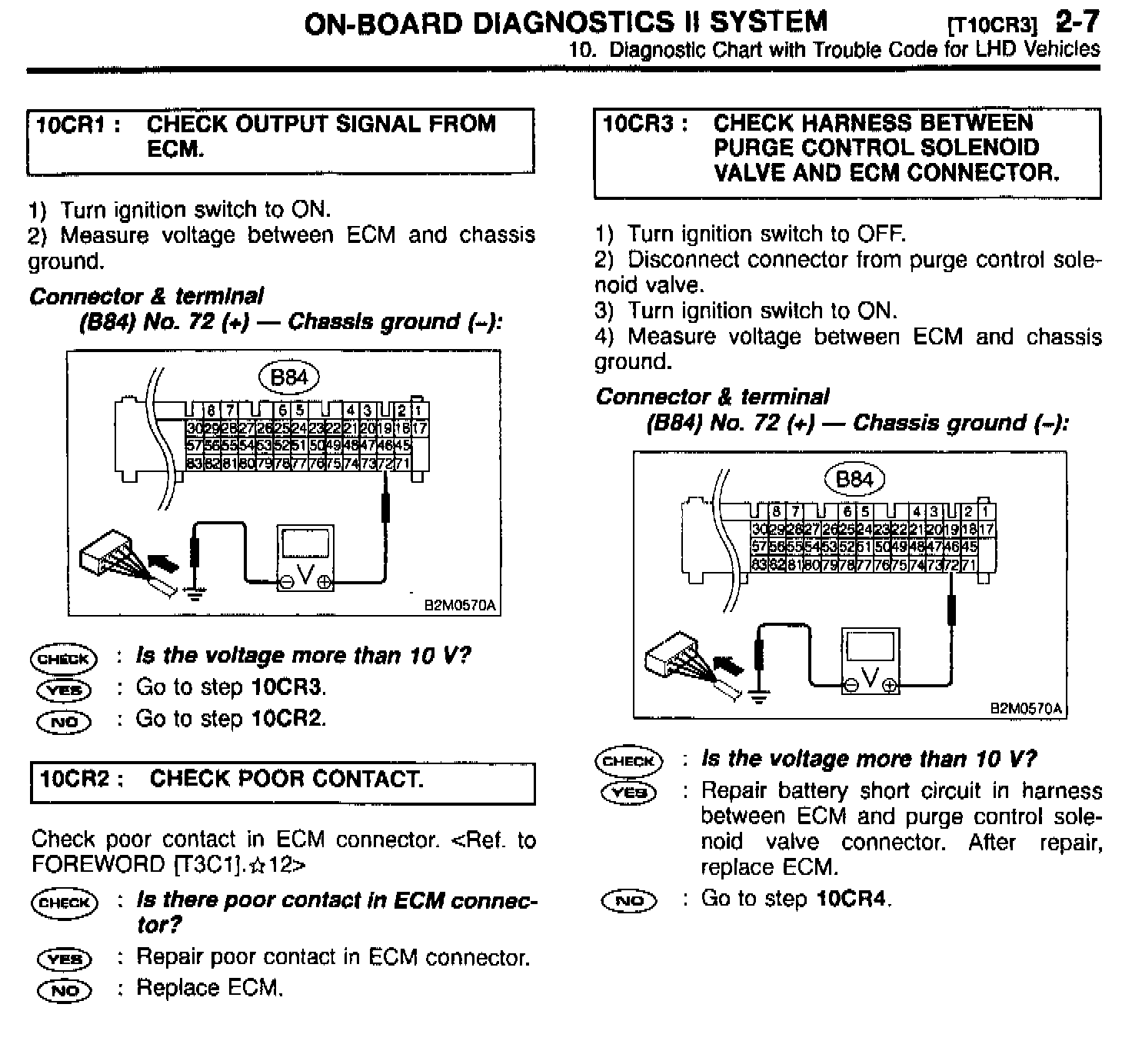

On-Board Diagnostics II System [T10CR3] 2-7
2-7 [T10CR4] On-Board Diagnostics II System

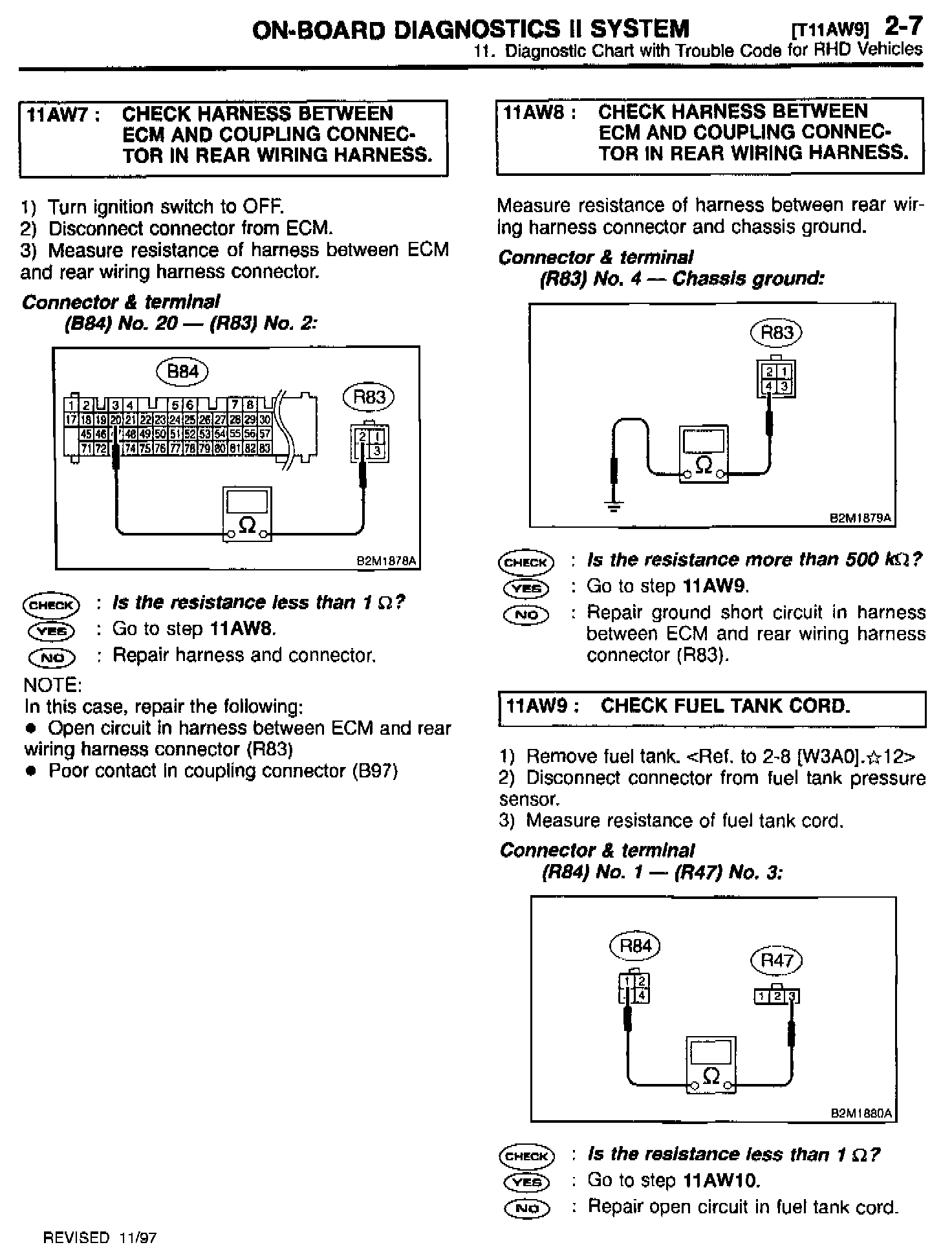

On-Board Diagnostics II System [T11AW9] 2-7

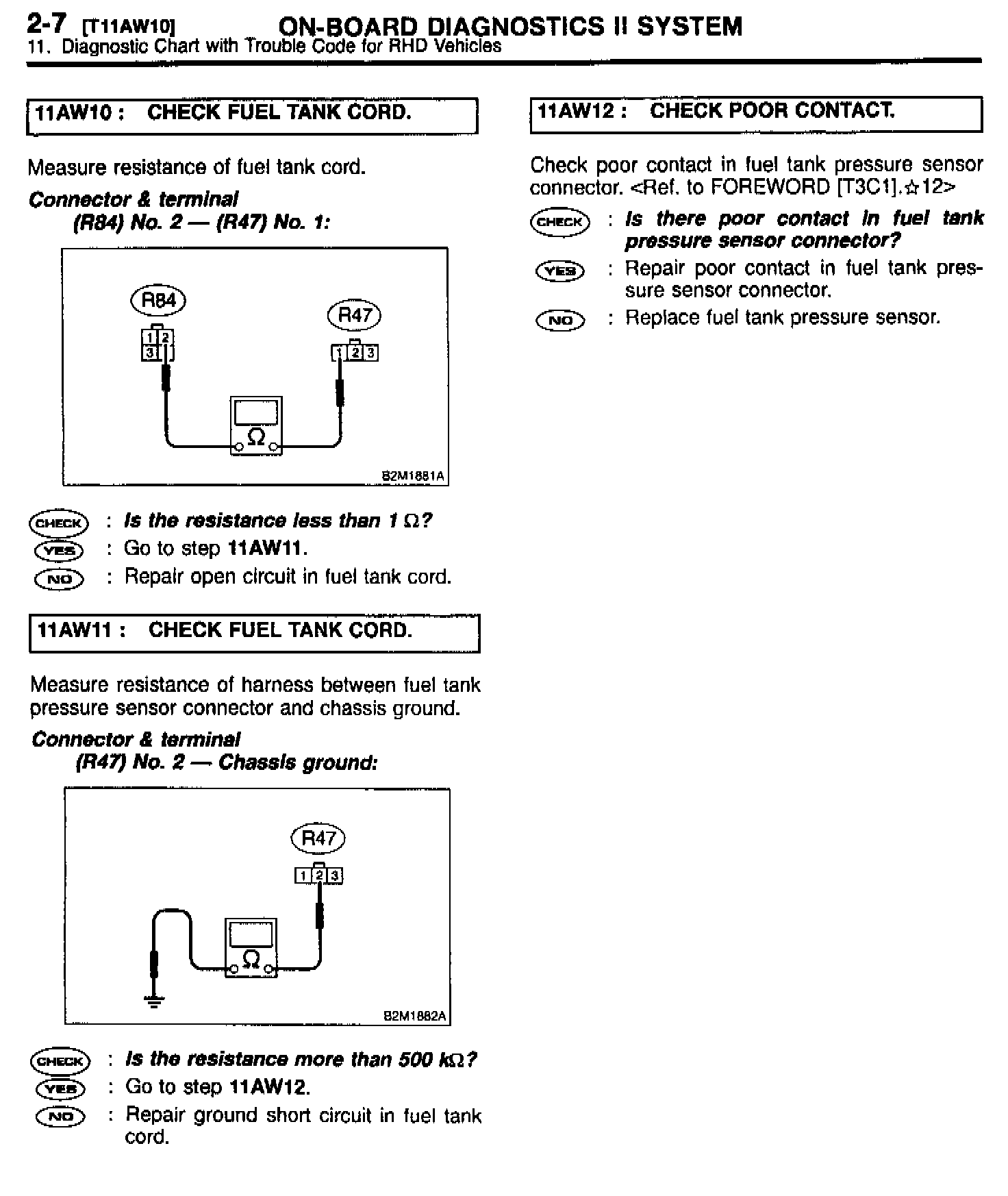

2-7 [T11AW10] On-Board Diagnostics II System

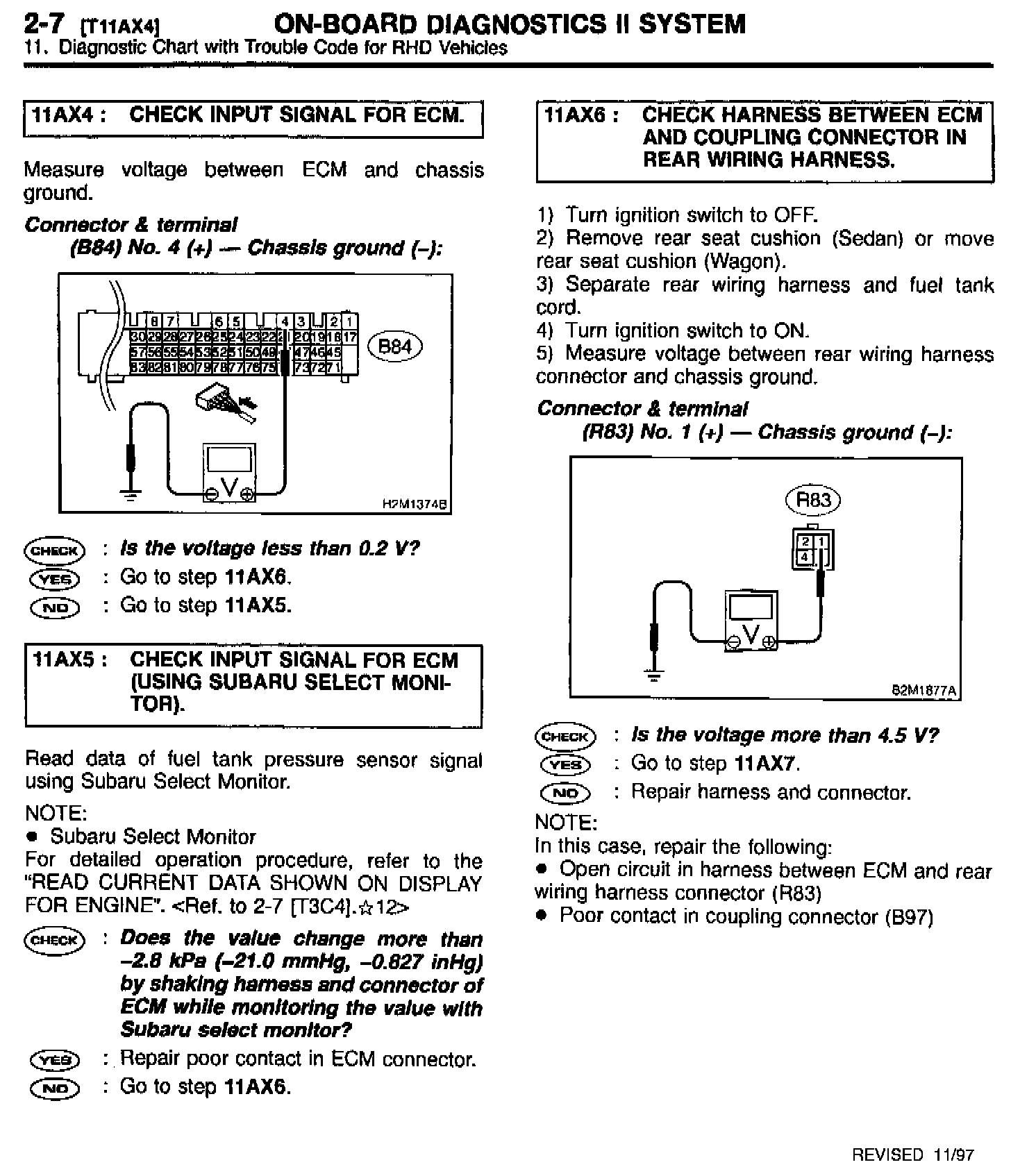

2-7 [T11AX4] On-Board Diagnostics II System

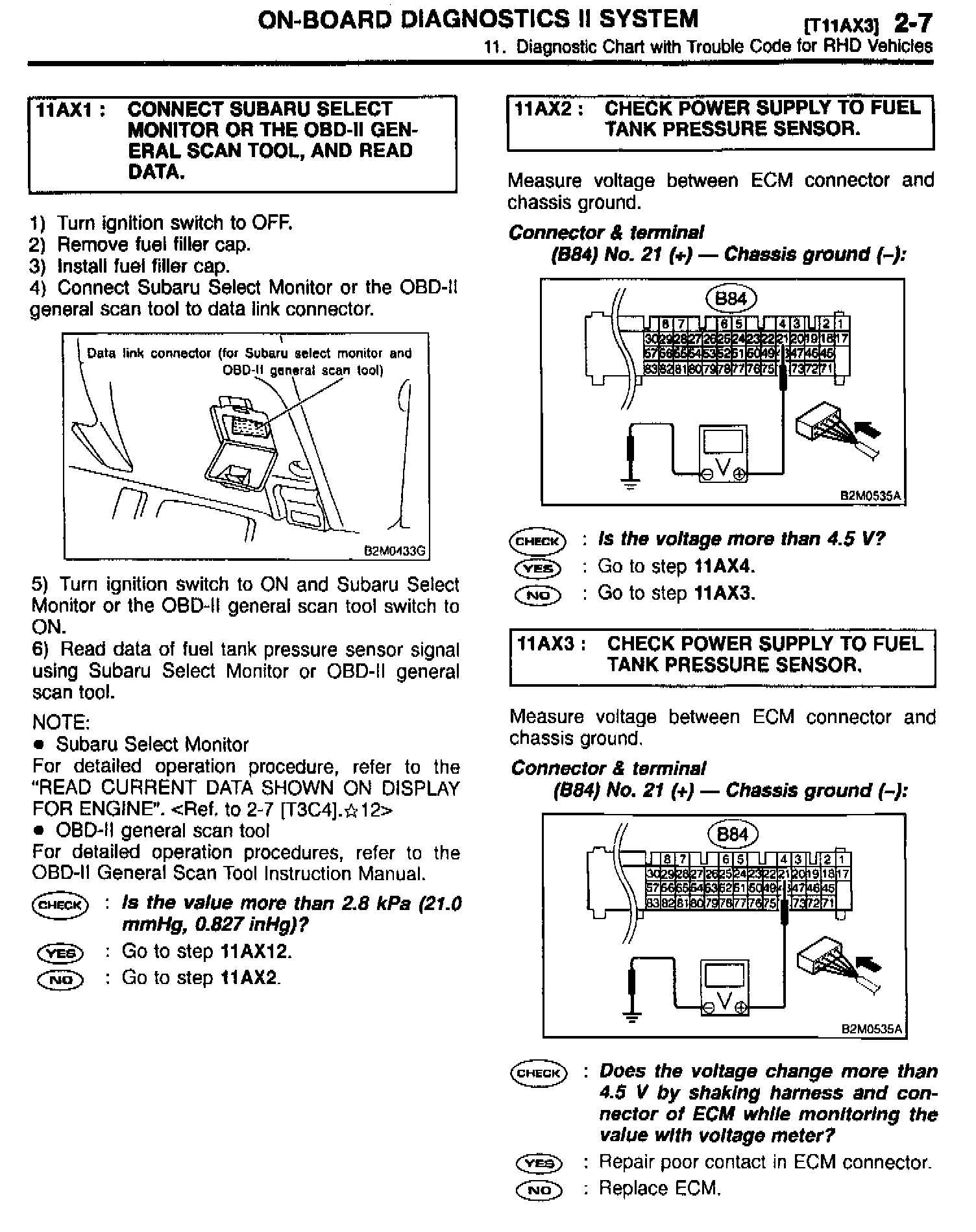

On-Board Diagnostics II System [T11AX3] 2-7

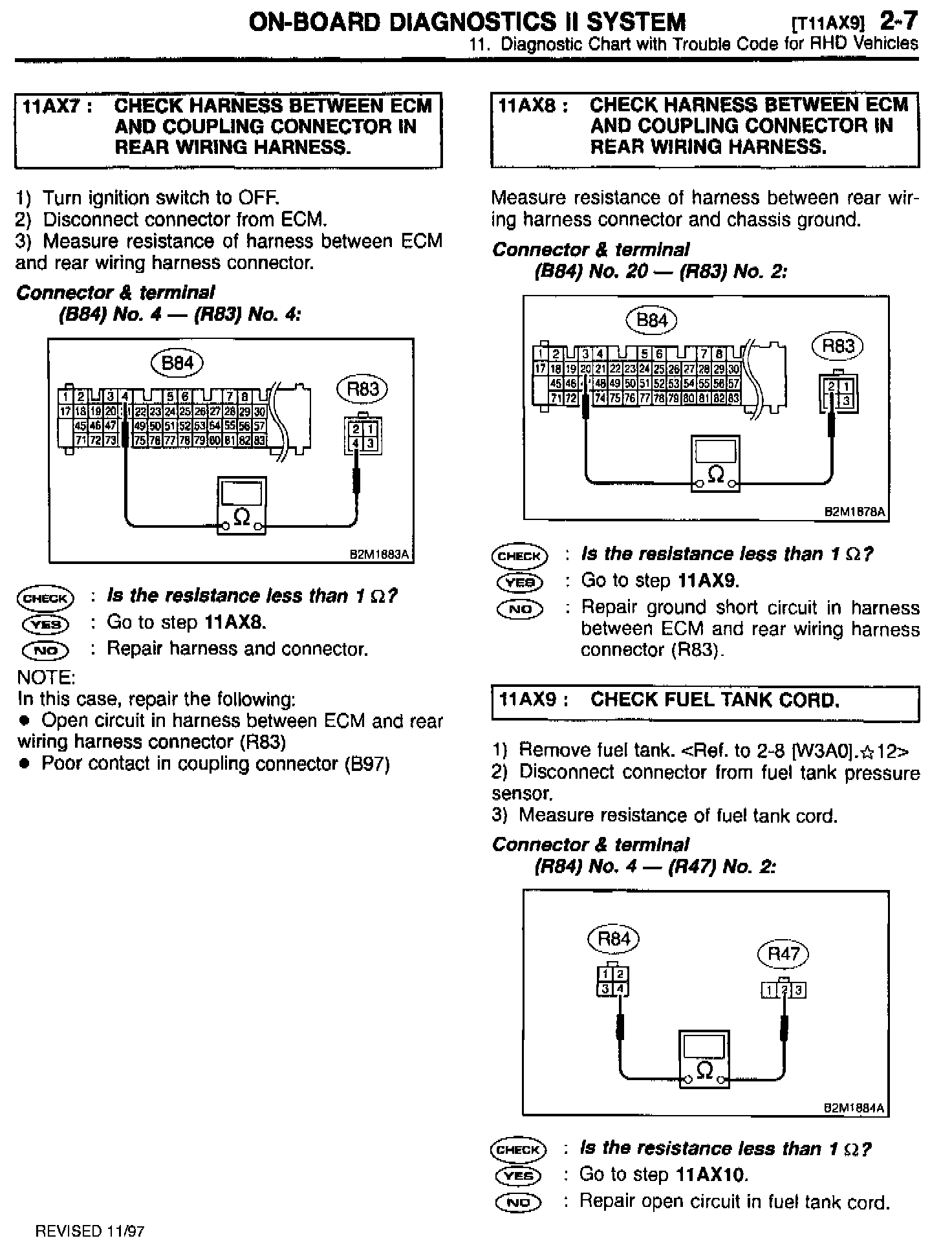

On-Board Diagnostics II System [T11AX9] 2-7

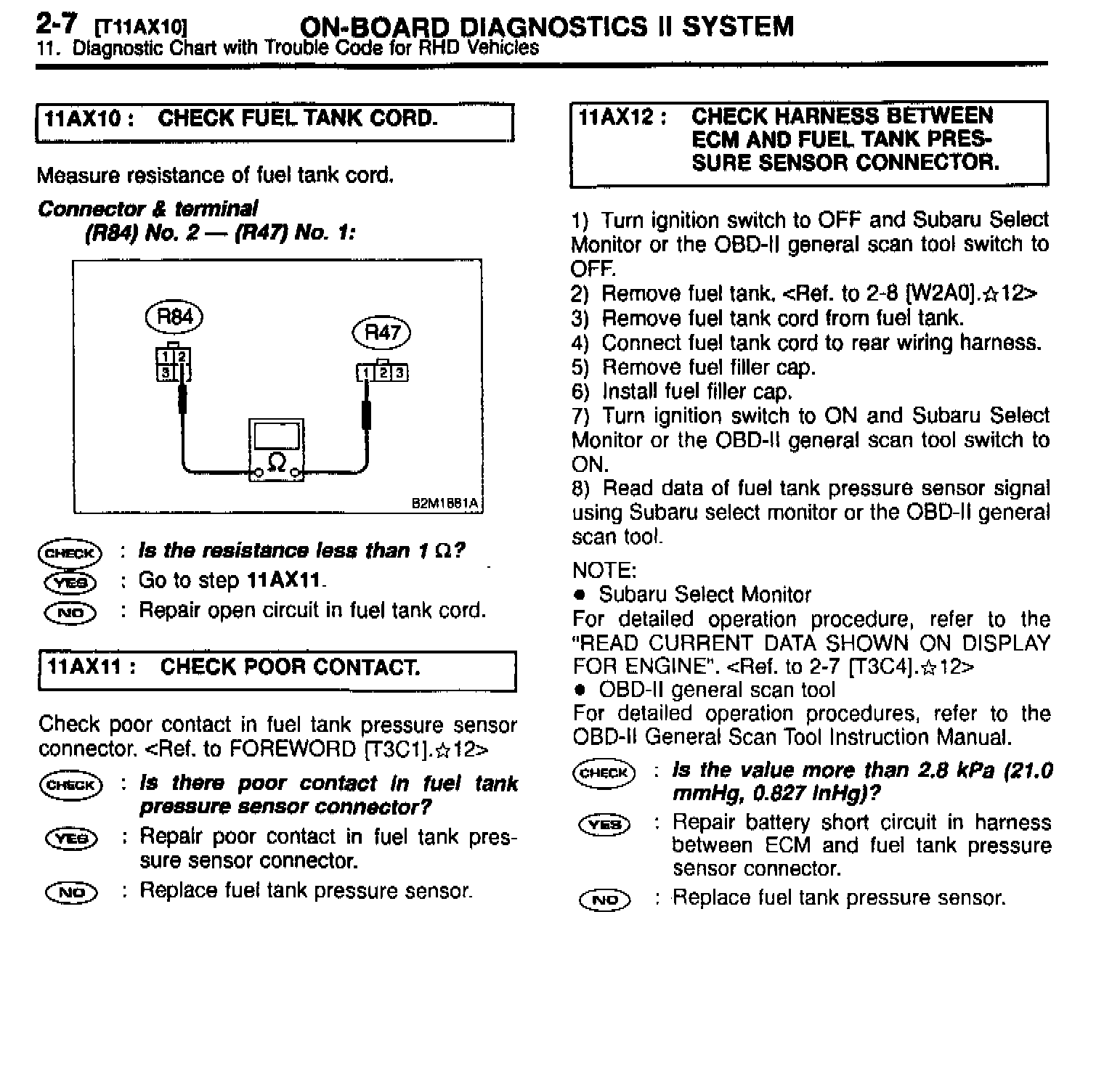

2-7 [T11AX10] On-Board Diagnostics II System

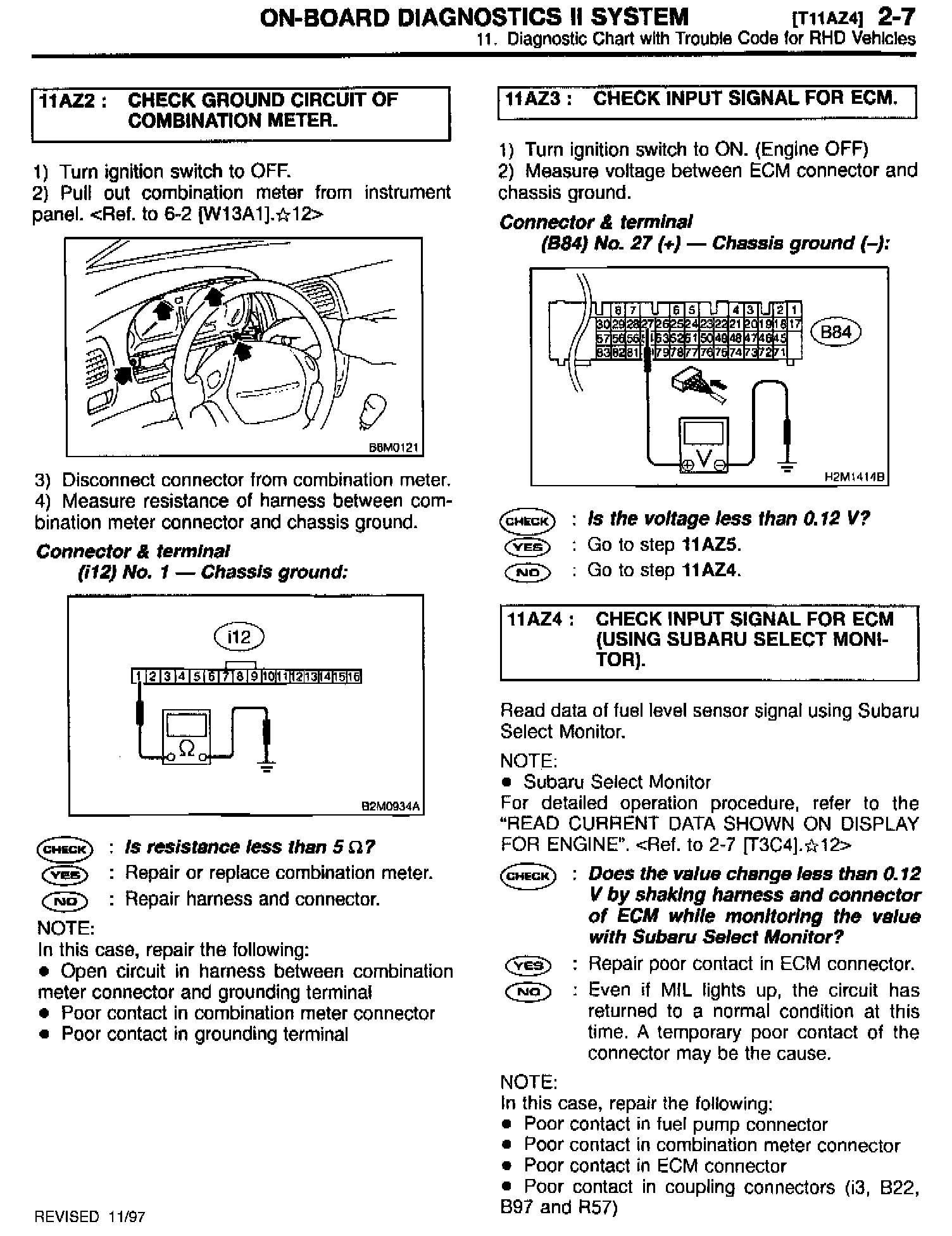

On-Board Diagnostics II System [T11AZ4] 2-7

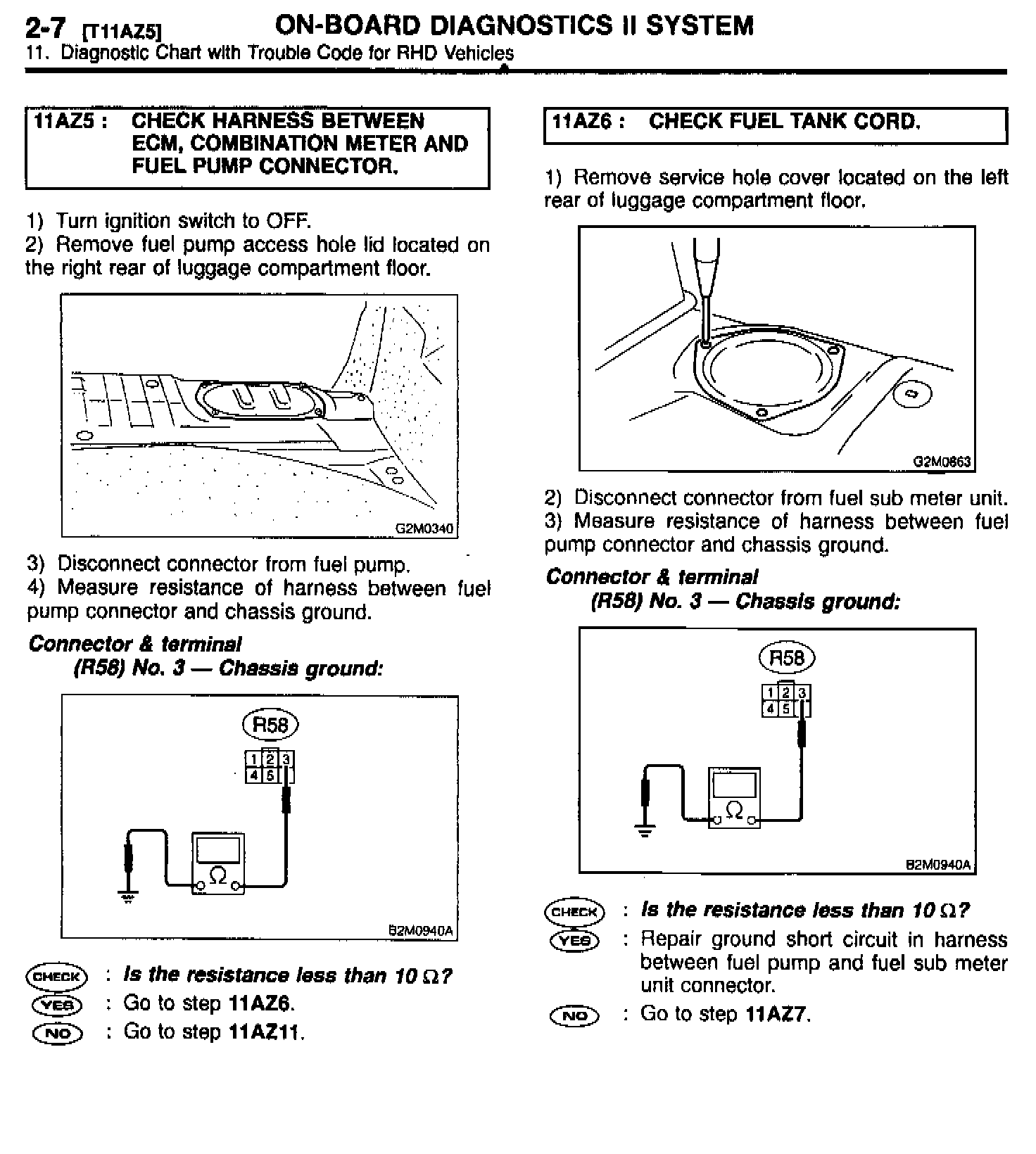

2-7 [T11AZ5] On-Board Diagnostics II System

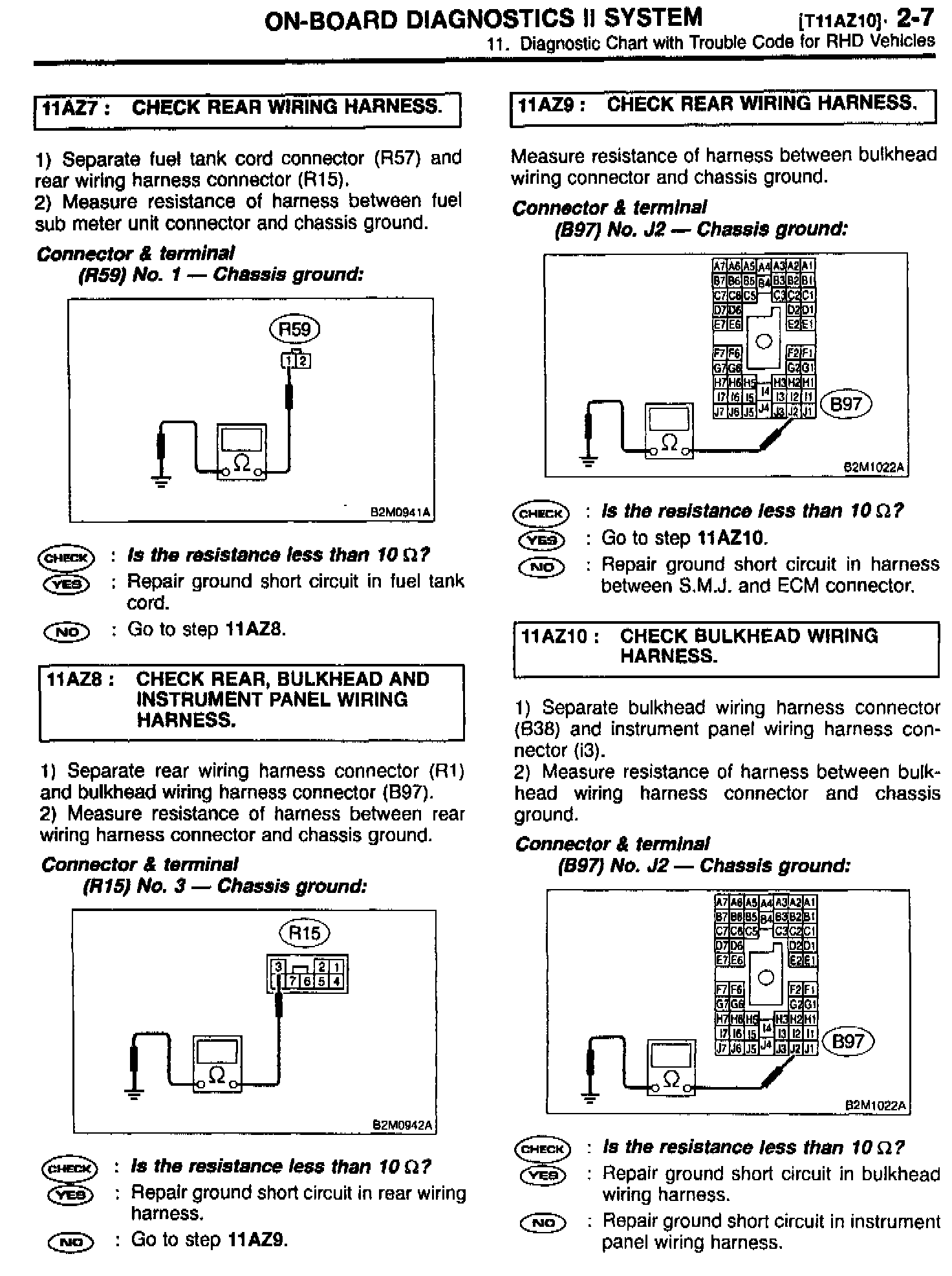

On-Board Diagnostics II System [T11AZ10] 2-7

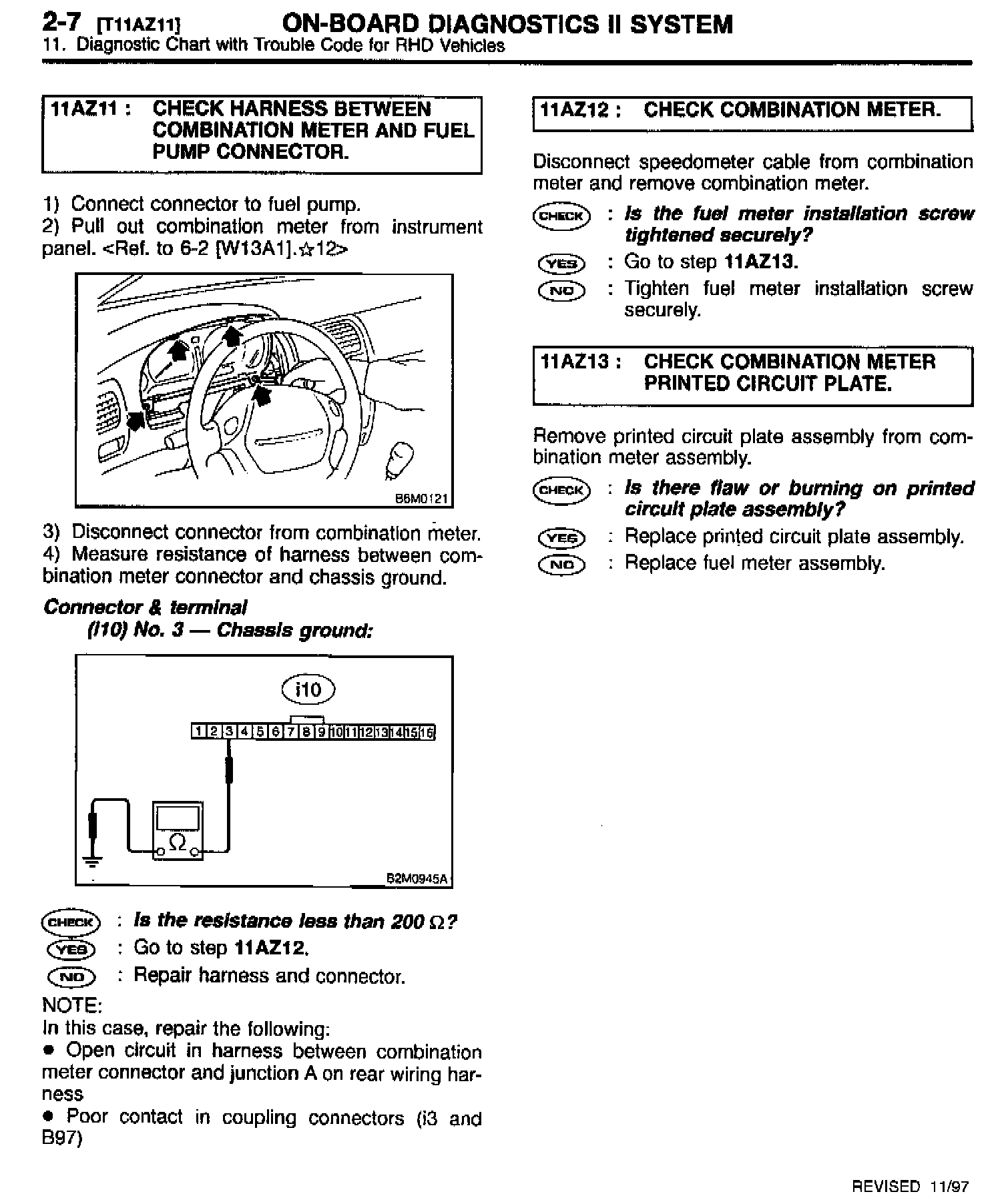

2-7 [T11AZ11] On-Board Diagnostics II System

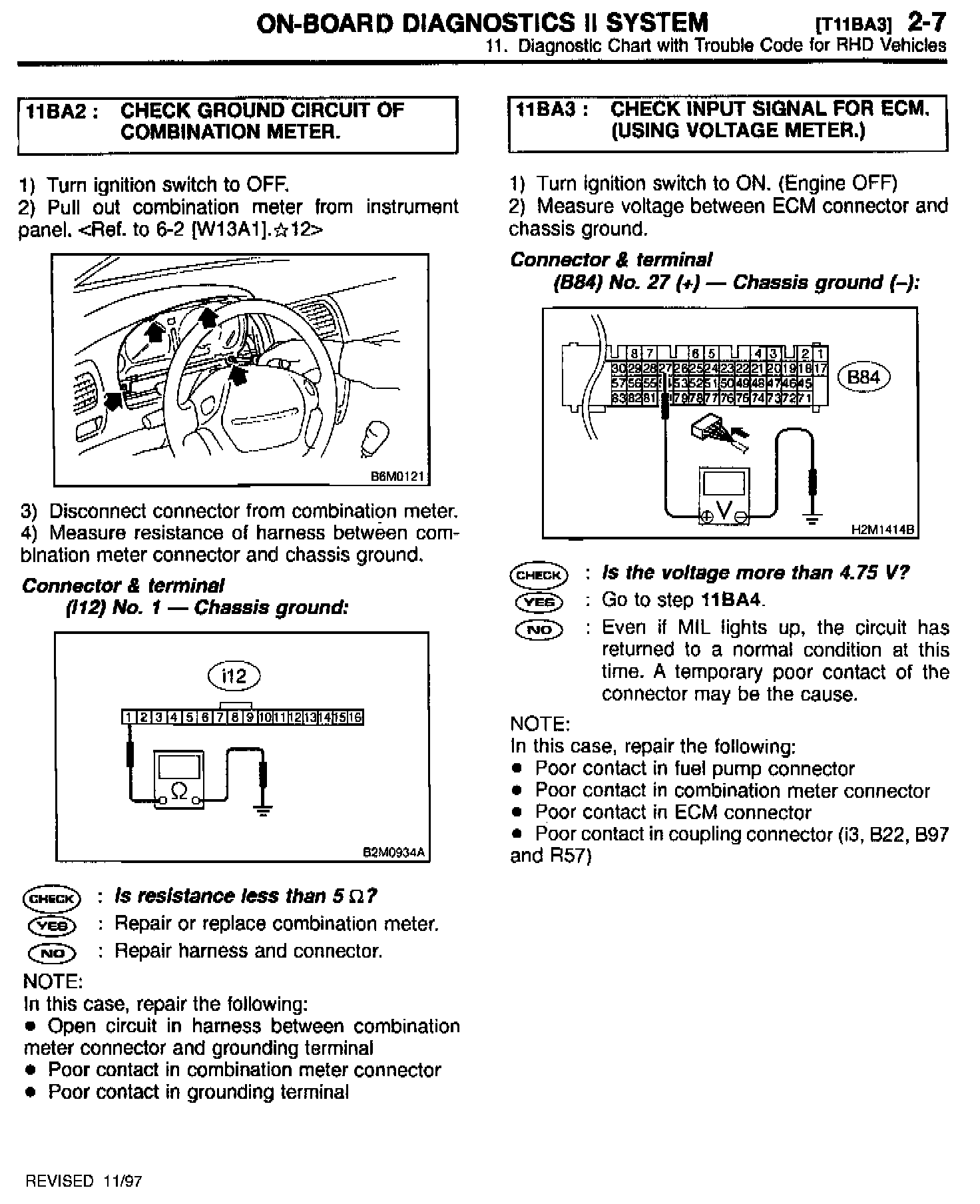

On-Board Diagnostics II System [T11BA3] 2-7

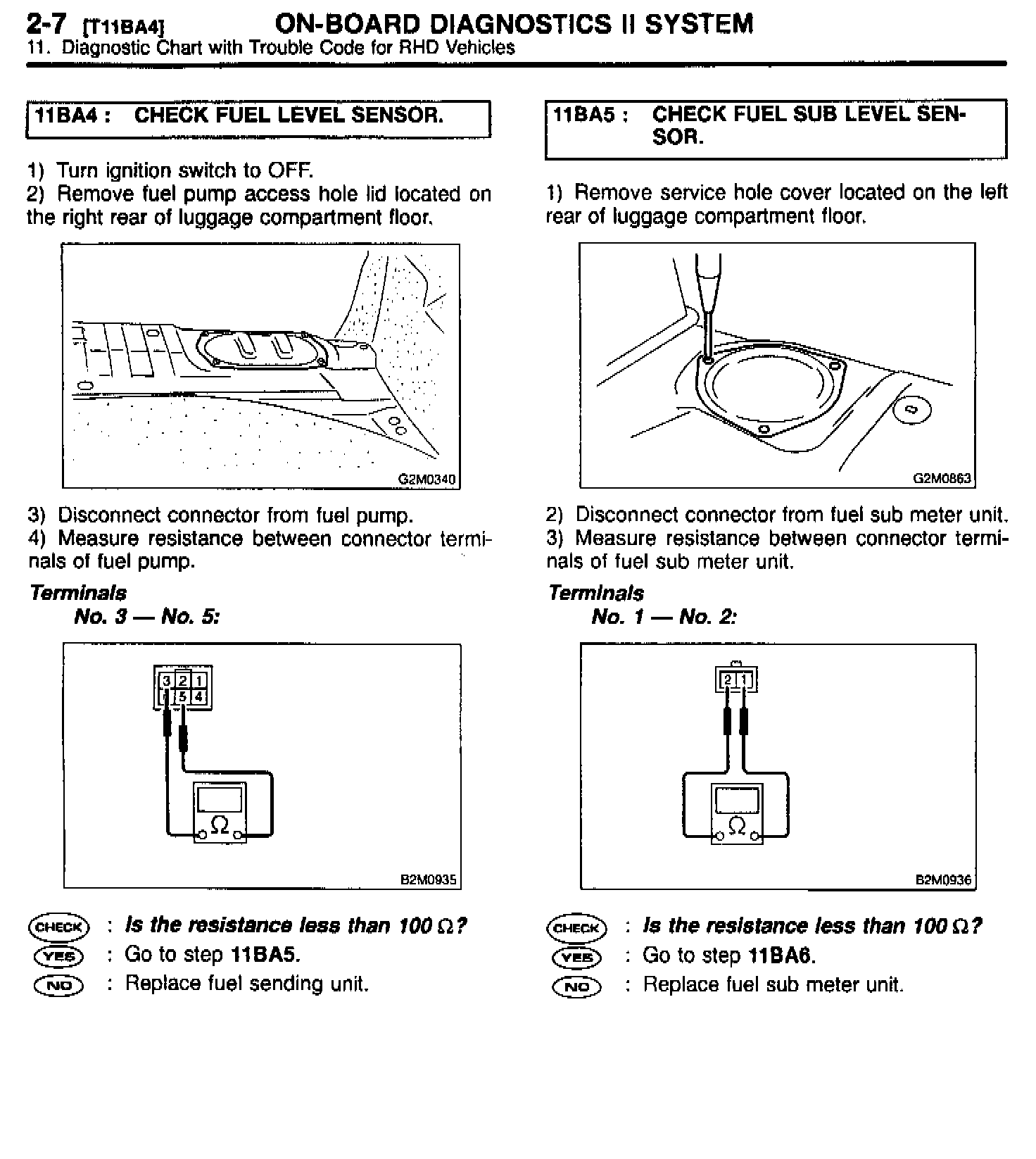

2-7 [T11BA4] On-Board Diagnostics II System

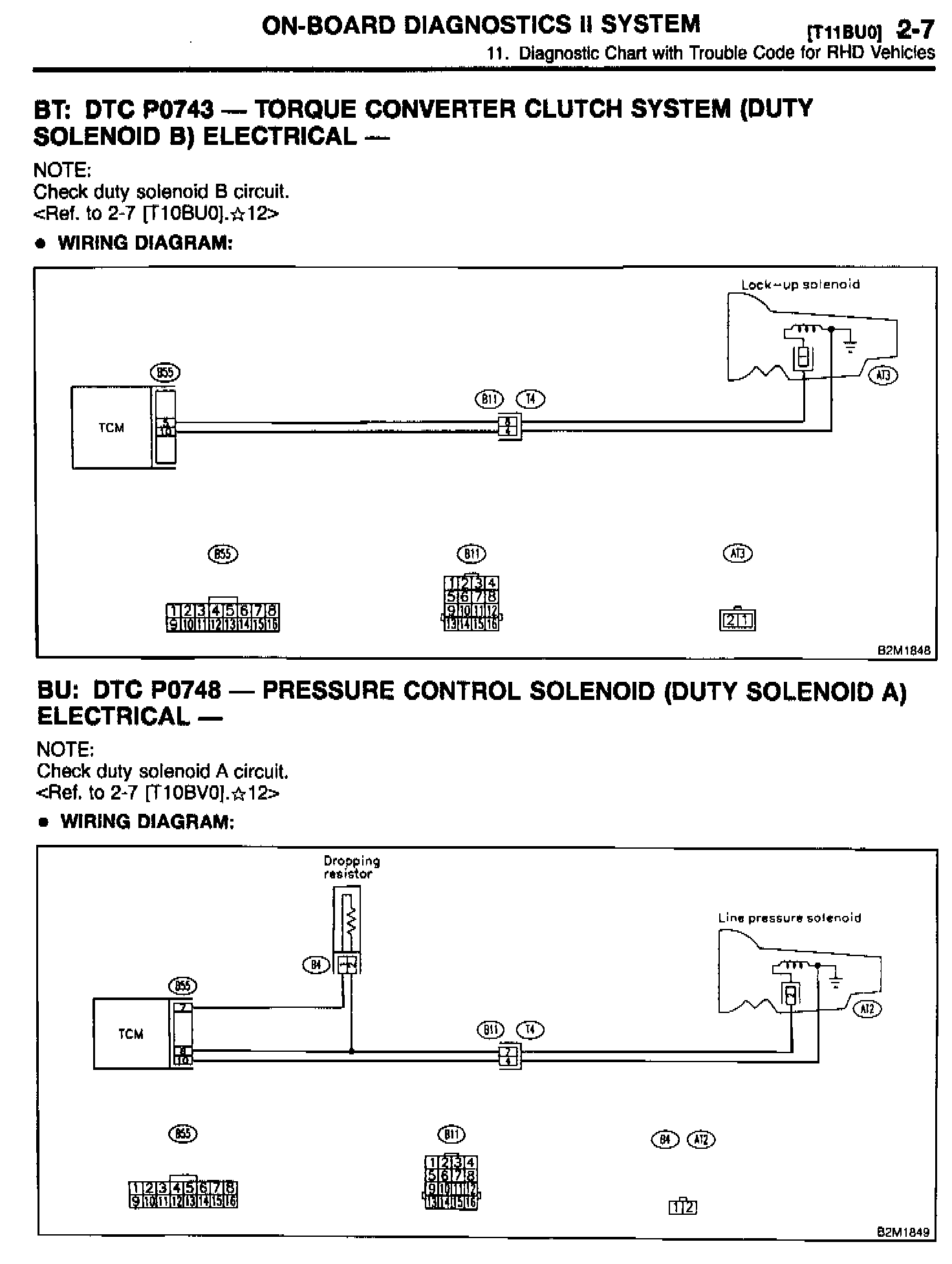

On-Board Diagnostics II System [T11BU0] 2-7

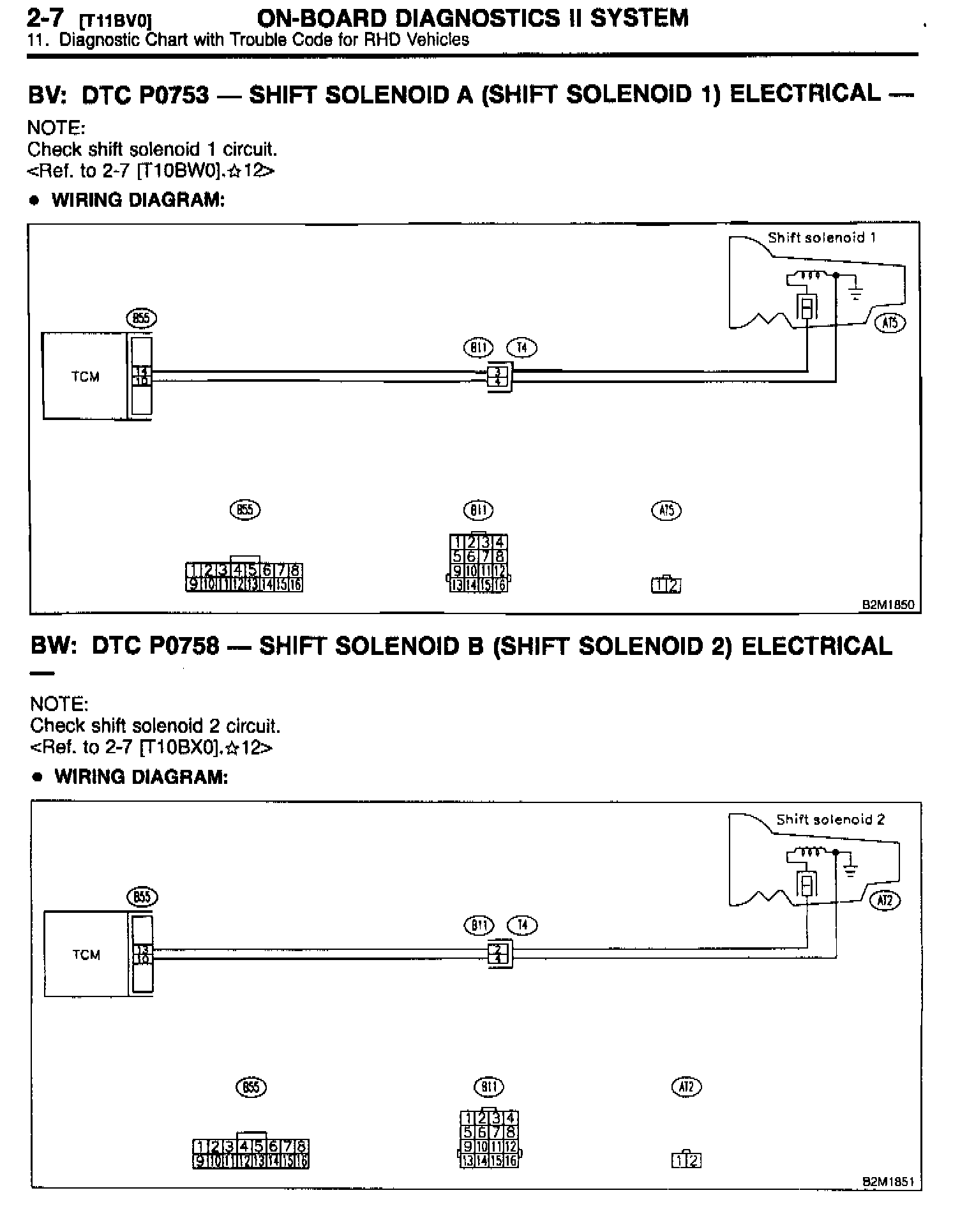

2-7 [T11BV0] On-Board Diagnostics II System

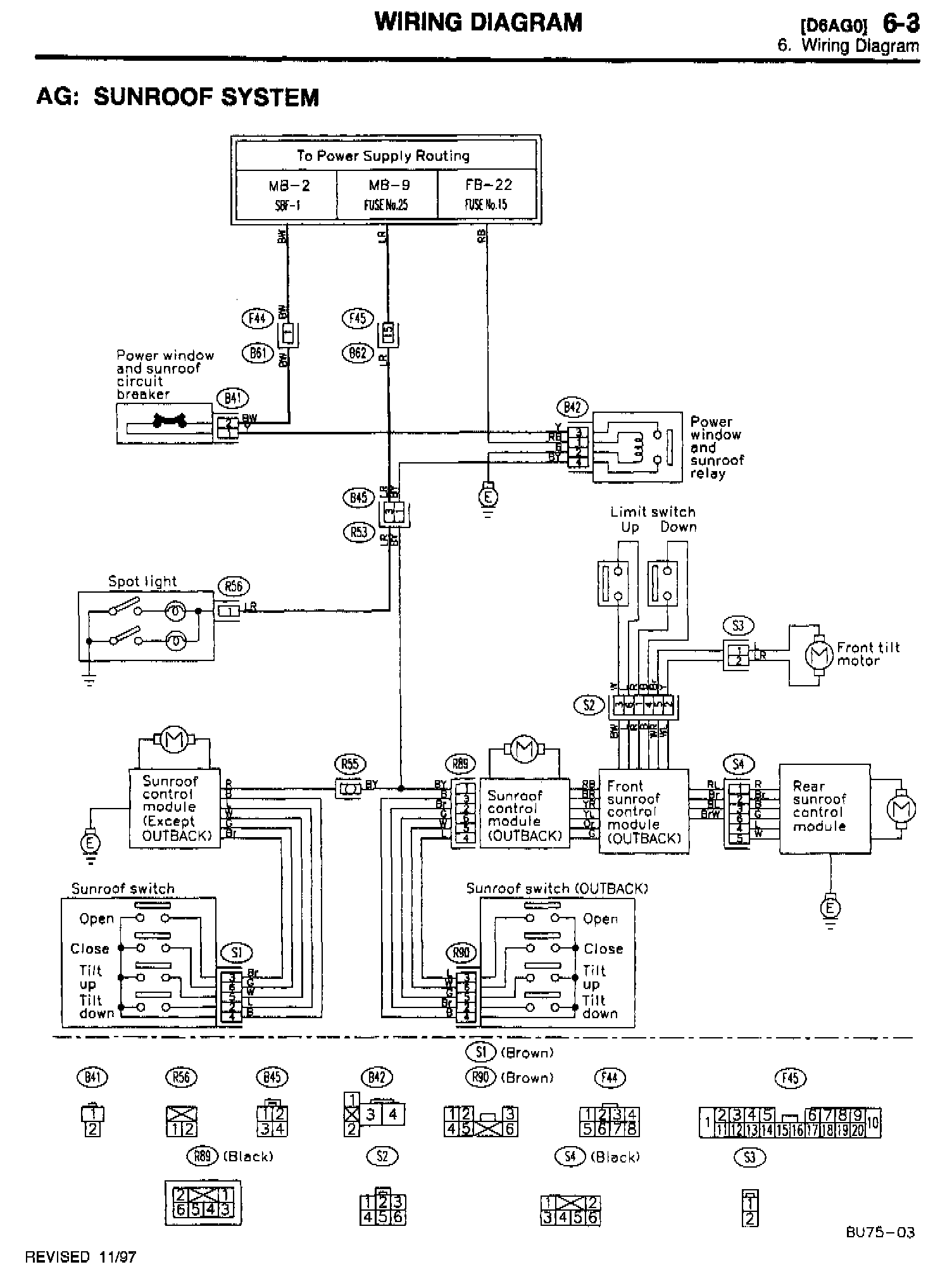

Wiring Diagram [D6AG0] 6-3

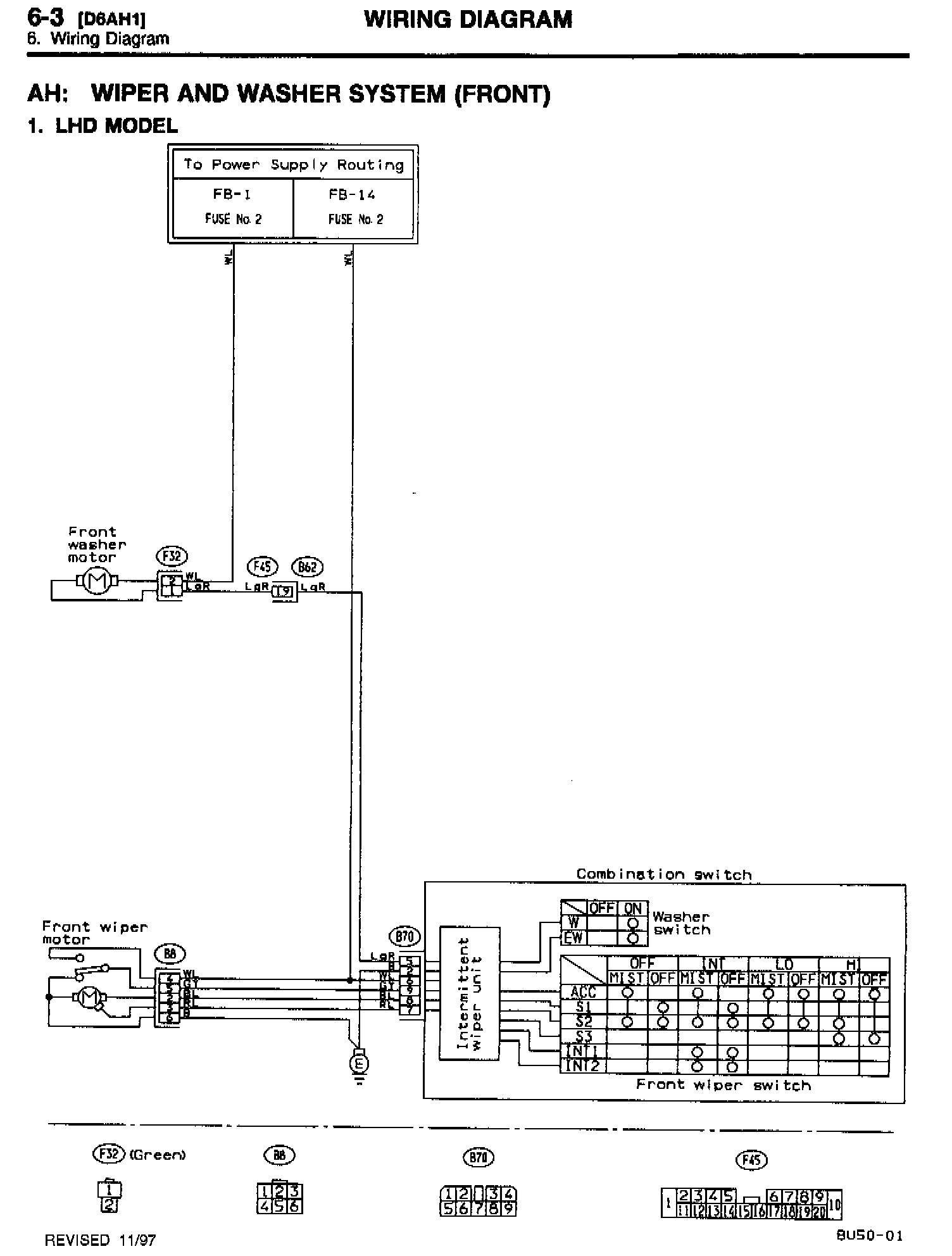

6-3 [D6AH1] Wiring Diagram

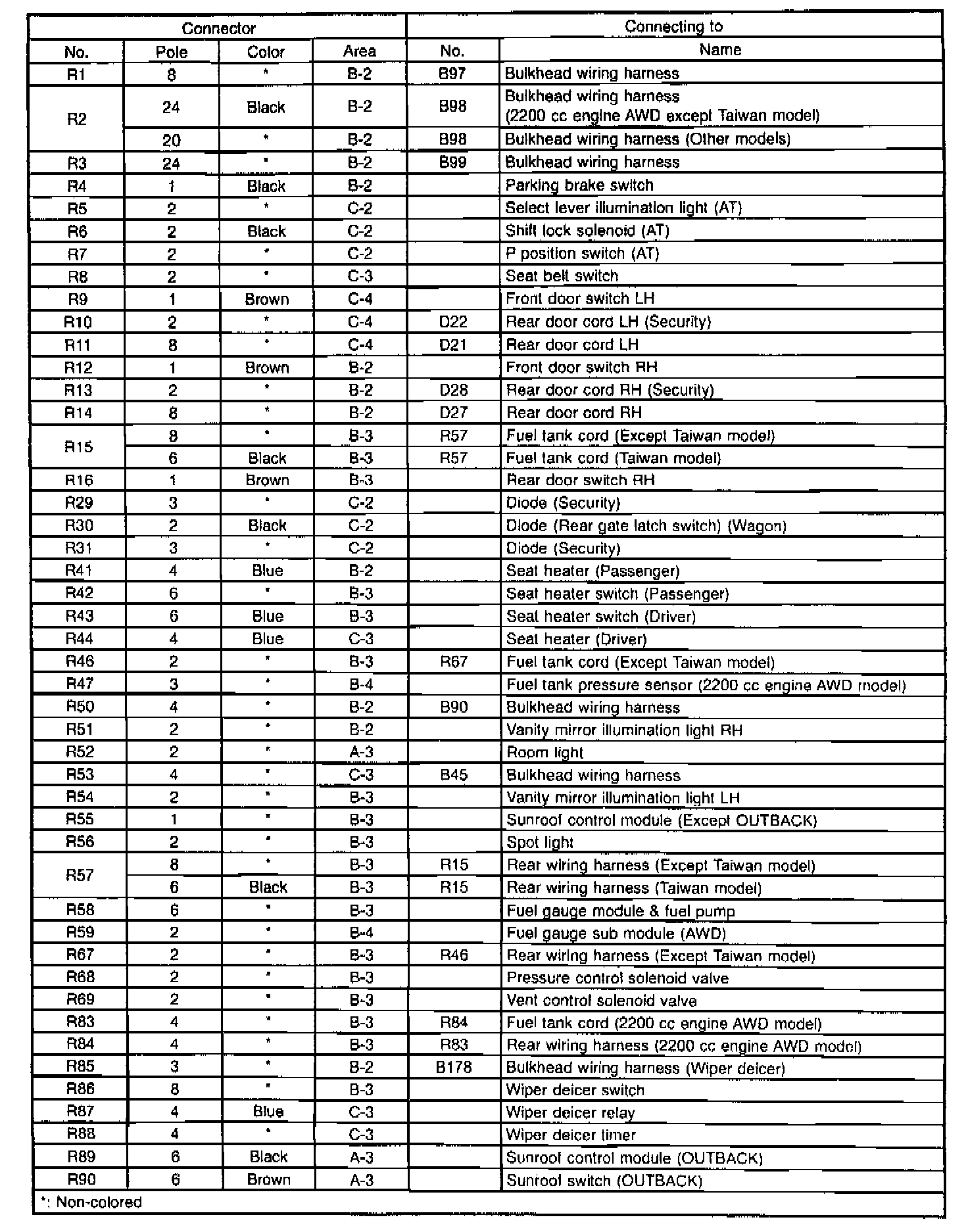

G: Rear Wiring Harness [D8G1]
