Control Module: Service and Repair

A: REMOVAL

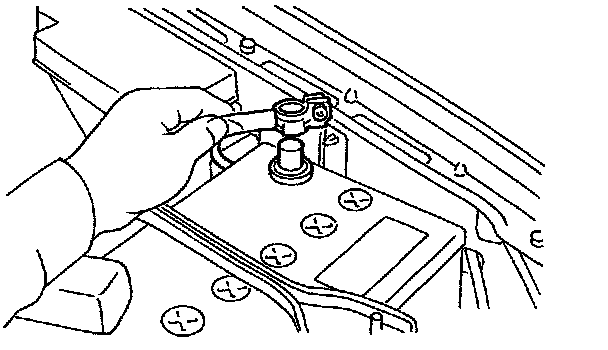

1. Disconnect battery ground cable.
2. Remove lower cover and then disconnect connector.

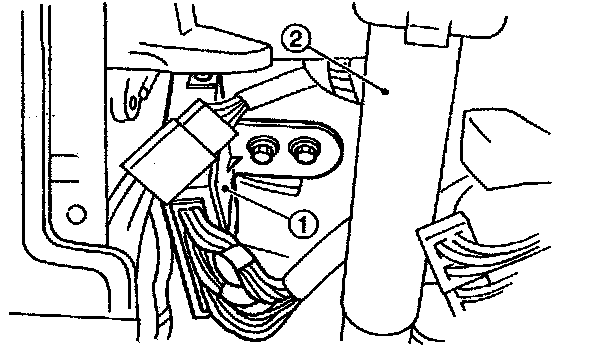

3. Remove transmission control module.
(1)Transmission control module
(2)Column shaft
4. Disconnect connectors from transmission control module.

B: INSTALLATION

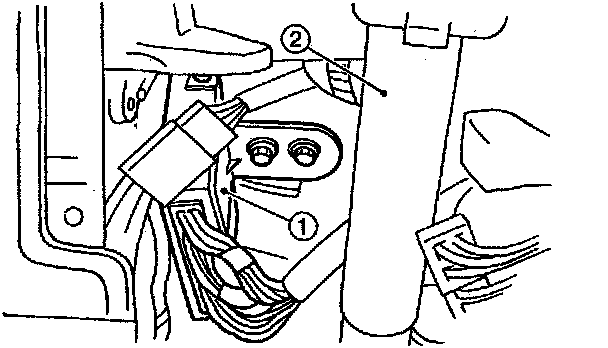

1. Connect connectors to transmission control module.
(1)T Transmission control module
(2)Column shaft
2. Install transmission control module.

Tightening torque:
25 ± 5 Nm (2.5 ± 0.5 kg-m, 18.1 ± 3.6 ft. lbs.)

3. Installing procedure hereafter is in the reverse order of removal.
