Subaru
>>
1998
>>
Legacy Outback AWD F4-2.5L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Testing and Inspection
>>
Reading and Clearing Diagnostic Trouble Codes
>>
Diagnostics For Failed On-Board Diagnostics
Diagnostics For Failed On-Board Diagnostics

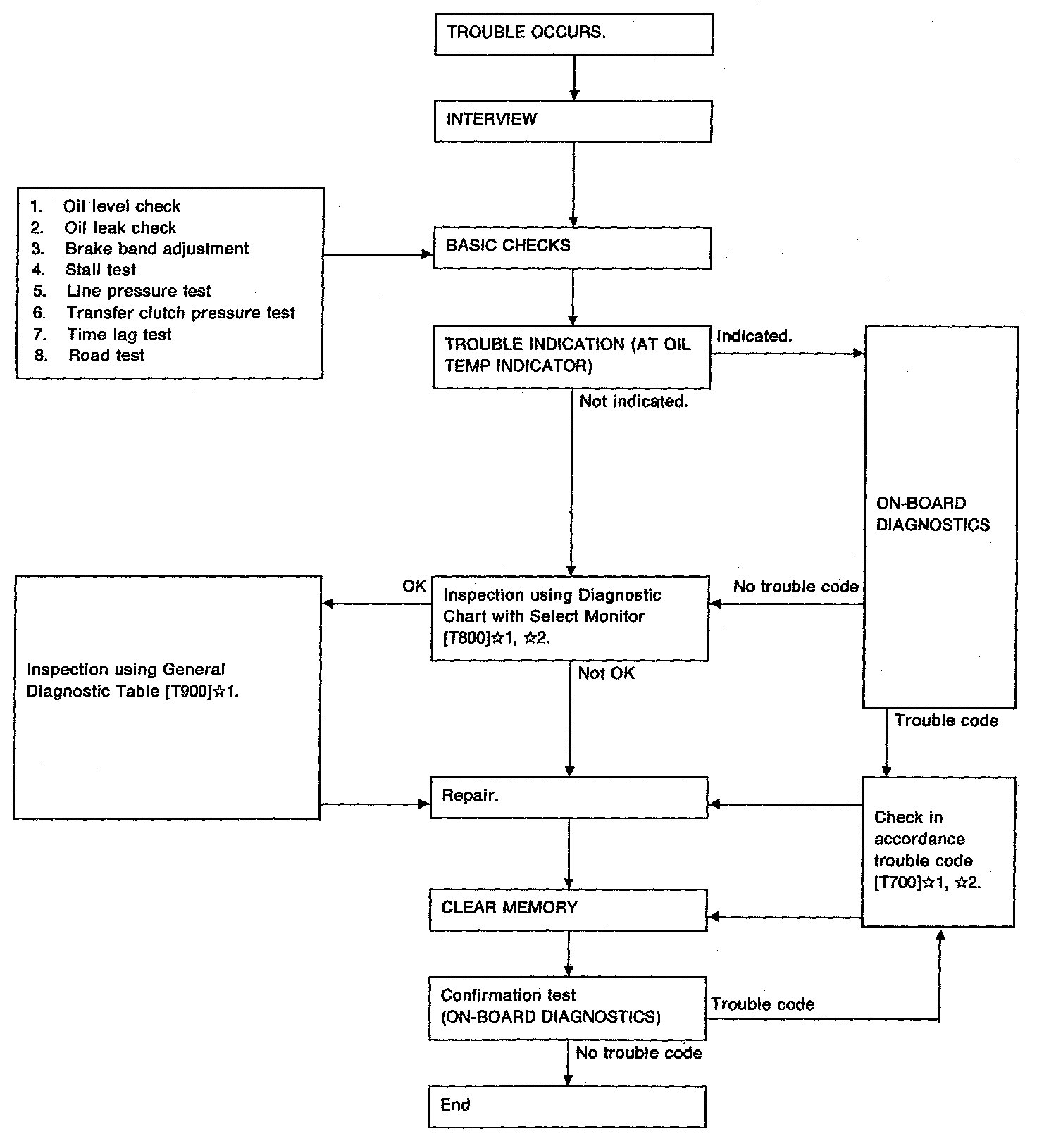

A: BASIC DIAGNOSTIC PROCEDURE
