Pinout Values and Diagnostic Parameters

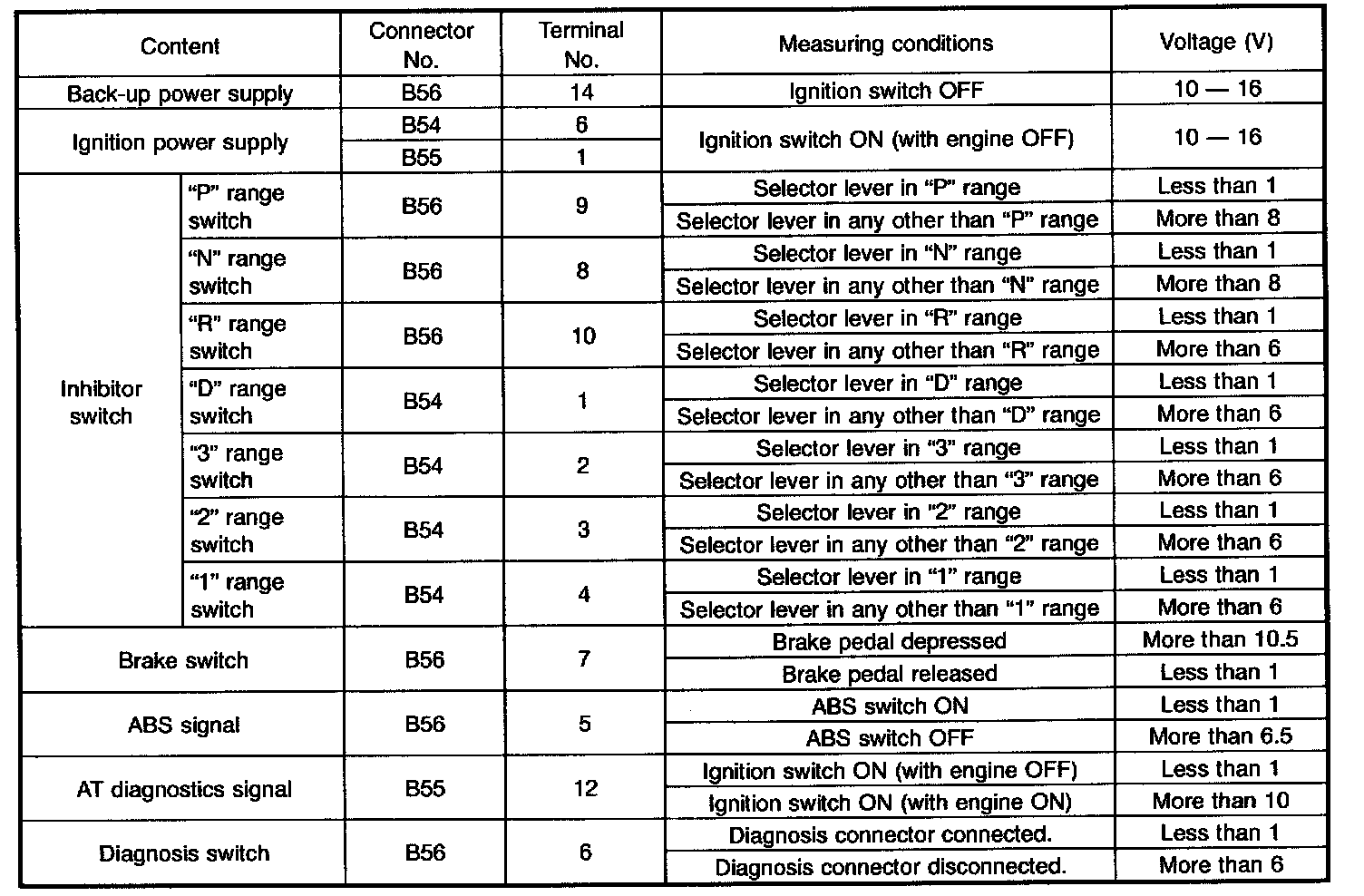

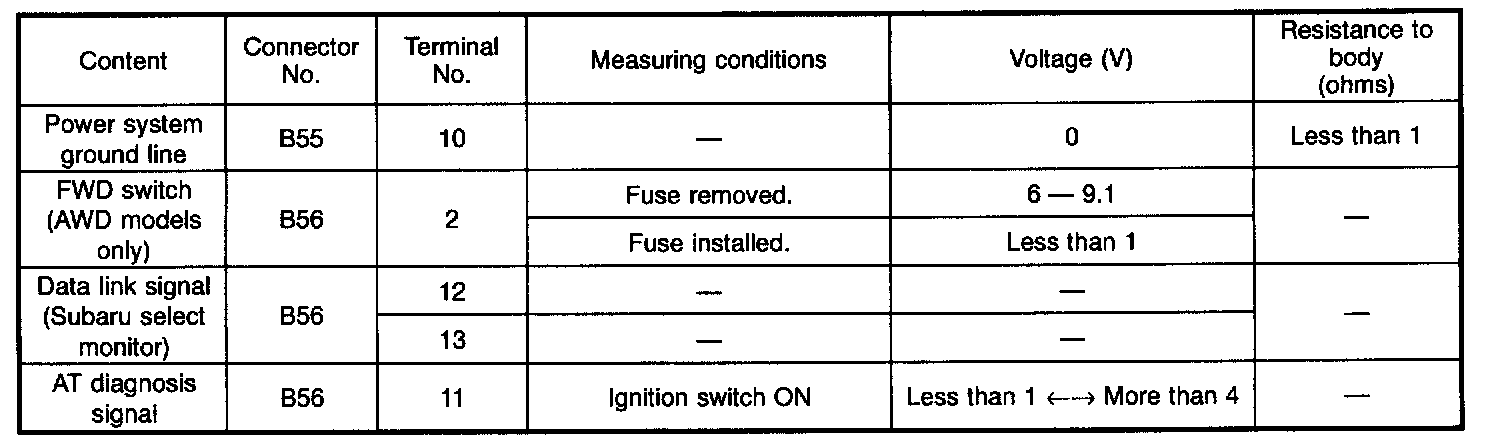

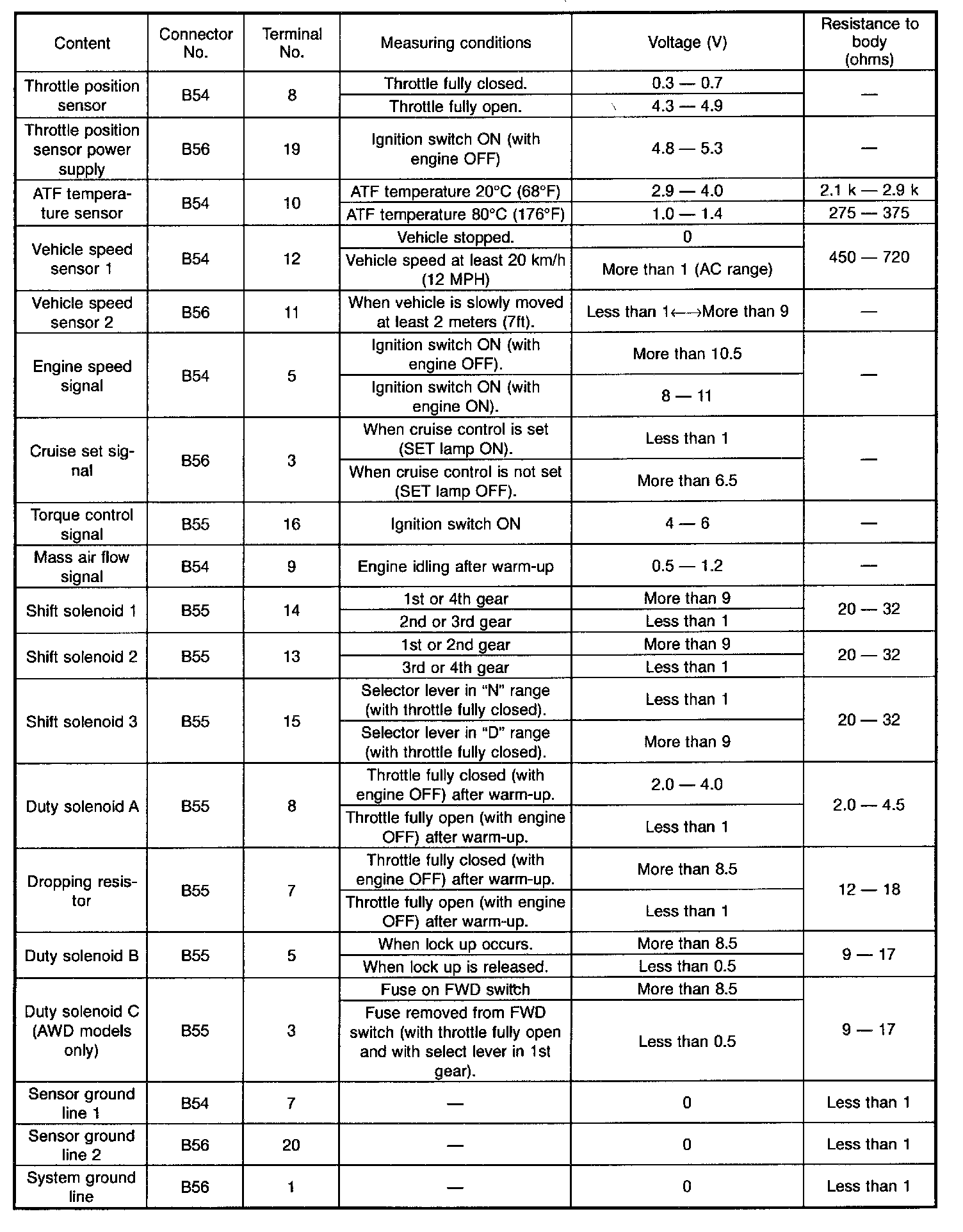

TRANSMISSION CONTROL MODULE (TCM) I/O SIGNAL
NOTE:
Check with
ignition switch
ON.
