Check Hold Switch (Diagnosis Switch)

CHECK HOLD SWITCH. (DIAGNOSTIC SWITCH)











Diagnosis:
- LED does not come on even if diagnosis switch is on.
- Diagnostic switch circuit is open or shorted.

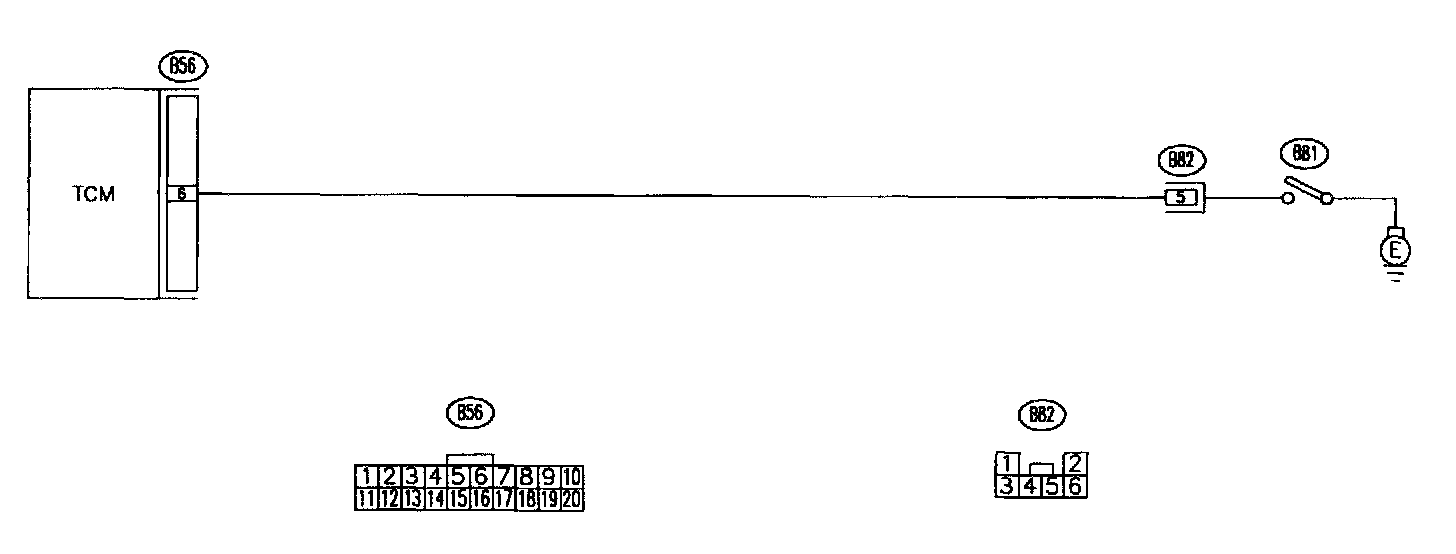

Wiring Diagram:
