Check 2 Range Switch
CHECK "2" RANGE SWITCH
Diagnosis:
Input signal circuit of "2" range is open or shorted.
Trouble Symptom:
- Shift characteristics are erroneous.
- Engine brake is not effected when selector lever is in "2" range.

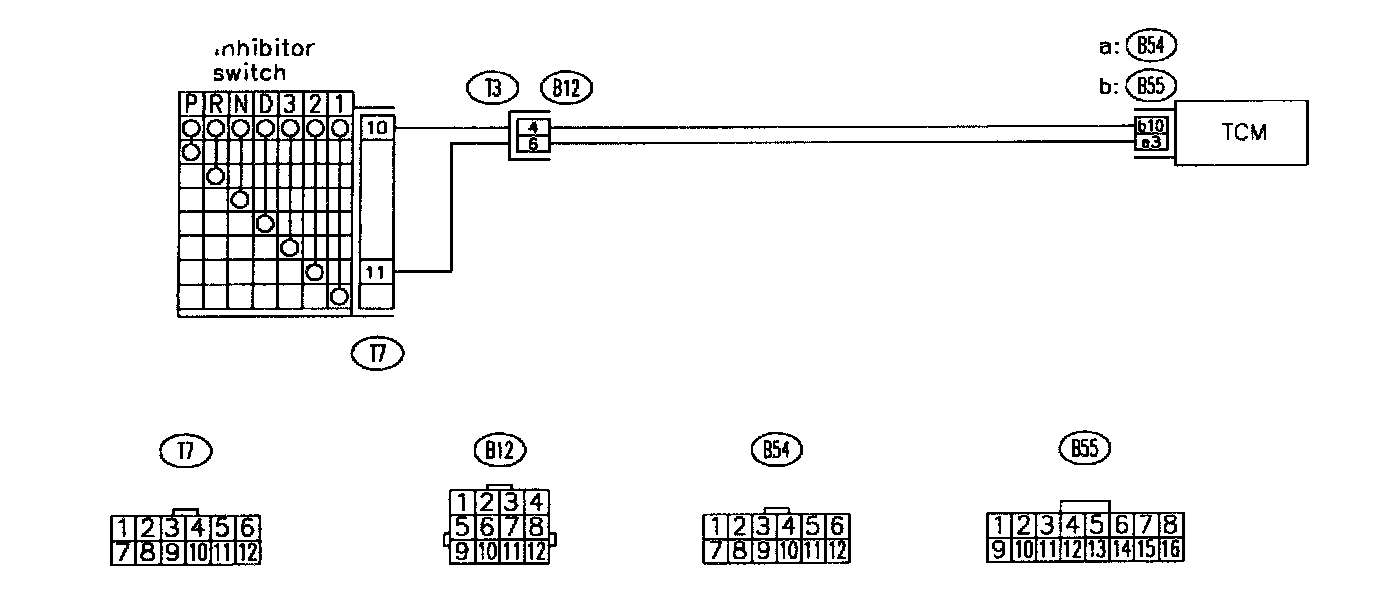

Wiring Diagram:
Diagnosis:
Input signal circuit of "2" range is open or shorted.
Trouble Symptom:
- Shift characteristics are erroneous.
- Engine brake is not effected when selector lever is in "2" range.
Wiring Diagram:
