Electrical Diagrams

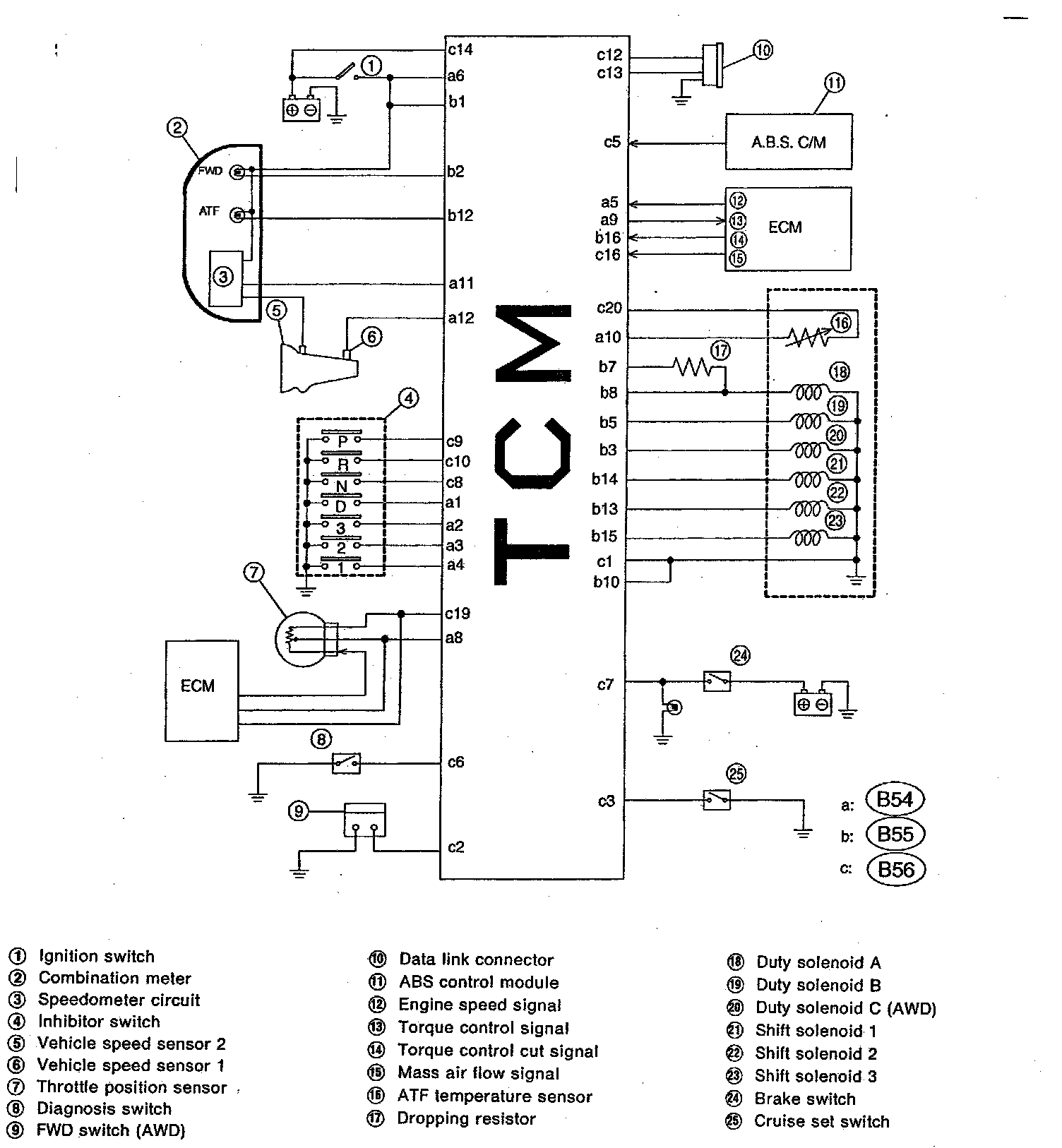

Wiring Schematic:

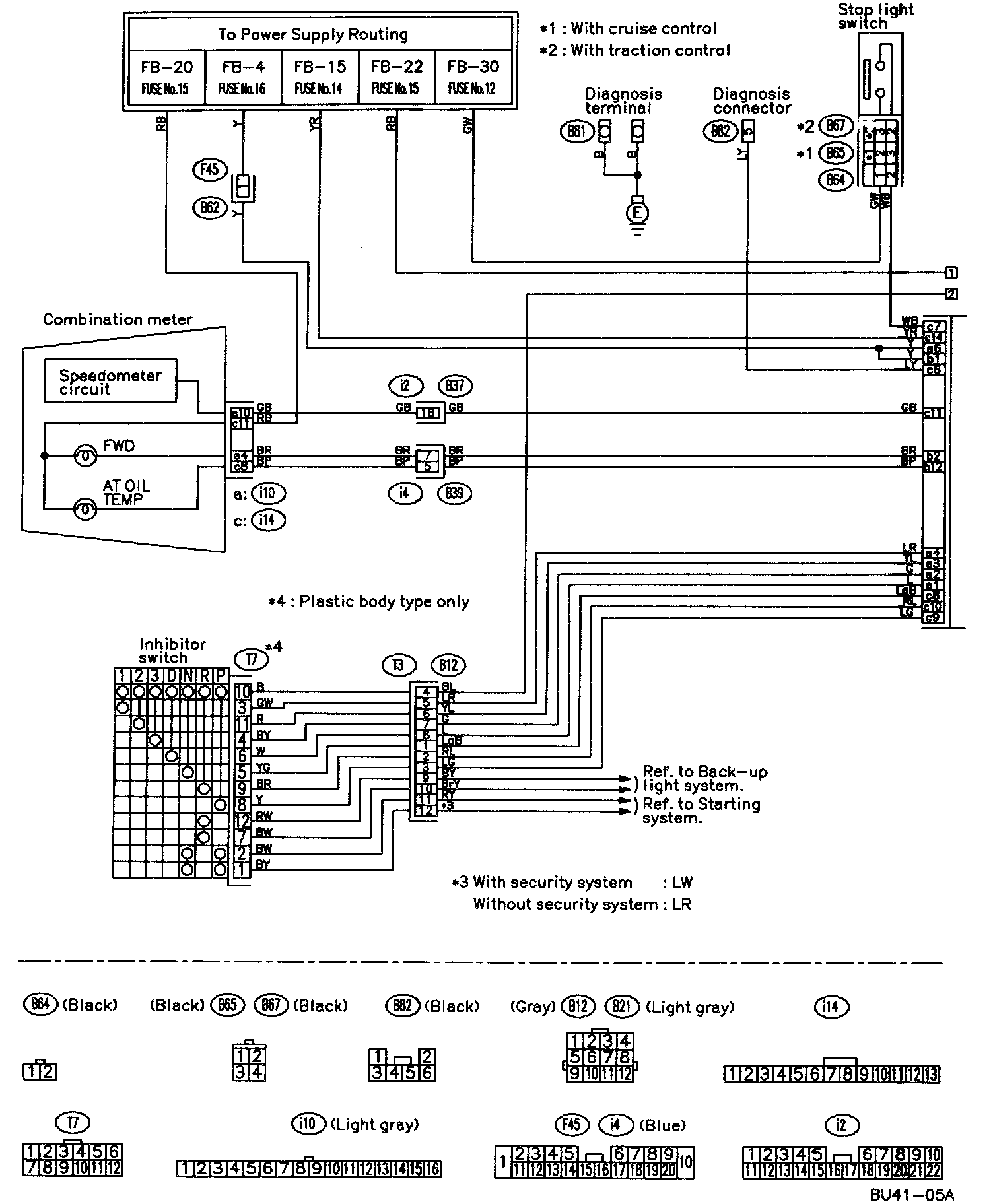

A/T Control System (LHD Model) Circuit 1:

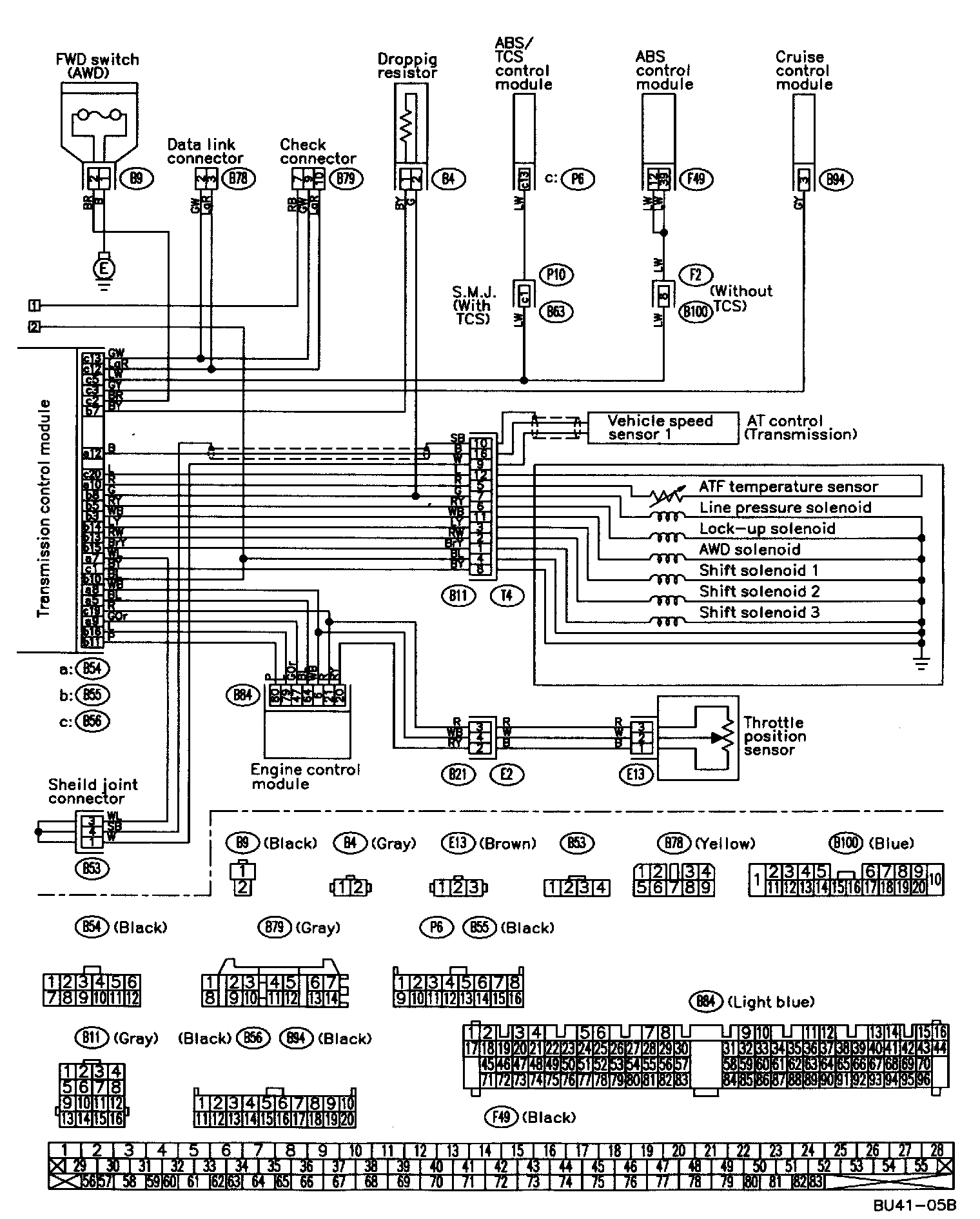

A/T Control System (LHD Model) Circuit 2:

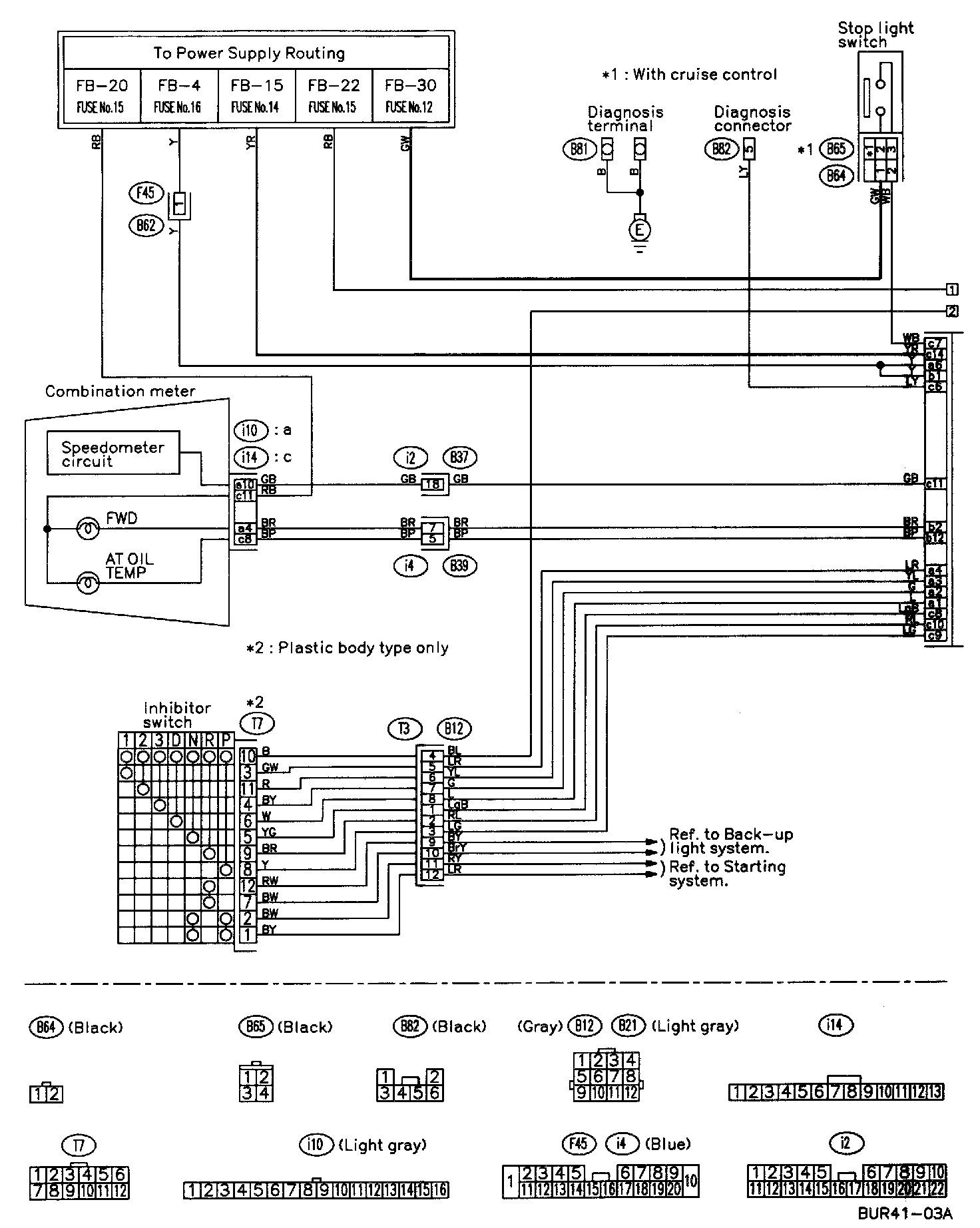

A/T Control System (RHD Model) Circuit 1:

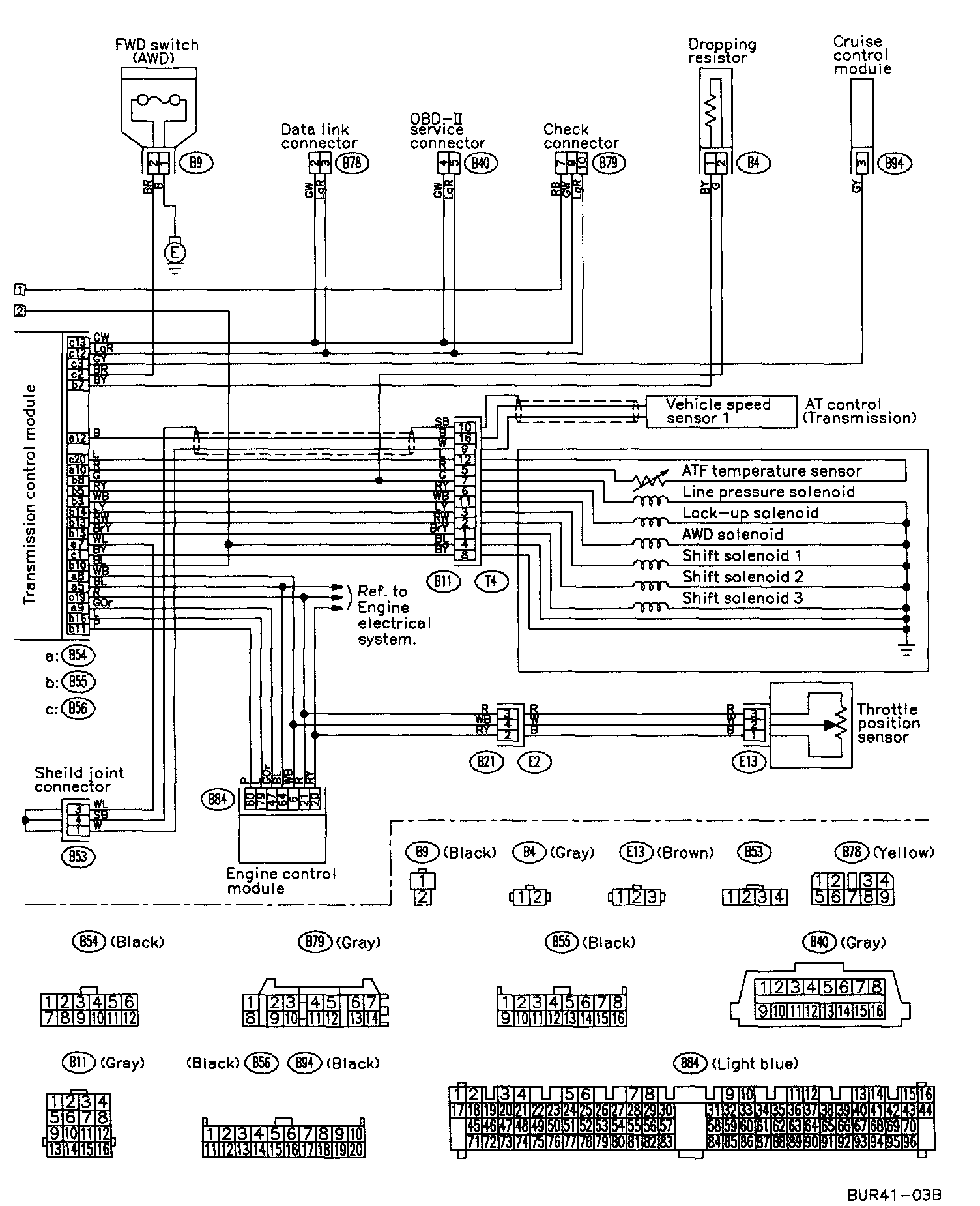

A/T Control System (RHD Model) Circuit 2:
