Fuel Pressure Regulator: Testing and Inspection

1. Release fuel pressure.

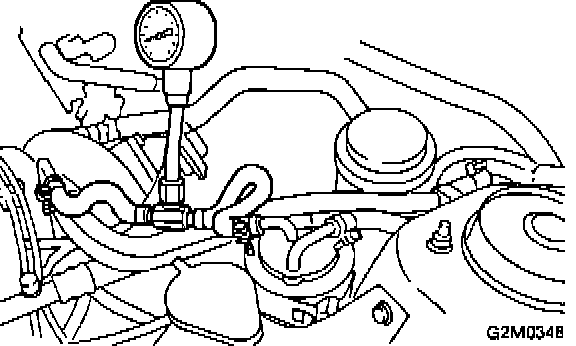

Fuel Pressure Gauge:

2. Connect pressure gauge between filter and hose; check pressure at idle. Gauge should read 177 - 206 kPa (26 - 30 psi).
