Removal
Removal
EGR Tube:
1.
Remove
EGR
fasteners.
2.

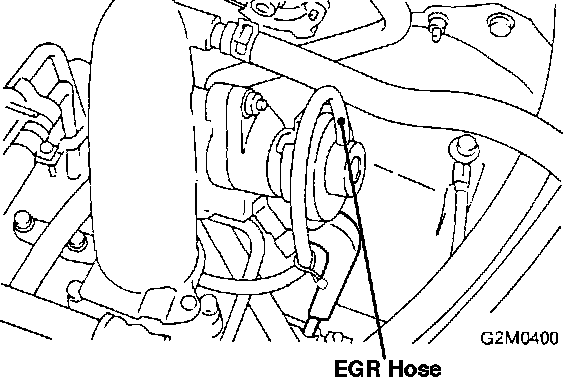

Disconnect vacuum hose.
3.
Reinstall in reverse order with new gasket.
Fastener torque:
17 - 20 Nm (12.6 - 14.8 ft lb)
