Canister Purge Control Valve: Locations

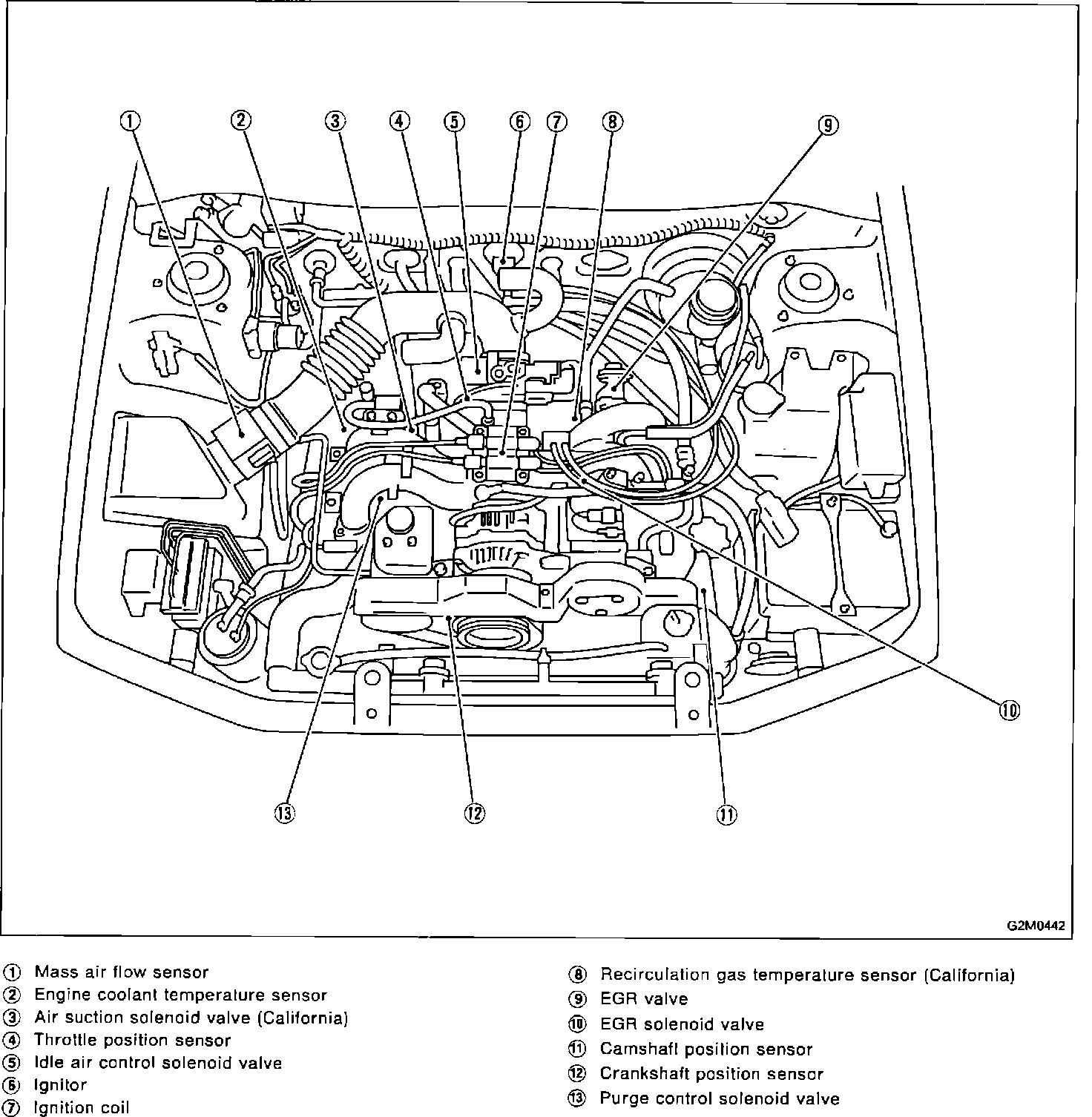

Underhood View:





On the right hand radiator support (Item 13 in image).
