With Manufacturer's Scan Tool

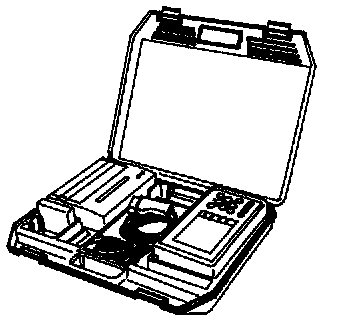

HOW TO USE SUBARU SELECT MONITOR1) Prepare Subaru select monitor kit.
2) Connect diagnosis cable to Subaru select monitor.

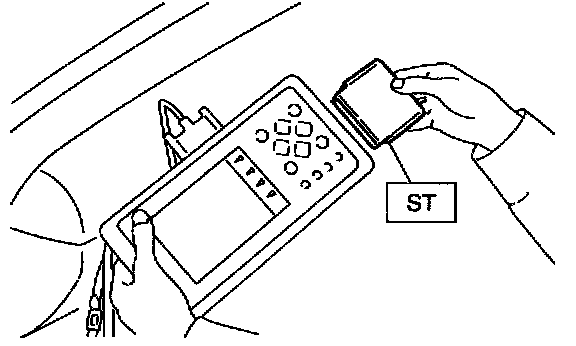

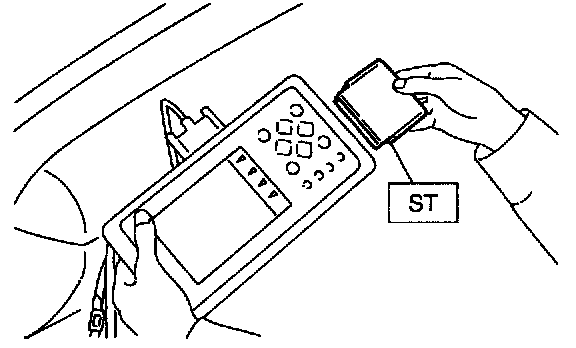

3) Insert cartridge into Subaru select monitor. ST 24082AA010 CARTRIDGE

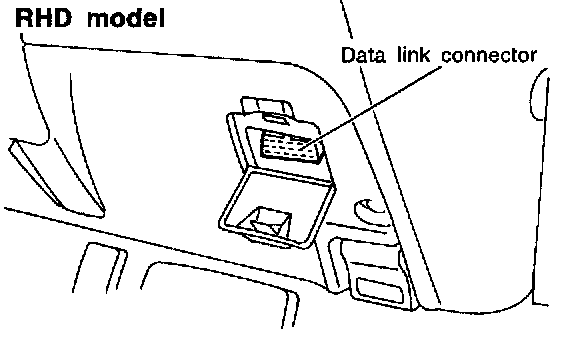

4) Connect Subaru select monitor to data link connector.

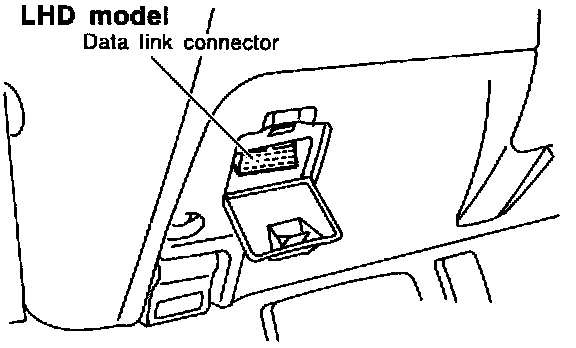

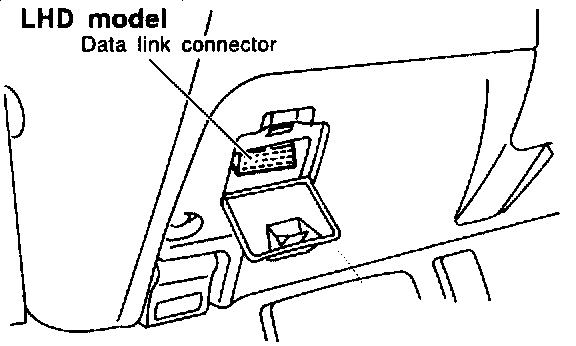

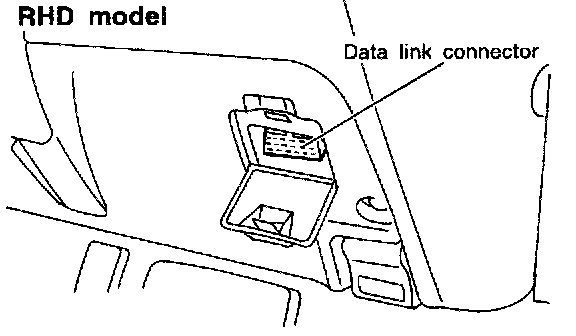

(1) Open the cover data link connector located in the lower portion of the instrument panel (on the driver's side), to the lower cover.
(2) Connect diagnosis cable to data link connector.
CAUTION: Do not connect scan tools except for Subaru select monitor and OBD-II general scan tool.

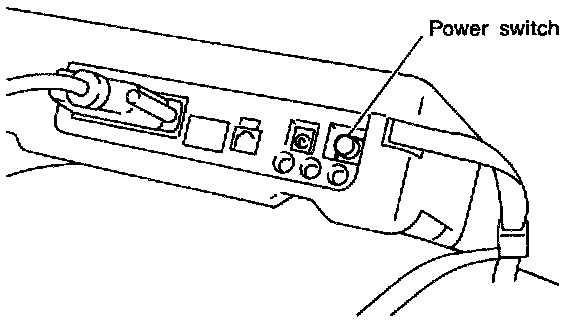

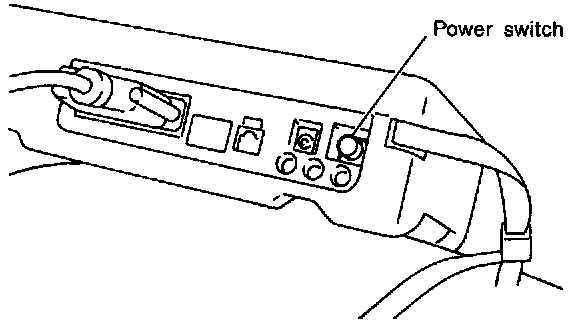

5) Turn ignition switch to ON (engine OFF) and Subaru select monitor switch to ON.
6) Using Subaru select monitor, call up diagnostic trouble code(s) and various data, then record them.
READ DIAGNOSTIC TROUBLE CODE (DTC) SHOWN ON DISPLAY FOR ENGINE. (NORMAL MODE)
1) On the [Main Menu] display screen, select the {1. All System Diagnosis} and press the [YES] key.
2) Make sure that a diagnostic trouble code (DTC) is shown on the {EGI/EMPI} display screen.
NOTE:
- For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL.
- For details concerning diagnostic trouble codes, refer to the DIAGNOSTIC TROUBLE CODE (DTC) LIST.
READ DIAGNOSTIC TROUBLE CODE (DTC) SHOWN ON DISPLAY FOR ENGINE. (OBD MODE)
1) On the [Main Menu] display screen, select the {2. Each System Check} and press the [YES] key.
2) On the [System Selection Menu] display screen, select the {EGI/EMPI} and press the [YES] key.
3) Press the [YES] key after displayed the information of engine type.
4) On the [EGI/EMPI Diagnosis] display screen, select the {7. OBD System} and press the [YES] key.
5) On the [OBD Menu] display screen, select the {3. Diagnosis Code(s) Display} and press the [YES] key.
6) Make sure that a diagnostic trouble code (DTC) is shown on the display screen.
NOTE:
- For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL.
- For details concerning diagnostic trouble codes, refer to the DIAGNOSTIC TROUBLE CODE (DTC) LIST.
READ CURRENT DATA SHOWN ON DISPLAY FOR ENGINE. (NORMAL MODE)
1) On the [Main Menu] display screen, select the {2. Each System Check} and press the [YES] key.
2) On the [System Selection Menu] display screen, select the {EGI/EMPI} and press the [YES] key.
3) Press the [YES] key after displayed the information of engine type.
4) On the [EGI/EMPI Diagnosis] display screen, select the {1. Current Data Display & Save} and press the [YES] key.
5) On the [Data Display Menu] display screen, select the {1. 12 Data Display} and press the [YES] key.
6) Using the scroll key, move the display screen up or down until the desired data is shown.

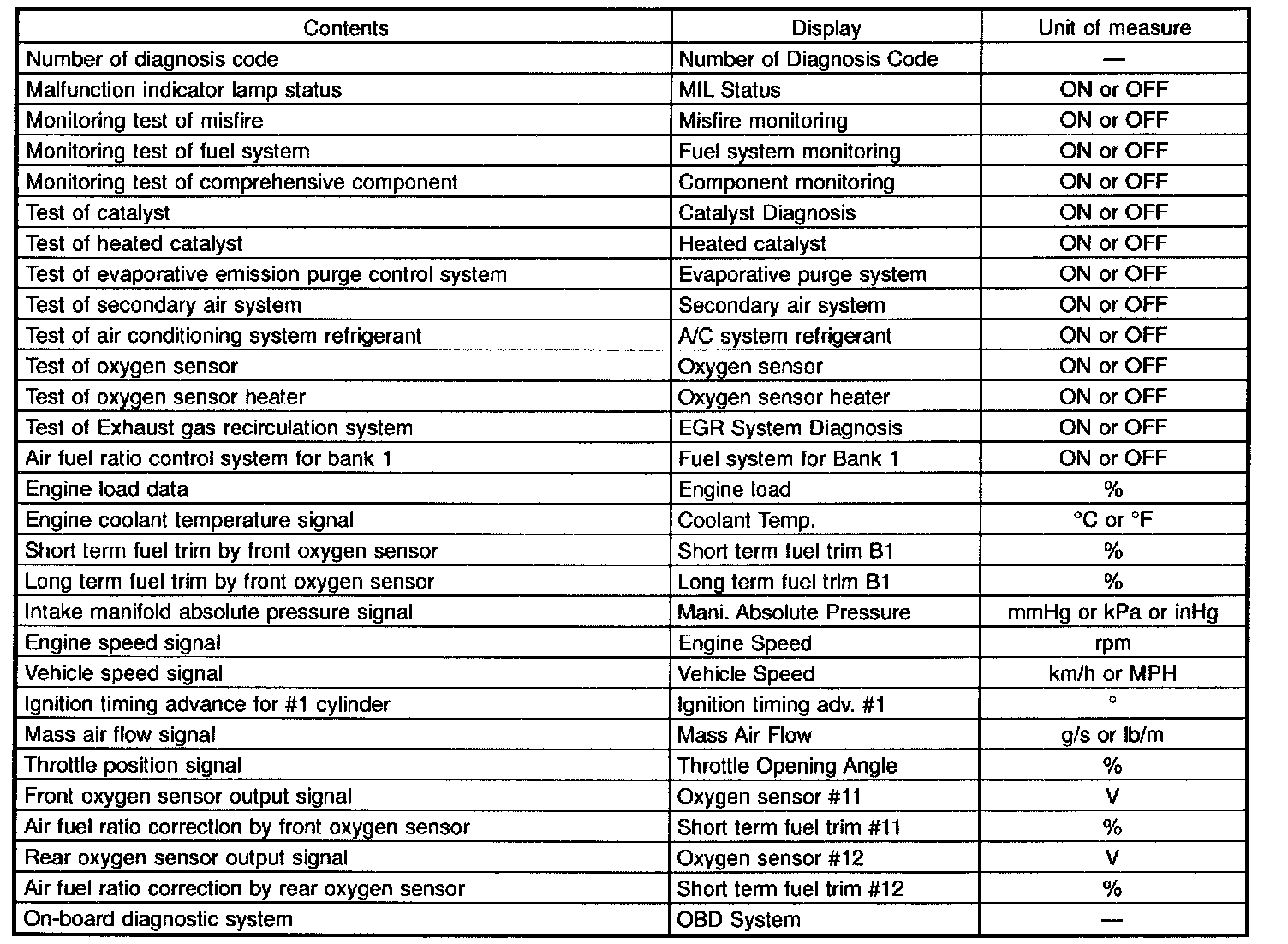

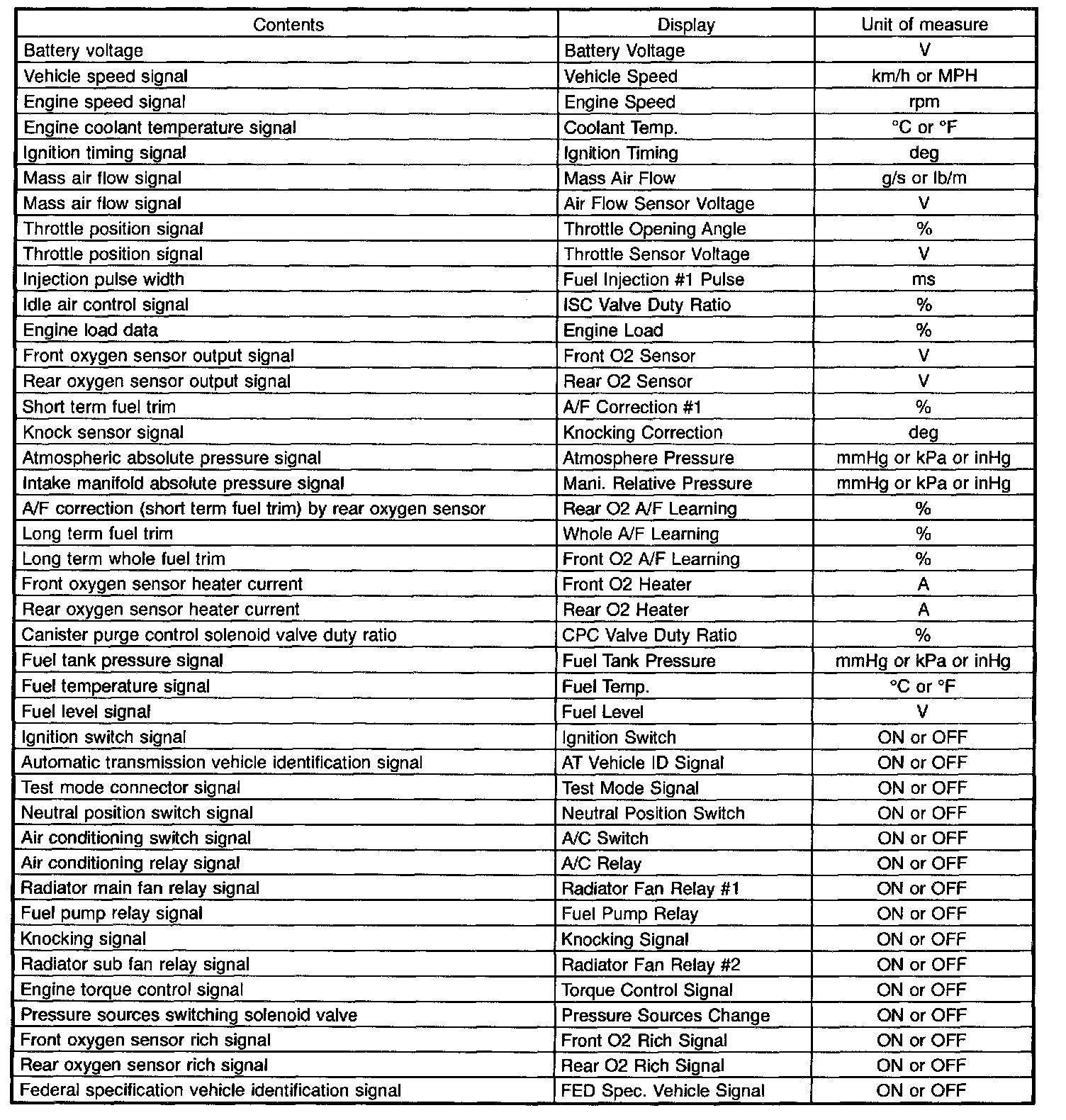

- A list of the support data is shown in the following table.
NOTE: For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL.
READ CURRENT DATA SHOWN ON DISPLAY FOR ENGINE. (OBD MODE)
1) On the [Main Menu] display screen, select the {2. Each System Check} and press the [YES] key.
2) On the [System Selection Menu] display screen, select the {EGI/EMPI} and press the [YES] key.
3) Press the [YES] key after displayed the information of engine type.
4) On the [EGI/EMPI Diagnosis] display screen, select the {7. OBD System} and press the [YES] key.
5) On the [OBD Menu] display screen, select the {1. Current Data Display & Save} and press the [YES] key.
6) On the [Data Display Menu] display screen, select the {1. 12 Data Display} and press the [YES] key.
7) Using the scroll key, move the display screen up or down until the desired data is shown.
- A list of the support data is shown in the following table.
NOTE: For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL.
READ FREEZE FRAME DATA SHOWN ON DISPLAY FOR ENGINE. (OBD MODE)
1) On the [Main Menu] display screen, select the {2. Each System Check} and press the [YES] key.
2) On the [System Selection Menu] display screen, select the {EGI/EMPI} and press the [YES] key.
3) Press the [YES] key after displayed the information of engine type.
4) On the [EGI/EMPI Diagnosis] display screen, select the {7. OBD System} and press the [YES] key.
5) On the [OBD Menu] display screen, select the {2. Freeze Frame Data} and press the [YES] key.

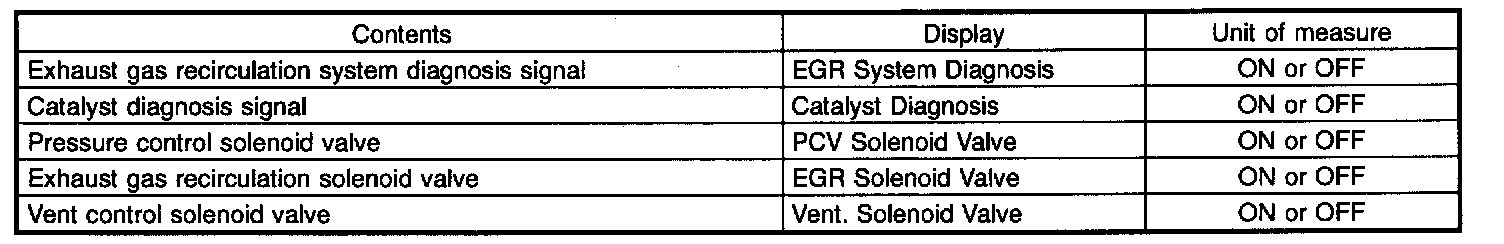

- A list of the support data is shown in the following table.
NOTE: For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL.

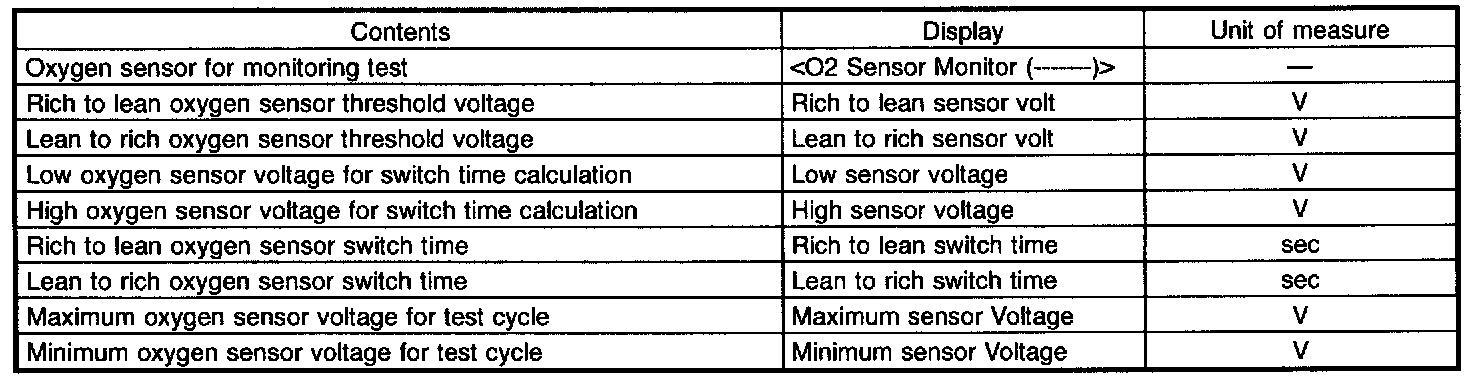

READ OXYGEN SENSOR MONITORING TEST RESULTS DATA SHOWN ON DISPLAY FOR ENGINE. (OBD MODE)
1) On the [Main Menu] display screen, select the {2. Each System Check} and press the [YES] key.
2) On the [system Selection Menu] display screen, select the {EGI/EMPI} and press the [YES] key.
3) Press the [YES] key after displayed the information of engine type.
4) On the [EGI/EMPI Diagnosis] display screen, select the {7. OBD System} and press the [YES] key.
5) On the [OBD Menu] display screen, select the {5. 02 Sensor Monitor} and press the [YES] key.
6) On the [O2 Sensor Select] display screen, select the {Bank 1-Sensor1} or {Bank 1-Sensor2} and press the [YES] key.
- Bank 1-Sensor1 indicates the front oxygen sensor, and Bank 1-Sensor2 indicates the rear oxygen sensor.
- A list of the support data is shown in the following table.
NOTE: For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL.
LED OPERATION MODE FOR ENGINE
1) On the [Main Menu] display screen, select the {2. Each System Check} and press the [YES] key.
2) On the [System Selection Menu] display screen, select the {EGI/EMPI} and press the [YES] key.
3) Press the [YES] key after displayed the information of engine type.
4) On the [EGI/EMPI Diagnosis] display screen, select the {1. Current Data Display & Save} and press the [YES] key.
5) On the [Data Display Menu] display screen, select the {2. 6 Data & LED Display} and press the [YES] key.
6) Using the scroll key, move the display screen up or down until the desired data is shown.

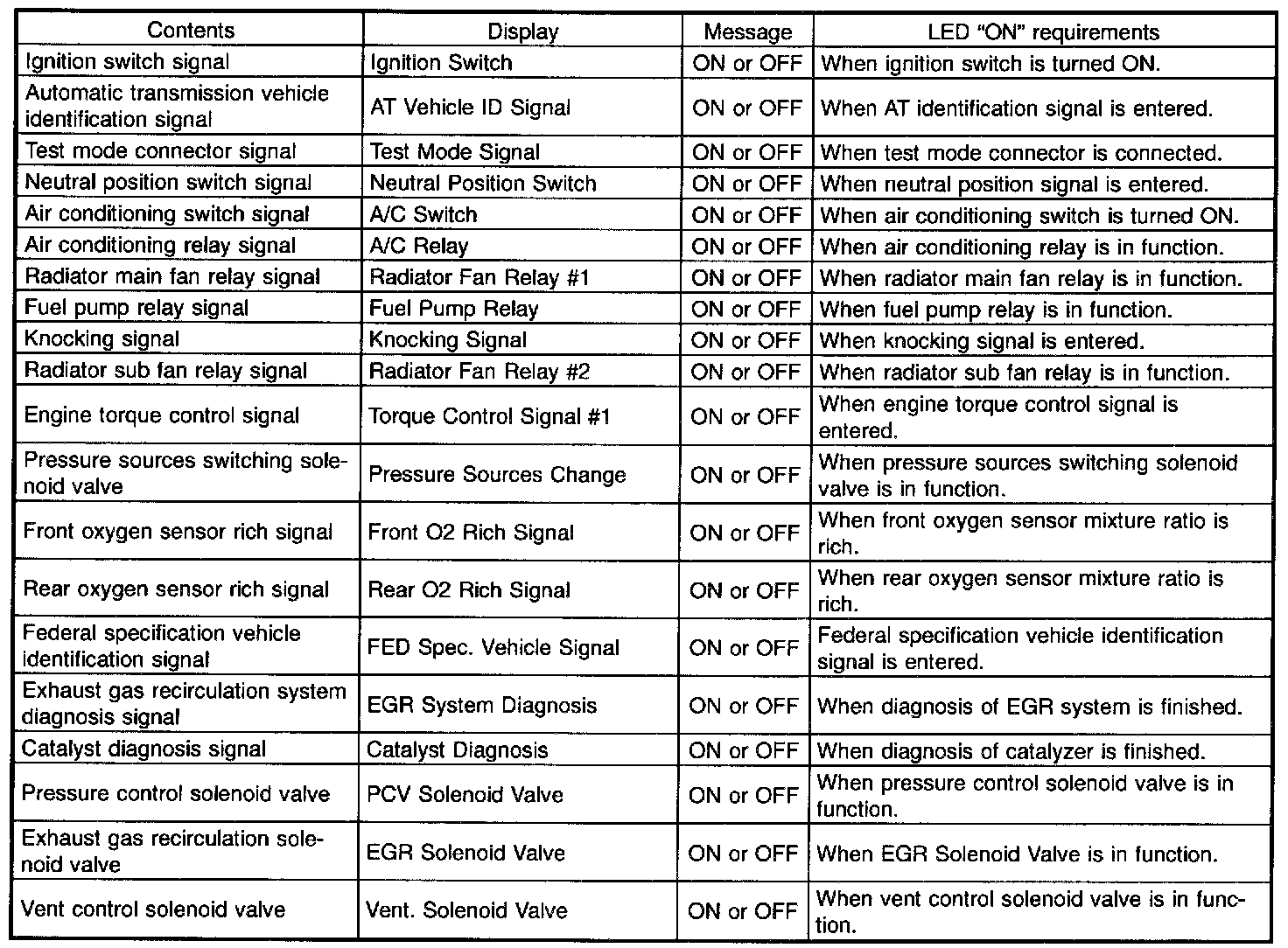

- A list of the support data is shown in the following table.
NOTE: For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL.
READ CURRENT DATA SHOWN ON DISPLAY FOR AT.
1) On the [Main Menu] display screen, select the {2. Each System Check} and press the [YES] key.
2) On the [System Selection Menu] display screen, select the {AT/ECVT} and press the [YES] key.
3) Press the [YES] key after displayed the information of transmission type.
4) On the [E-4AT/ECVT Diagnosis] display screen, select the {1. Current Data Display & Save} and press the [YES] key.
5) On the [Data Display Menu] display screen, select the {1. 12 Data Display} and press the [YES] key.
6) Using the scroll key, move the display screen up or down until the desired data is shown.

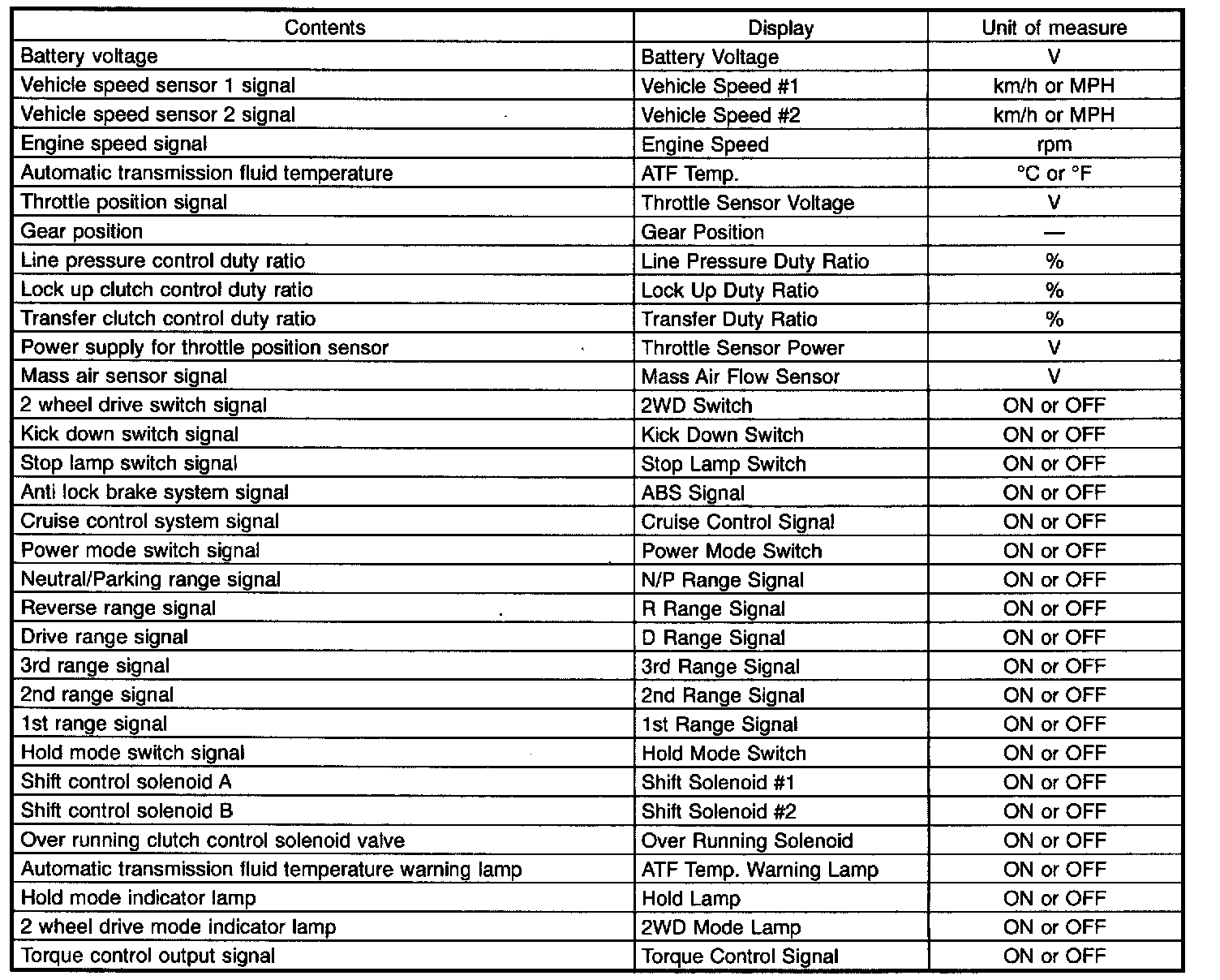

- A list of the support data is shown in the following table.
NOTE: For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL.
CLEAR MEMORY MODE
SUBARU SELECT MONITOR (NORMAL MODE)
1) On the [Main Menu] display screen, select the {2. Each System Check} and press the [YES] key.
2) On the [system Selection Menu] display screen, select the {EGI/EMPI} and press the [YES] key.
3) Press the [YES] key after displayed the information of engine type.
4) On the [EGI/EMPI Diagnosis] display screen, select the {3. Clear Memory} and press the [YES] key.
5) When the "Done" and "Turn Ignition Switch OFF" are shown on the display screen, turn the Subaru select monitor and ignition switch to OFF.
NOTE: For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL.
SUBARU SELECT MONITOR (OBD MODE)
1) On the [Main Menu] display screen, select the {2. Each System Check} and press the [YES] key.
2) On the [System Selection Menu] display screen, select the {EGI/EMPI} and press the [YES] key.
3) Press the [YES] key after displayed the information of engine type.
4) On the [EGI/EMPI Diagnosis] display screen, select the {7. OBD System} and press the [YES] key.
5) On the [OBD Menu] display screen, select the {4. Diagnosis Code(s) Cleared} and press the [YES] key.
6) When the "Clear Diagnostic Code?" is shown on the display screen, press the [YES] key.
7) Turn Subaru select monitor and ignition switch to OFF.
NOTE: For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL.
OBD-II GENERAL SCAN TOOL
For clear memory procedures using the OBD-II general scan tool, refer to the OBD-II General Scan Tool Instruction Manual.
INSPECTION MODE
PREPARATIONS FOR THE INSPECTION MODE
Raise the vehicle using a garage jack and place on safety stands or drive the vehicle onto free rollers.
- FULL-TIME AWD MODELS
WARNING:
- BEFORE RAISING THE VEHICLE, ENSURE PARKING BRAKES ARE APPLIED.
- DO NOT USE A PANTOGRAPH JACK IN PLACE OF A SAFETY STAND.
- SECURE A ROPE OR WIRE TO THE FRONT AND REAR TOWING OR TI~DOWN HOOKS TO PREVENT THE LATERAL RUNOUT OF FRONT WHEELS.
- DO NOT ABRUPTLY DEPRESS/RELEASE CLUTCH PEDAL OR ACCELERATOR PEDAL DURING WORKS EVEN WHEN ENGINE IS OPERATING AT LOW SPEEDS SINCE THIS MAY CAUSE VEHICLE TO JUMP OFF FREE ROLLERS.
- IN ORDER TO PREVENT THE VEHICLE FROM SLIPPING DUE TO VIBRATION, DO NOT PLACE ANY WOODEN BLOCKS OR SIMILAR ITEMS BETWEEN THE SAFETY STANDS AND THE VEHICLE.
- SINCE THE REAR WHEELS WILL ALSO ROTATE, DO NOT PLACE ANYTHING NEAR THEM. ALSO, MAKE SURE THAT NOBODY GOES IN FRONT OF THE VEHICLE.
- FWD MODELS
WARNING:
- BEFORE RAISING THE VEHICLE, ENSURE PARKING BRAKES ARE APPLIED.
- DO NOT USE A PANTOGRAPH JACK IN PLACE OF A SAFETY STAND.
- IF ONLY THE FRONT WHEELS ARE RAISED OR PLACED ON A FREE ROLLER, APPLY PARKING BRAKES AND LOCK THE REAR WHEELS.
- SECURE A ROPE OR WIRE TO THE FRONT AND REAR TOWING OR TIE-DOWN HOOKS TO PREVENT THE LATERAL RUNOUT OF FRONT WHEELS.
- DO NOT ABRUPTLY DEPRESS/RELEASE CLUTCH PEDAL OR ACCELERATOR PEDAL DURING WORKS EVEN WHEN ENGINE IS OPERATING AT LOW SPEEDS SINCE THIS MAY CAUSE VEHICLE TO JUMP OFF FREE ROLLERS.
- IN ORDER TO PREVENT THE VEHICLE FROM SLIPPING DUE TO VIBRATION, DO NOT PLACE ANY WOODEN BLOCKS OR SIMILAR ITEMS BETWEEN THE SAFETY STANDS AND THE VEHICLE.
- SINCE THE REAR WHEELS WILL ALSO ROTATE, DO NOT PLACE ANYTHING NEAR THEM. ALSO, MAKE SURE THAT NOBODY GOES IN FRONT OF THE VEHICLE.
SUBARU SELECT MONITOR
After performing diagnostics and clearing the memory, check for any remaining unresolved trouble data.
1) Prepare Subaru select monitor kit.
2) Connect diagnosis cable to Subaru select monitor.
3) Insert cartridge into Subaru select monitor. ST 24082AA010 CARTRIDGE

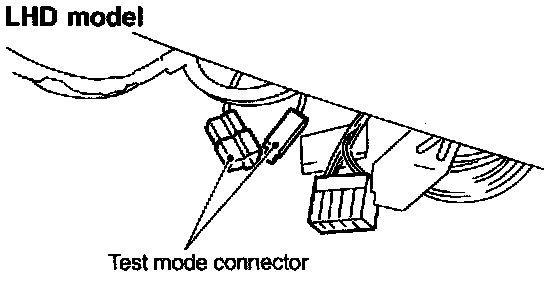

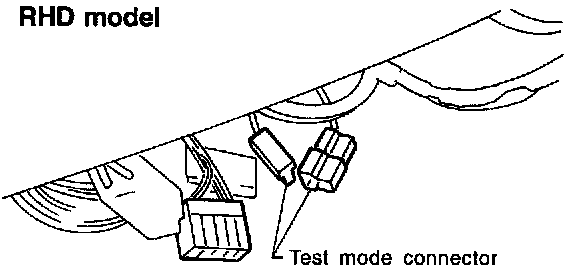

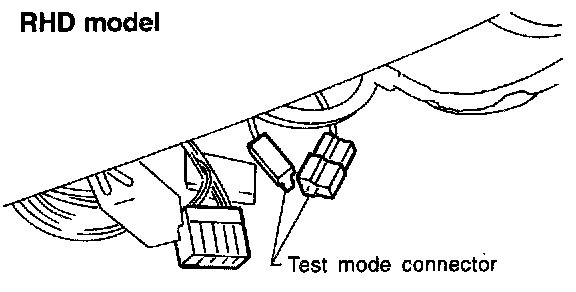

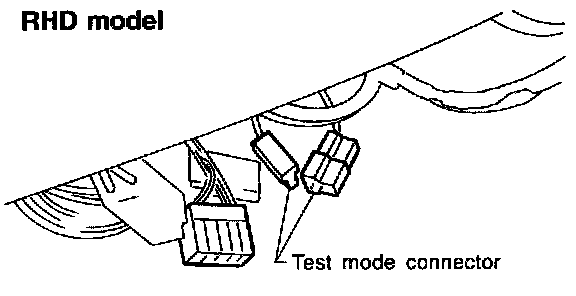

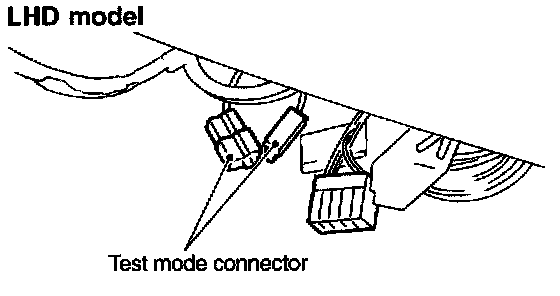

4) Connect test mode connector at the lower portion of instrument panel (on the driver's side), to the side of the center console box.
5) Connect Subaru select monitor to data link connector.
(1) Open the cover and connect Subaru select monitor to data link connector located in the lower portion of the instrument panel (on the driver's side), to the lower cover.
(2) Connect diagnosis cable to data link connector.
CAUTION: Do not connect scan tools except for Subaru select monitor and OBD-II general scan tool.
6) Turn ignition switch to ON (engine OFF) and Subaru select monitor switch to ON.
7) On the [Main Menu] display screen, select the {2. Each System Check} and press the [YES] key.
8) On the [System Selection Menu] display screen, select the {EGI/EMPI} and press the [YES] key.
9) Press the [YES] key after displayed the information of engine type.
10) On the [EGI/EMPI Diagnosis] display screen, select the {6. Dealer Check Mode Procedure} and press the [YES] key.
11) When the "Perform Inspection (Dealer Check) Mode?" is shown on the display screen, press the [YES] key.
12) Perform subsequent procedures as instructed on the display screen.
- If trouble still remains in the memory, the corresponding diagnostic trouble code (DTC) appears on the display screen.
NOTE:
- For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL.
- For detailed concerning diagnostic trouble codes, refer to the DIAGNOSTIC TROUBLE CODE (DTC) LIST.
- On AWD vehicles, release the parking brake.
- The speed difference between front and rear wheels may light either the ABS warning light, but this indicates no malfunctions. When engine control diagnosis is finished, perform the ABS memory clearance procedure of self-diagnosis system.
COMPULSORY VALVE OPERATION CHECK MODE
1. SUBARU SELECT MONITOR
1) Prepare Subaru select monitor kit.
2) Connect diagnosis cable to Subaru select monitor.
3) Insert cartridge into Subaru select monitor. ST 24082AA010 CARTRIDGE

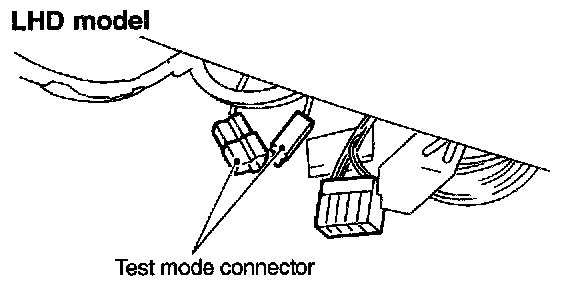

4) Connect test mode connector at the lower portion of instrument panel (on the driver's side), to the side of the center console box.
5) Connect Subaru select monitor to data link connector.
(1) Open the cover and connect Subaru select monitor to data link connector located in the lower portion of the instrument panel (on the driver's side), to the lower cover.
(2) Connect diagnosis cable to data link connector.
CAUTION: Do not connect scan tools except for Subaru select monitor and OBD-II general scan tool.
6) Turn ignition switch to ON (engine OFF) and Subaru select monitor switch to ON.
7) On the [Main Menu] display screen, select the {2. Each System Check} and press the [YES] key.
8) On the [System Selection Menu] display screen, select the {EGI/EMPI} and press the [YES] key.
9) Press the [YES] key after displayed the information of engine type.
10) On the [EGI/EMPI Diagnosis] display screen, select the {4. System Operation Check Mode} and press the [YES] key.
11) On the [System Operation Check Mode] display screen, select the {Actuator ON/OFF Operation} and press the [YES] key.
12) Select the desired compulsory actuator on the [Actuator ON/OFF Operation] display screen and press the [YES] key.
13) Pressing the [NO] key completes the compulsory operation check mode. The display will then return to the [Actuator ON/OFF Operation] screen.

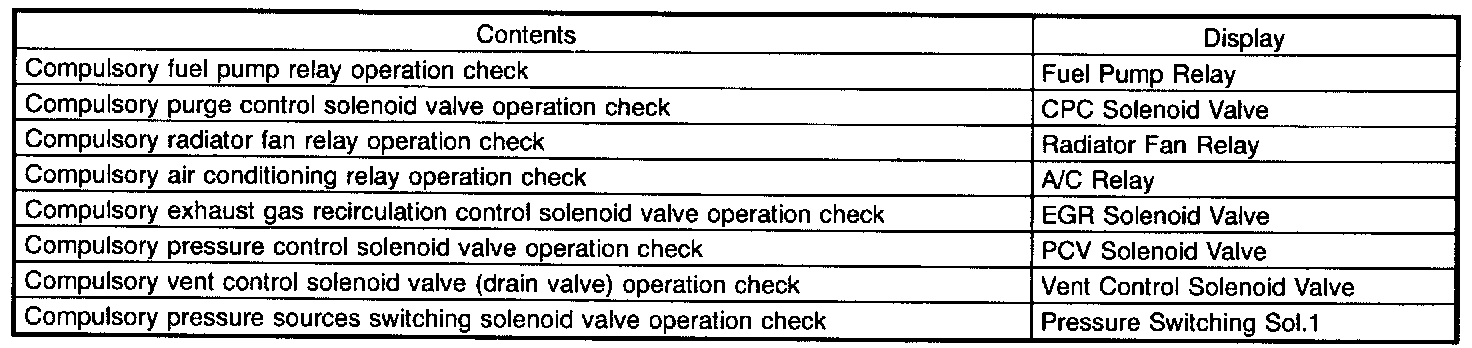

- A list of the support data is shown in the following table.
NOTE:
- Because ASV solenoid valve, FICD solenoid valve and air injection system diagnosis solenoid valve are not installed, ASV Solenoid Valve, FICD Solenoid Valve and Pressure Switching Sol.2 will be displayed but non-functional.
- For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL.
FINISHING DIAGNOSIS OPERATION
SUBARU SELECT MONITOR
1) Turn ignition switch to OFF.
2) Turn Subaru select monitor switch to OFF.
3) Disconnect test mode connector at the lower portion of instrument panel (on the driver's side), to the side of the center console box.
4) Disconnect Subaru select monitor from its data link connector.
