Throttle Position Sensor: Service and Repair
THROTTLE POSITION SENSORREMOVAL AND INSTALLATION

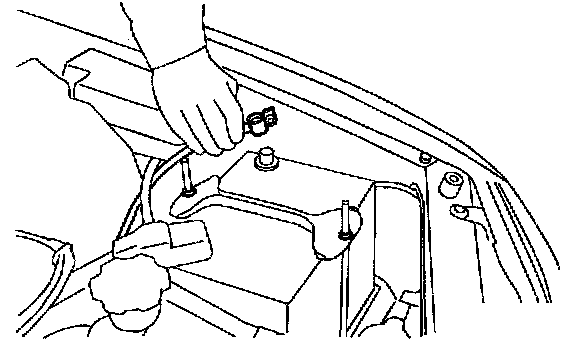

1) Disconnect battery ground cable.

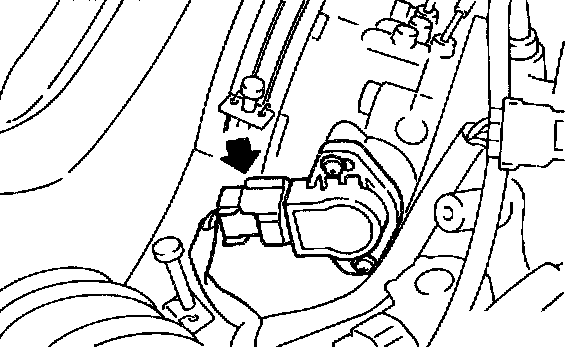

2) Disconnect connector from throttle position sensor.

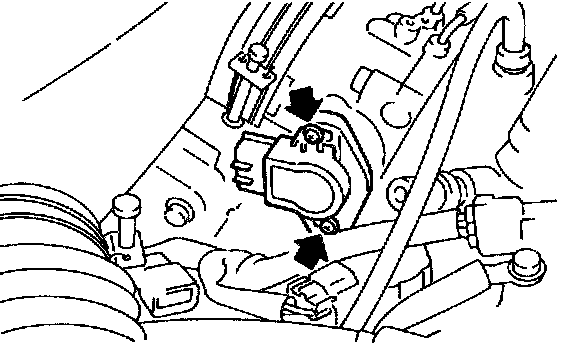

3) Remove throttle position sensor holding screws, and remove it.
4) Installation is in the reverse order of removal.
Tightening torque: 2.2 ± 0.2 Nm (0.22 ± 0.02 kg-m, 1.6 ± 0.1 ft. lb)
CAUTION: When installing throttle position sensor, adjust to the specified data. Please refer to Adjustments.
