BARO / MAP Sensor Switching Valve: Service and Repair
PRESSURE SOURCES SWITCHING SOLENOID VALVE (AT MODEL)REMOVAL AND INSTALLATION

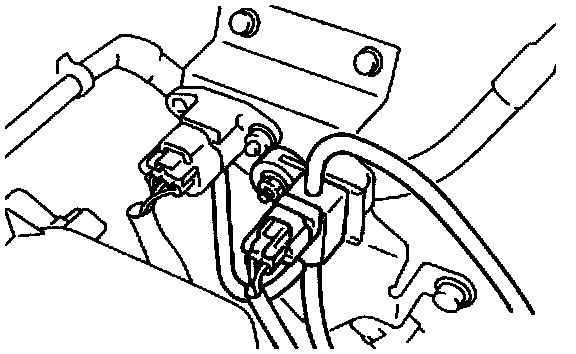

1) Disconnect connector from pressure sources switching solenoid valve.
2) Disconnect hoses from pressure sources switching solenoid valve.

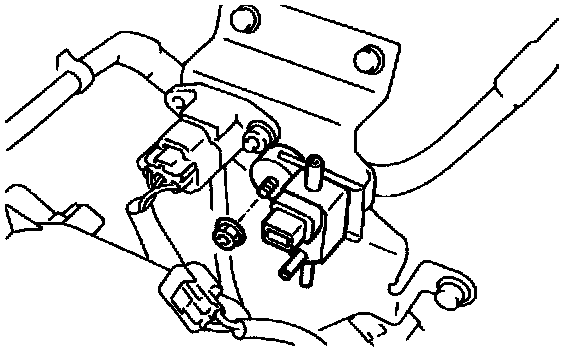

3) Remove pressure sources switching solenoid valve from bracket.
4) Installation is in the reverse order of removal.
Tightening torque: 6.4 ± 0.5 Nm (0.65 ± 0.05 kg-m, 4.7 ± 0.4 ft. lb)
