Engine Mount: Locations

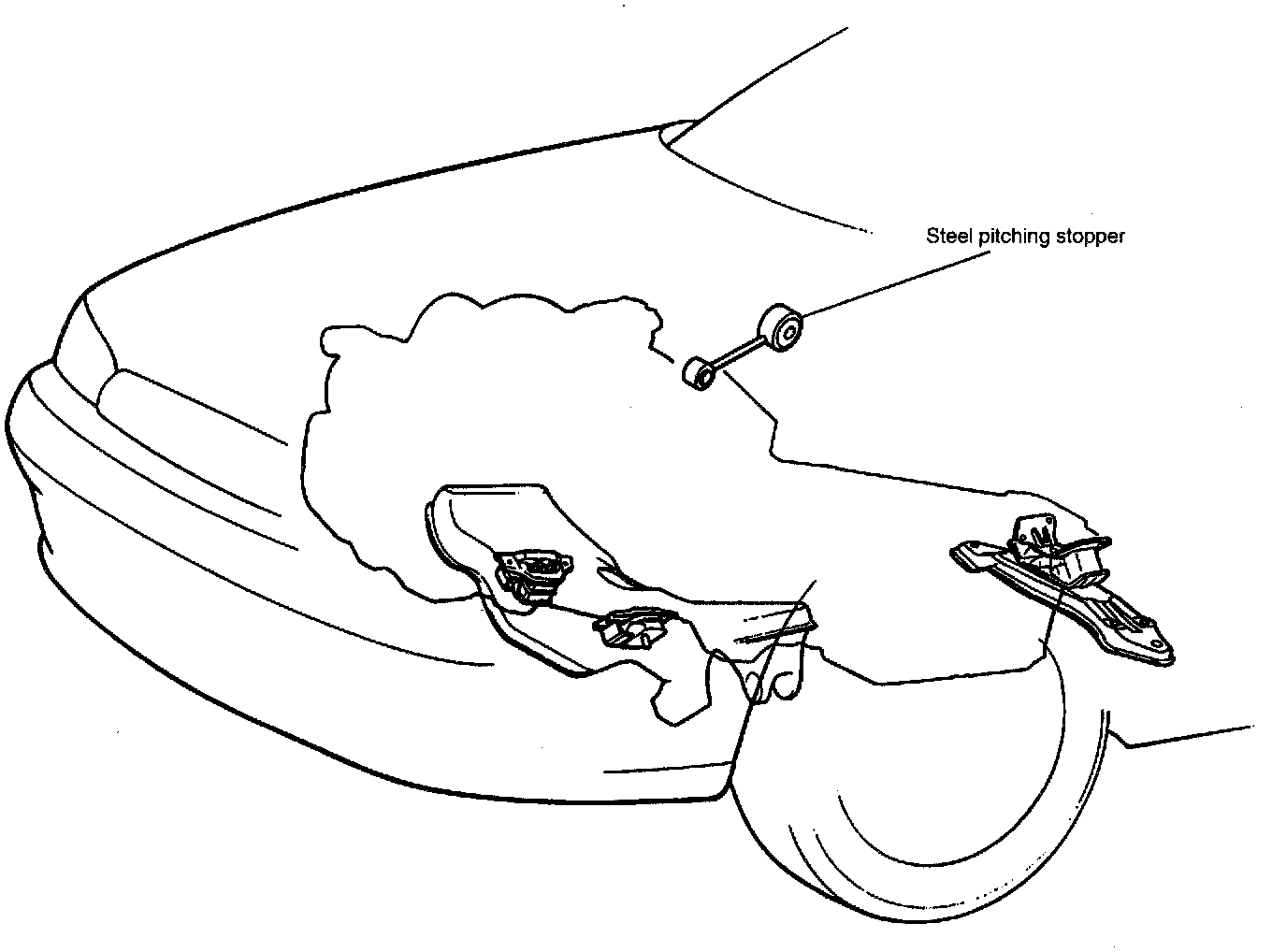

1. ENGINE AND TRANSMISSION MOUNTING SYSTEM

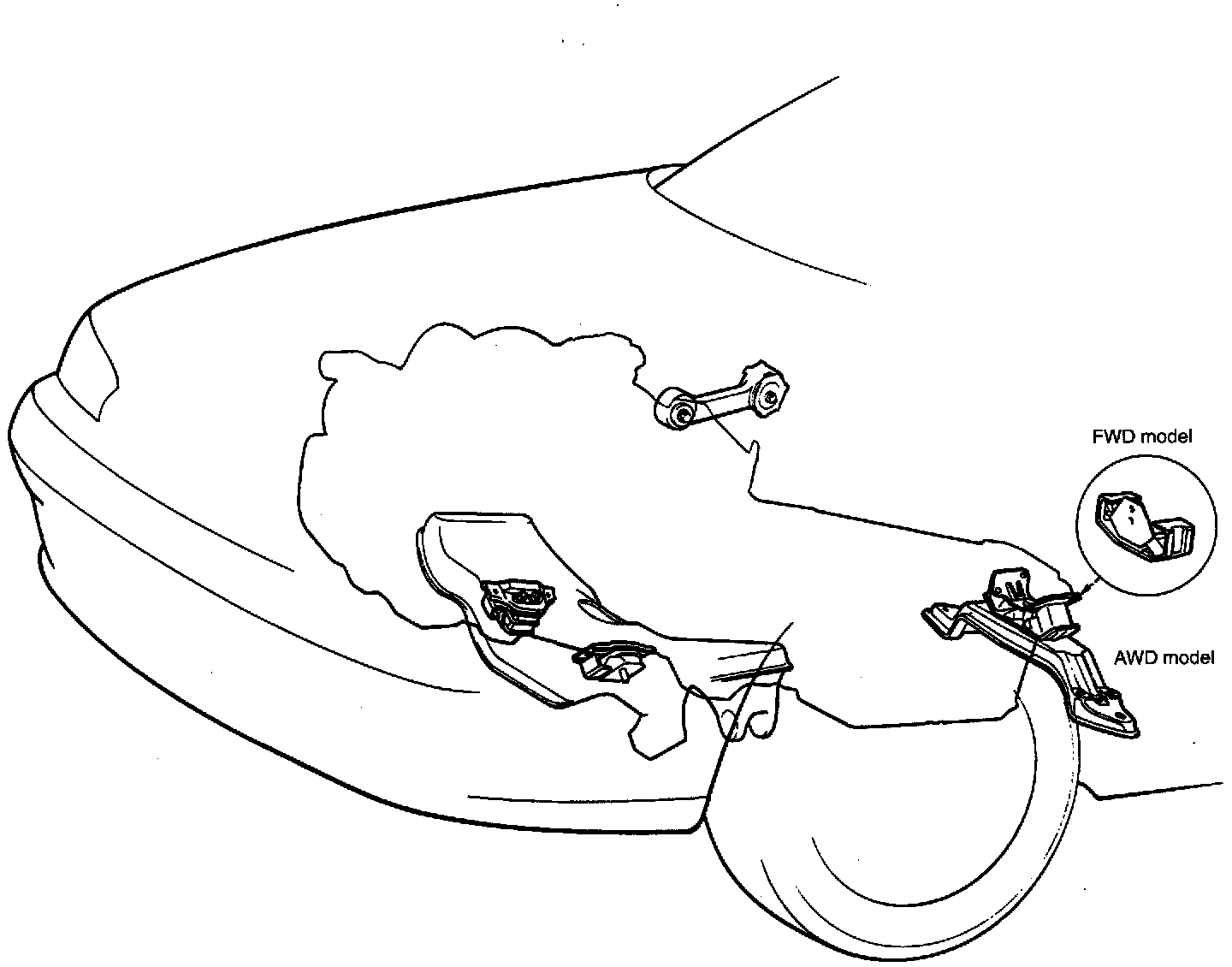

3. At Model

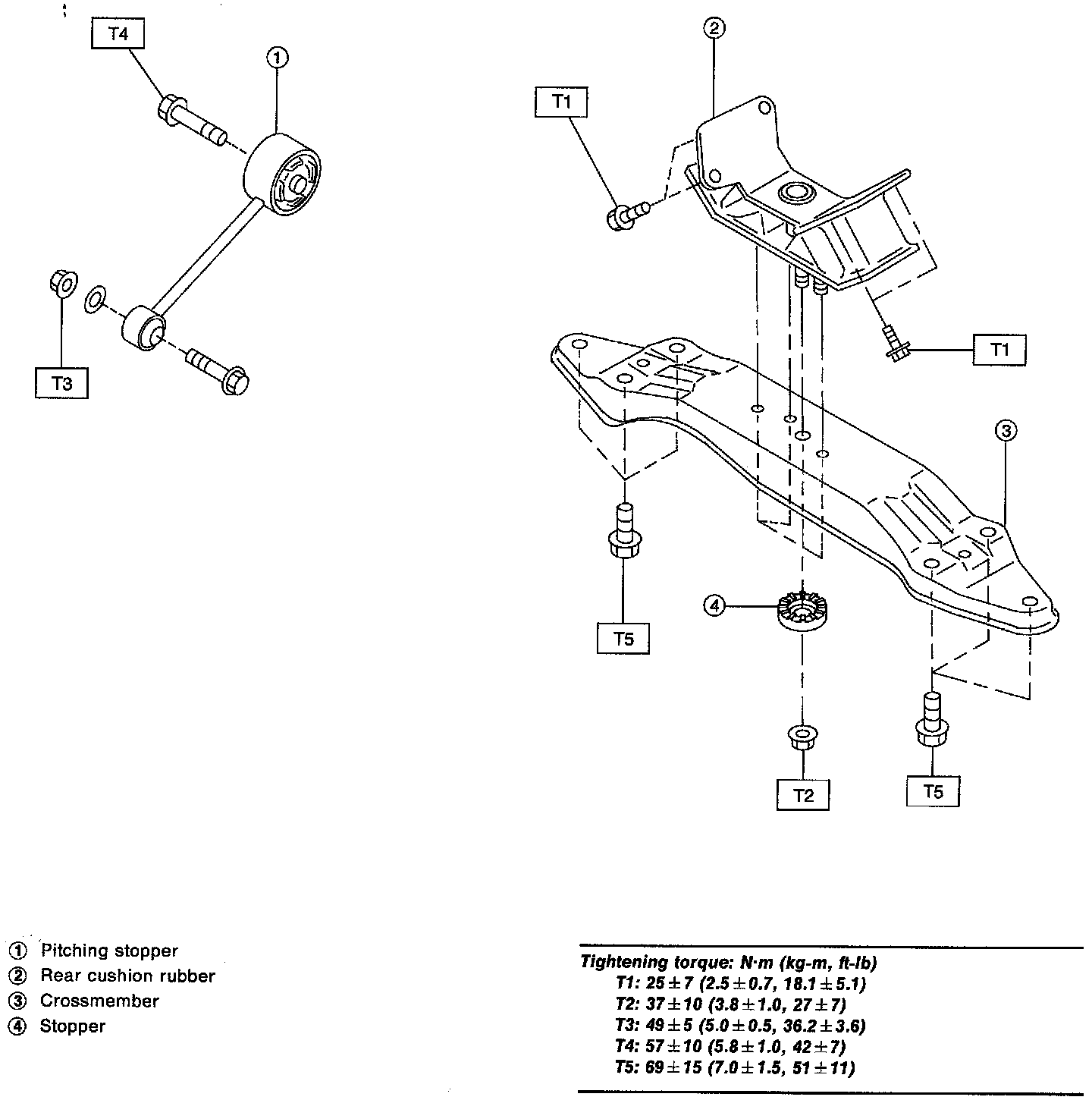

4. At Model (Outback with Step Roof)
5. At Model (Outback Model)
