Clutch, A/T

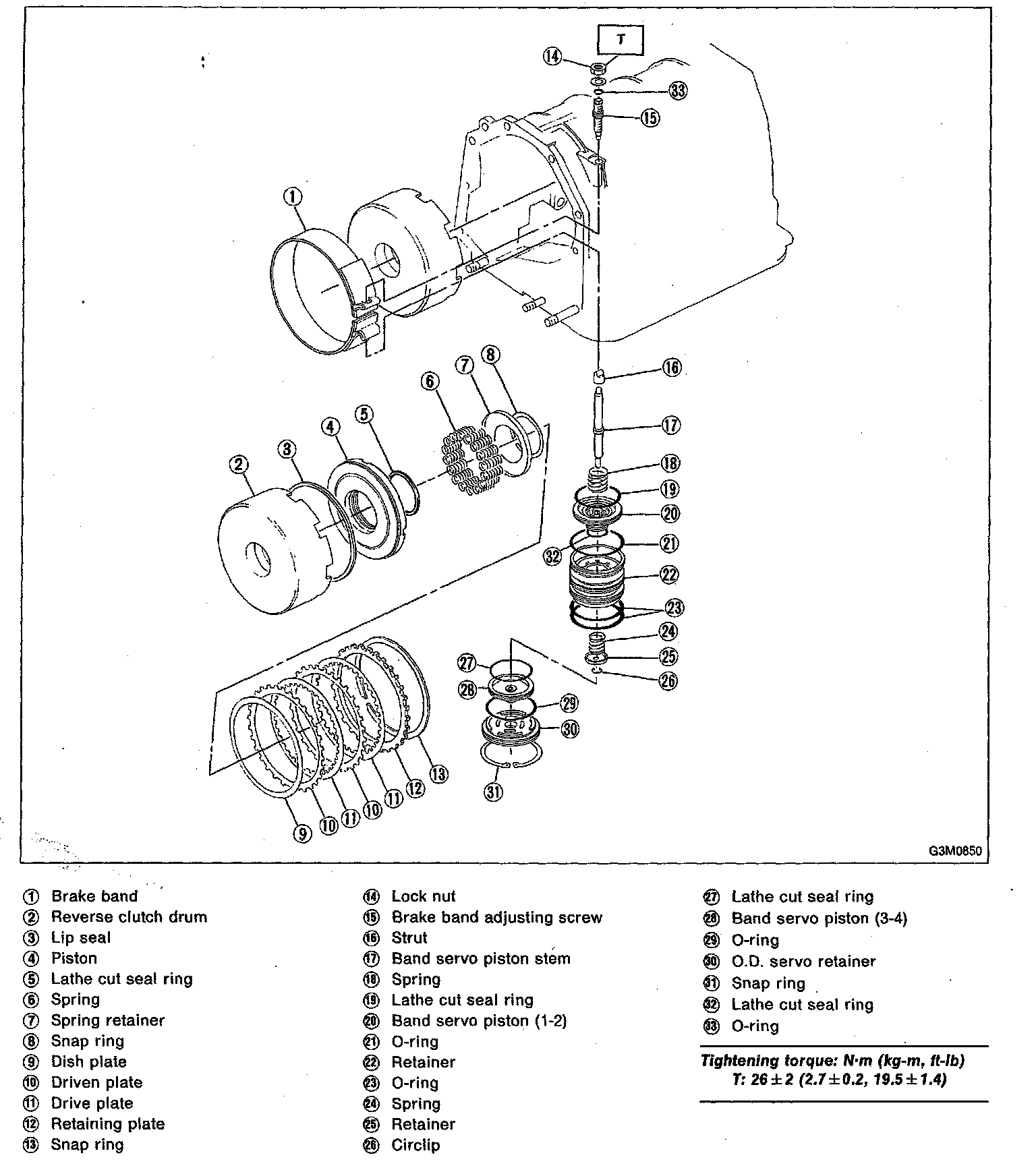

REVERSE CLUTCH AND BAND BRAKE

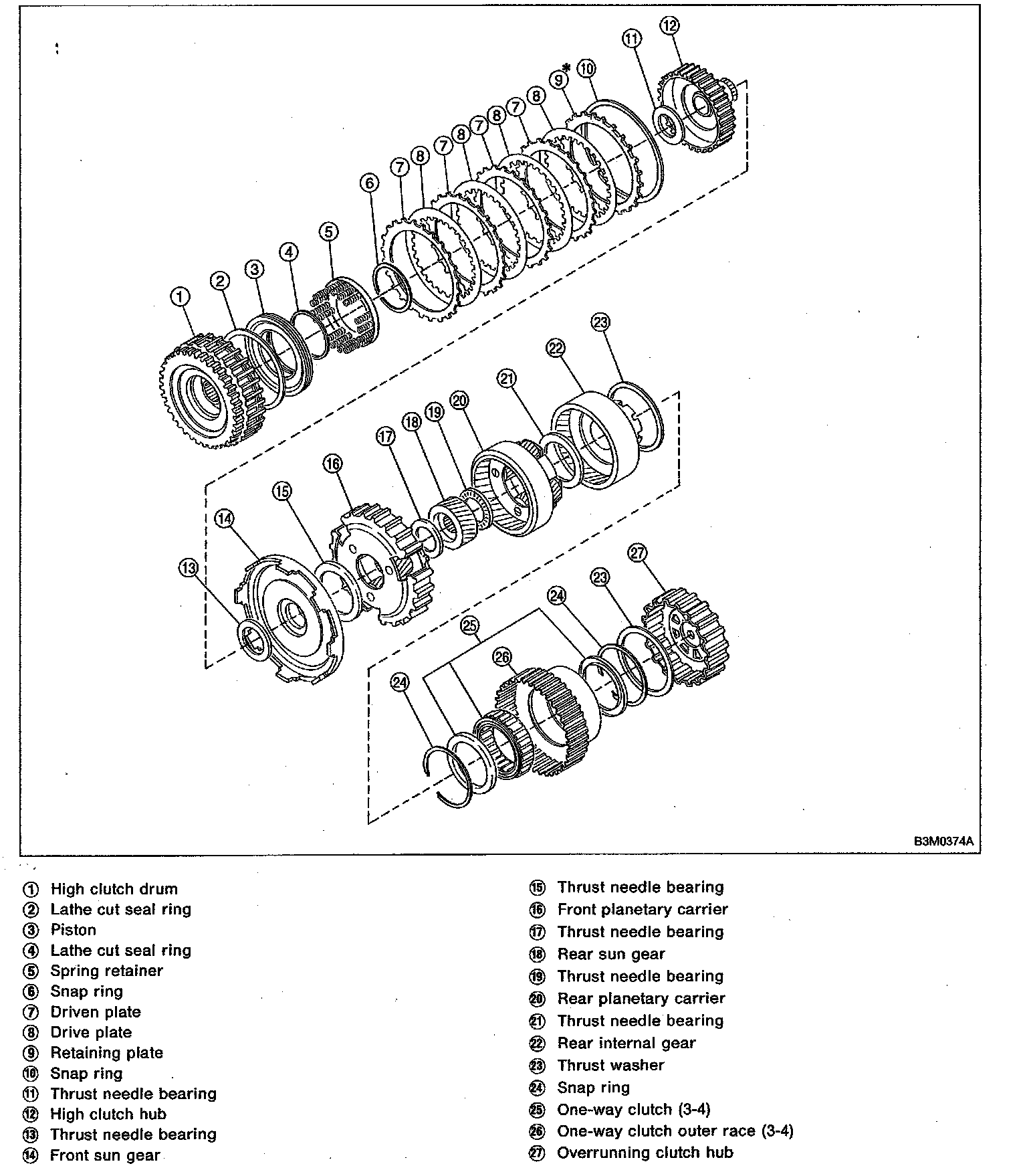

HIGH CLUTCH AND PLANETARY GEAR

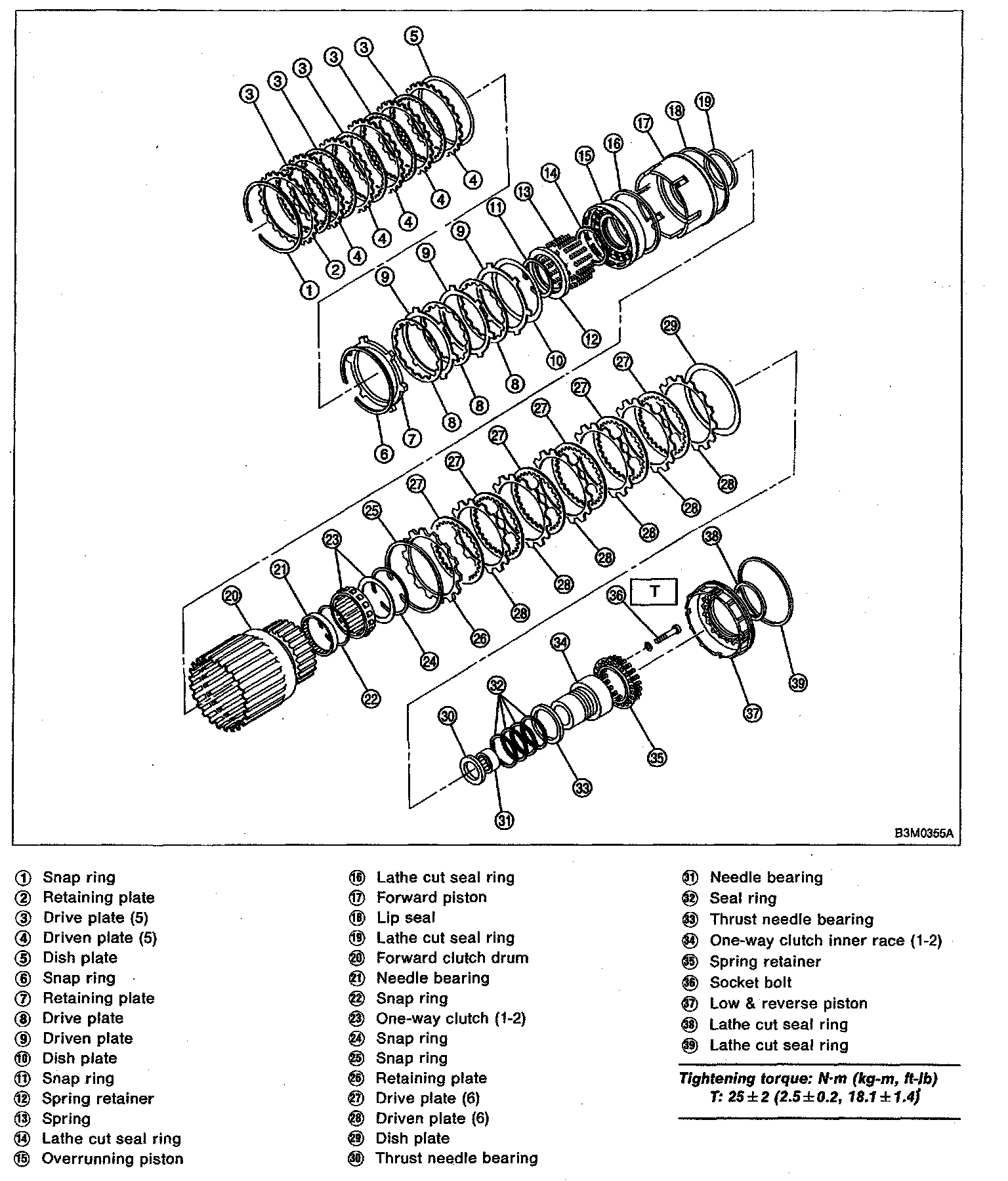

FORWARD CLUTCH AND LOW & REVERSE BRAKE
