Radiator Cooling Fan Motor

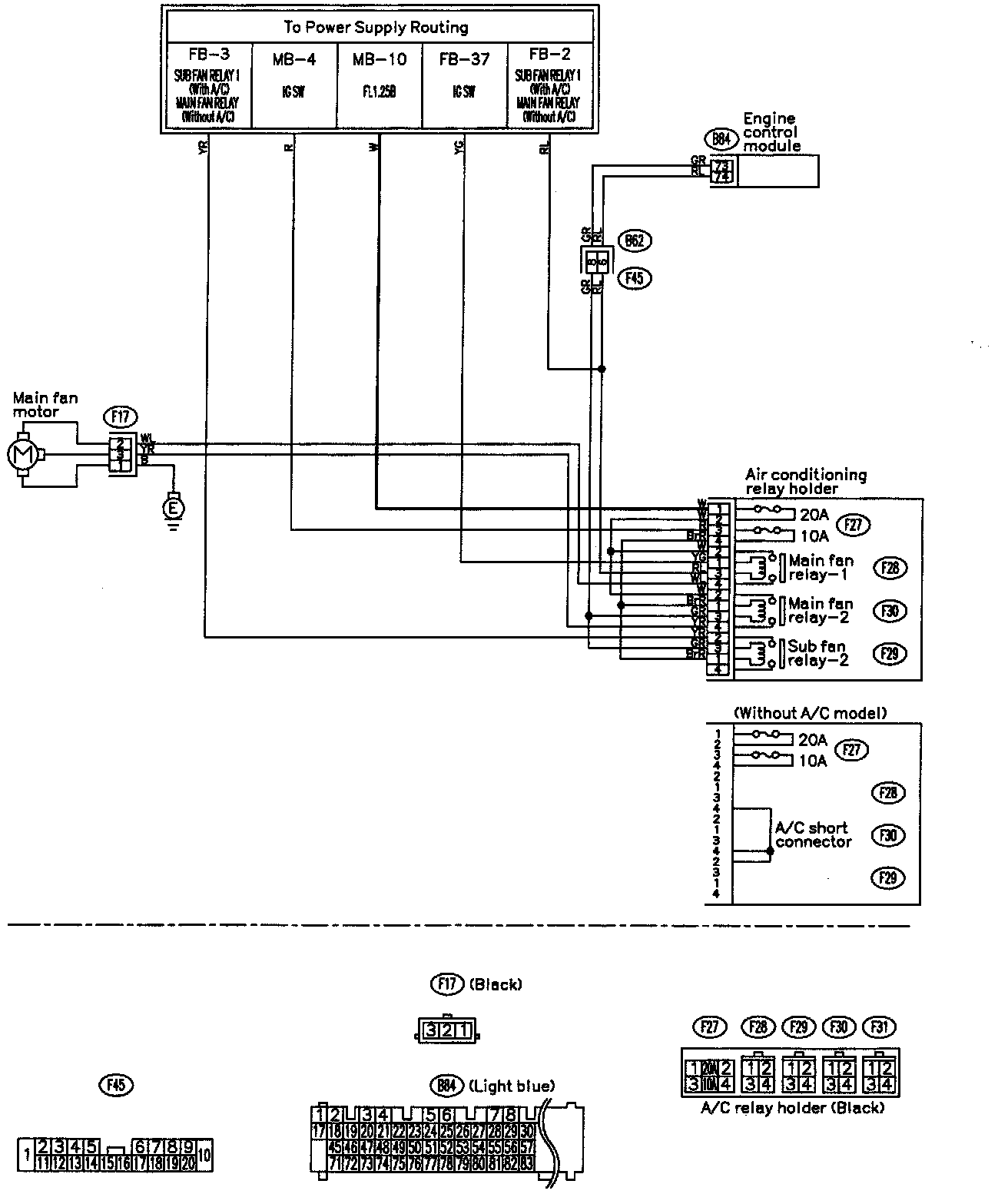

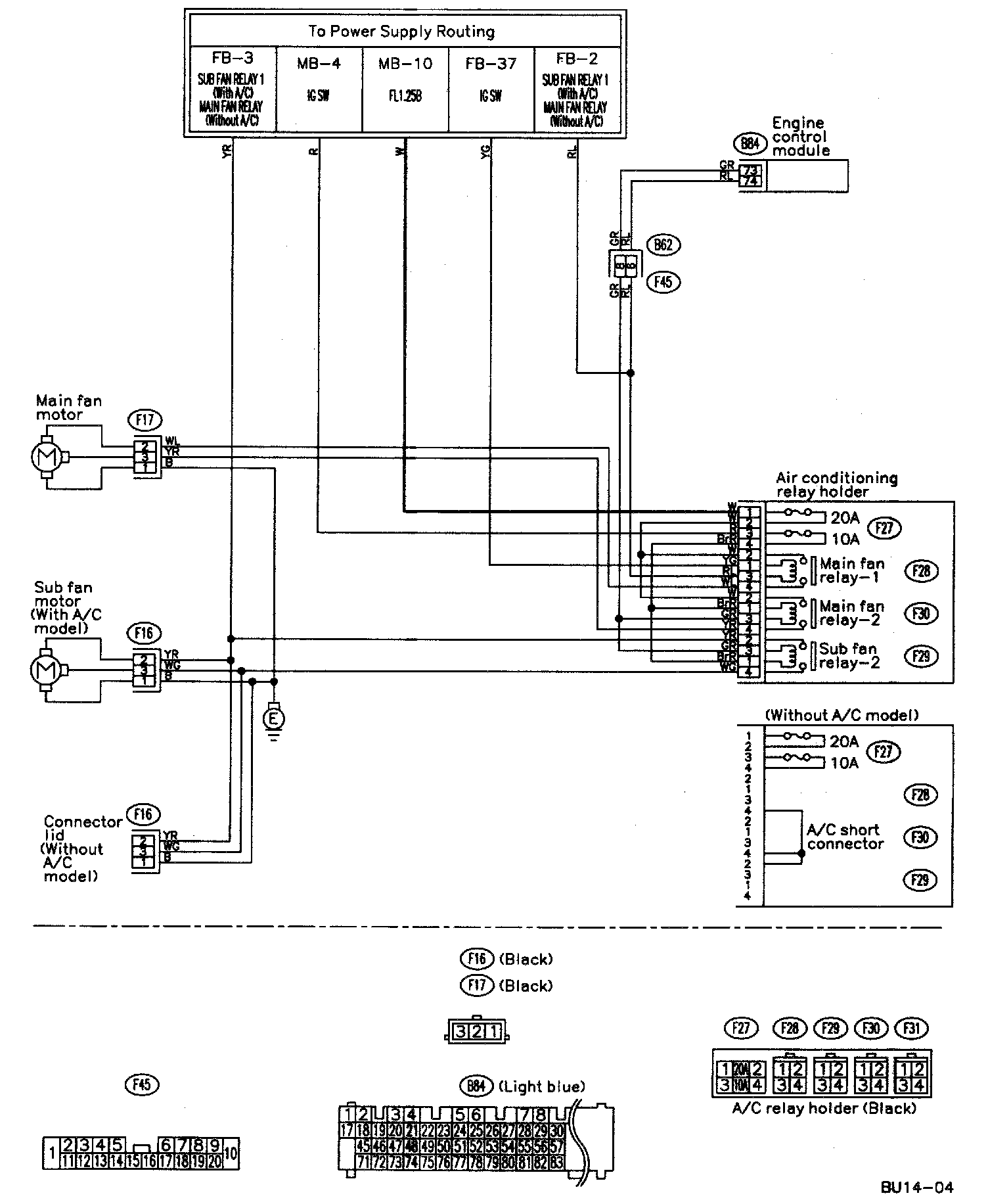

Radiator Fan System (LHD Model) Circuit:

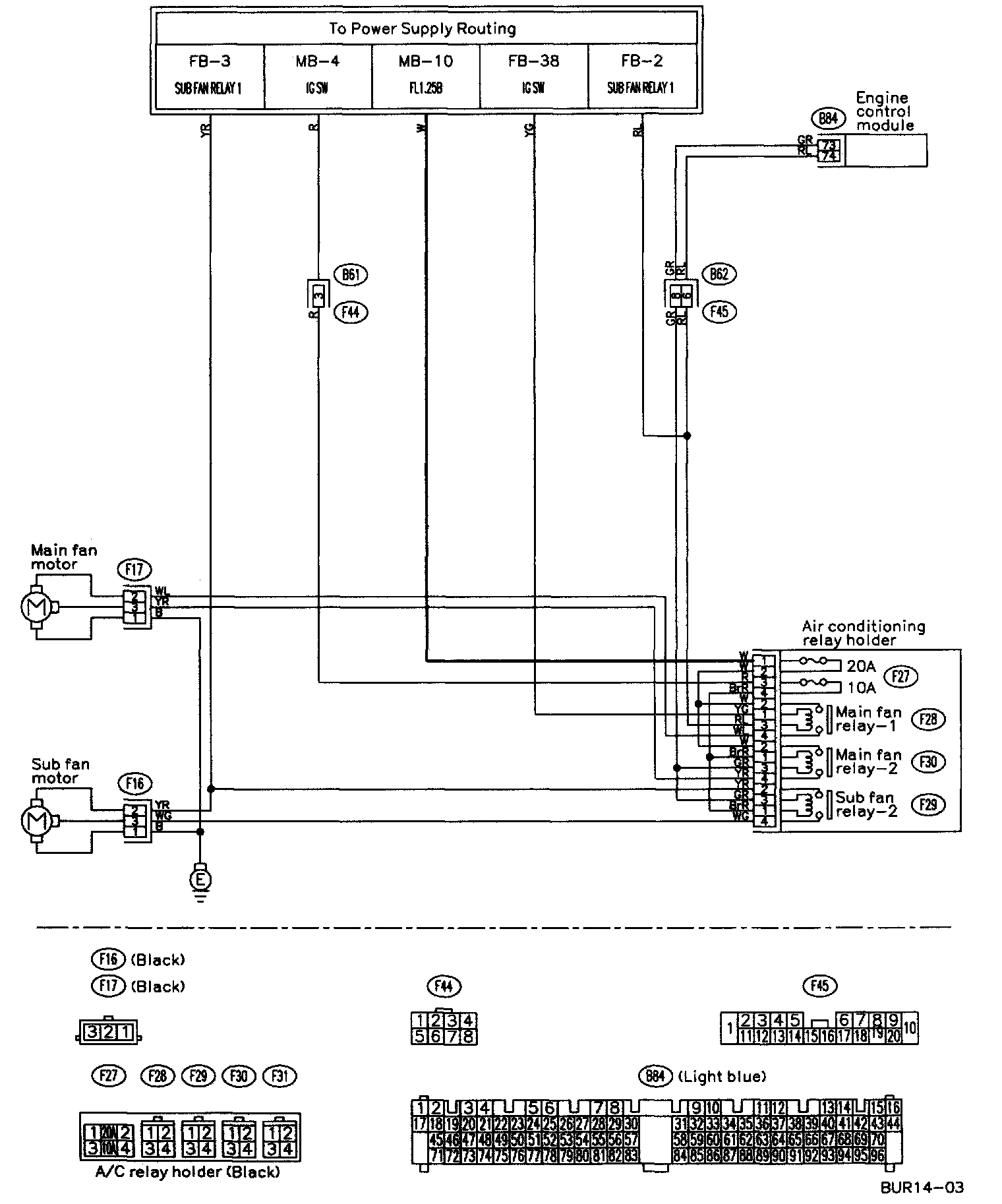

Radiator Fan System (RHD Model) Circuit:
