Rear Wiring Harness

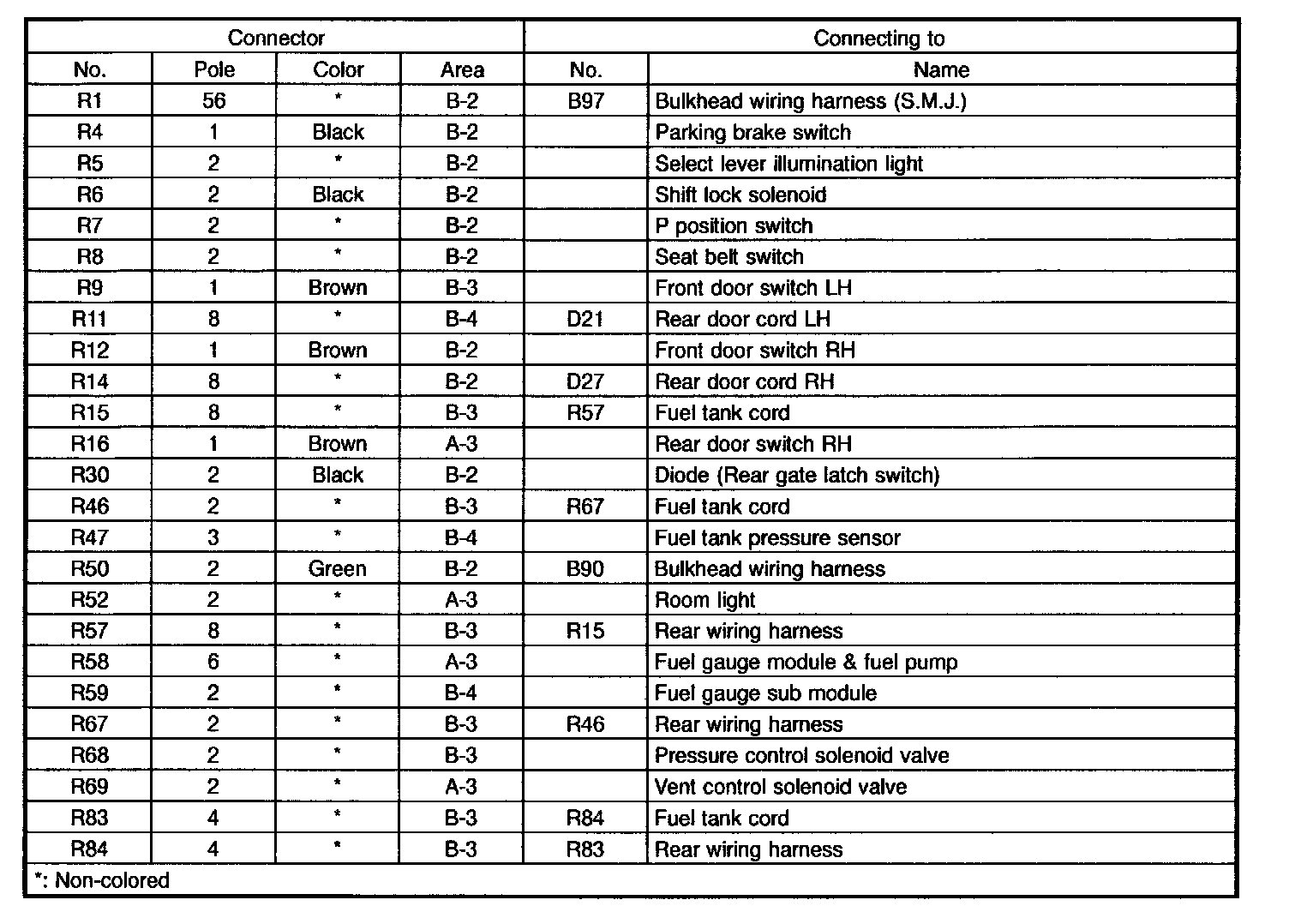

Rear Wiring Harness Diagram RHD Legend:

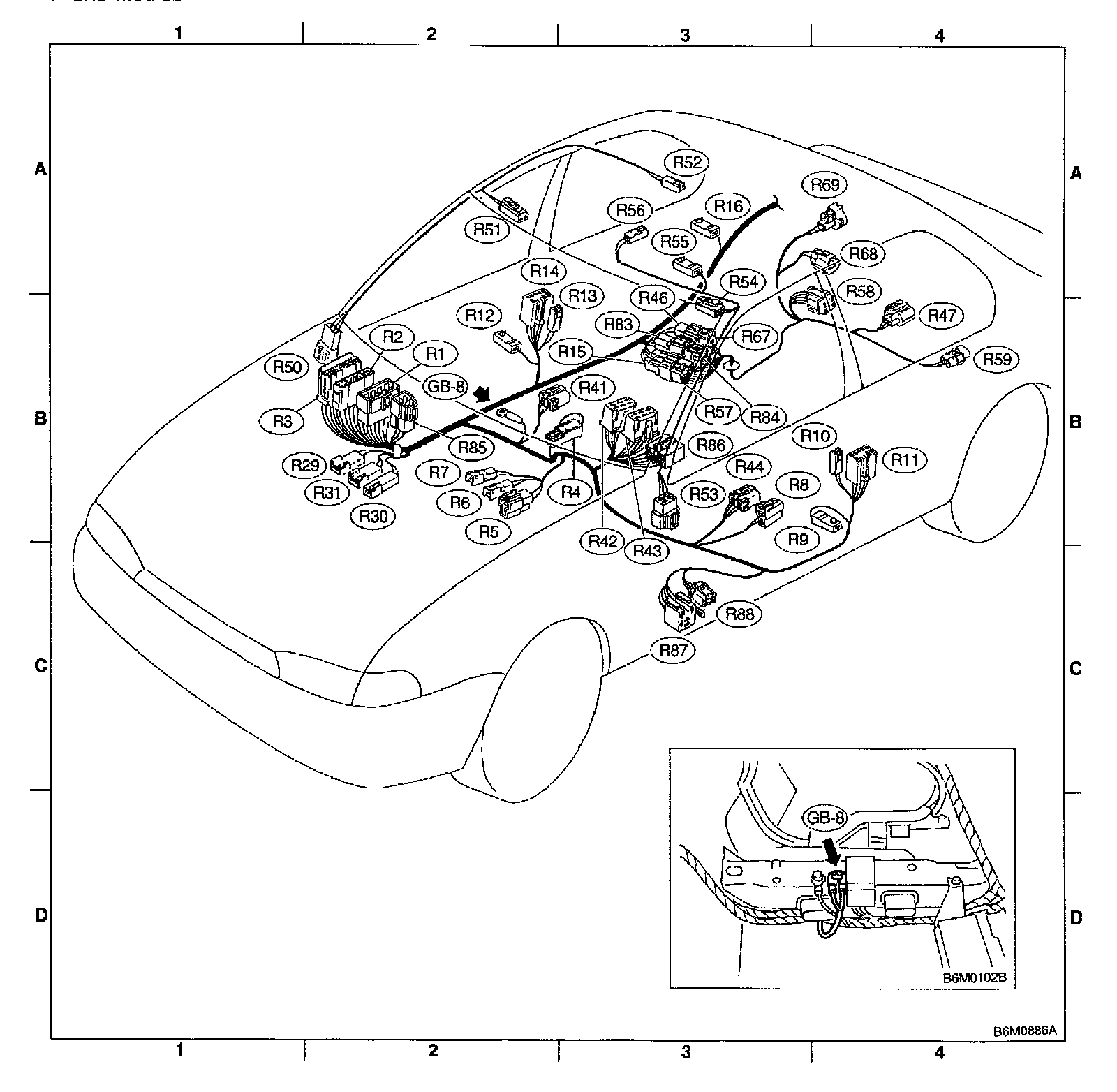

Rear Wiring Harness Diagram RHD Diagram:

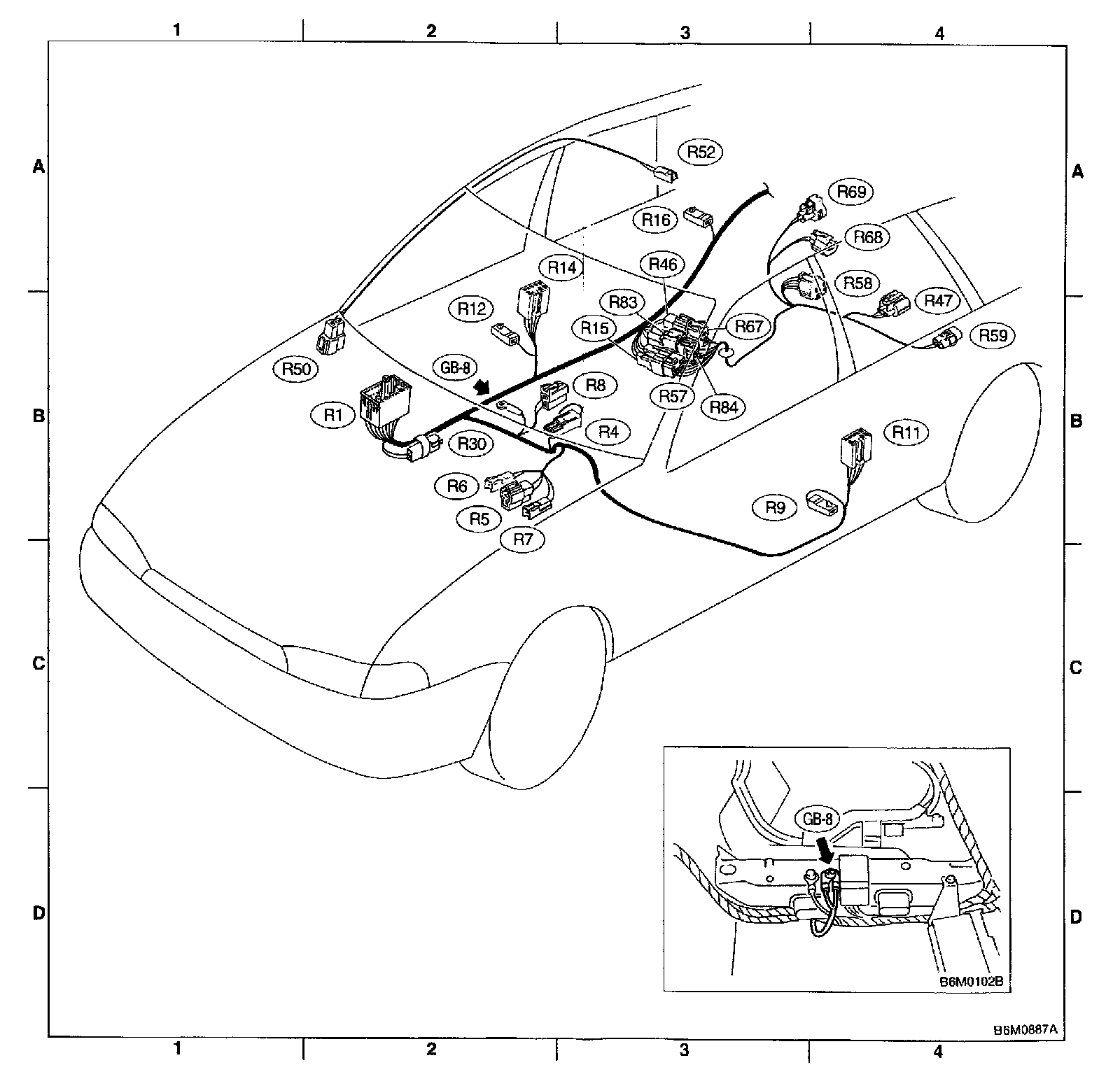

Rear Wiring Harness Diagram LHD Diagram:

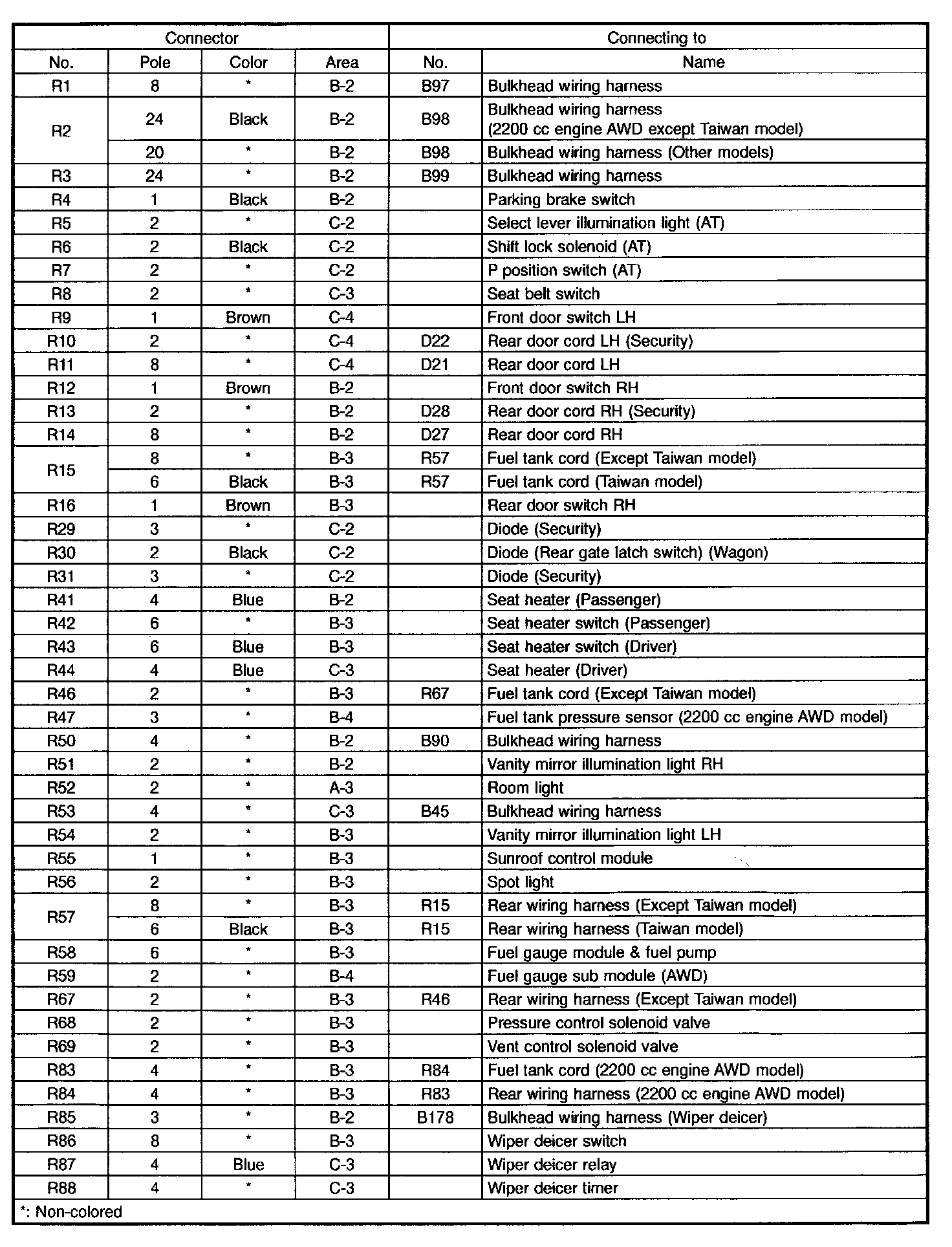

Rear Wiring Harness Diagram LHD Legend:
