Rear End Wiring Harness

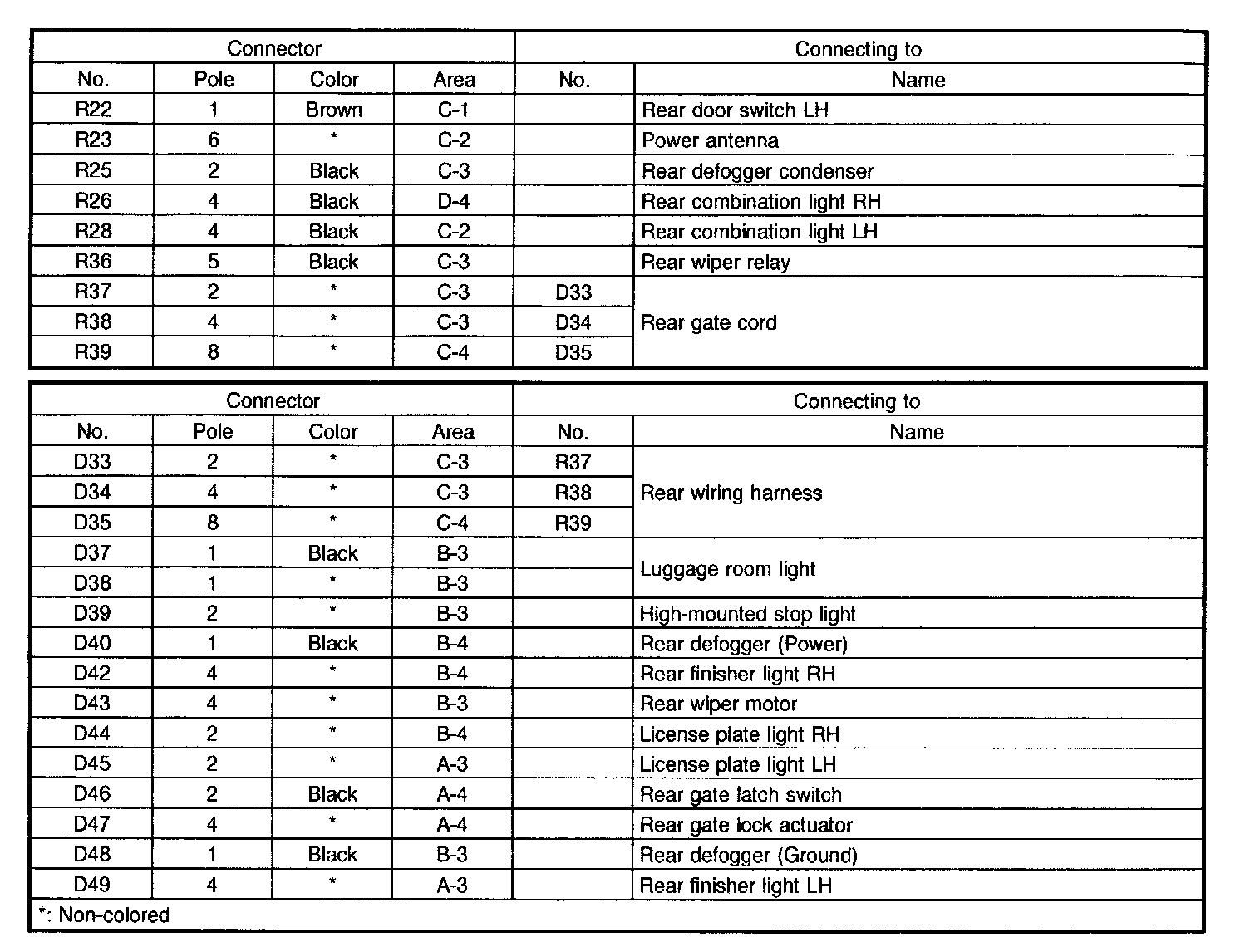

Rear End Wiring Harness RHD (Wagon) Legend:

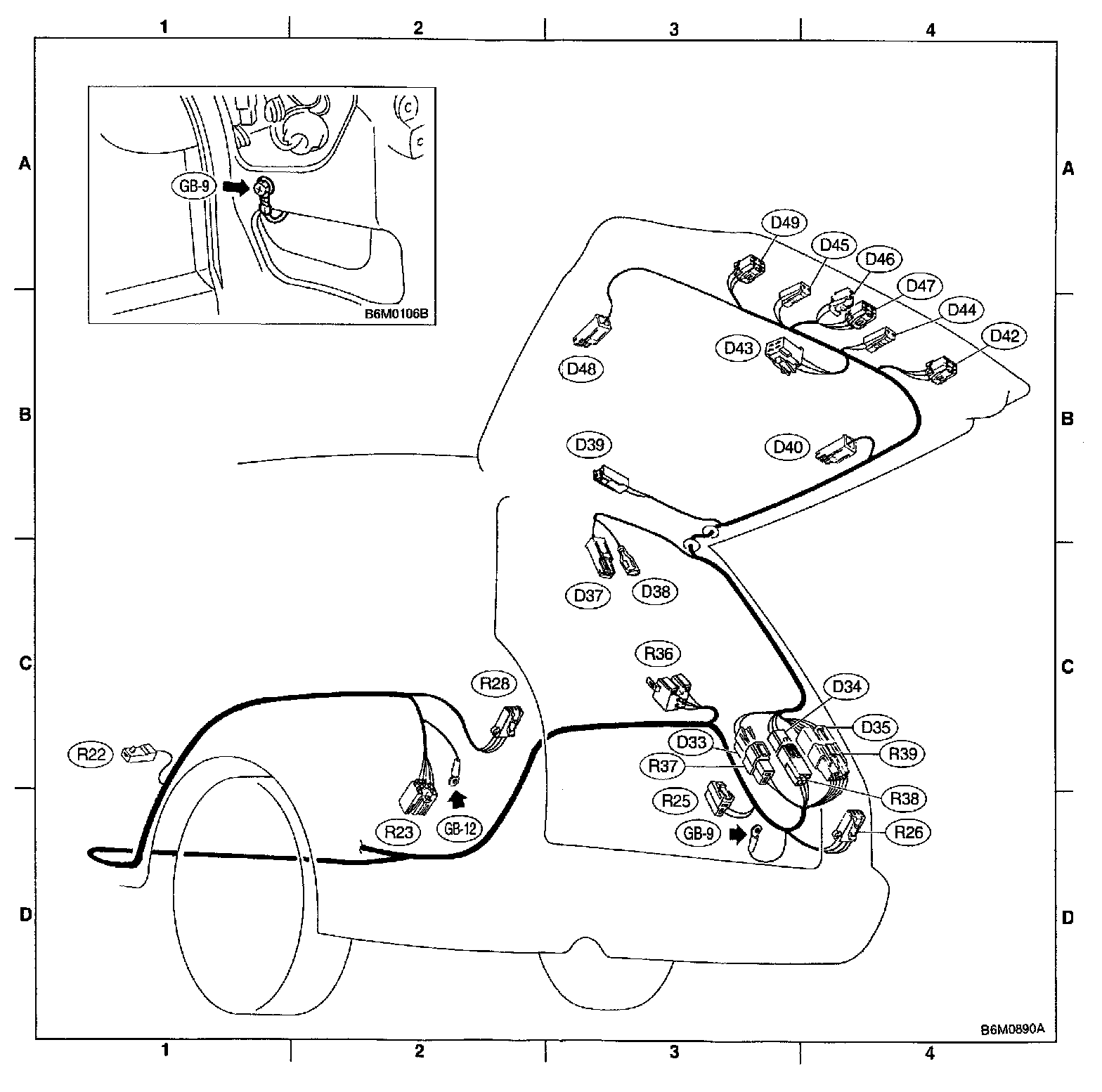

Rear End Wiring Harness RHD (Wagon) Diagram:

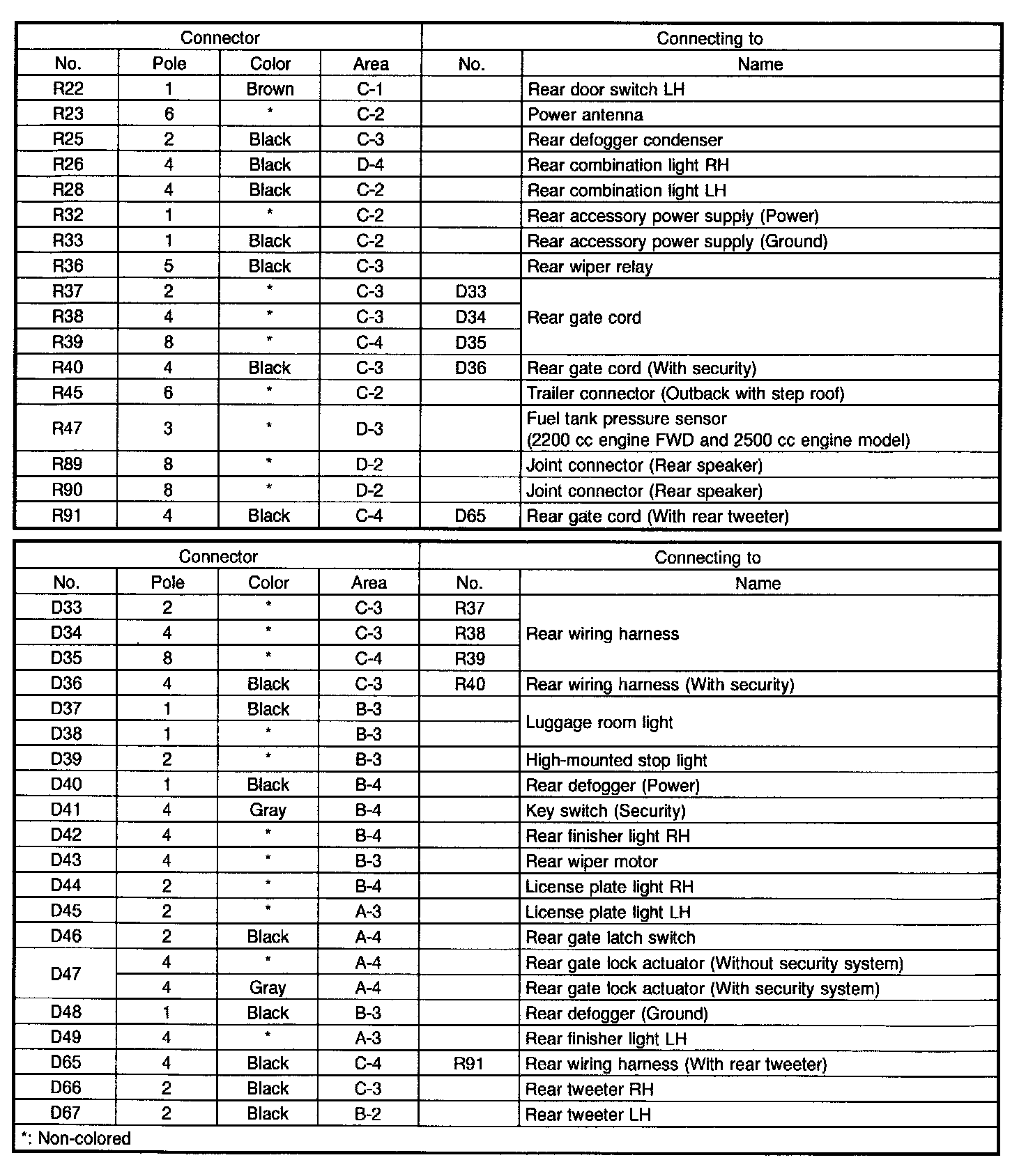

Rear End Wiring Harness LHD (Wagon) Legend:

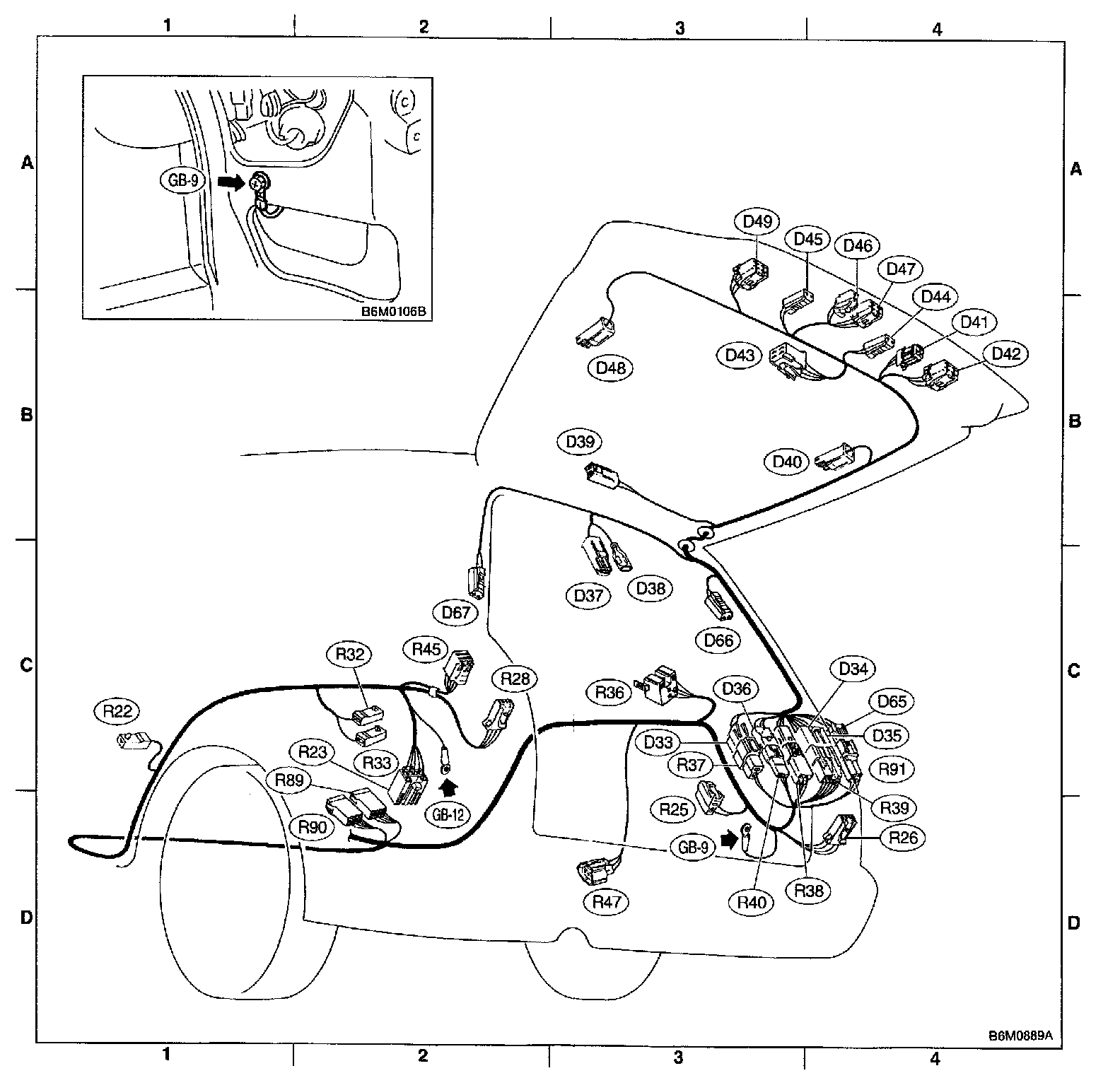

Rear End Wiring Harness LHD (Wagon) Diagram:
