Legacy Outback AWD F4-2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
Overall Location
Overall Location

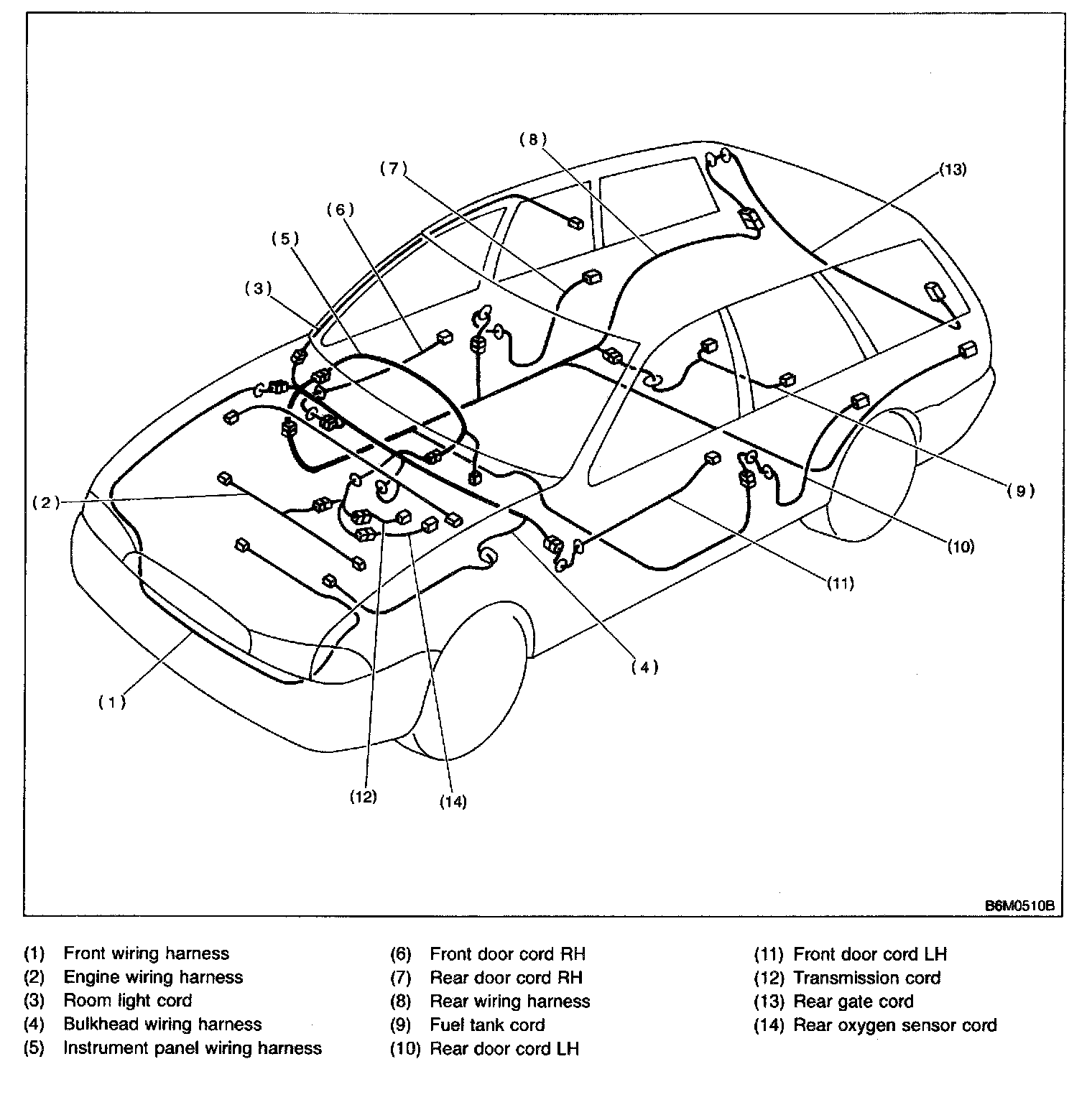

Overall Location (LHD Model):

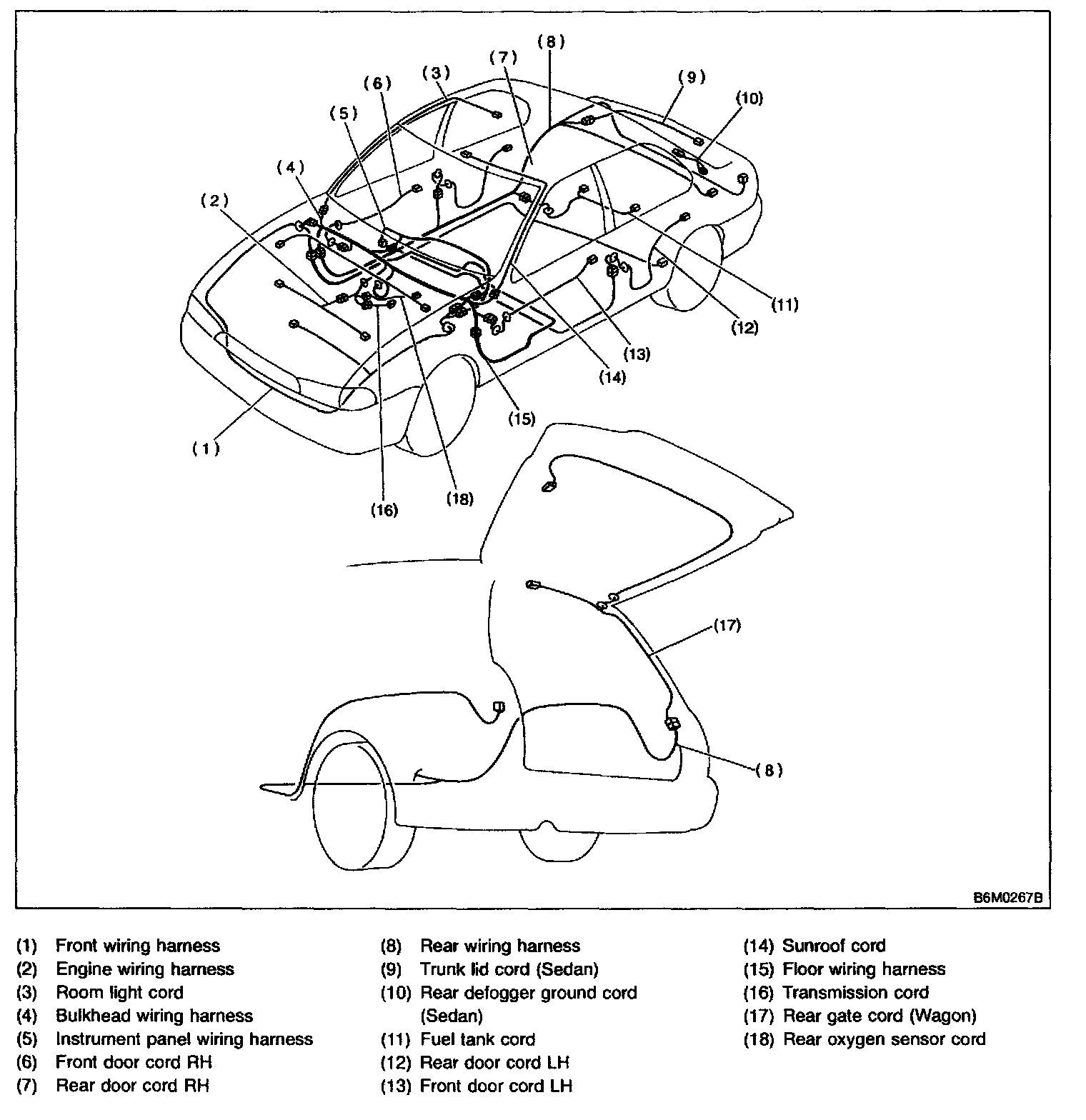

Overall Location (RHD Model):
