Instrument Panel Wiring Harness and Ground Point

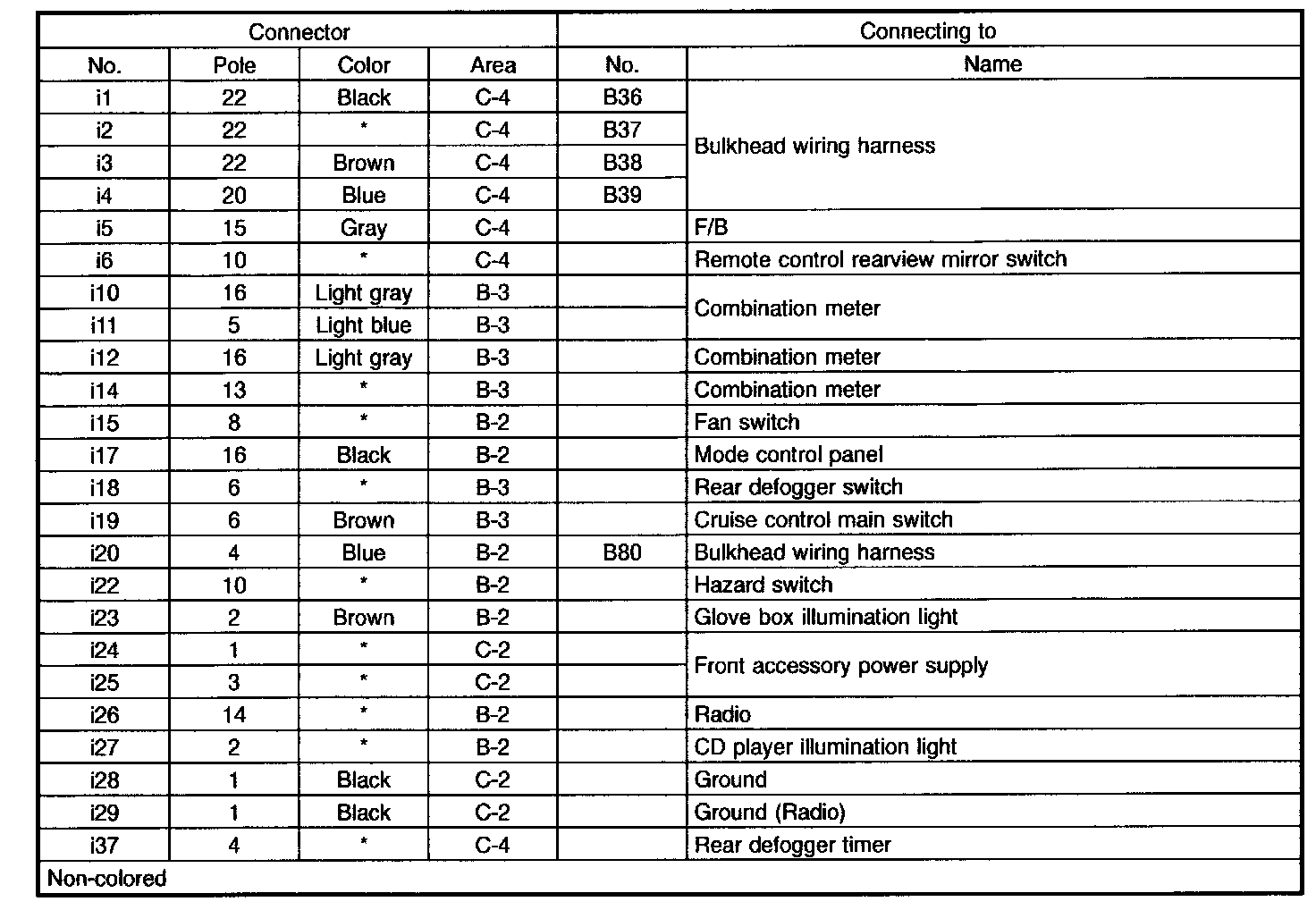

Instrument Panel Wiring Harness (RHD) Legend:

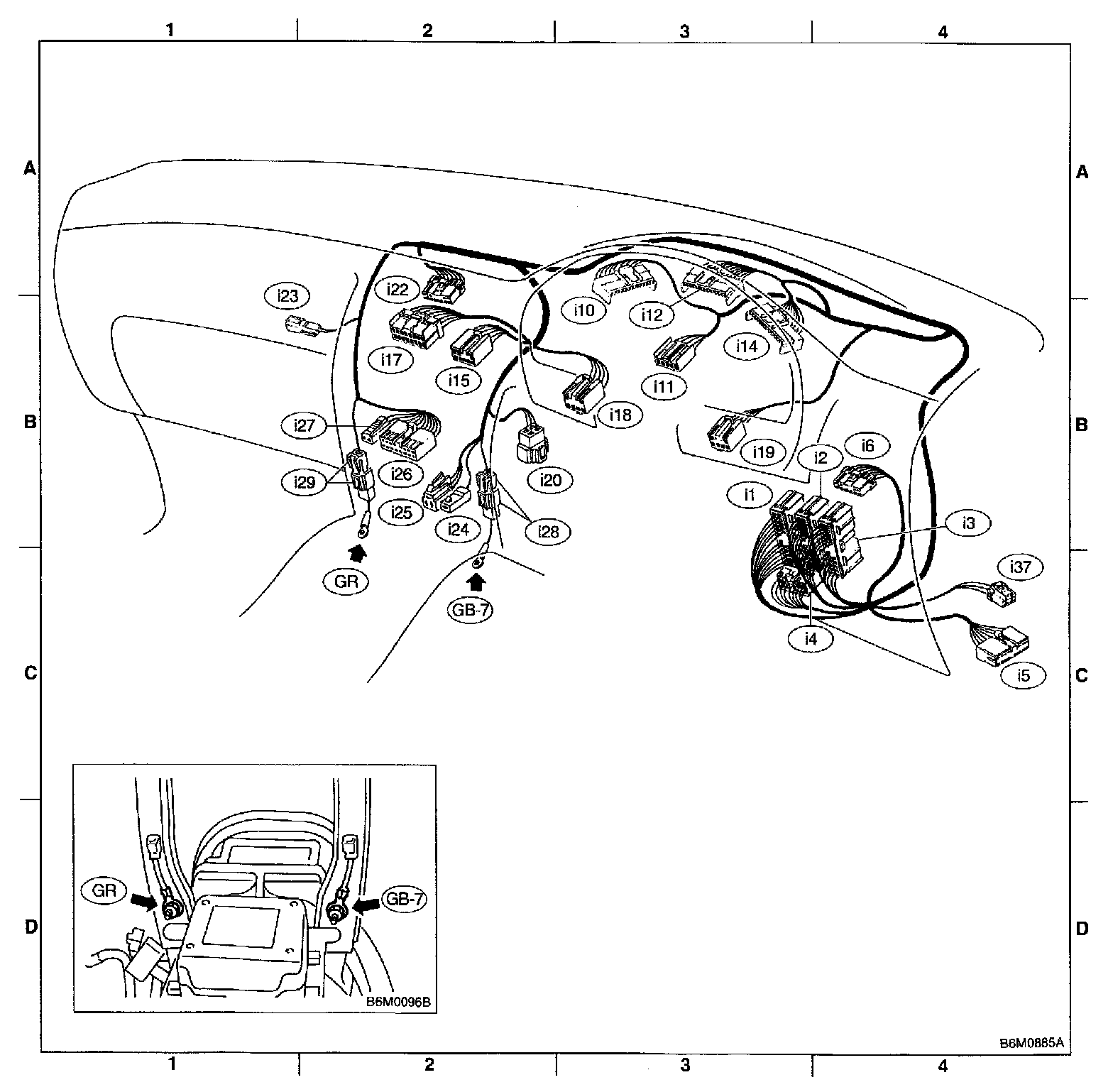

Instrument Panel Wiring Harness (RHD) Diagram:

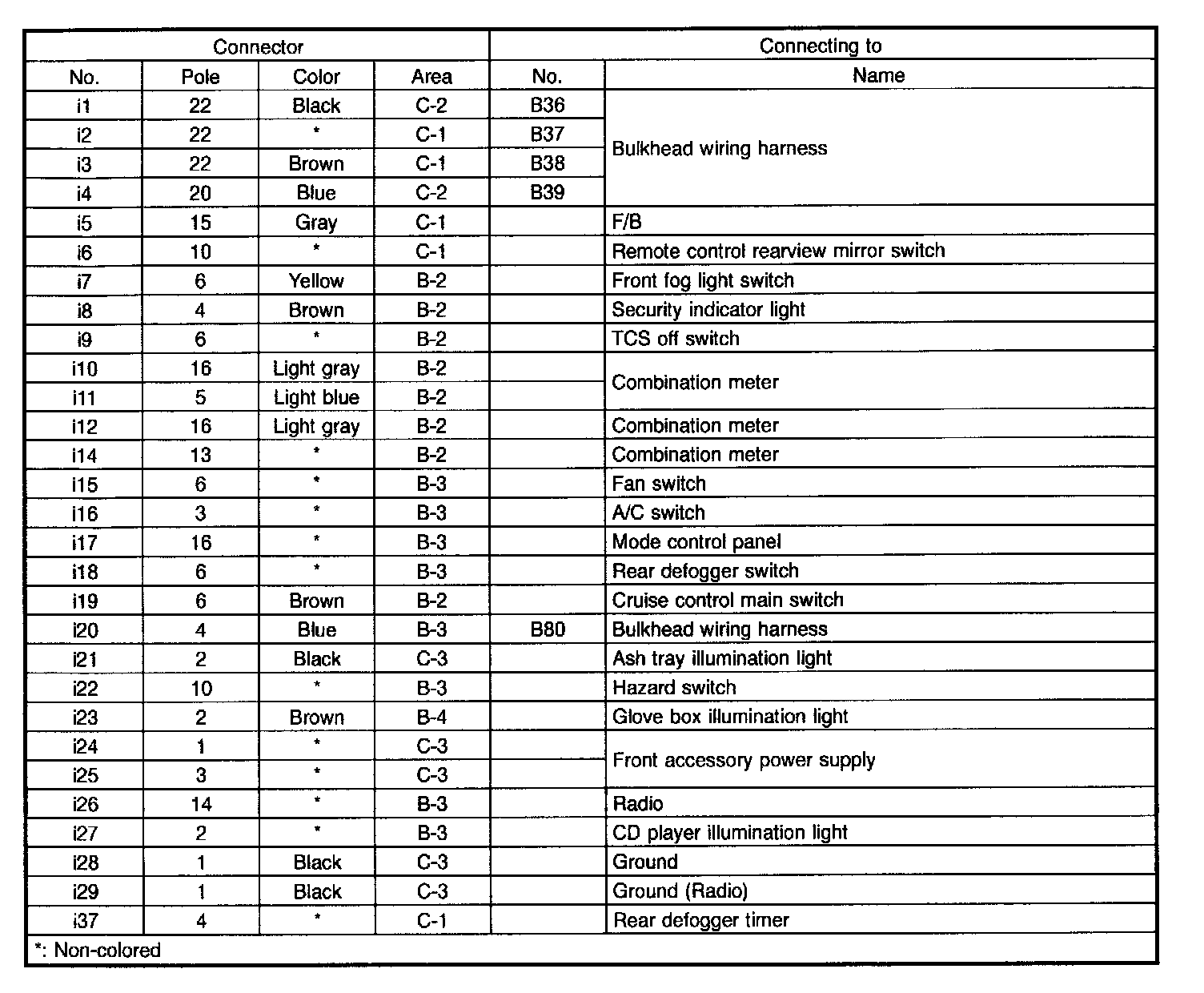

Instrument Panel Wiring Harness (LHD) Legend:

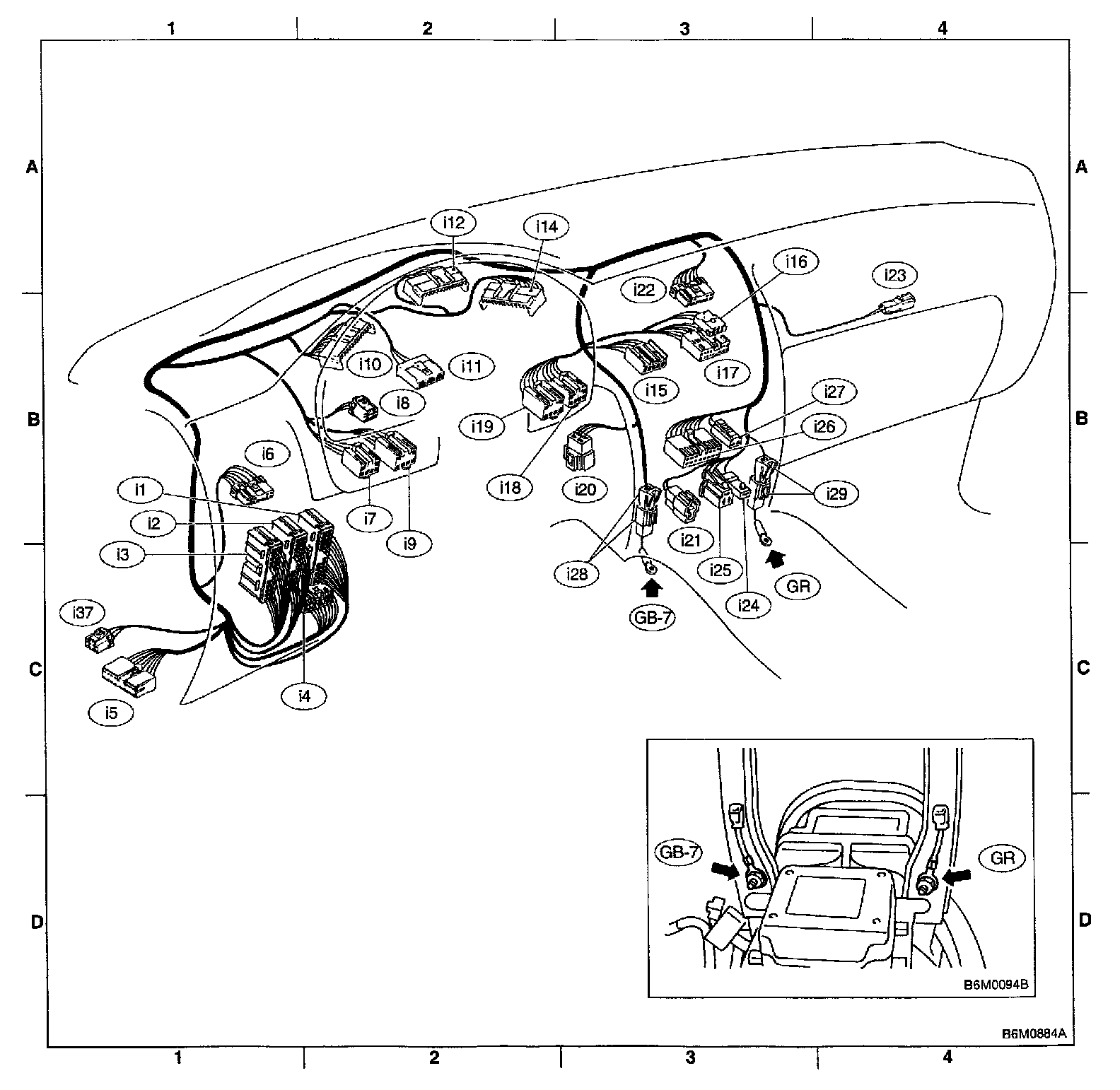

Instrument Panel Wiring Harness (LHD) Diagram:
