Engine Wiring Harness, Transmission Cord and Ground Point
Engine Wiring Harness, Transmission Cord and Ground Point

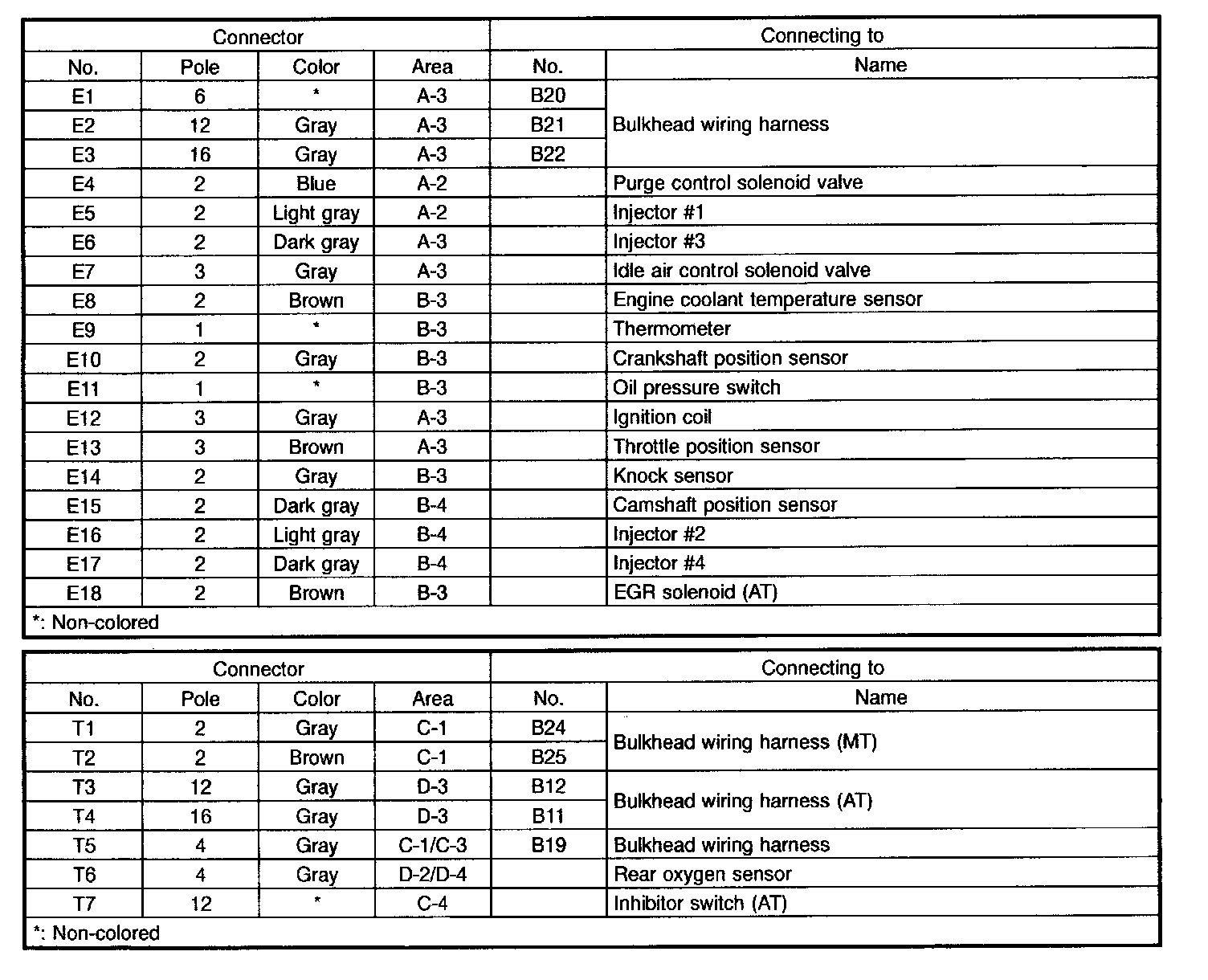

Engine Harness, Transmission Cord and Ground Legend:

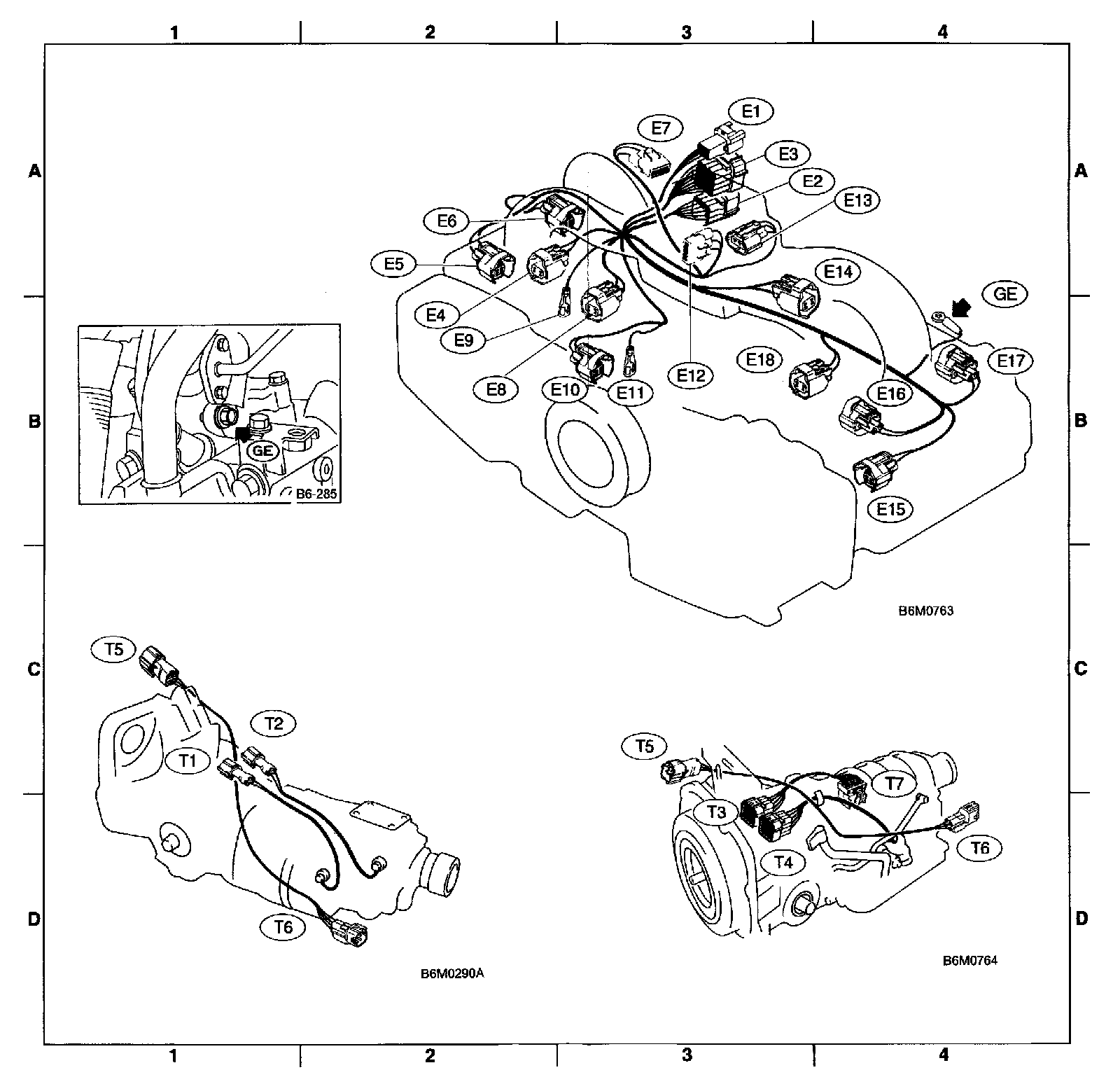

Engine Harness, Transmission Cord and Grounds Diagram:
