Bulkhead Wiring Harness (In Engine Room)

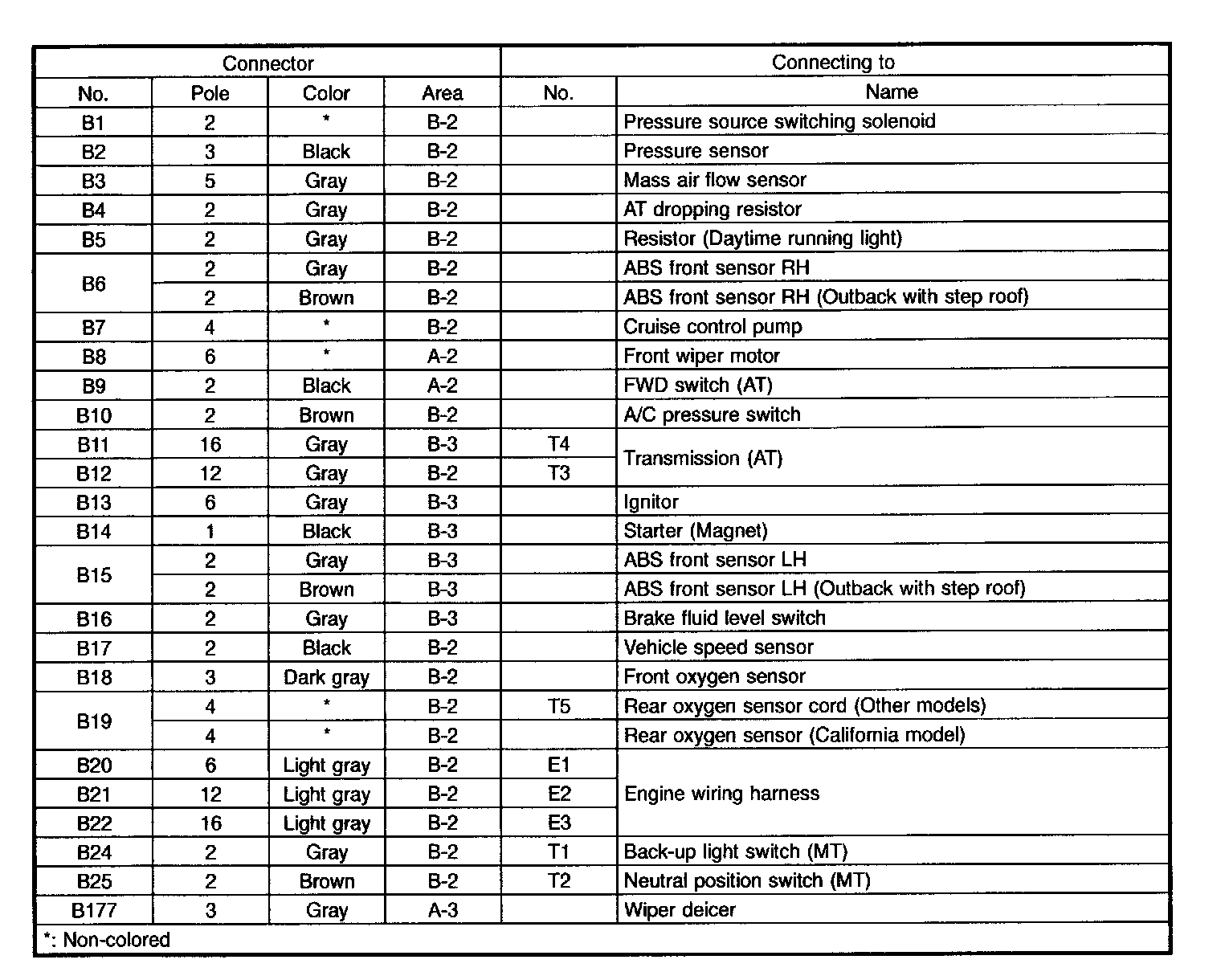

Bulkhead Wiring Harness LHD (In Engine Room) Legend:

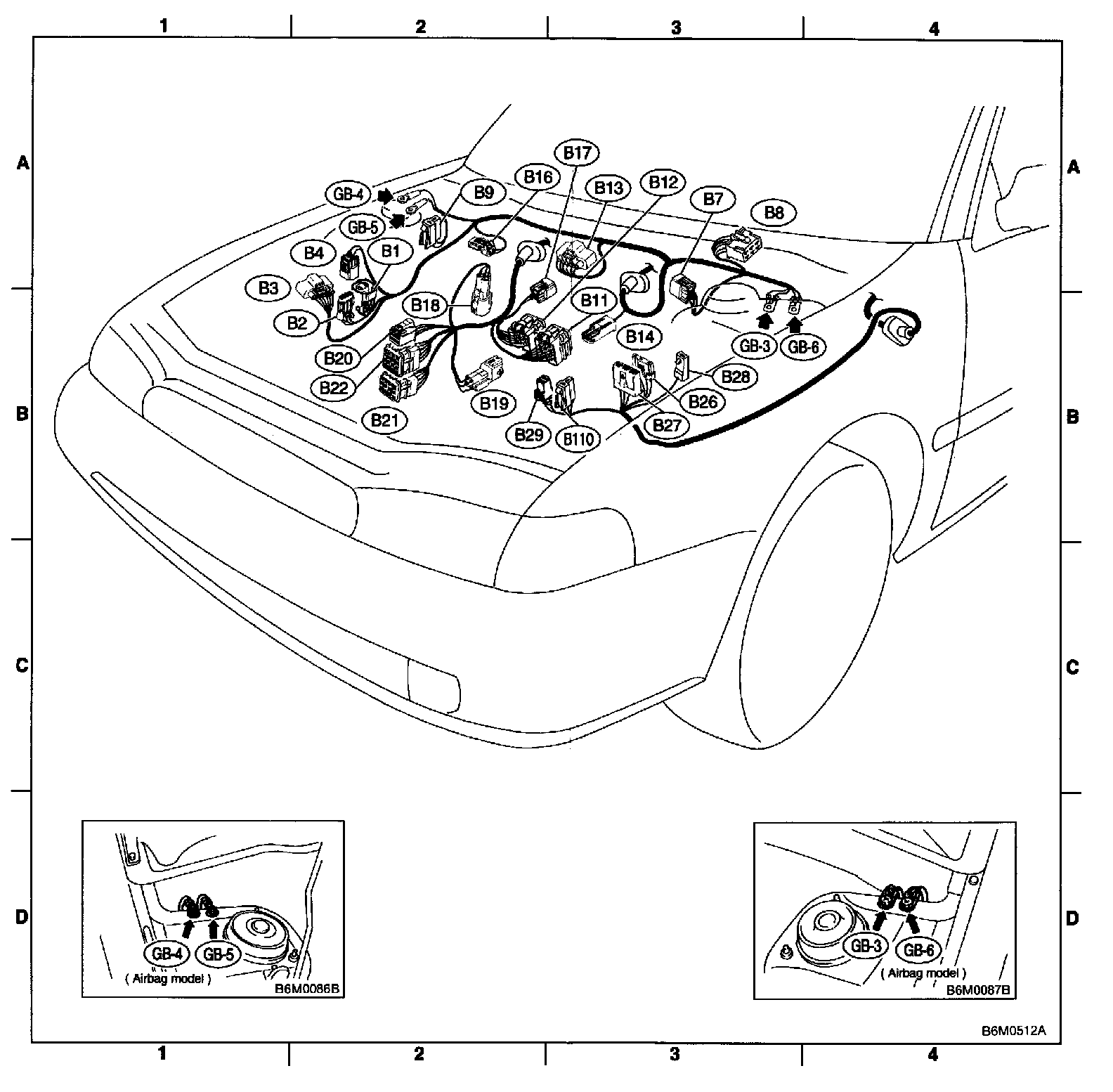

Bulkhead Wiring Harness LHD (In Engine Room) Diagram:

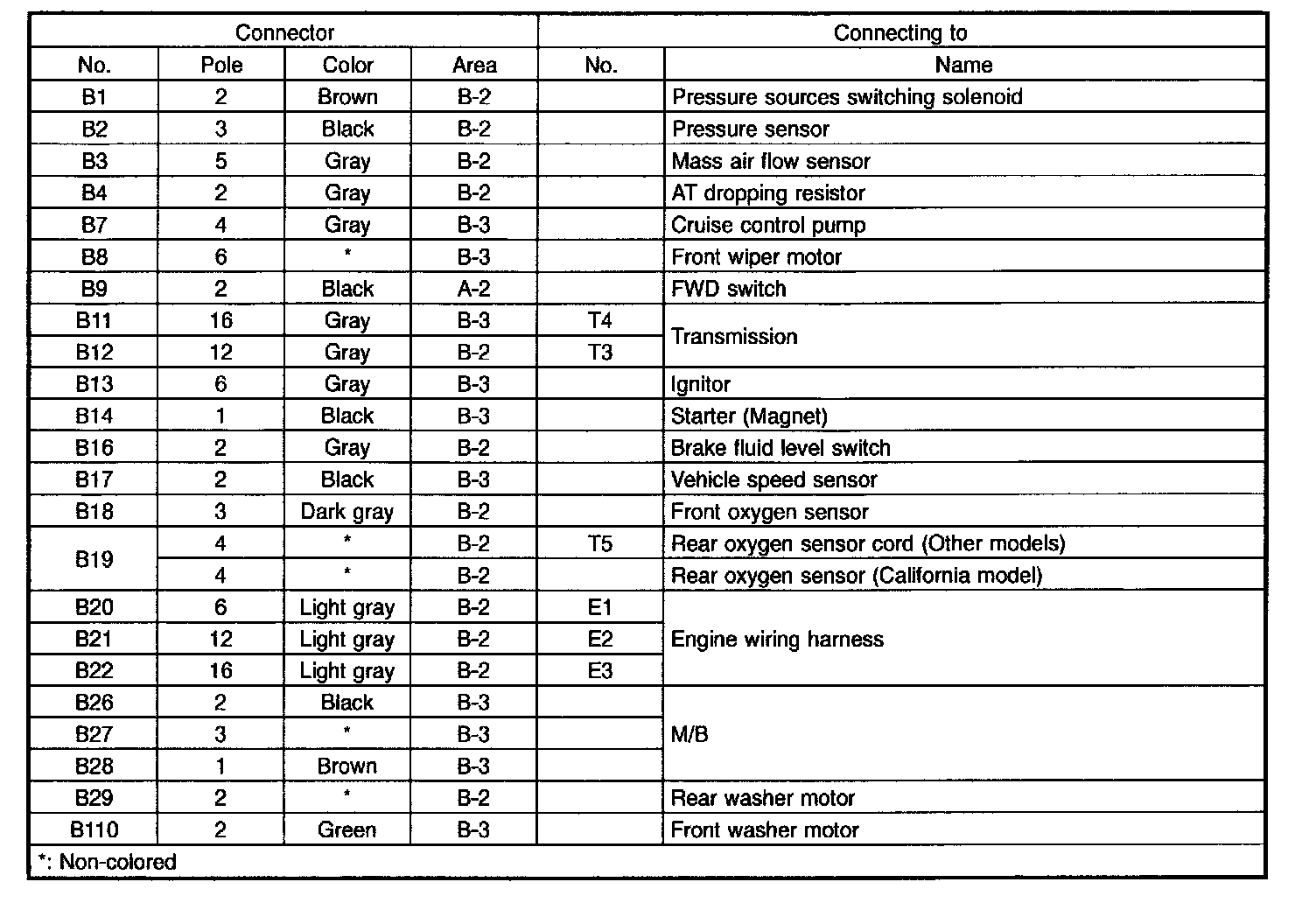

Bulkhead Wiring Harness RHD (In Engine Room) Legend:

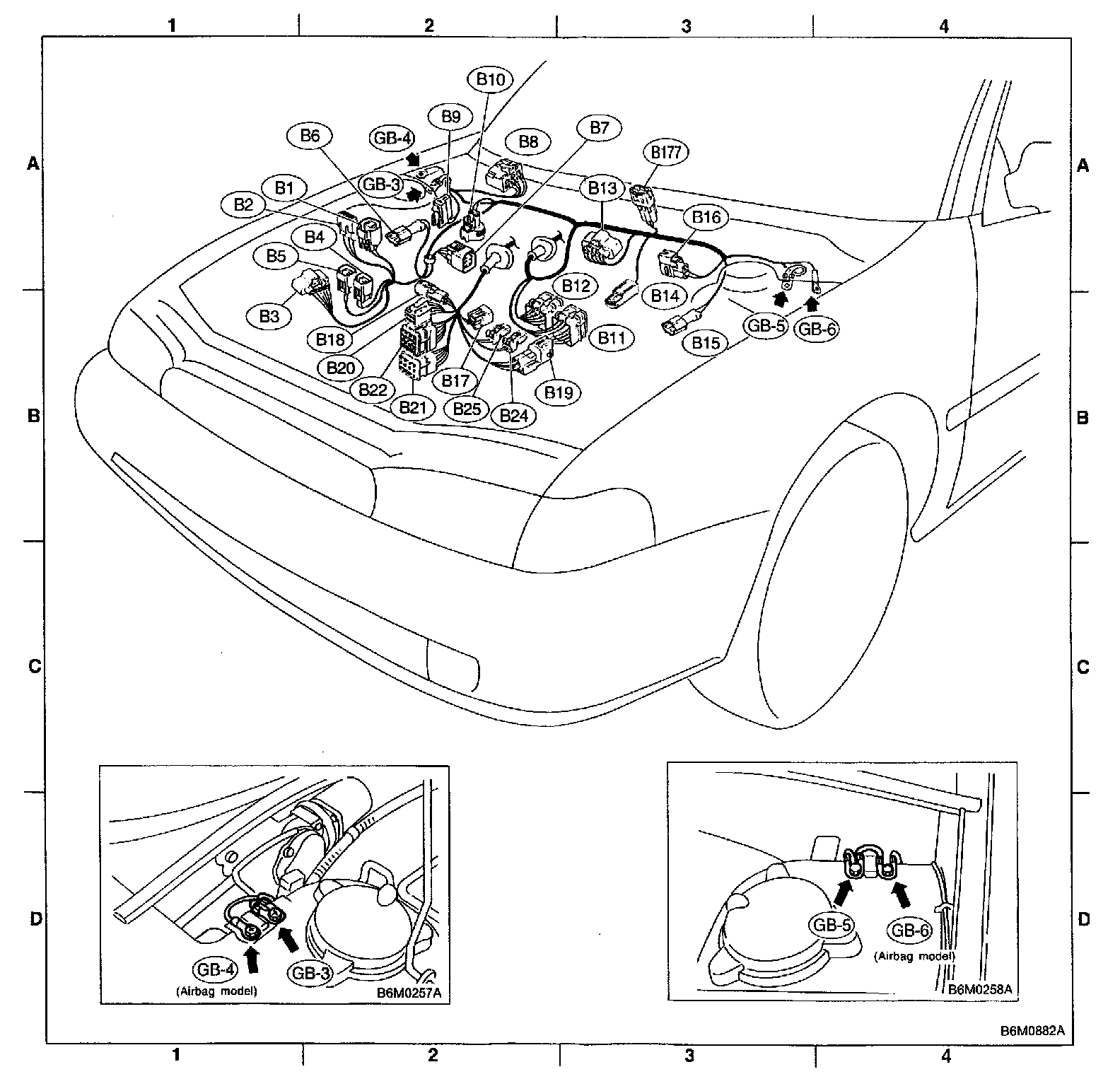

Bulkhead Wiring Harness RHD (In Engine Room) Diagram:
