Bulkhead Wiring Harness (In Compartment)

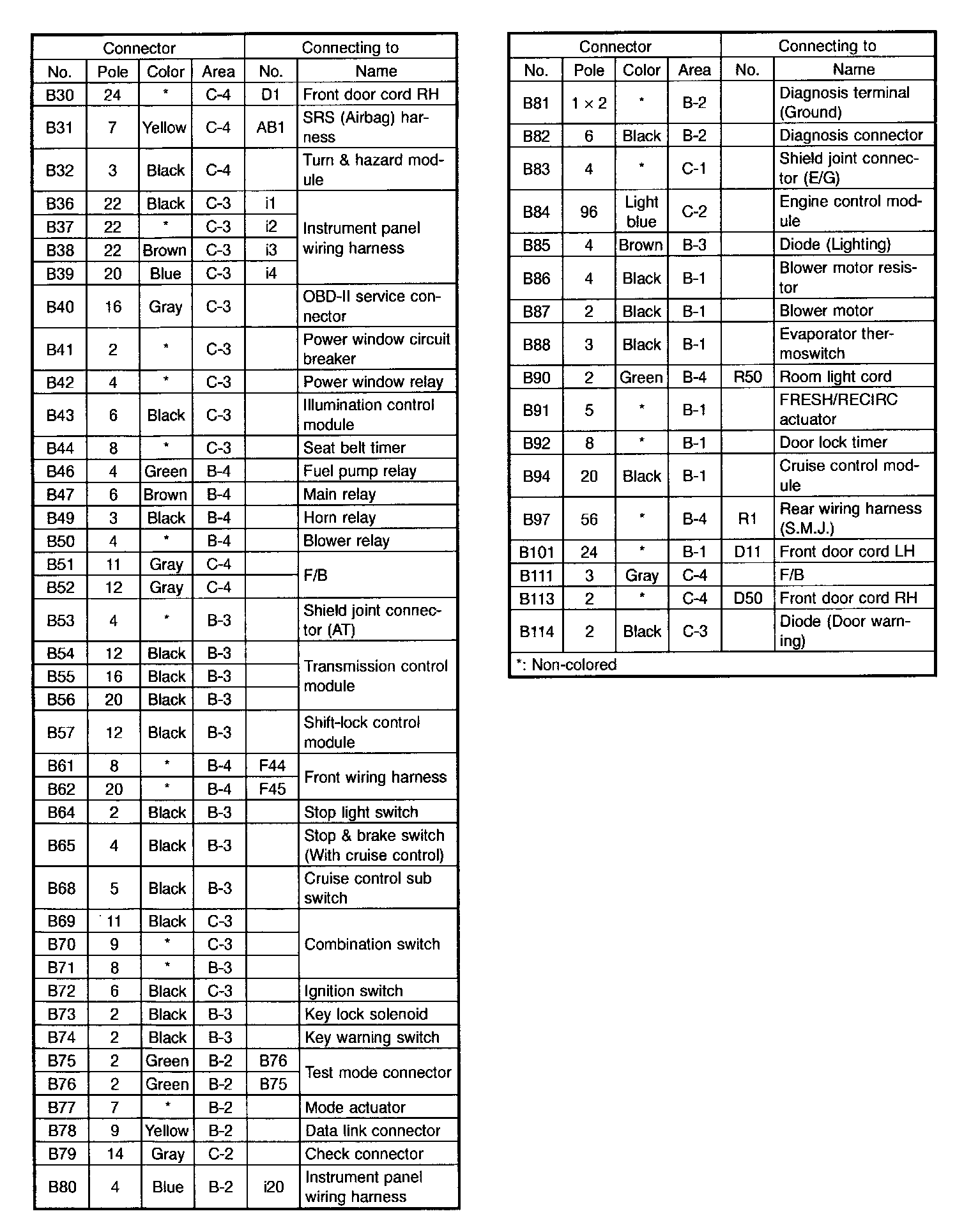

Bulkhead Wiring Harness LHD (In Compartment) Legend:

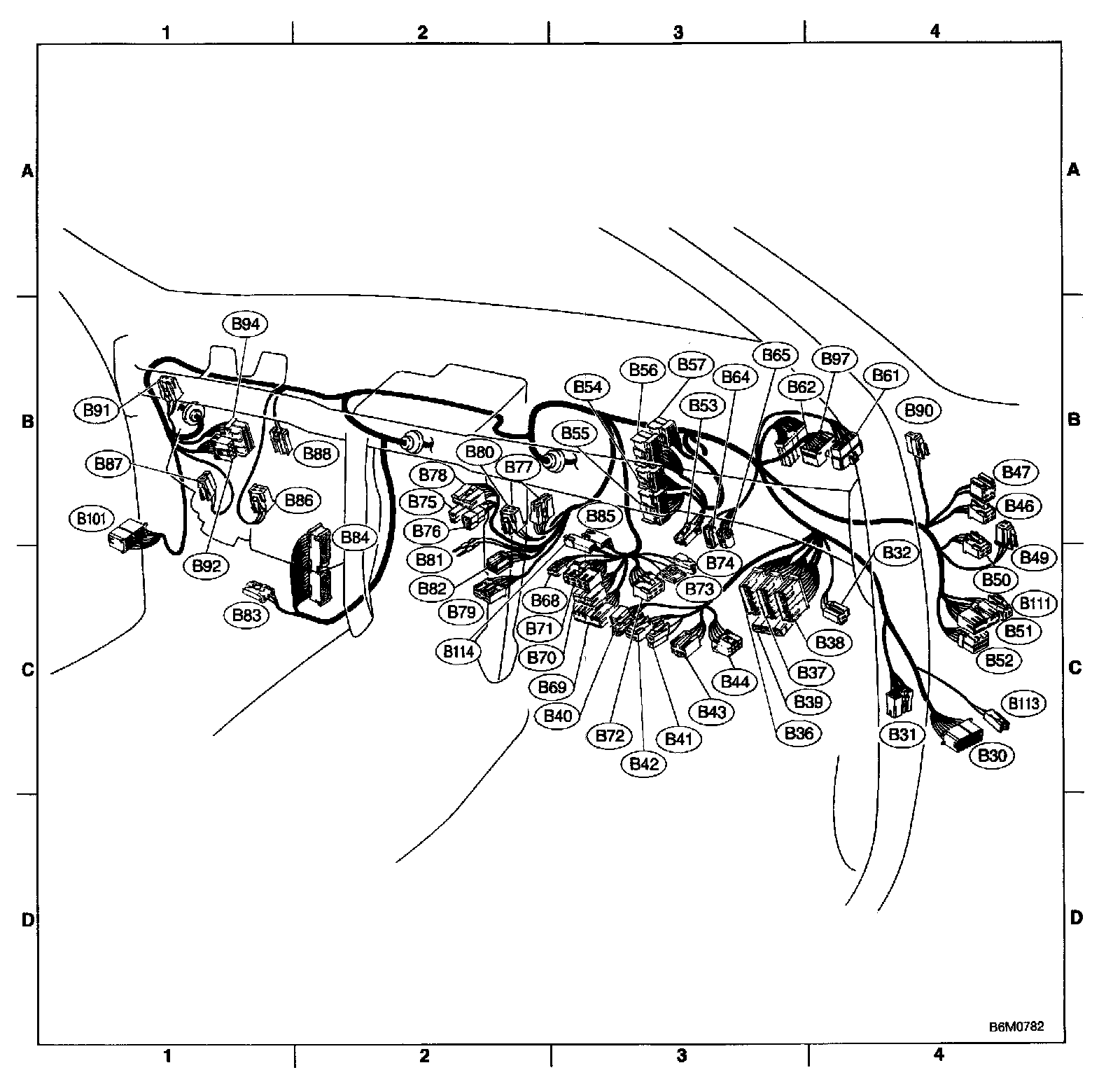

Bulkhead Wiring Harness LHD (In Compartment) Diagram:

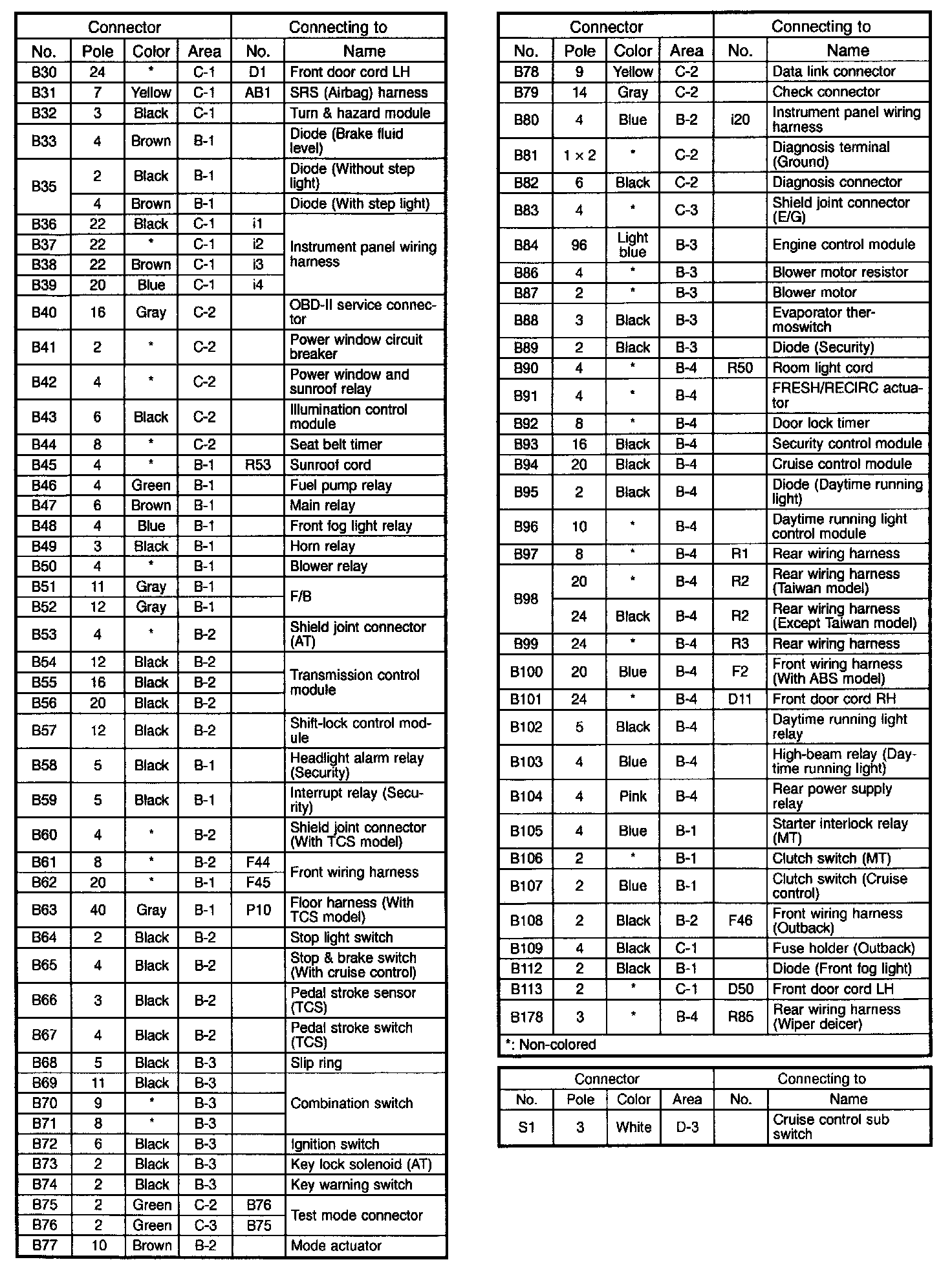

Bulkhead Wiring Harness LHD (In Compartment) Legend:

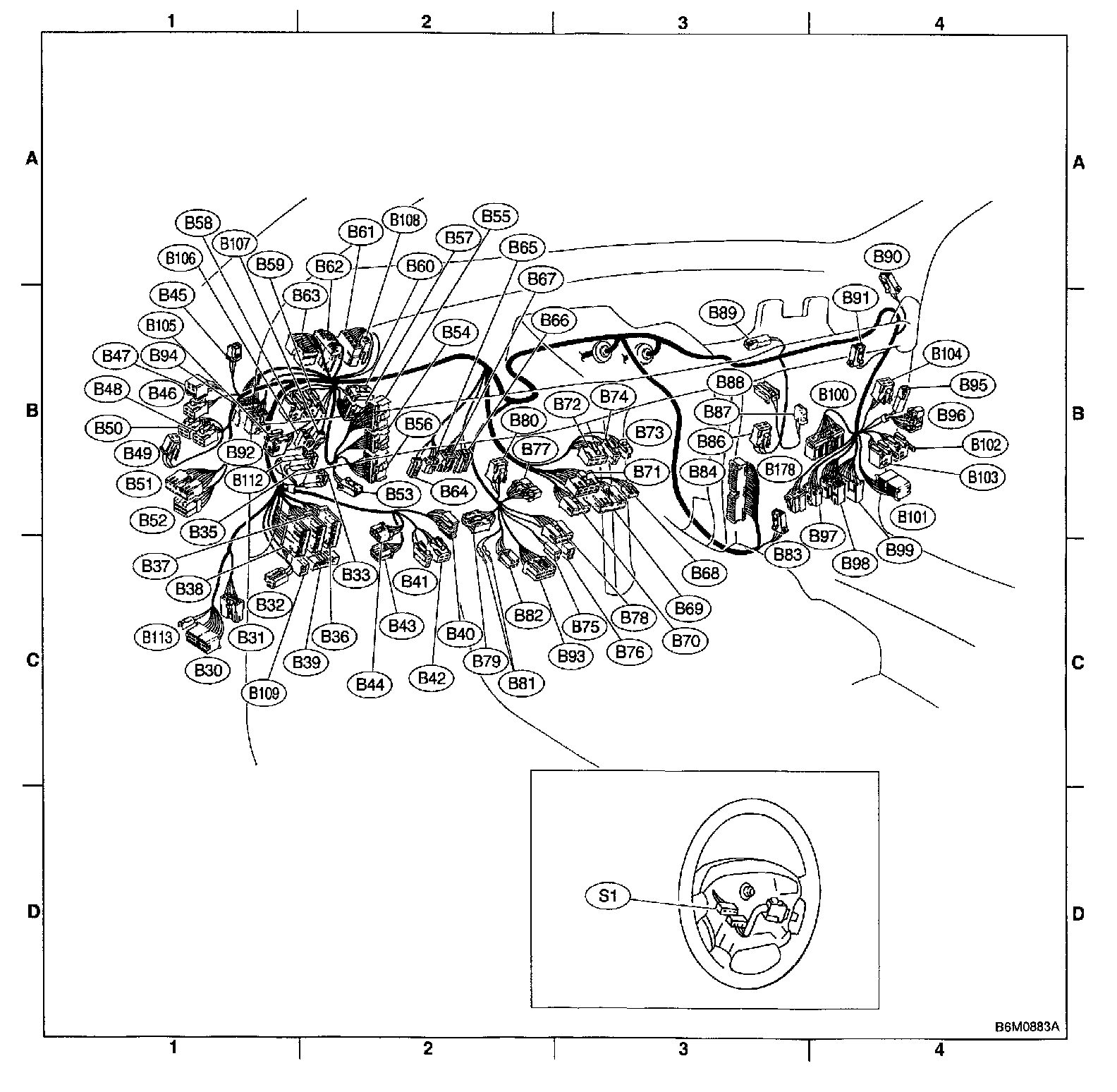

Bulkhead Wiring Harness LHD (In Compartment) Diagram:
