P1540
DTC P1540: VEHICLE SPEED SENSOR MALFUNCTION 2DTC DETECTING CONDITION:
- Immediately at fault recognition
CAUTION: Alter repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

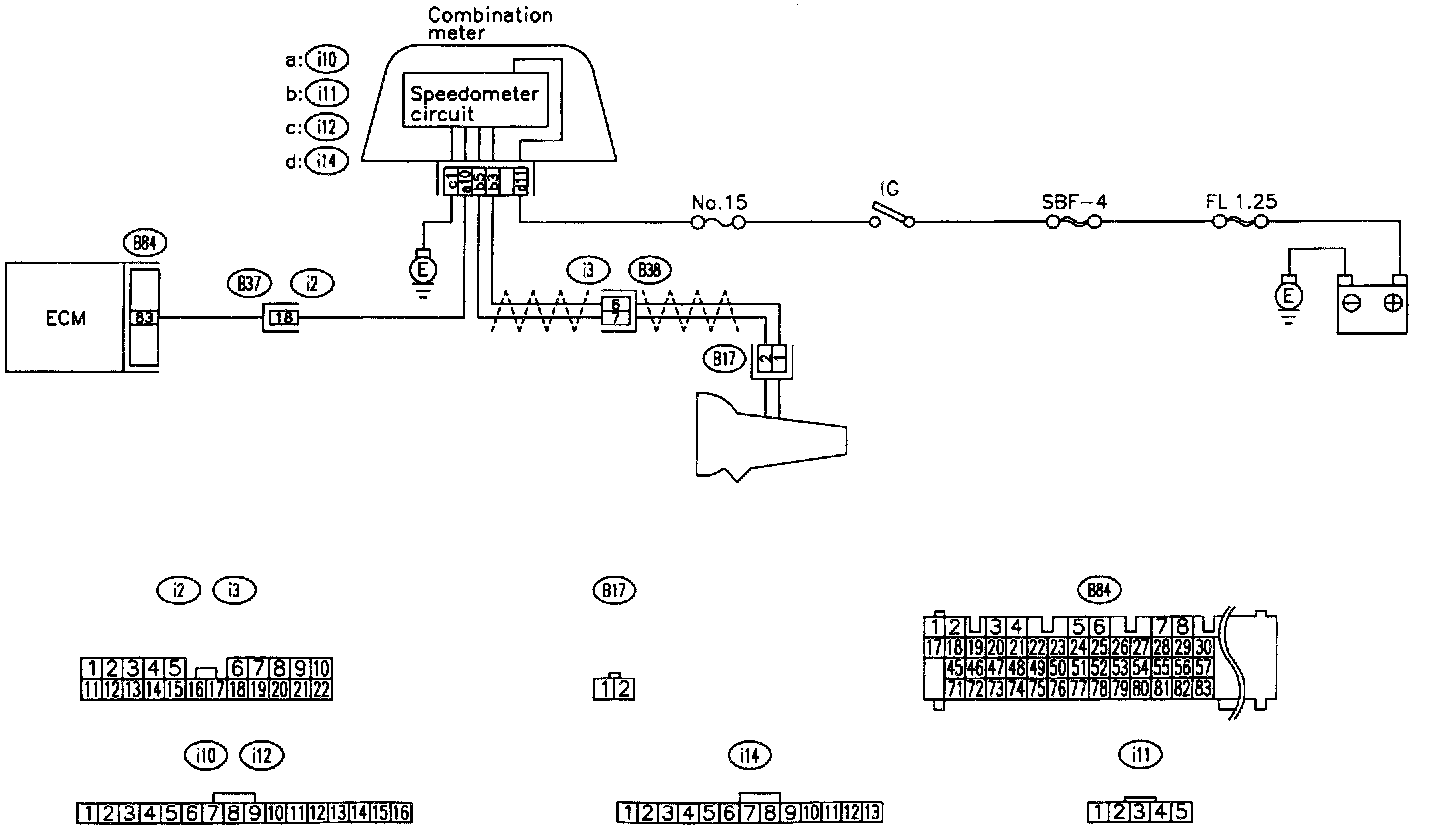

WIRING DIAGRAM (LHD)

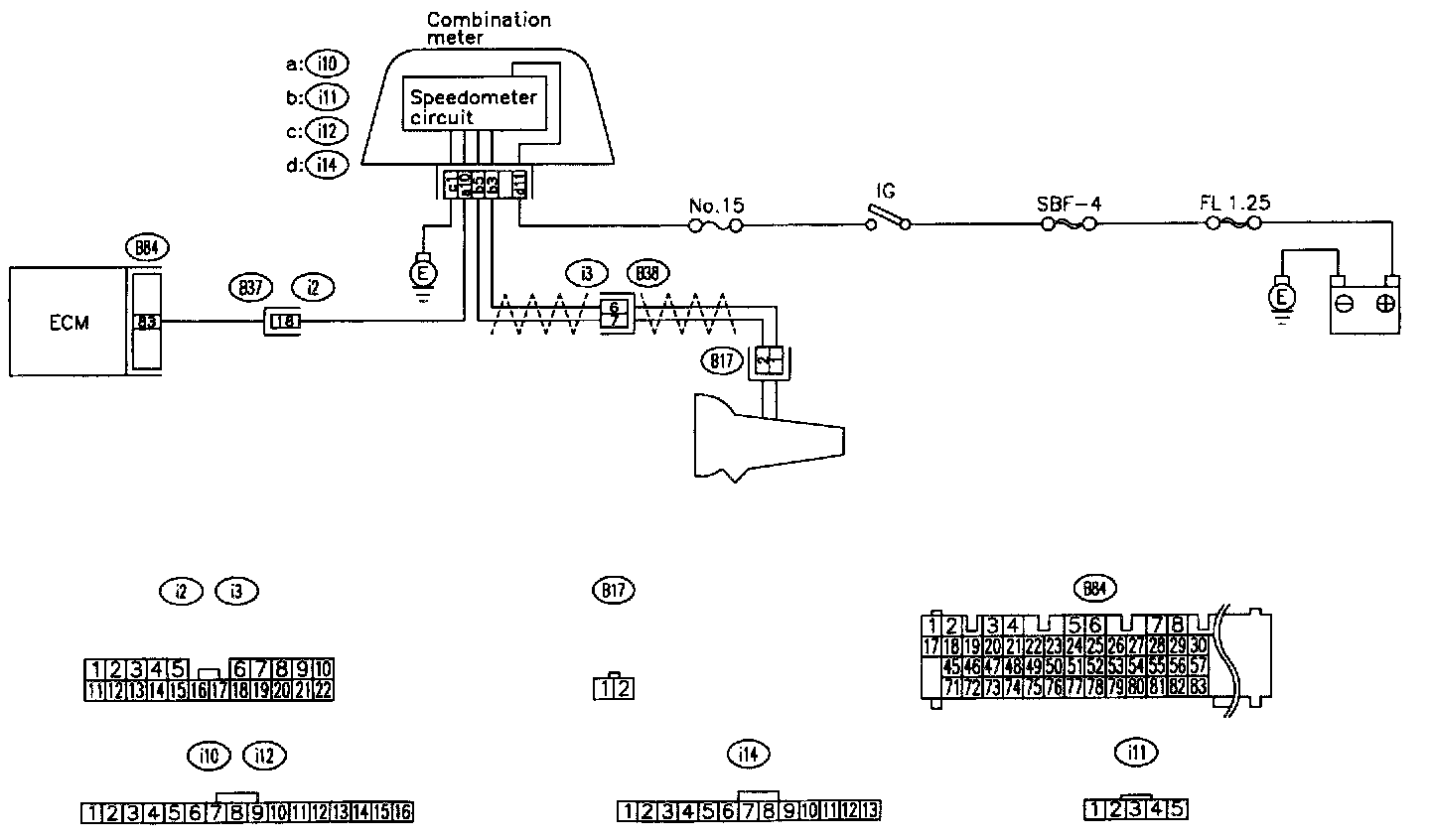

WIRING DIAGRAM (RHD)

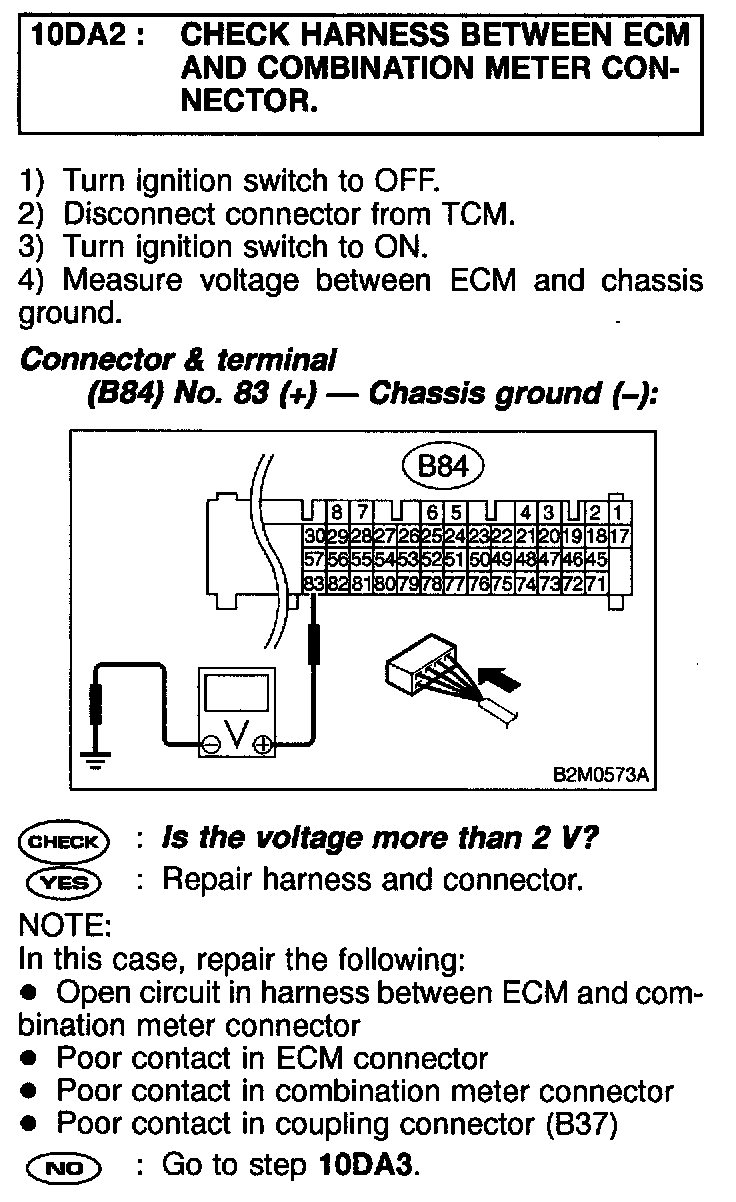

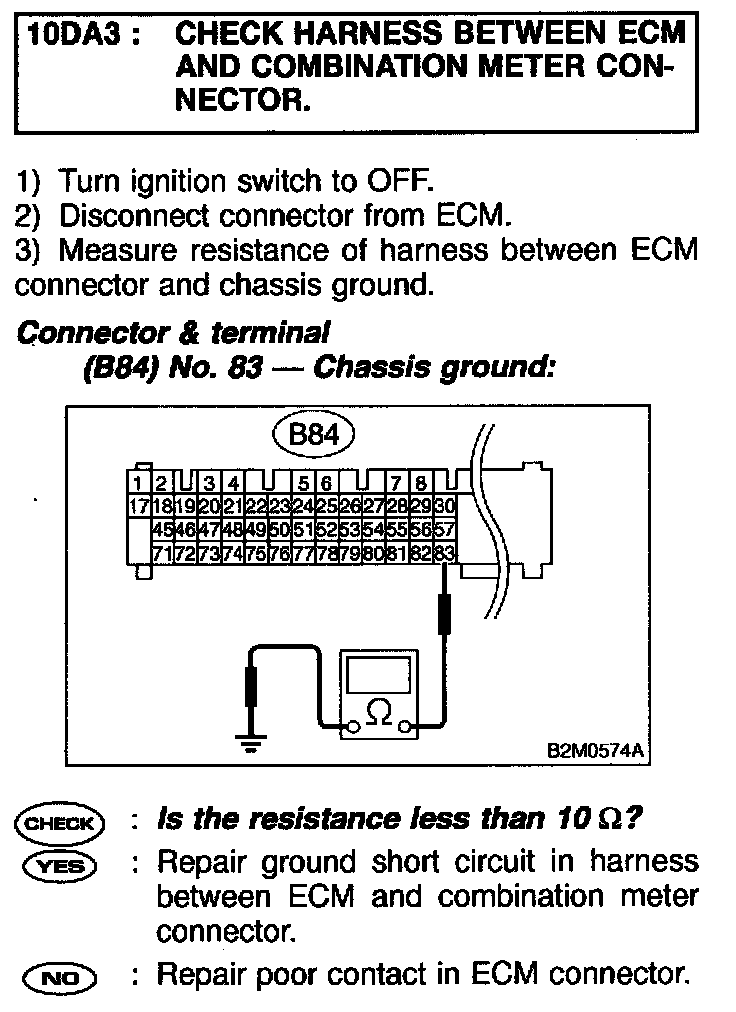

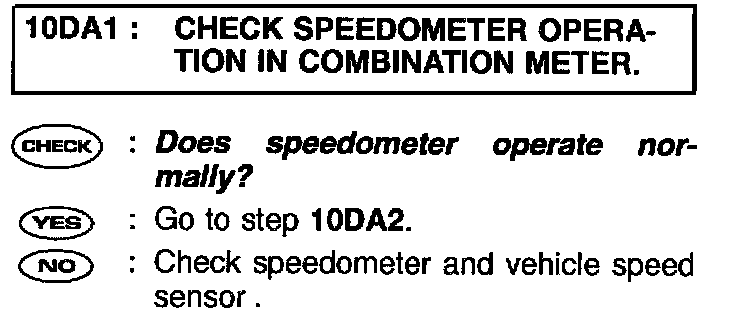

PROCEDURES
