P1443

CX: DTC P1443: EVAPORATIVE EMISSIONS CONTROL SYSTEM VENT CONTROL FUNCTION PROBLEM

DTC DETECTING CONDITION:
- Immediately after fault occurrence

TROUBLE SYMPTOM:
- Improper fuel supply

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

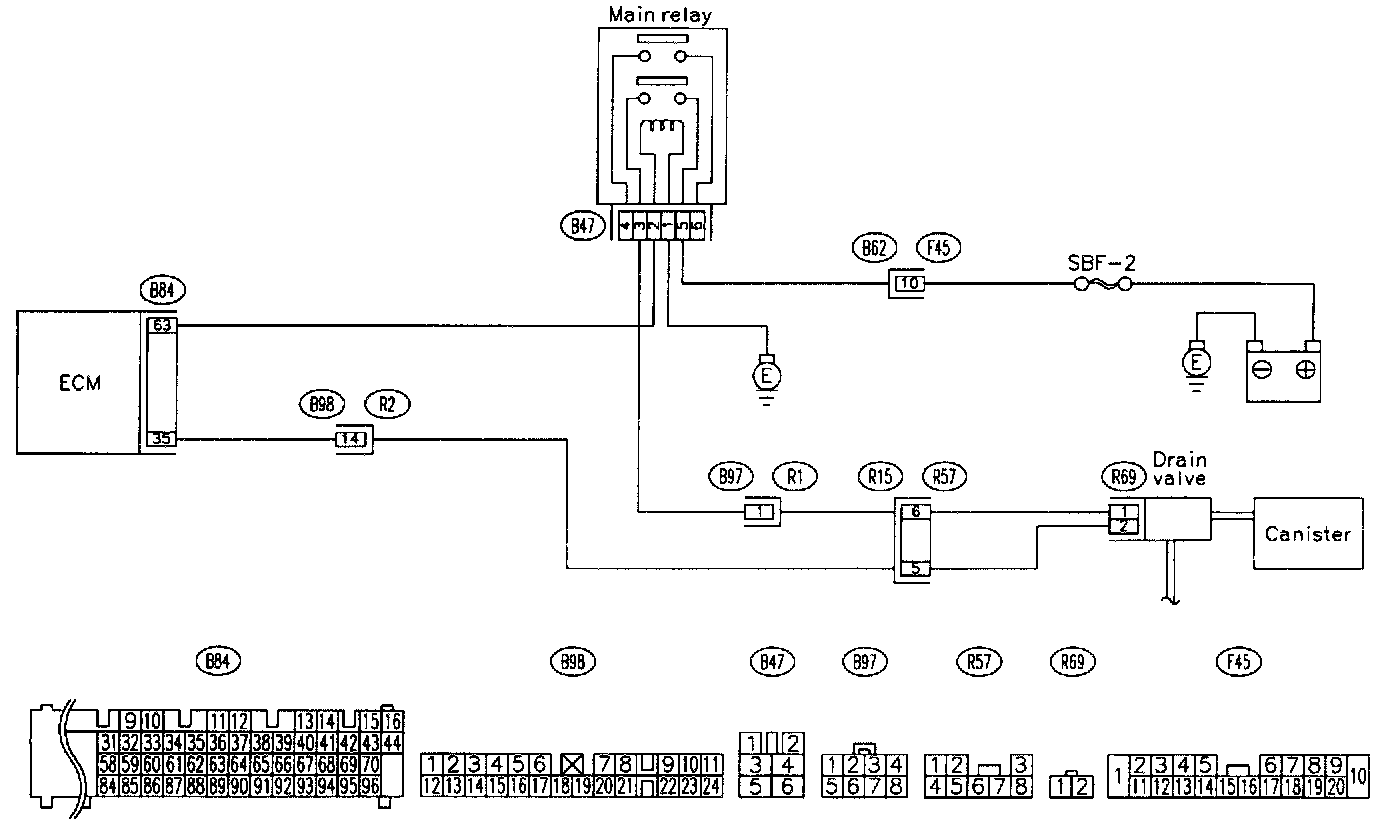

WIRING DIAGRAM (LHD)

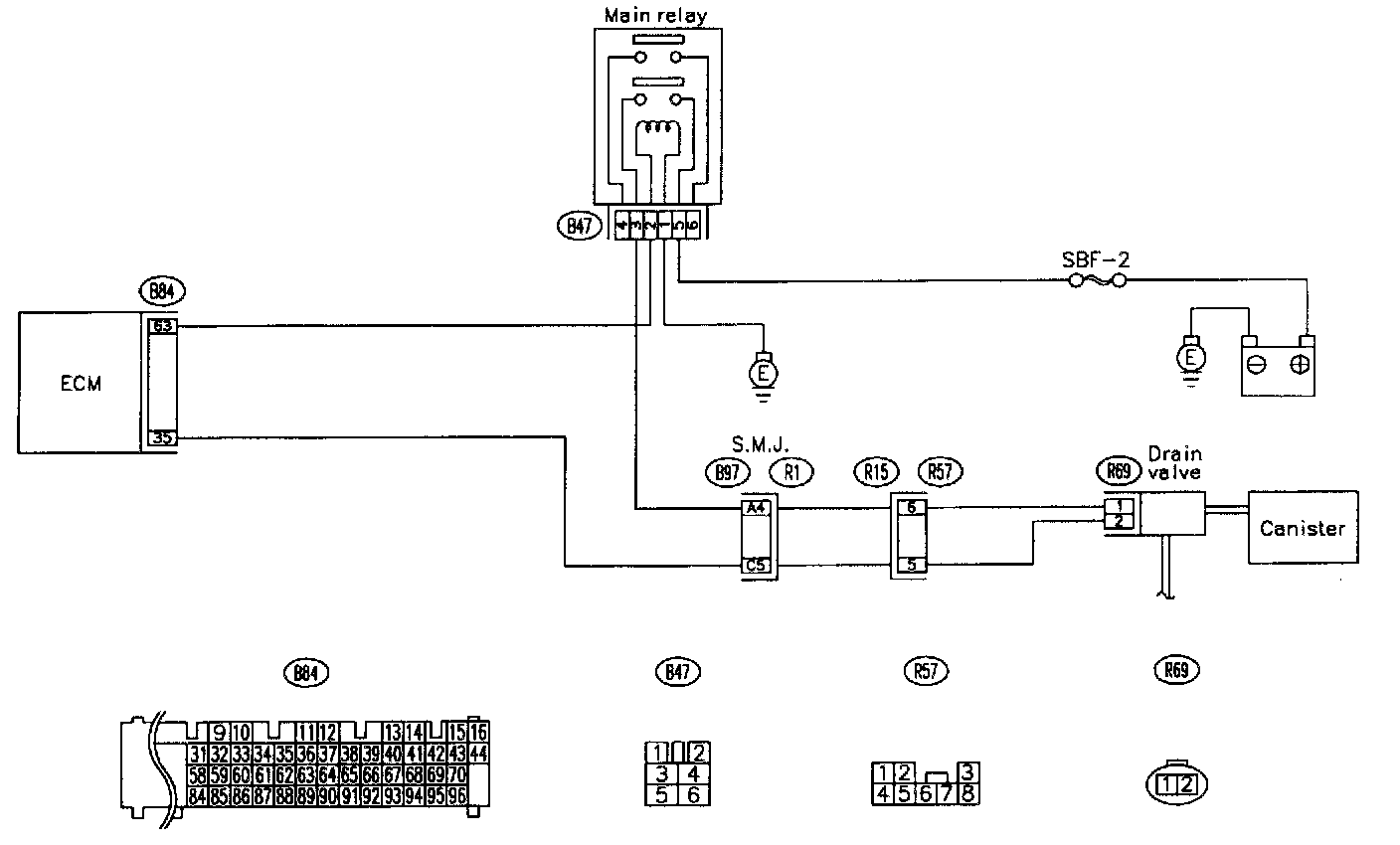

WIRING DIAGRAM (RHD)

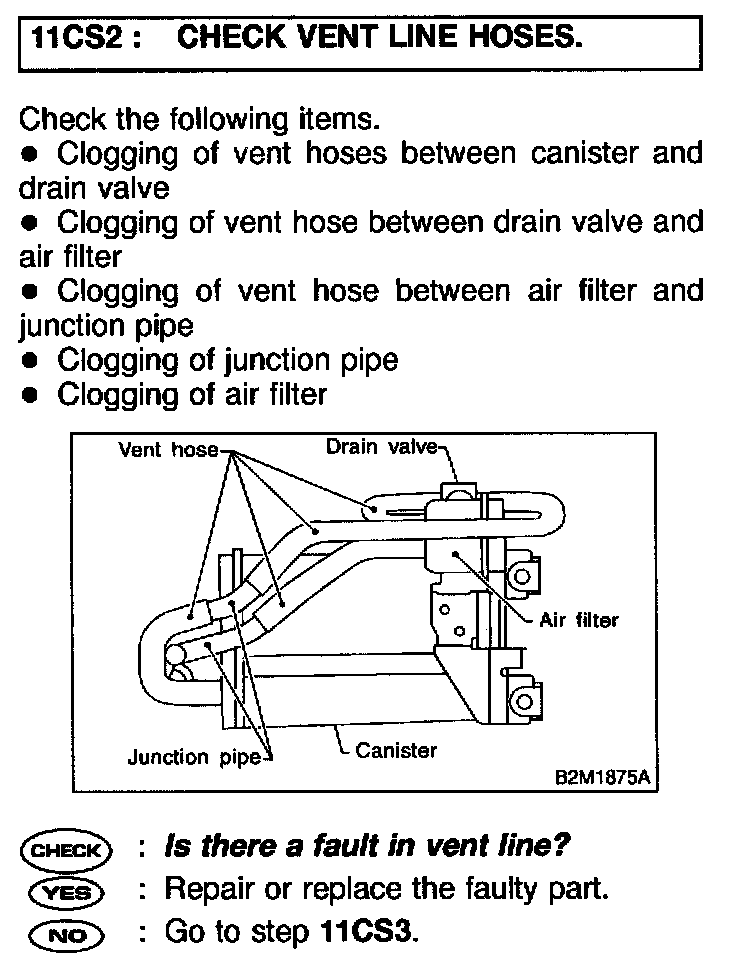

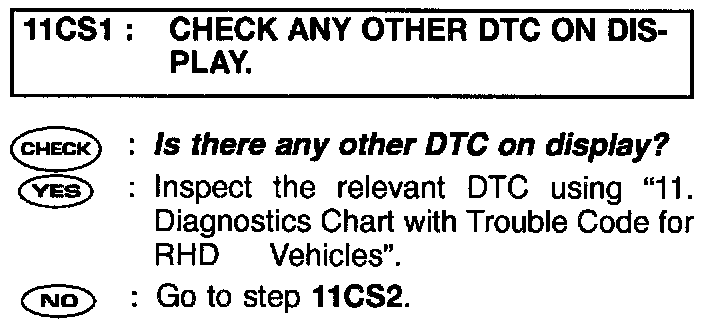

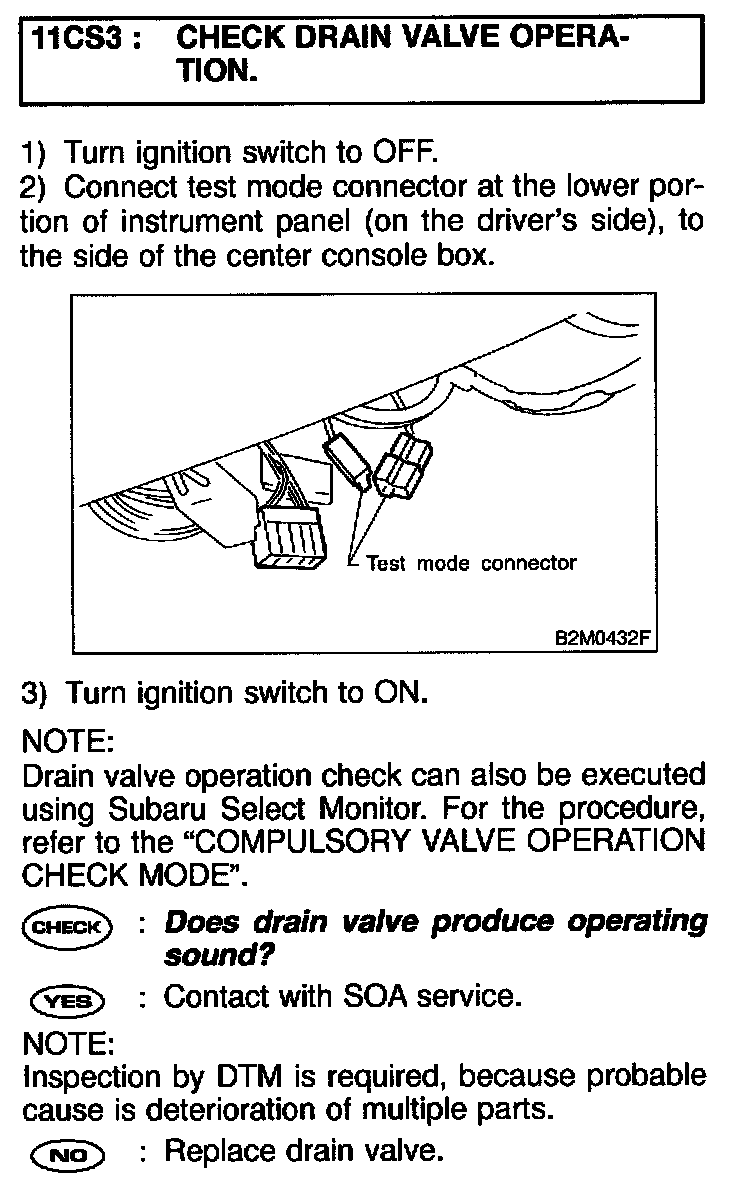

PROCEDURES (LHD)











PROCEDURES (RHD)
