P1422

DTC P1422: EVAPORATIVE EMISSION CONTROL SYSTEM PURGE CONTROL VALVE CIRCUIT HIGH INPUT

NOTE: Check canister purge control system.

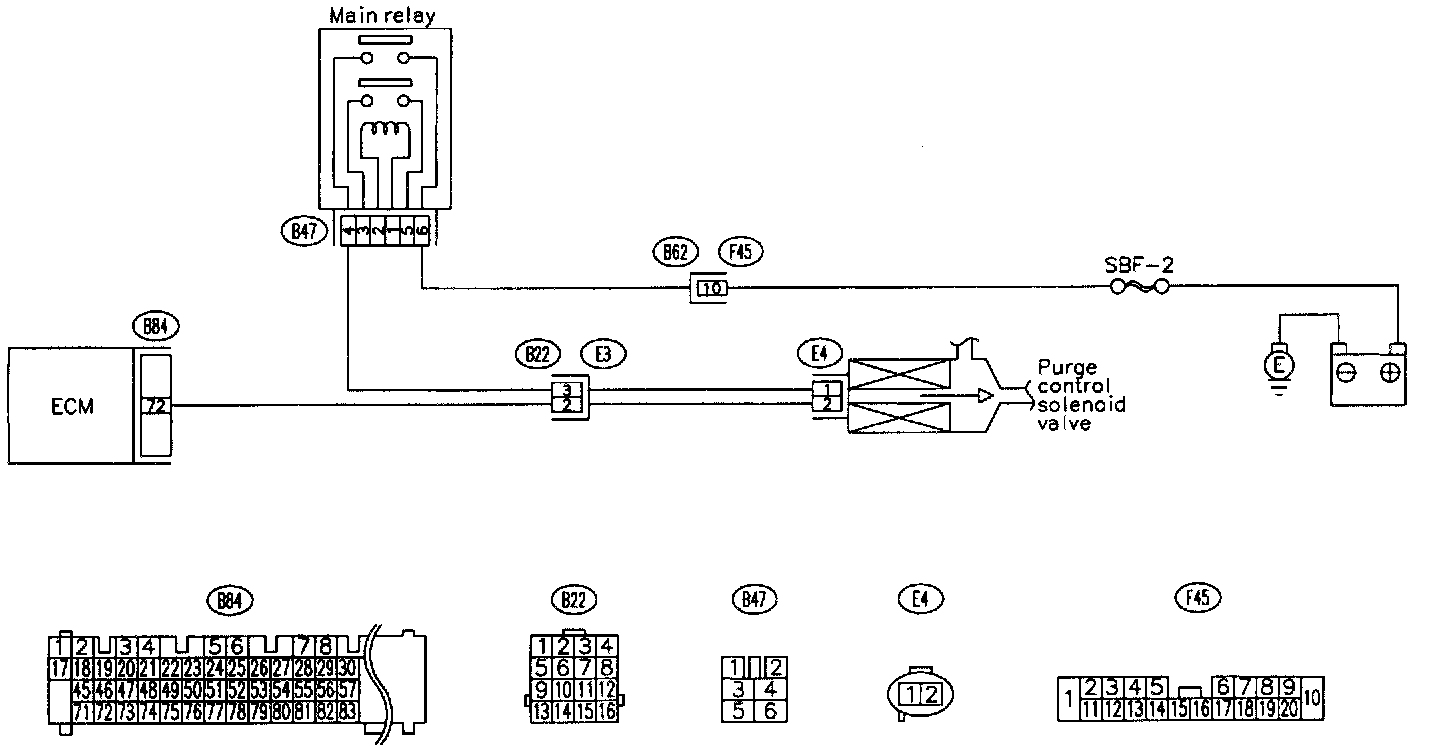

WIRING DIAGRAM (LHD)

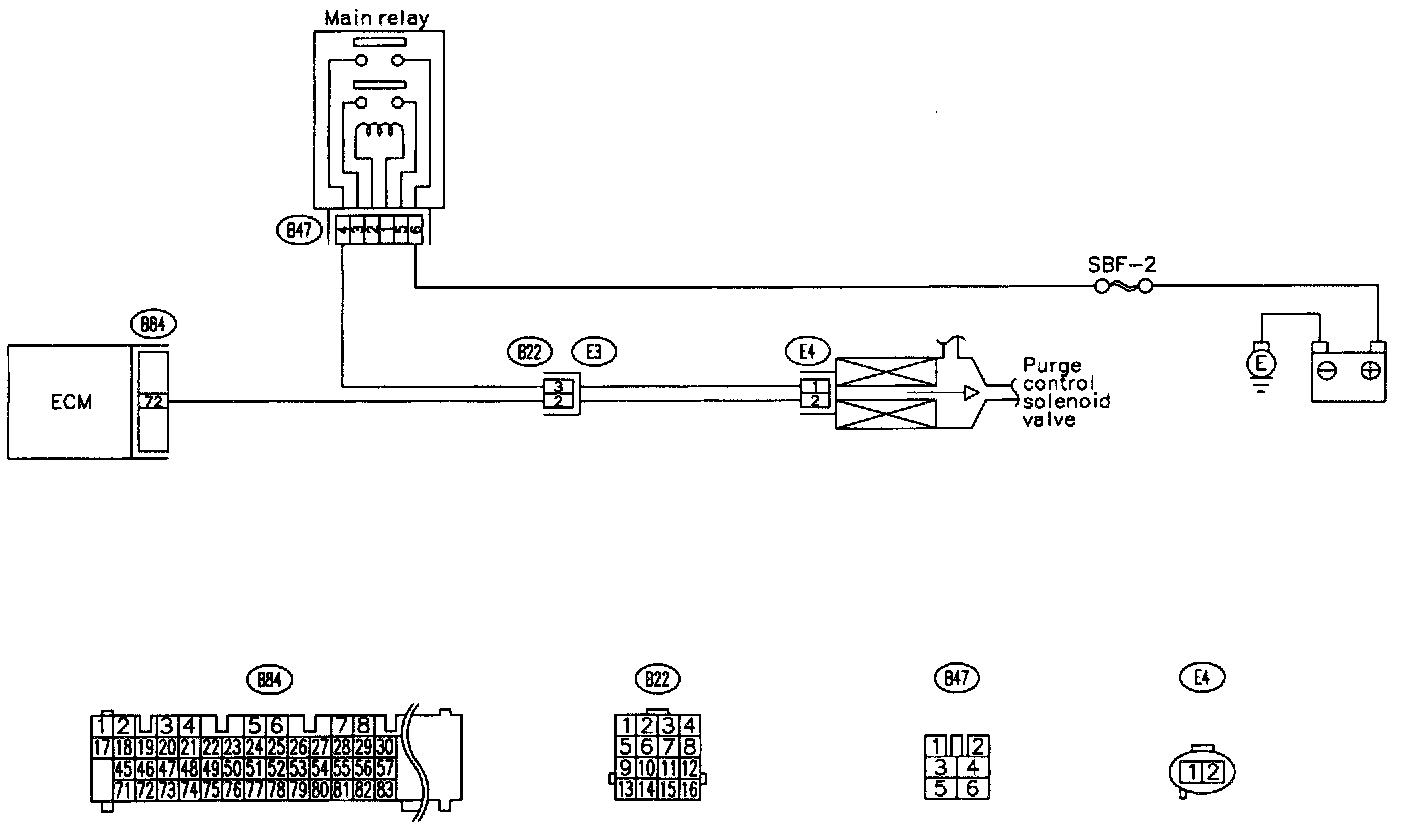

WIRING DIAGRAM (RHD)


















PROCEDURES
