P1143
DTC P1143: PRESSURE SENSOR CIRCUIT RANGE/PERFORMANCE PROBLEM (LOW INPUT)DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault
CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

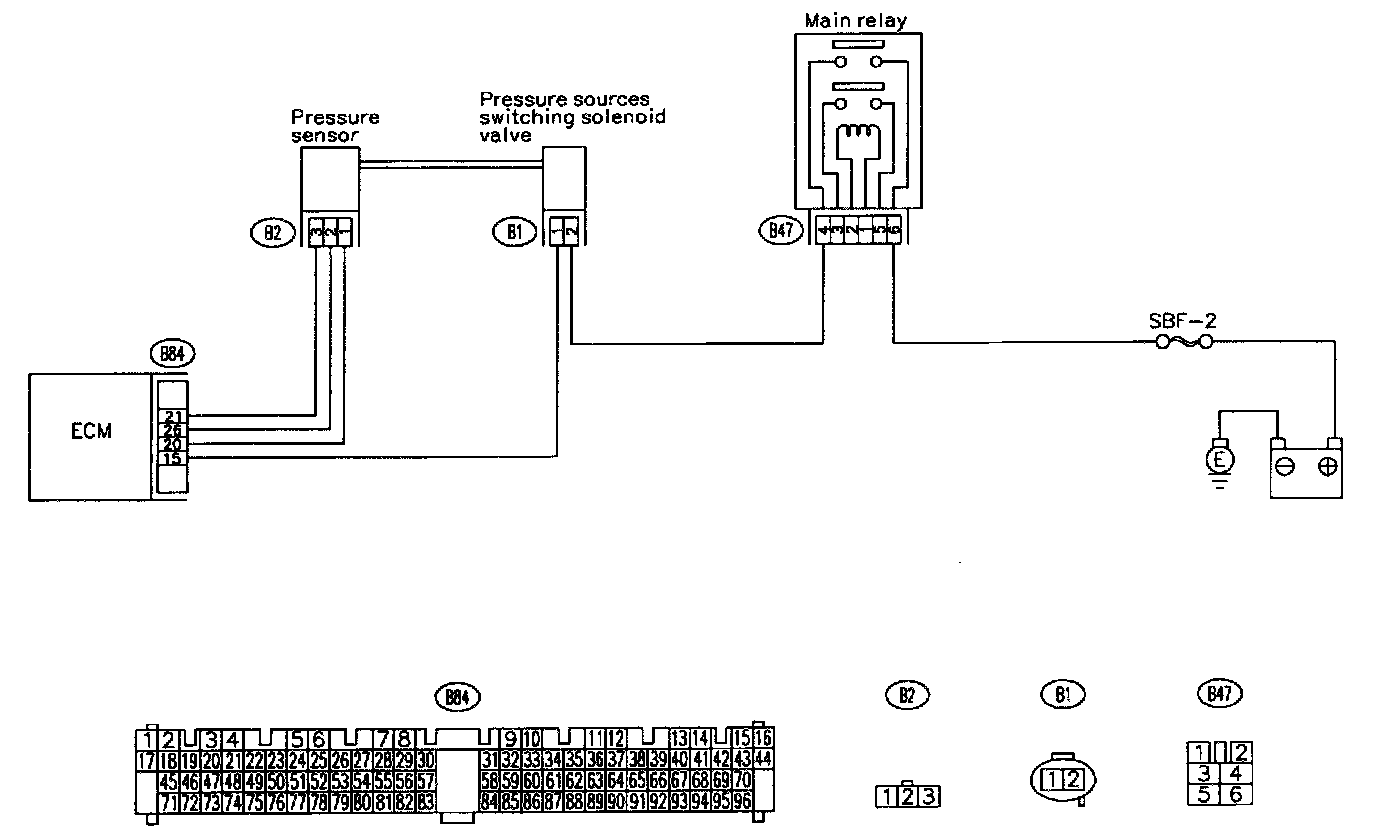

WIRING DIAGRAM (LHD)

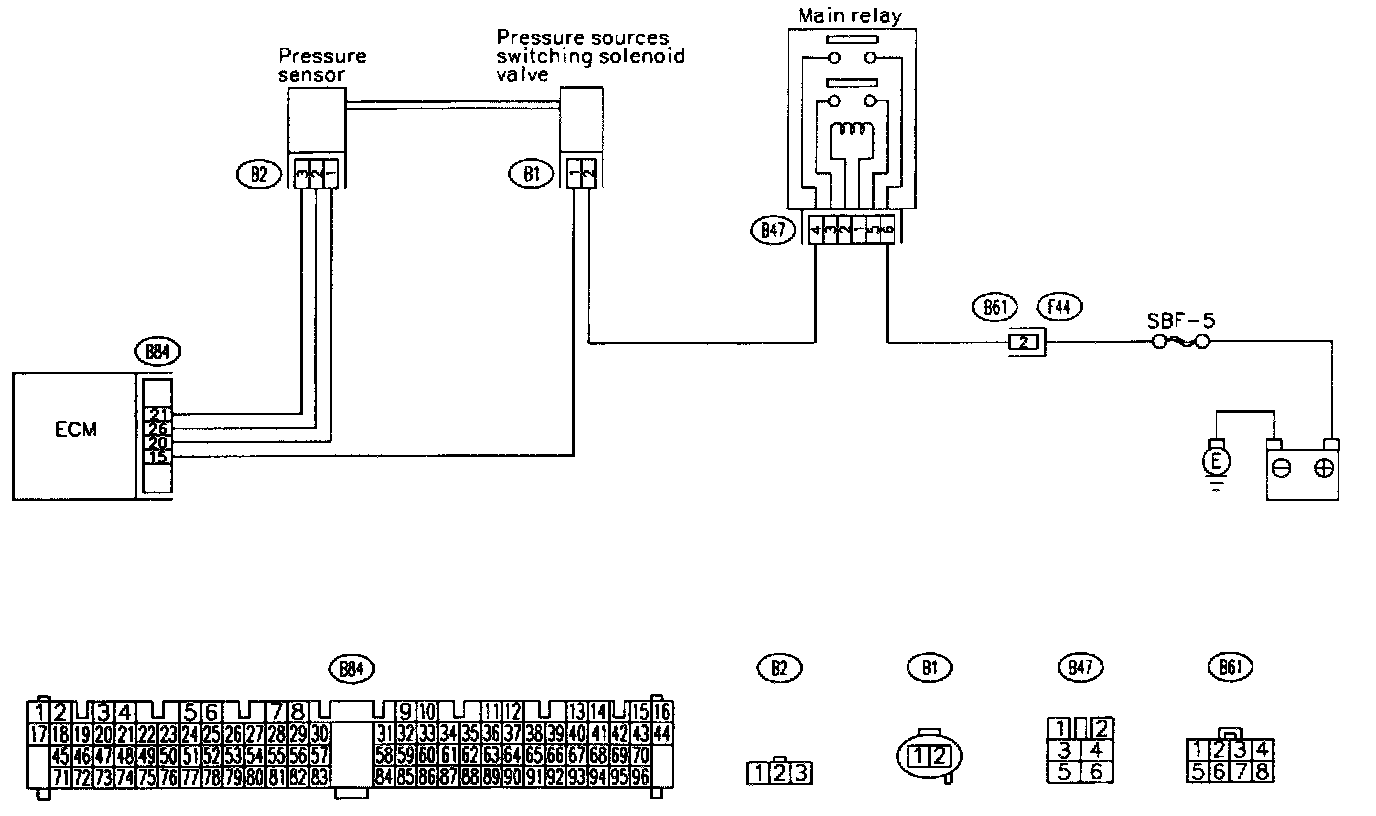

WIRING DIAGRAM (RHD)

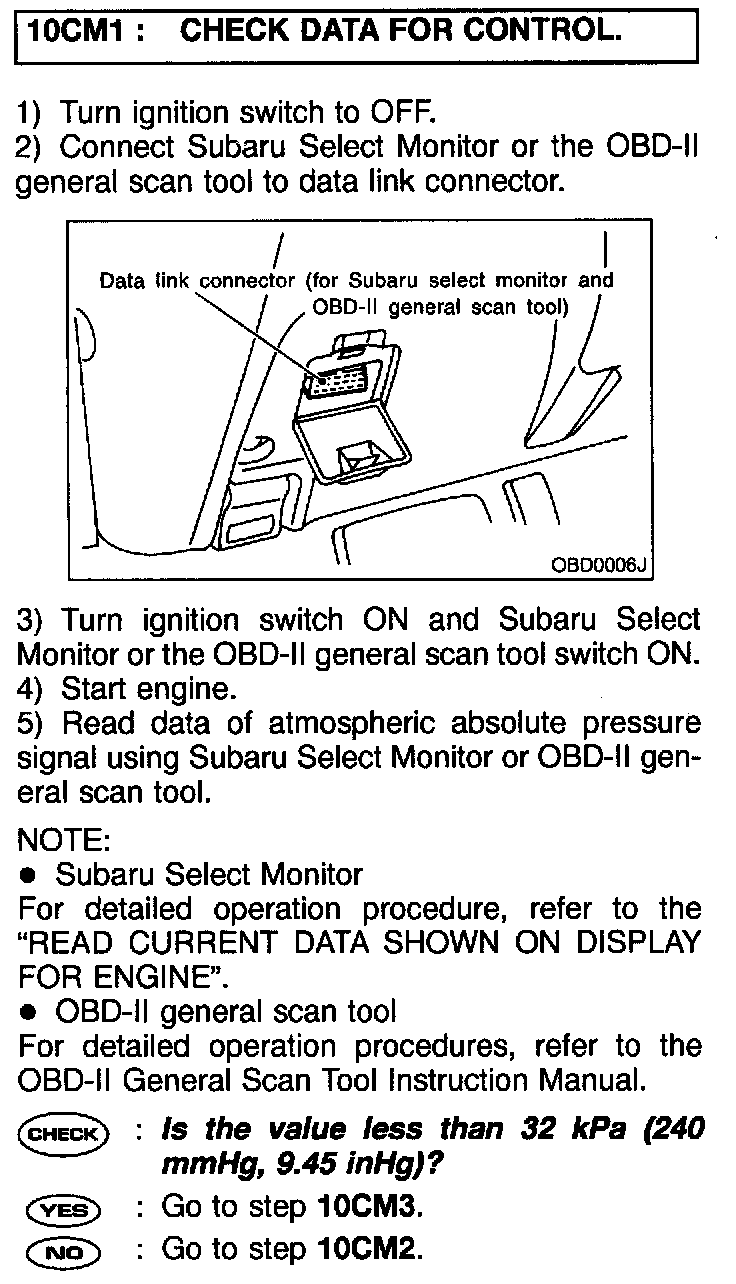

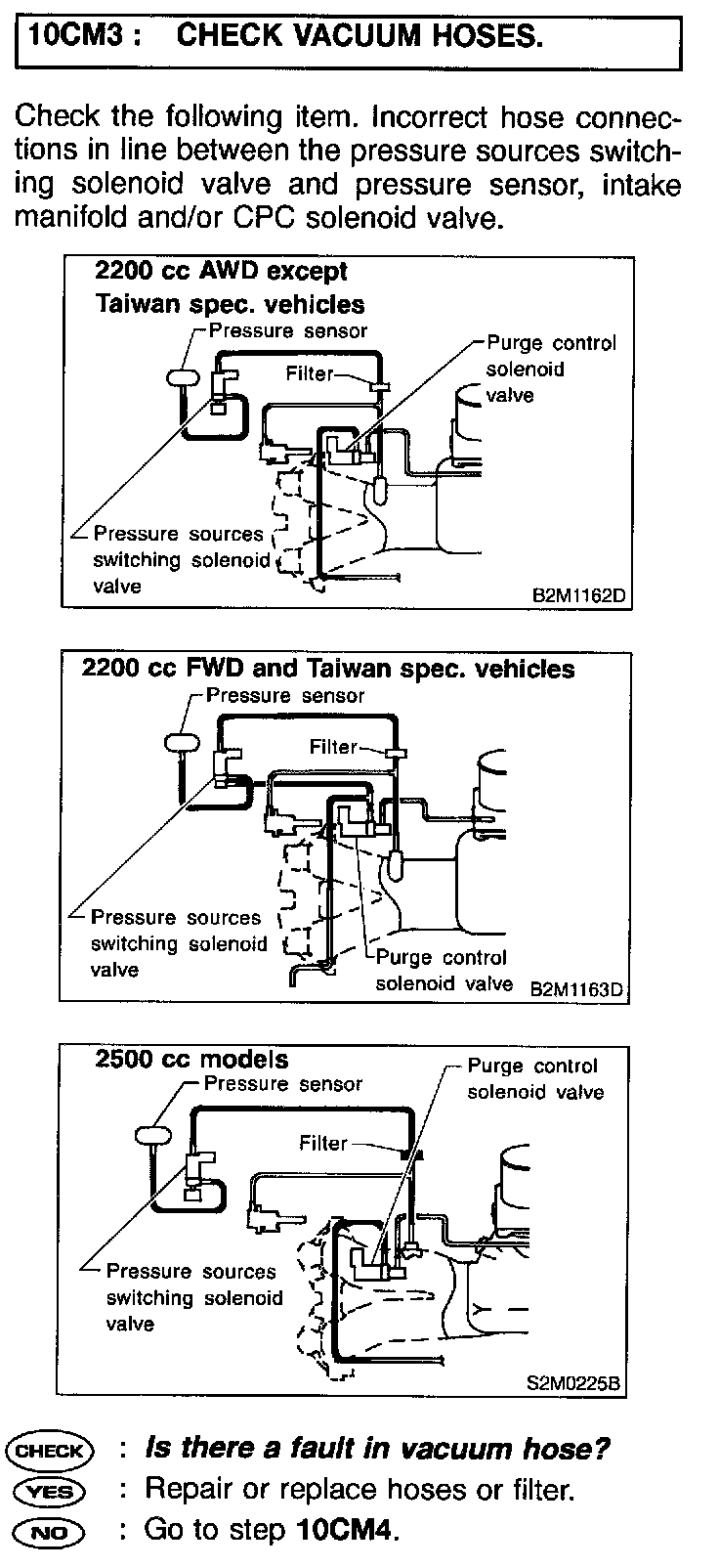

PROCEDURES
