Automatic Transaxle

DTC P1101: NEUTRAL POSITION SWITCH CIRCUIT MALFUNCTION [AT VEHICLES]

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

TROUBLE SYMPTOM:
- Erroneous idling

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.





WIRING DIAGRAM (LHD)

sb98legac_sm92_7-580

WIRING DIAGRAM (RHD)

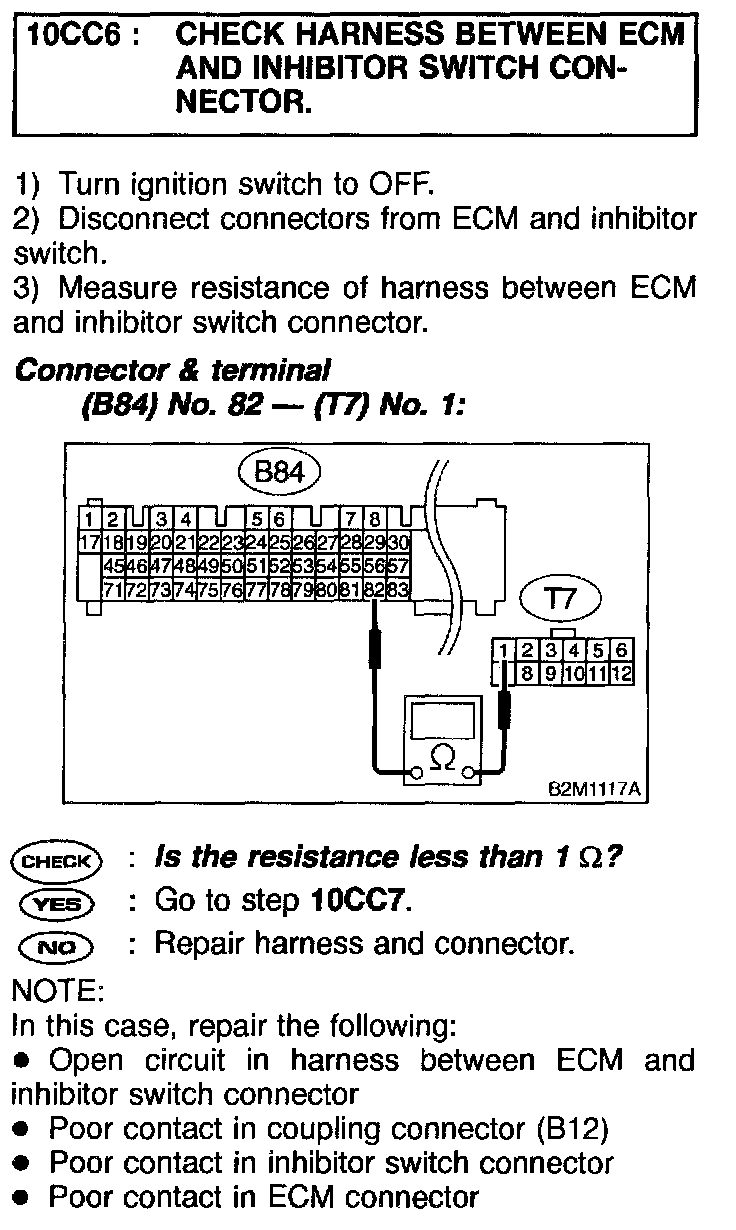

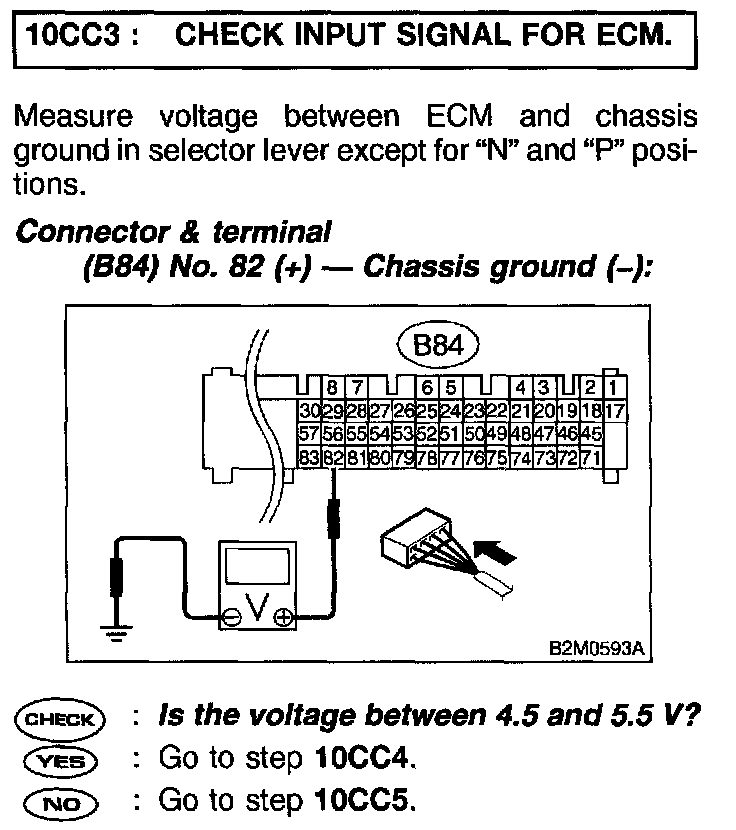

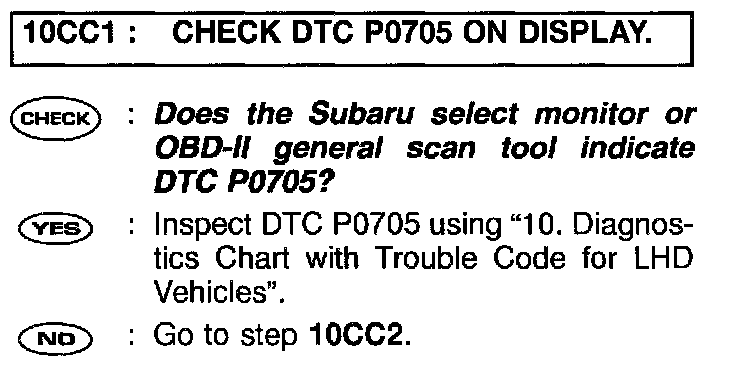

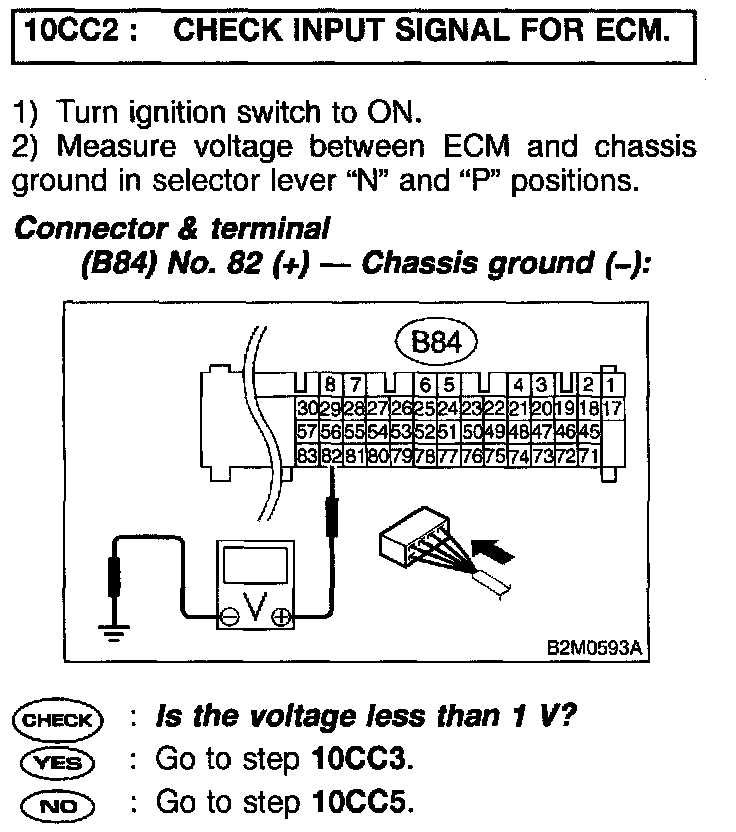

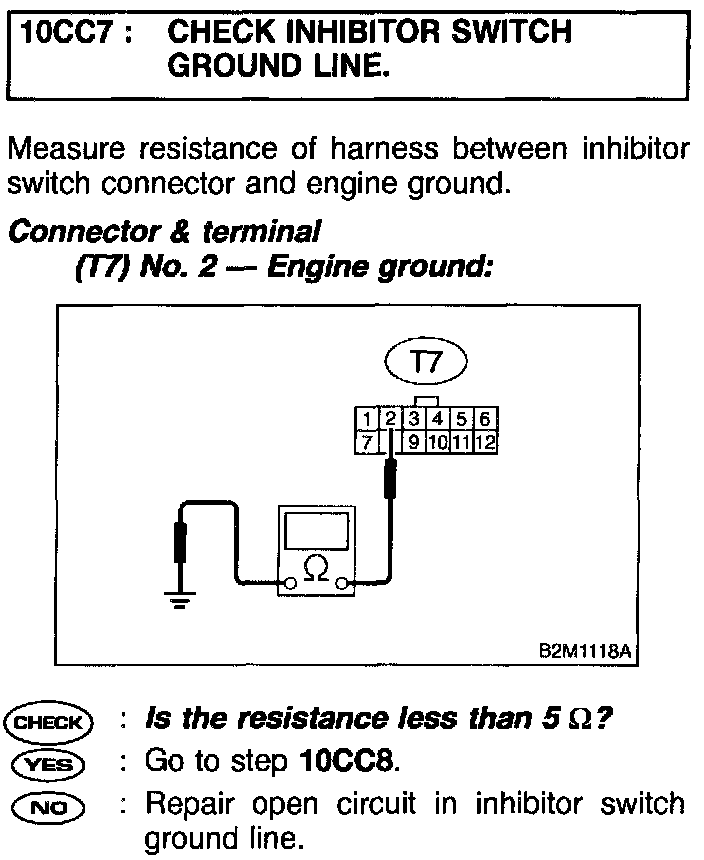

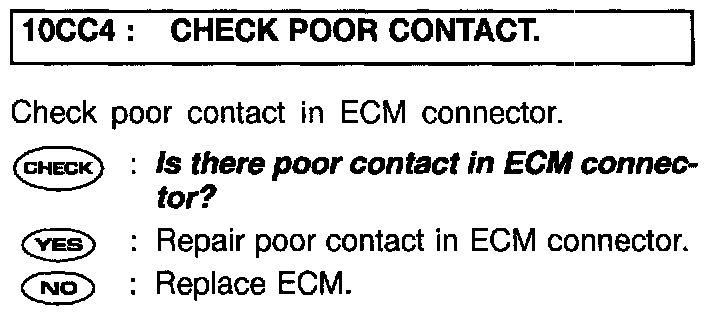

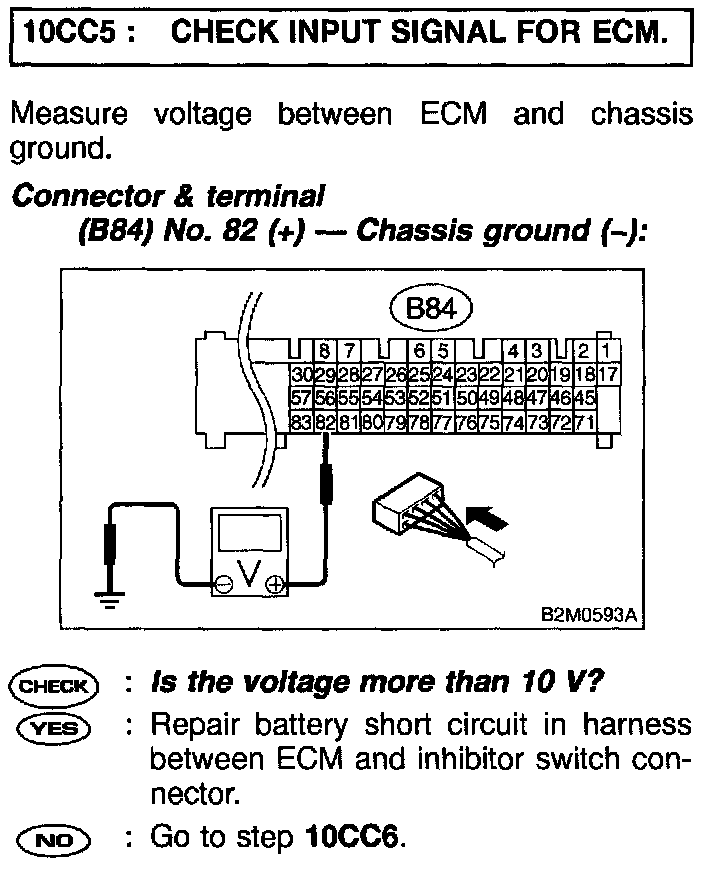

PROCEDURES
