P0743

DTC P0743: TORQUE CONVERTER CLUTCH SYSTEM (DUTY SOLENOID B) ELECTRICAL

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

TROUBLE SYMPTOM:
- No lock-up (after engine warm-up)

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

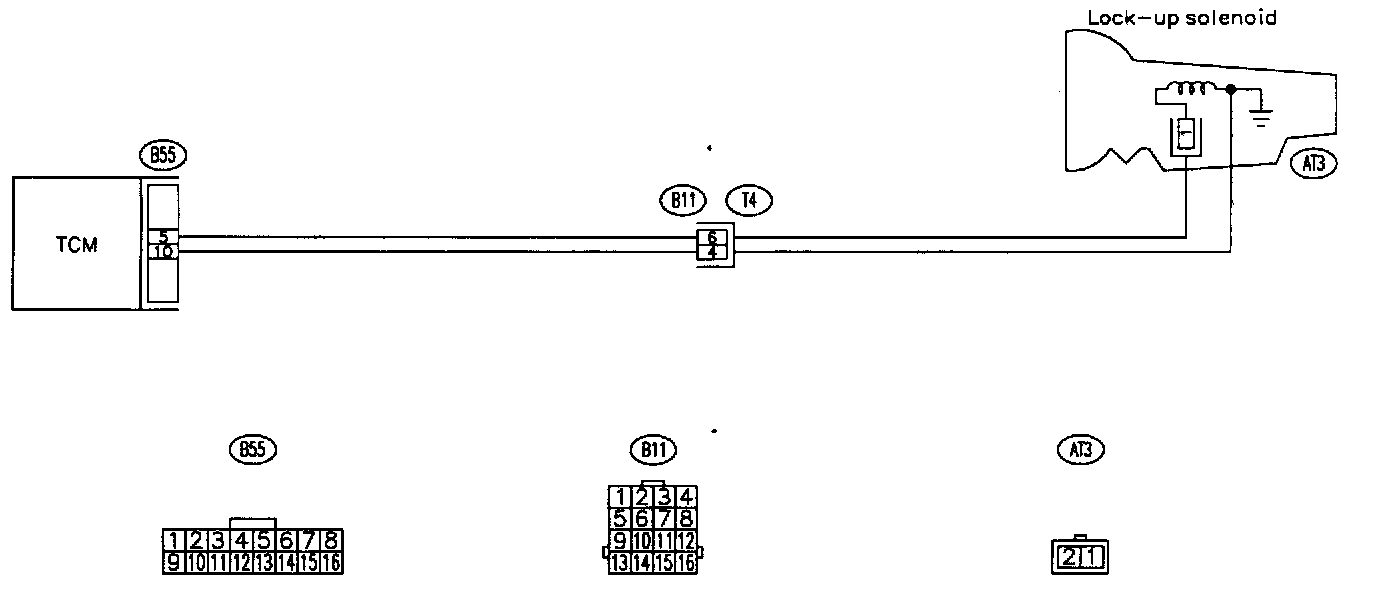

WIRING DIAGRAM (LHD)

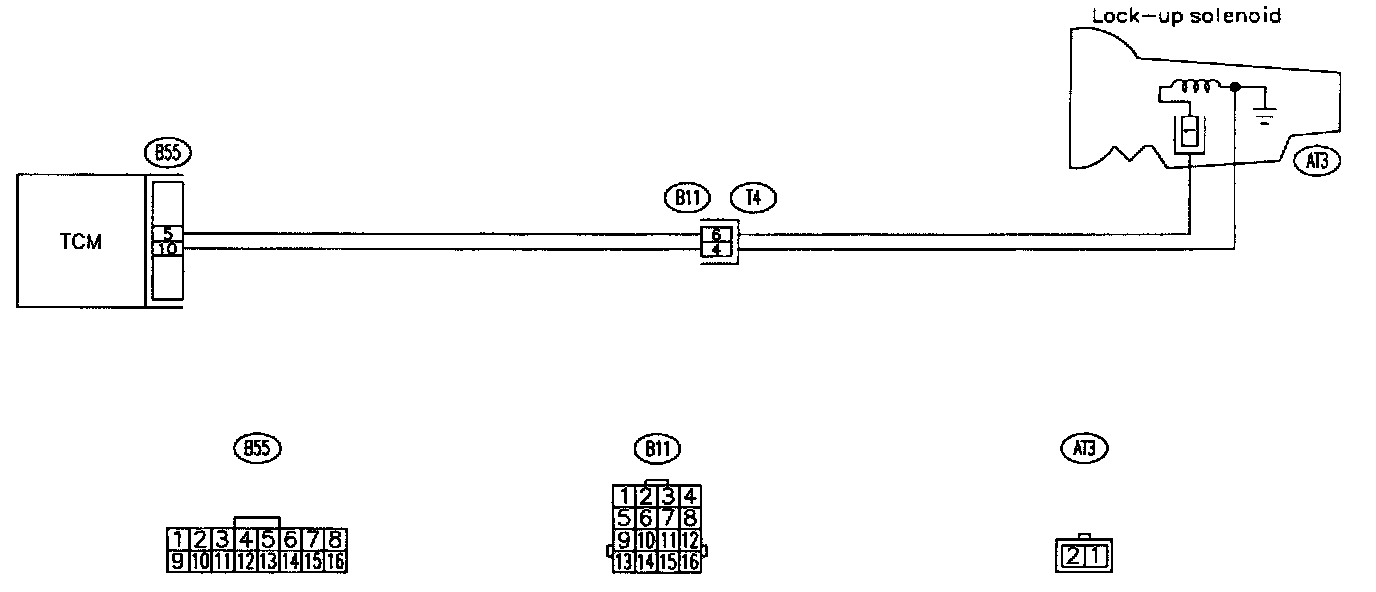

WIRING DIAGRAM (RHD)





PROCEDURE
