P0703

DTC P0703: BRAKE SWITCH INPUT MALFUNCTION

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

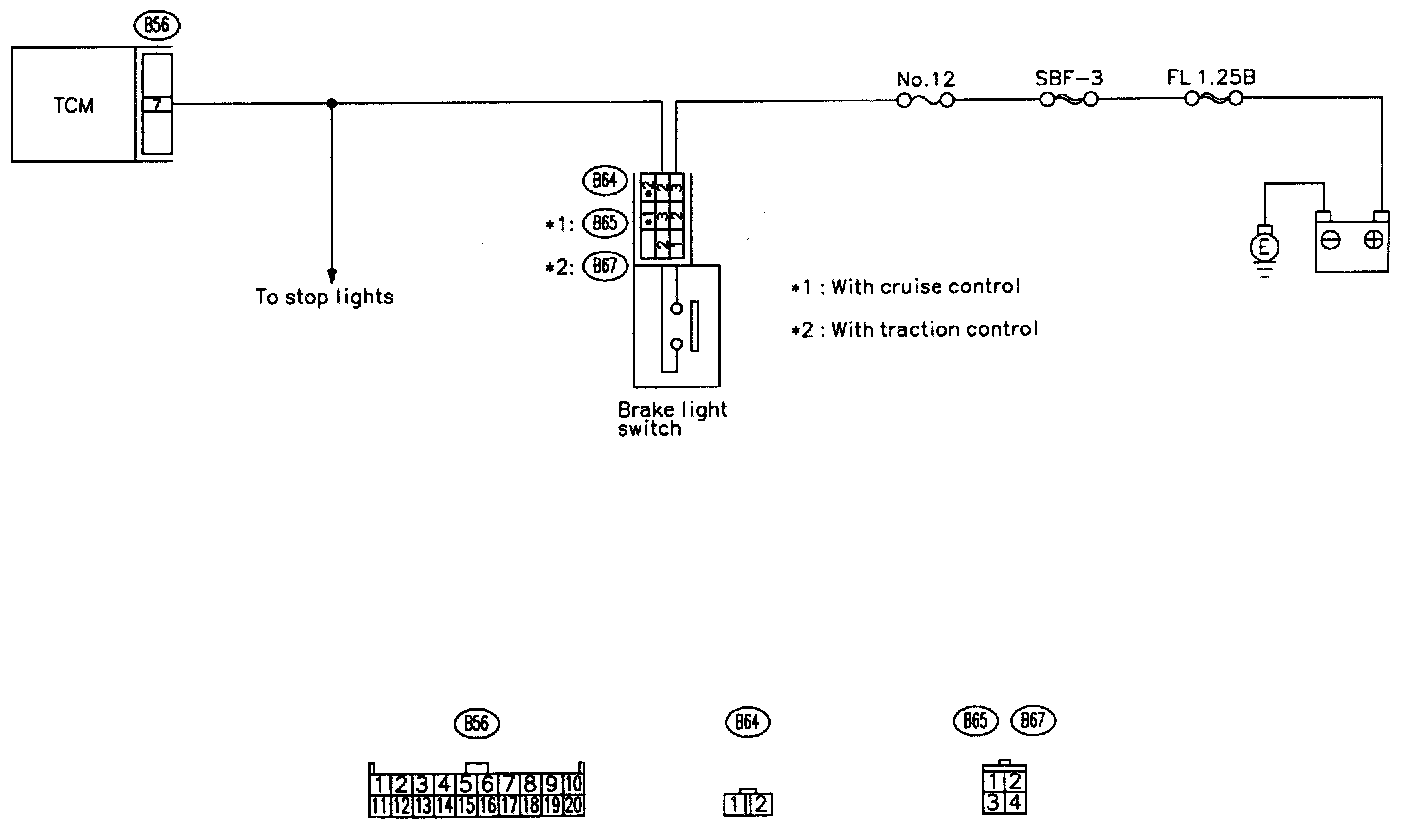

WIRING DIAGRAM (LHD)

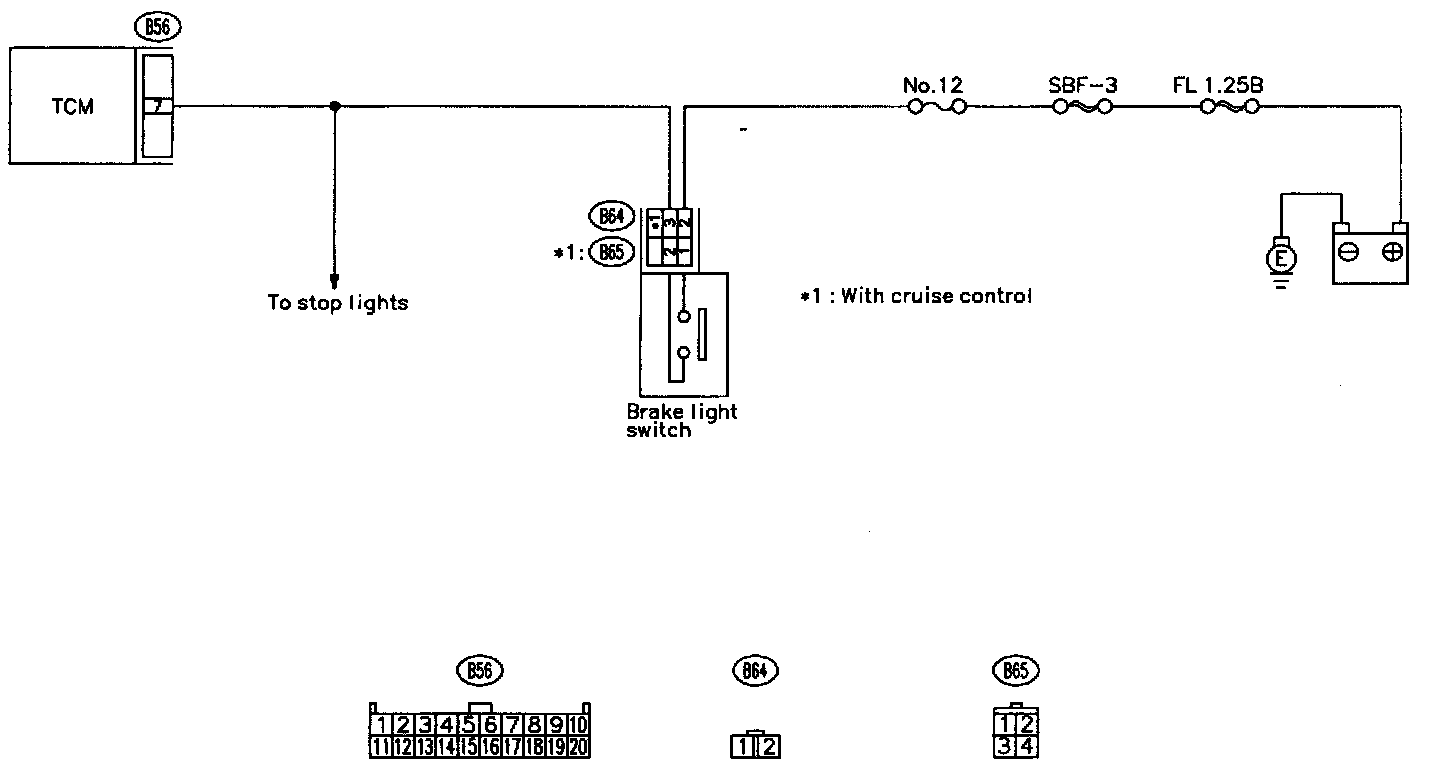

WIRING DIAGRAM (RHD)

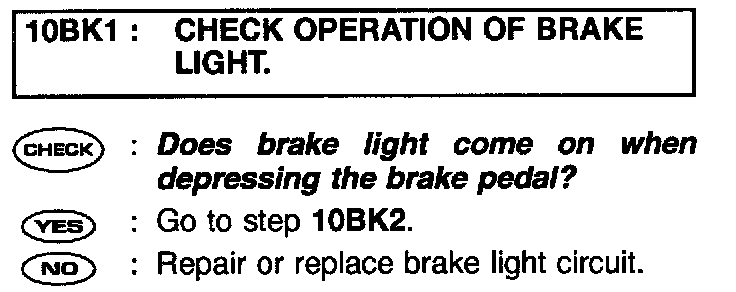

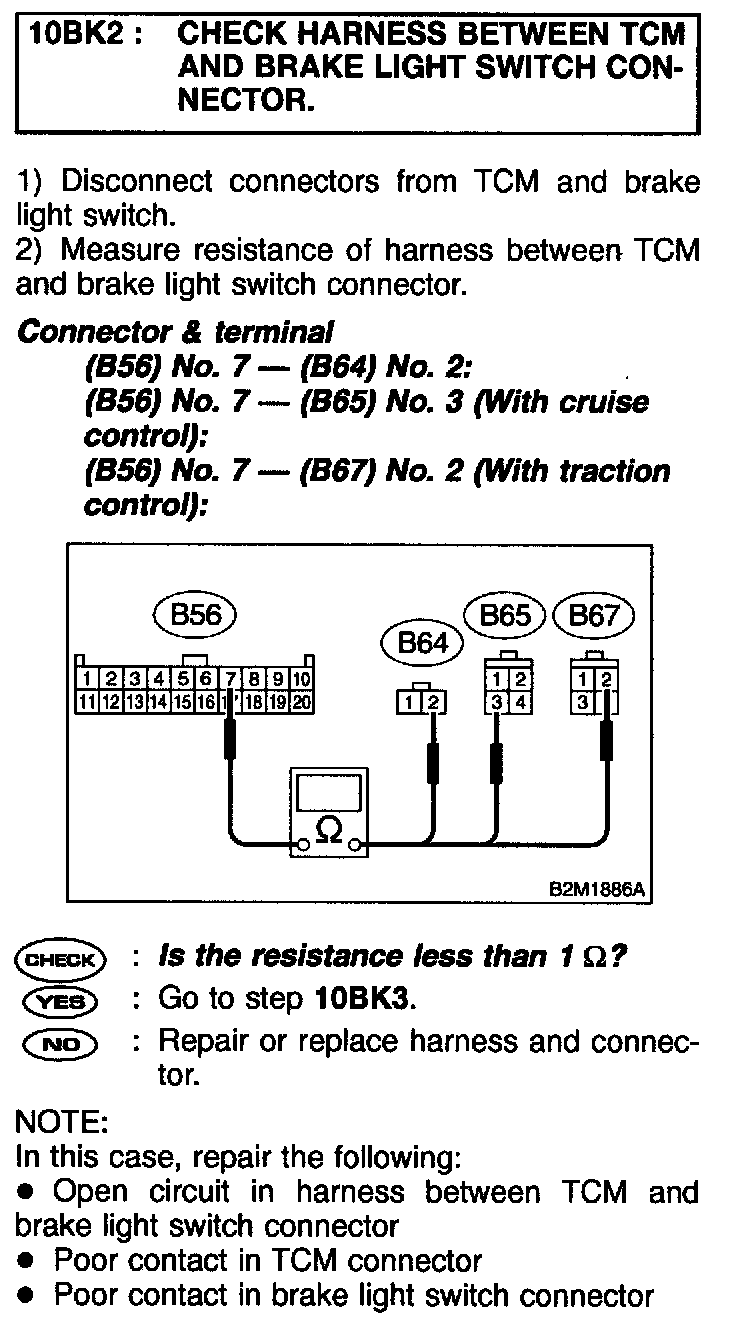

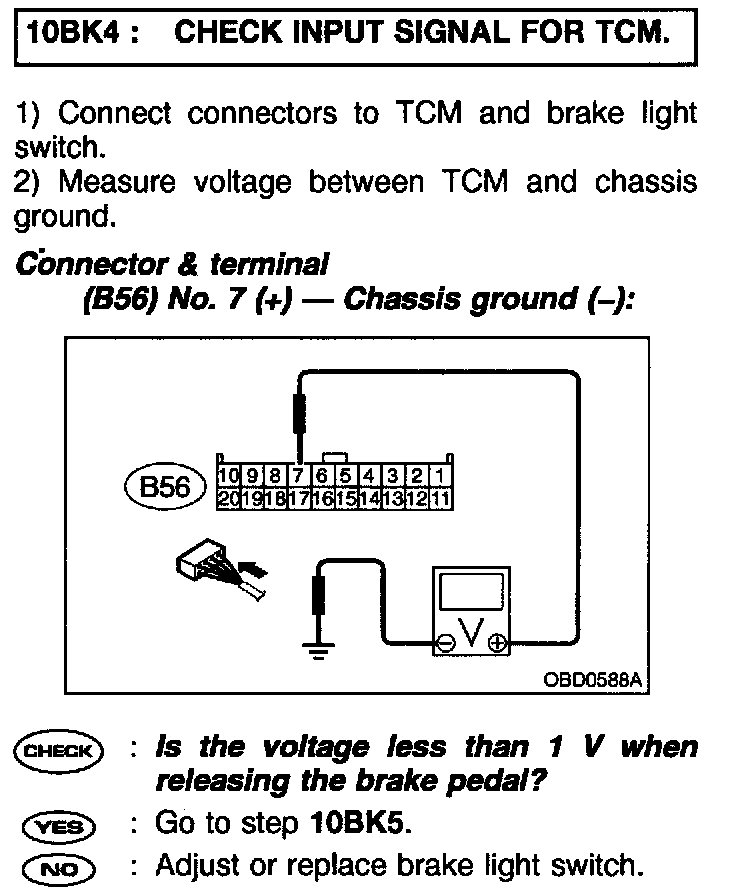

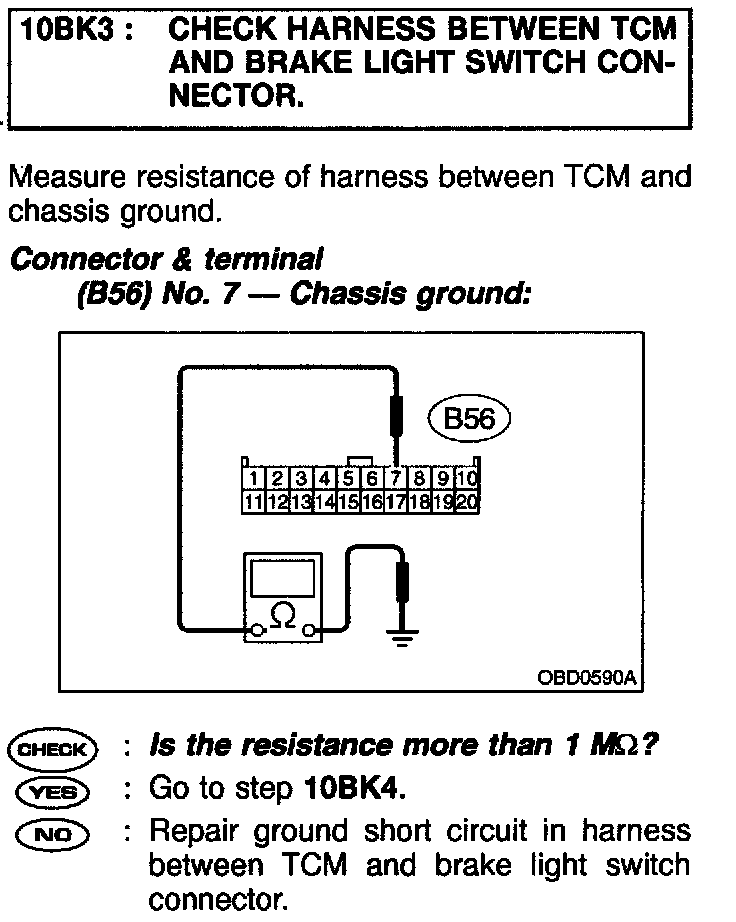

PROCEDURES
