P0480

DTC P0480: COOLING FAN RELAY 1 CIRCUIT LOW INPUT

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

TROUBLE SYMPTOM:
- Radiator fan does not operate properly.
- Overheating

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODE.

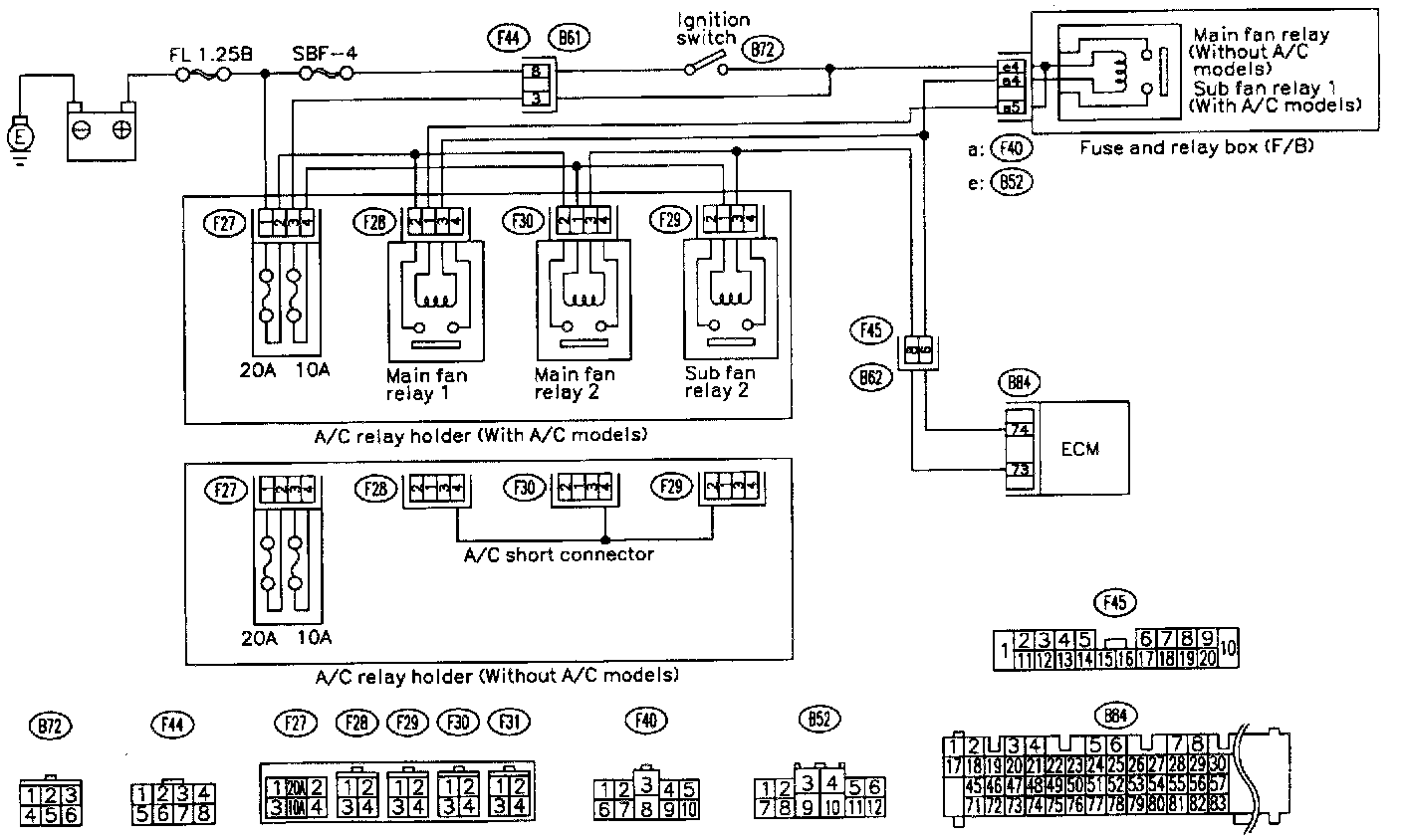

WIRING DIAGRAM (LHD)

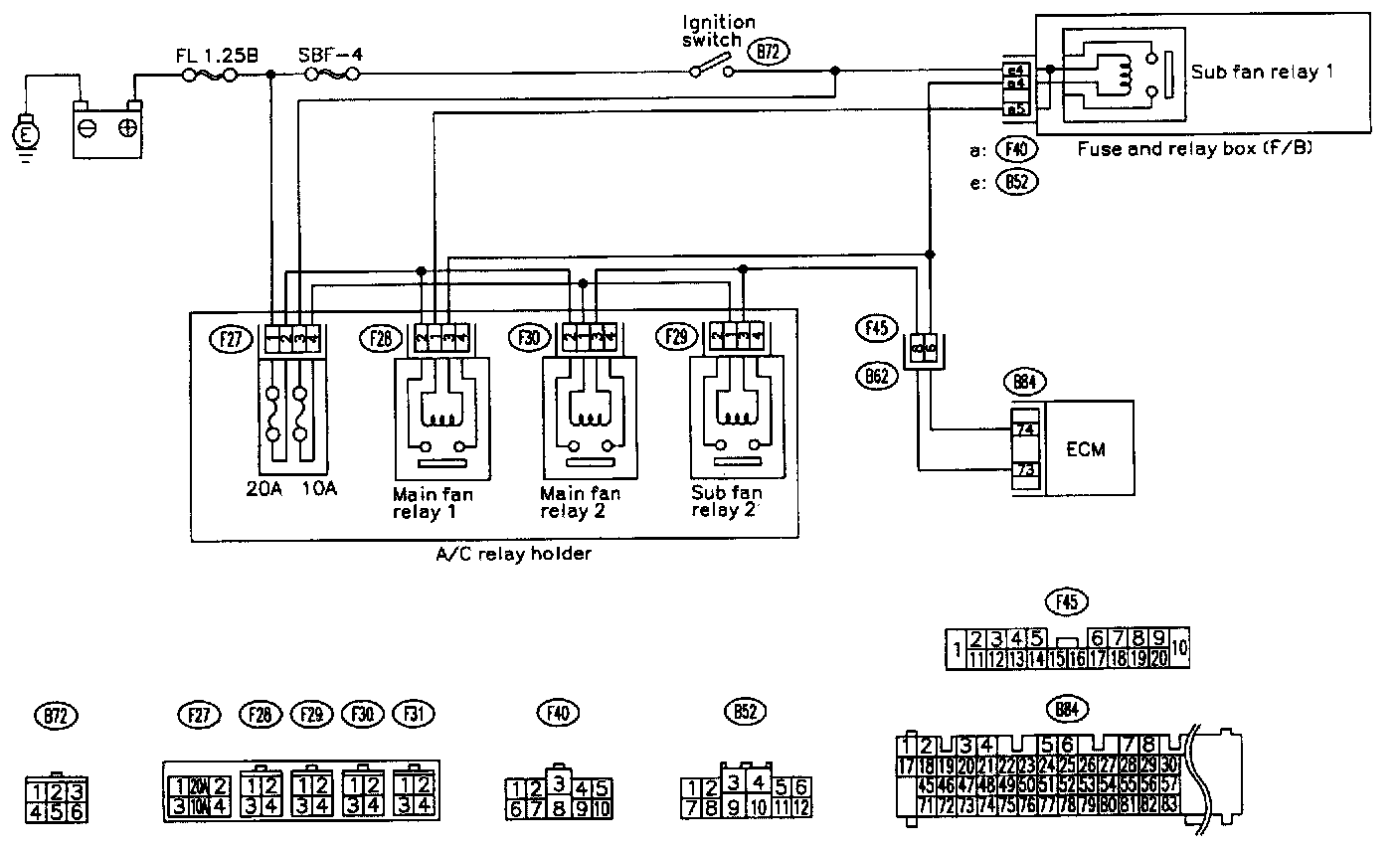

WIRING DIAGRAM (RHD)















































PROCEDURES
