P0440

DTC P0440: EVAPORATIVE EMISSION CONTROL SYSTEM MALFUNCTION

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

TROUBLE SYMPTOM:
- Gasoline smell

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

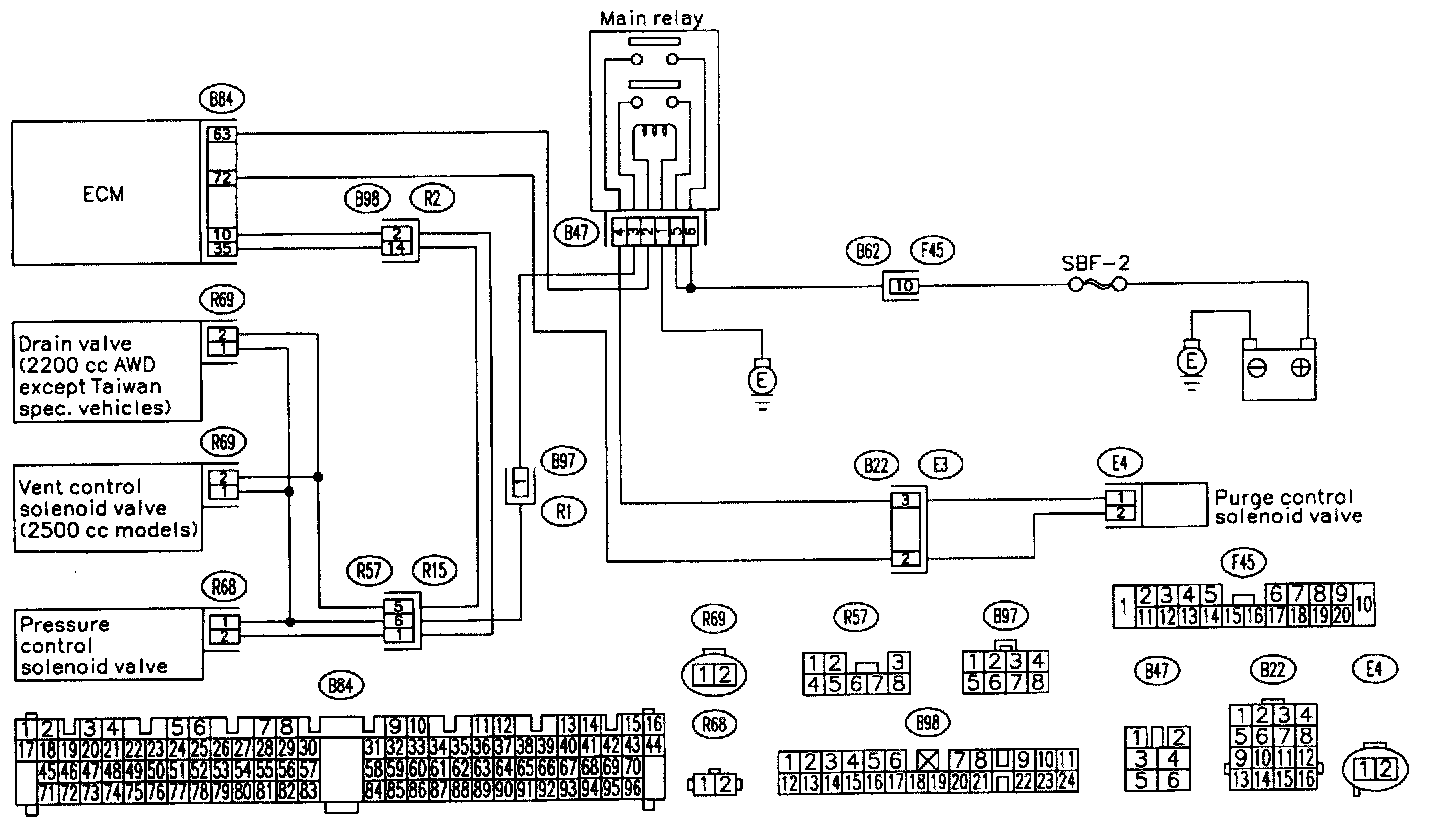

WIRING DIAGRAM (LHD)

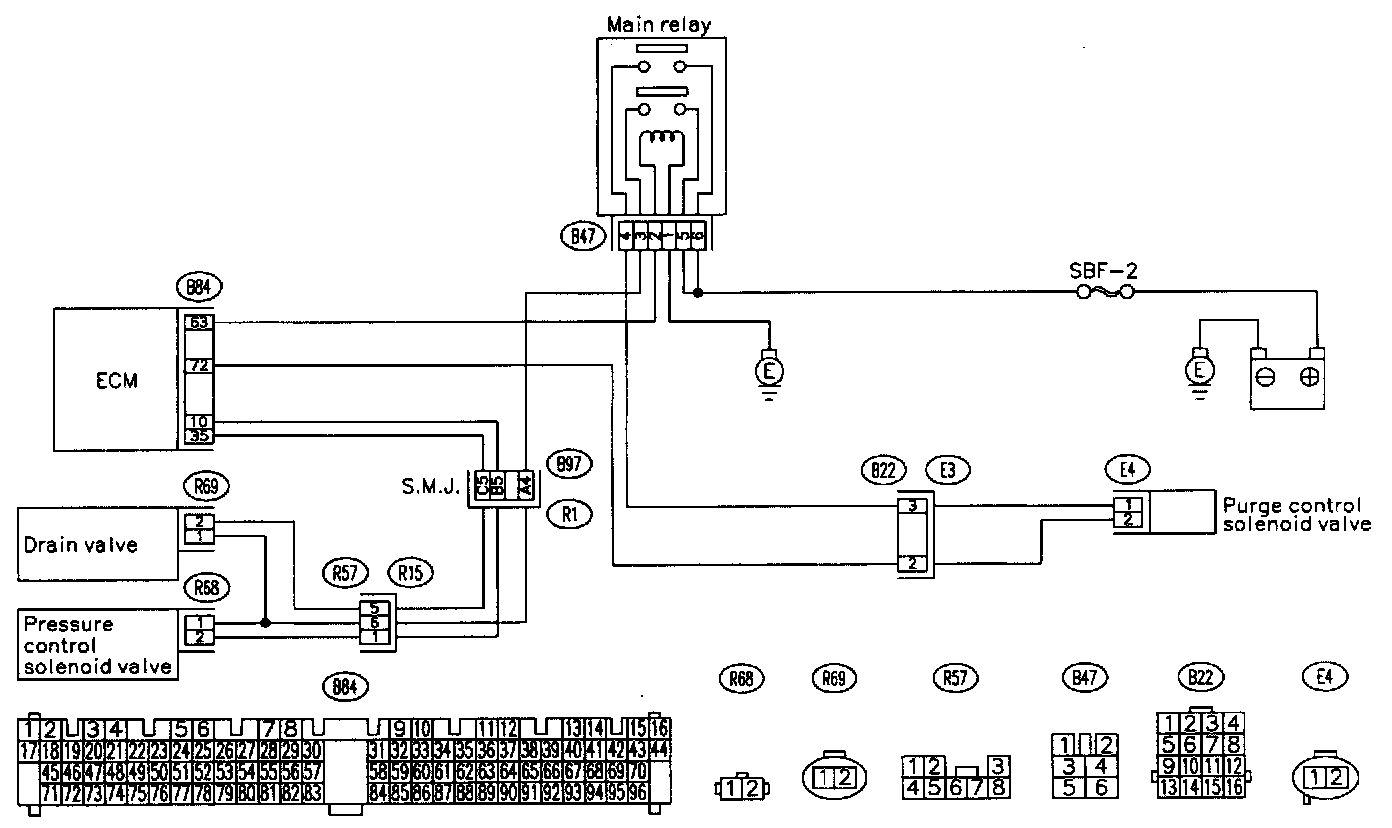

WIRING DIAGRAM (RHD)

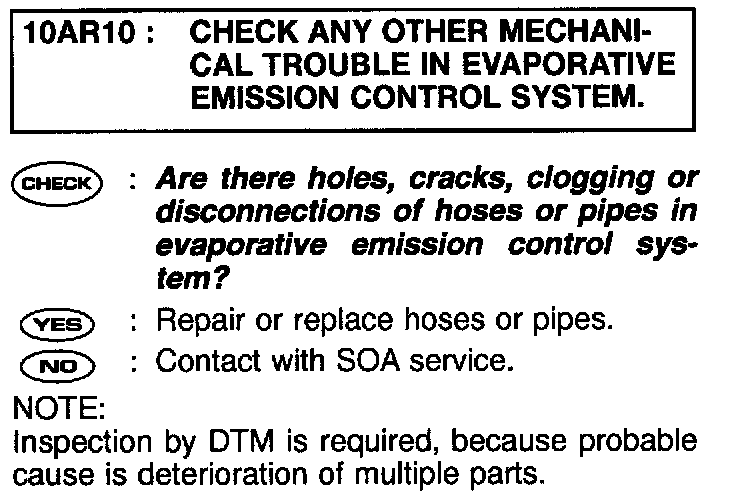

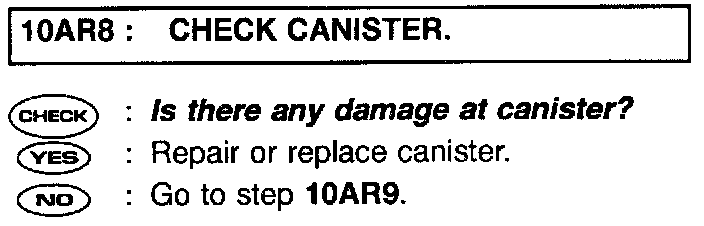

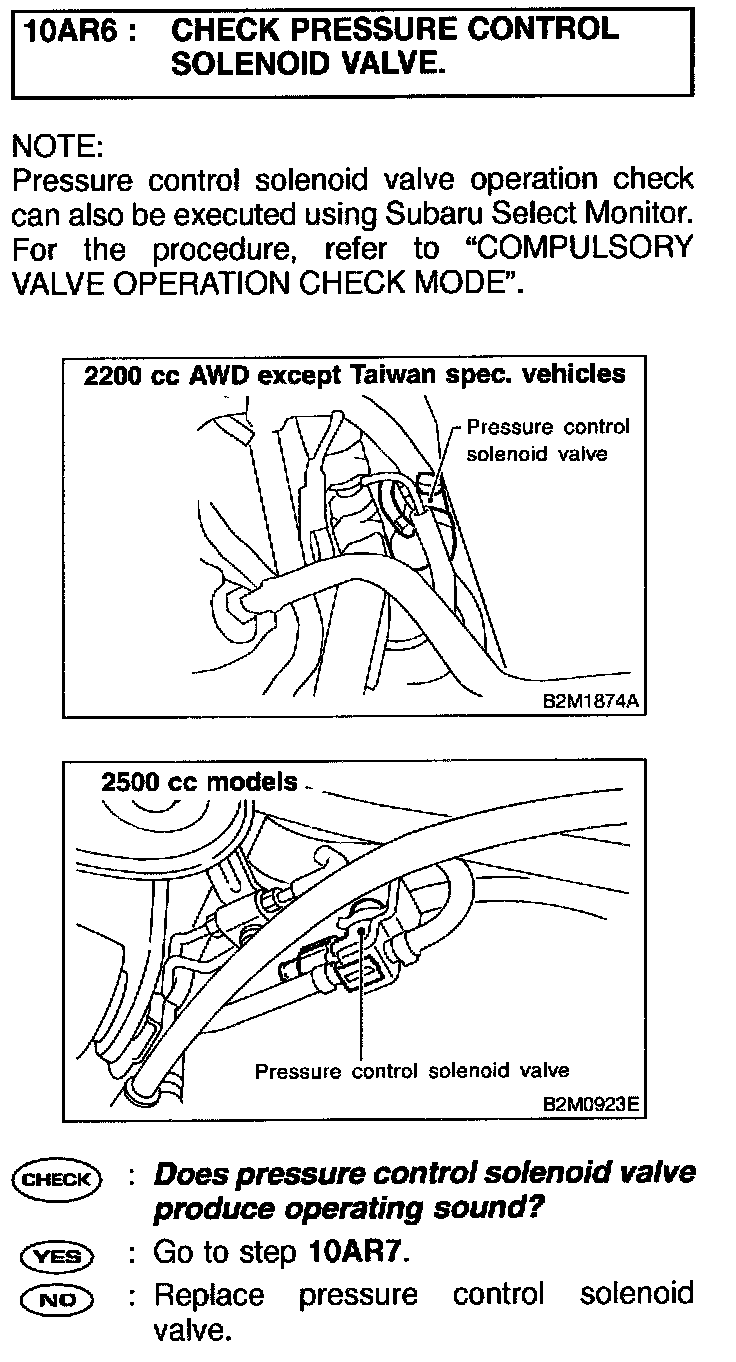

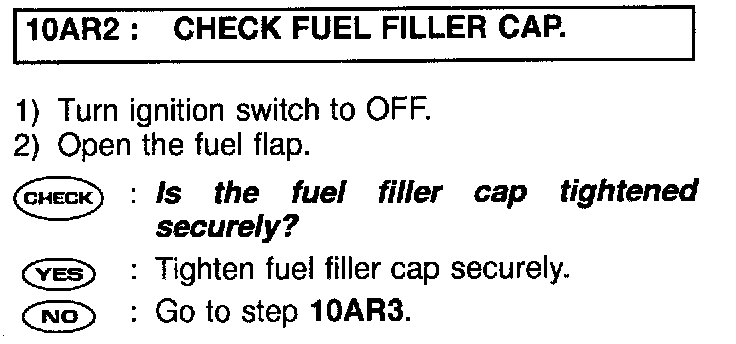

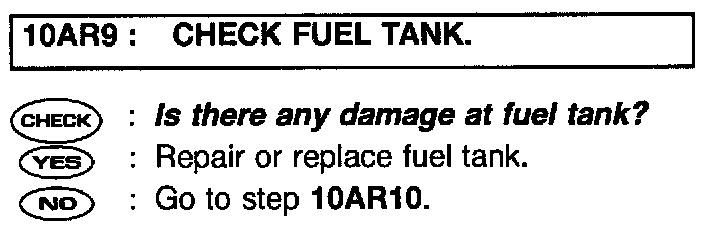

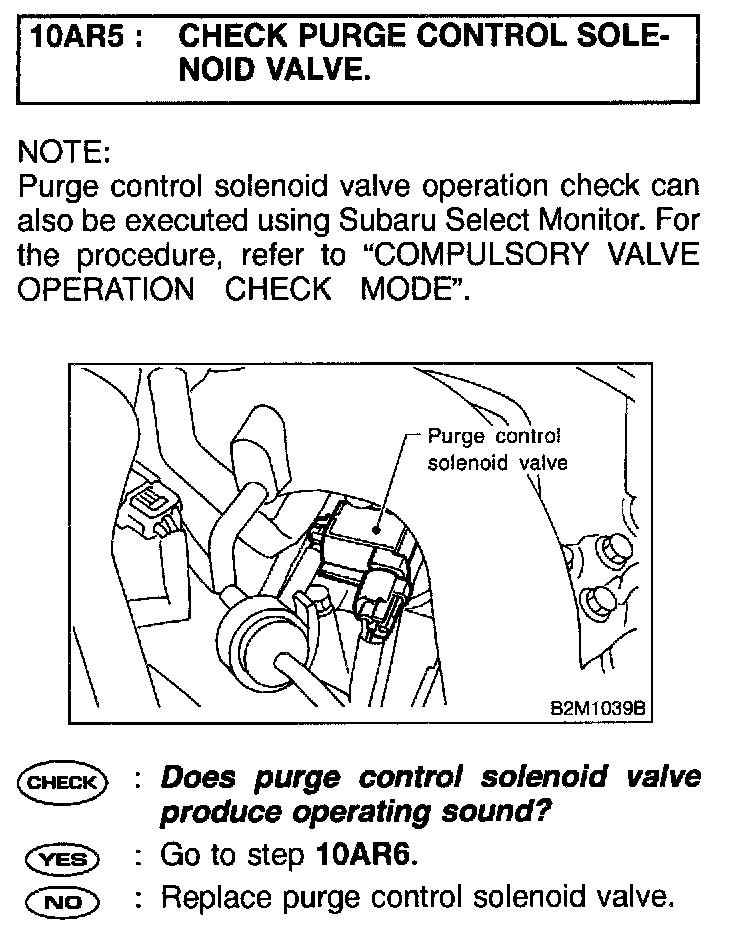

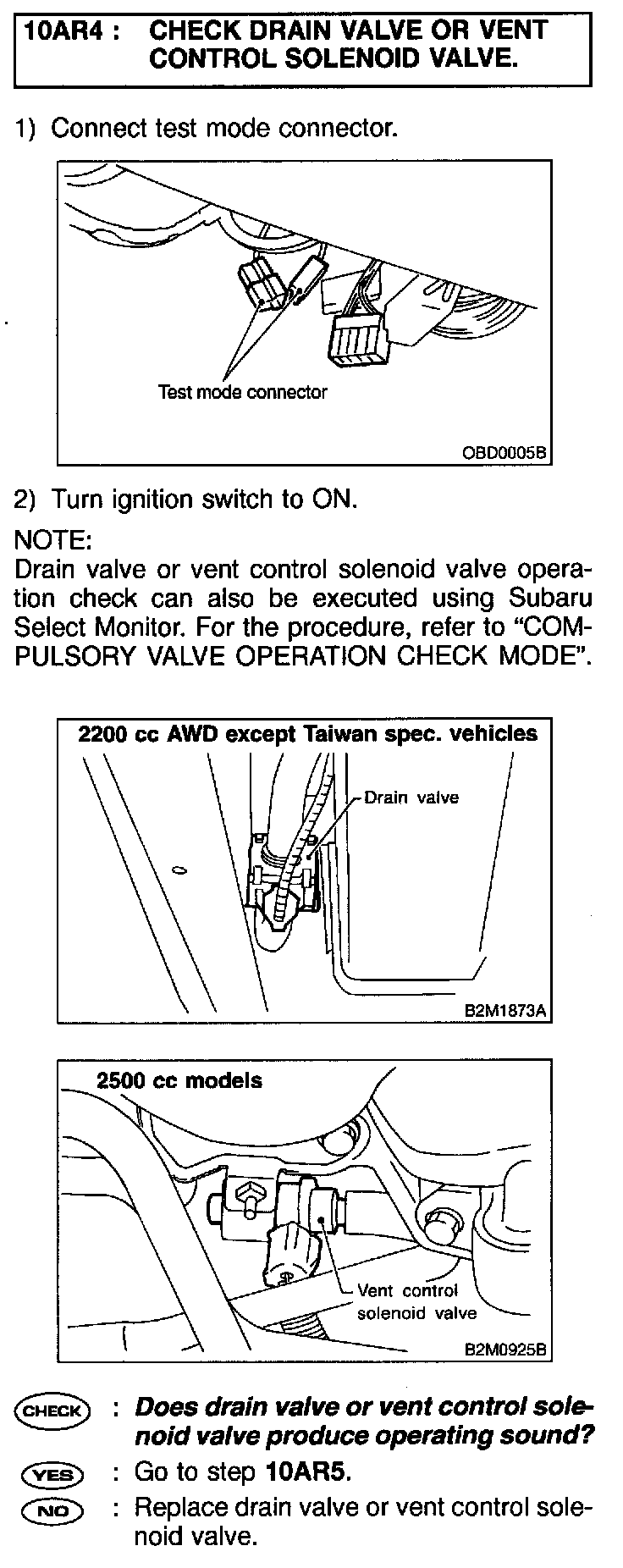

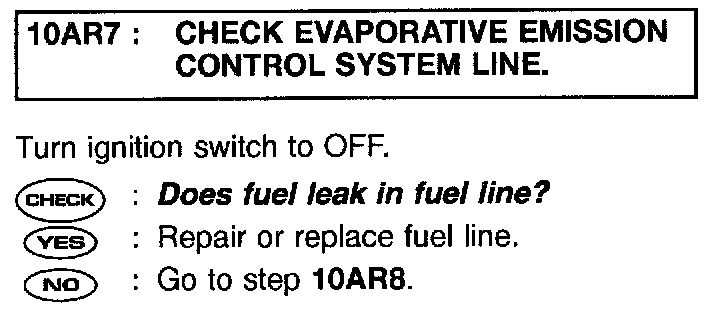

PROCEDURES
