P0341

DTC P0341: CAMSHAFT POSITION SENSOR CIRCUIT RANGE/PERFORMANCE PROBLEM

DTC DETECTING CONDITION:
- Immediately at fault recognition

TROUBLE SYMPTOM:
- Engine stalls.
- Failure of engine to start

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

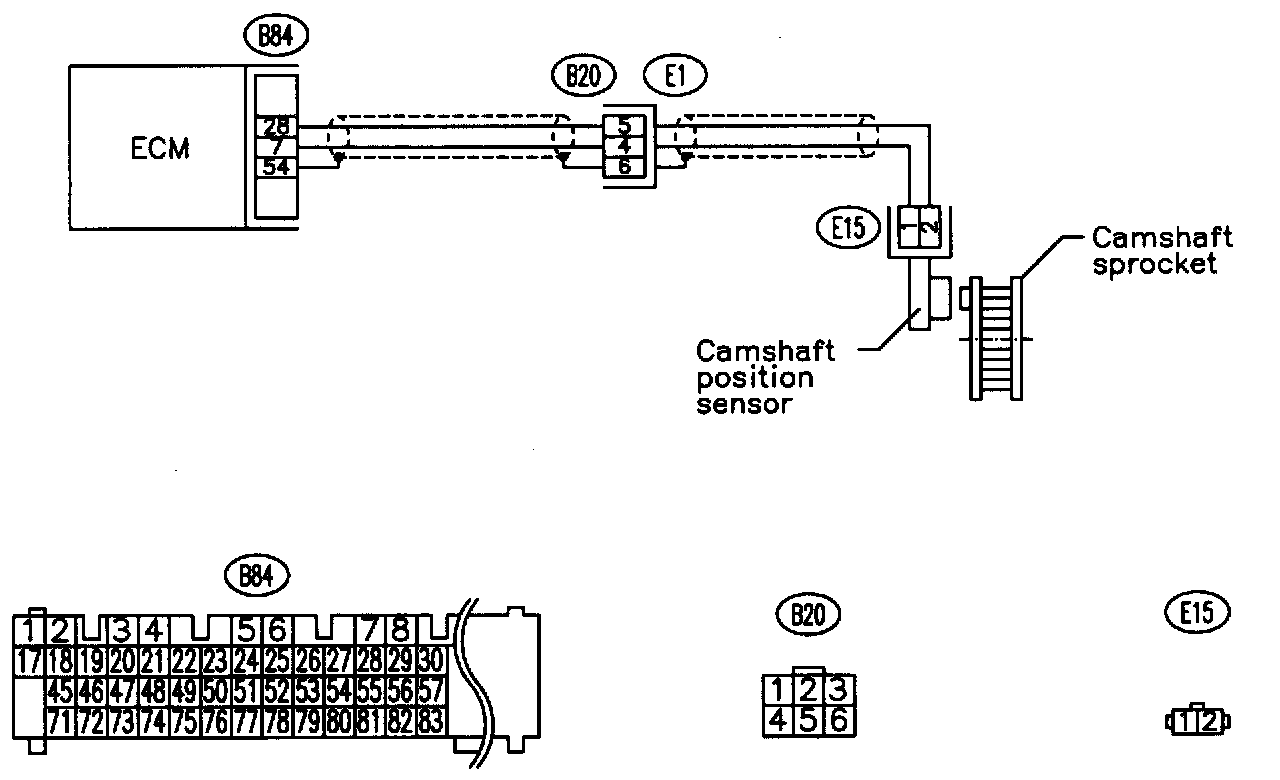

WIRING DIAGRAM (LHD)

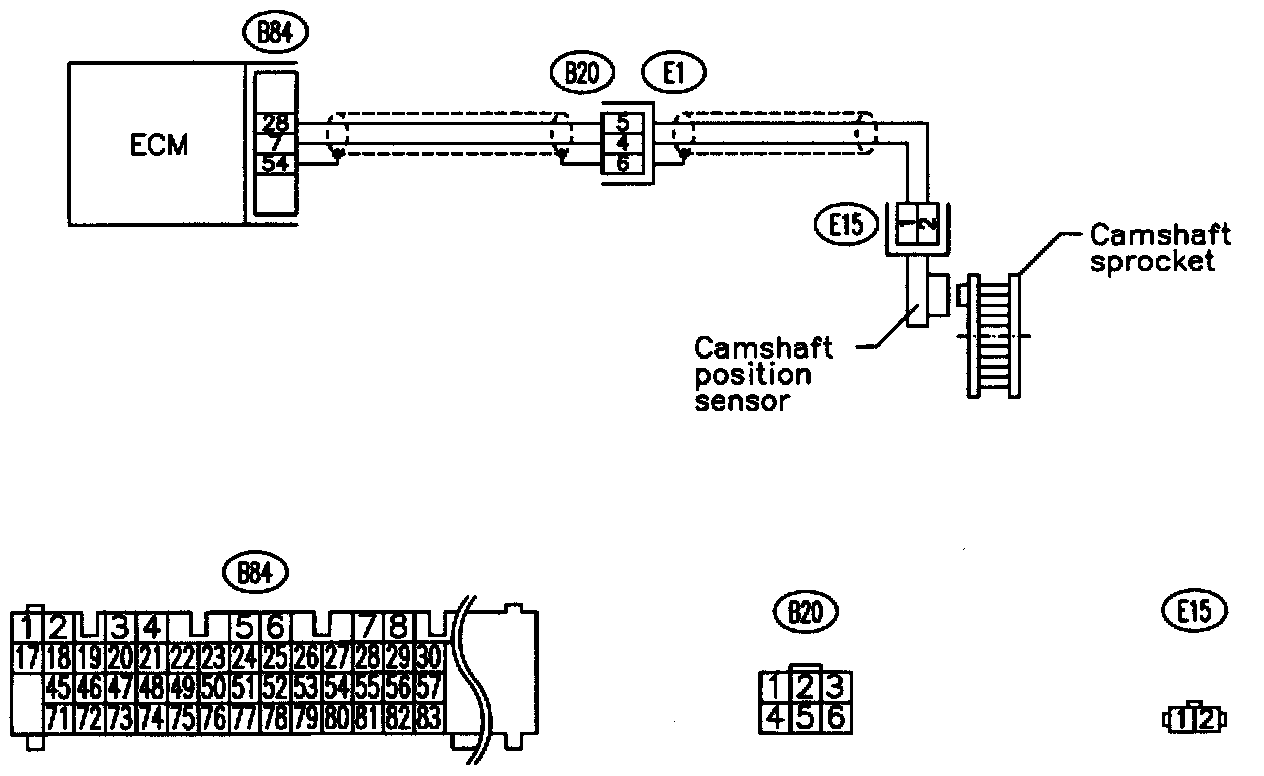

WIRING DIAGRAM (RHD)





PROCEDURES
