P0122

DTC P0122: THROTTLE POSITION SENSOR CIRCUIT LOW INPUT

DTC DETECTING CONDITION:
- Immediately at fault recognition

TROUBLE SYMPTOM:
- Erroneous idling
- Engine stalls.
- Poor driving performance

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

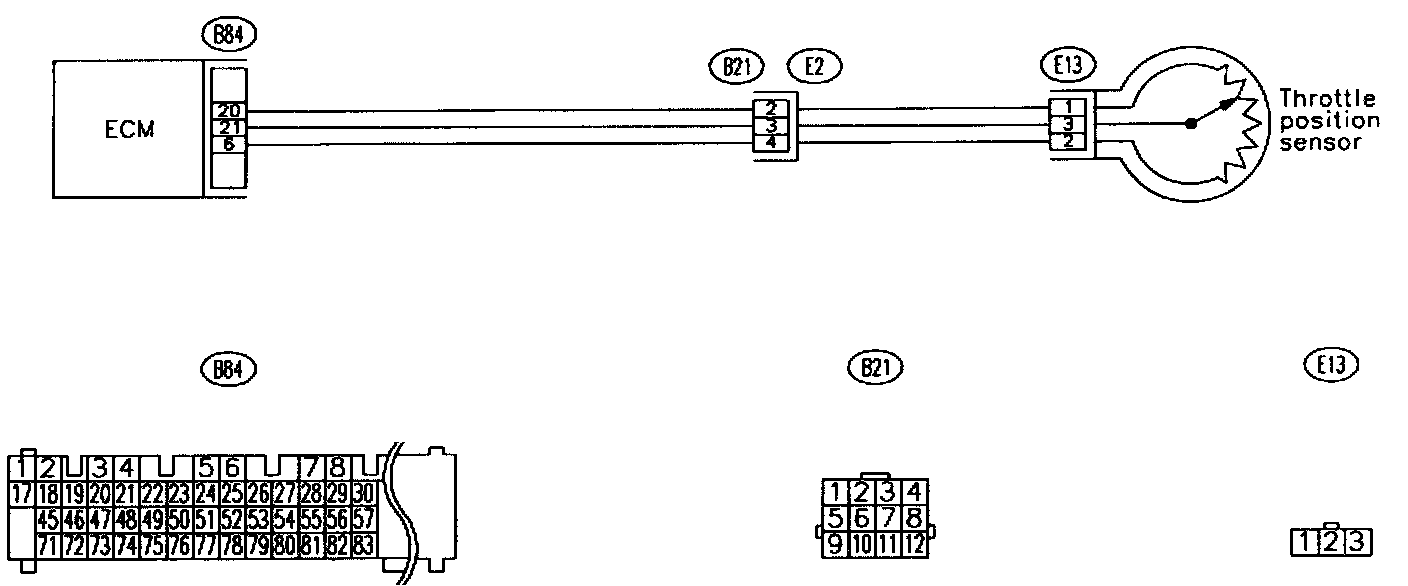

WIRING DIAGRAM (LHD)

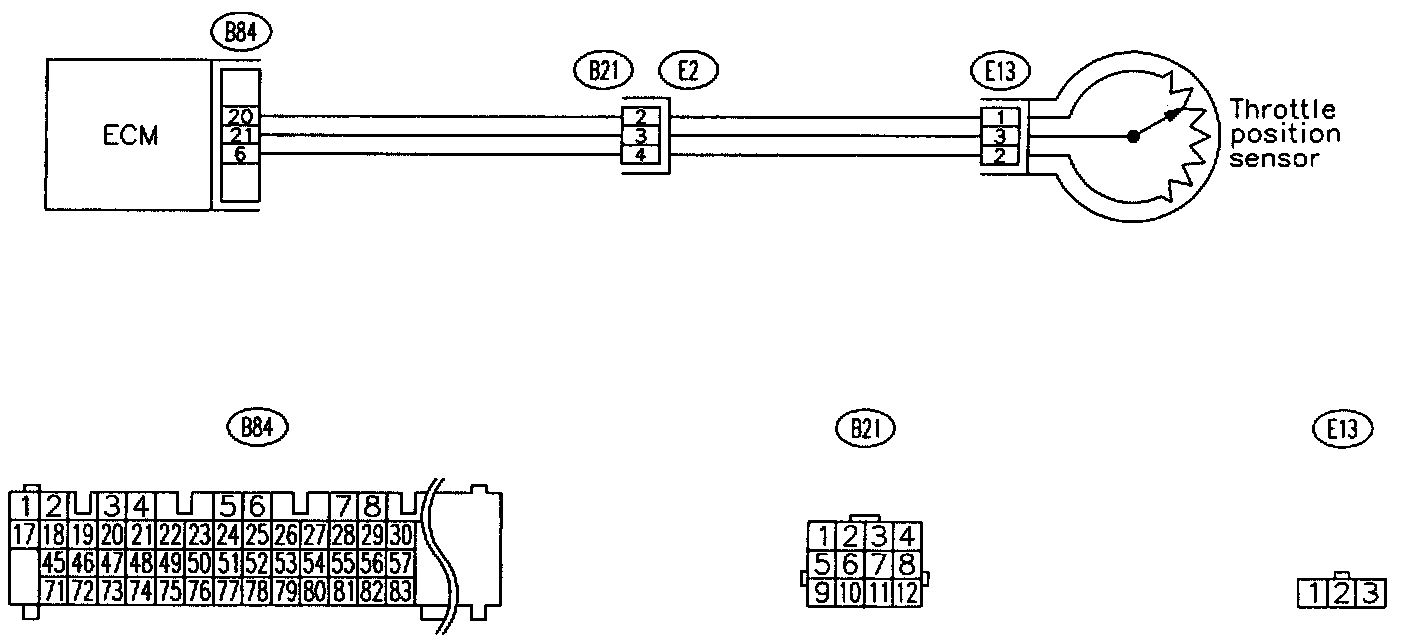

WIRING DIAGRAM (RHD)































PROCEDURES
