P0108
DTC P0108: PRESSURE SENSOR CIRCUIT HIGH INPUTDTC DETECTING CONDITION:
- Immediately at fault recognition
CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

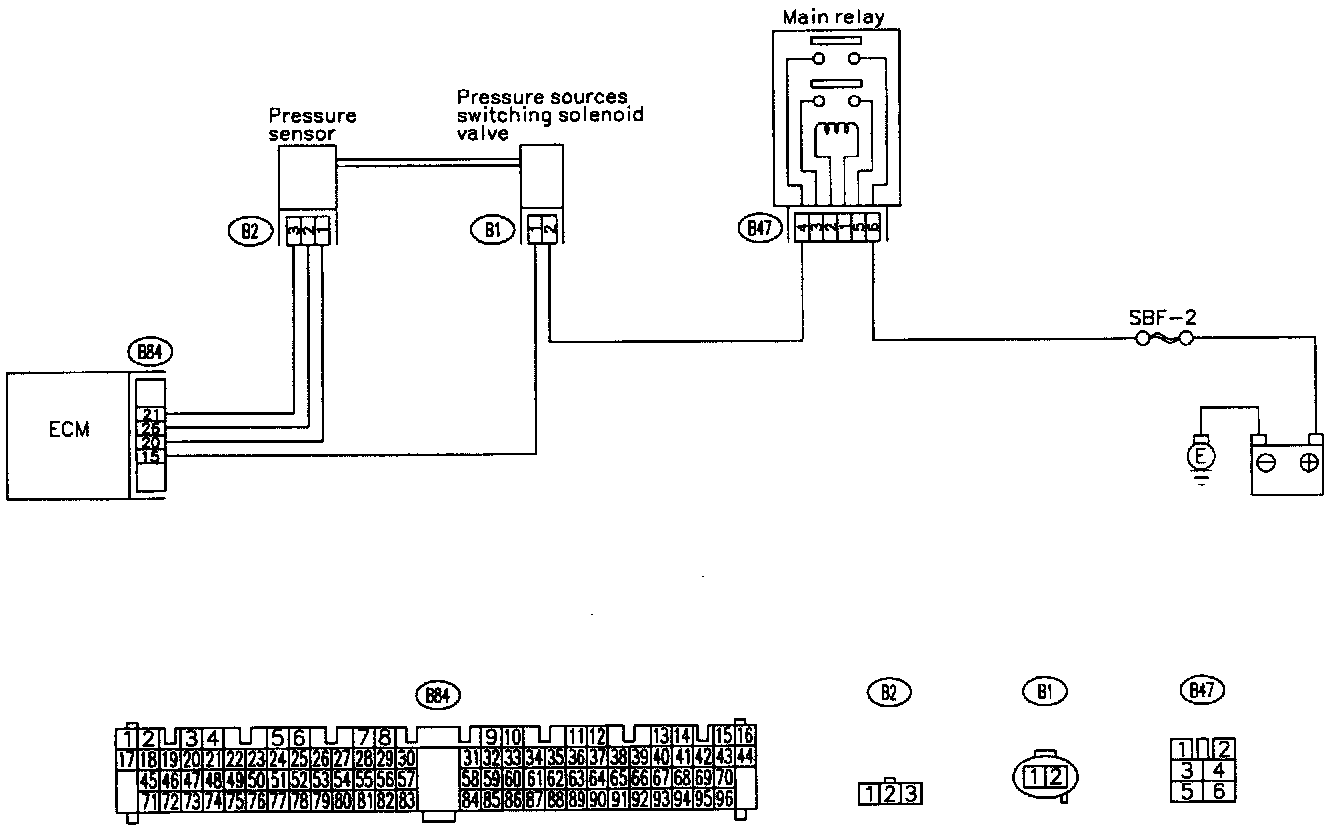

WIRING DIAGRAM
WIRING DIAGRAM
PROCEDURES
DTC DETECTING CONDITION:
- Immediately at fault recognition
CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

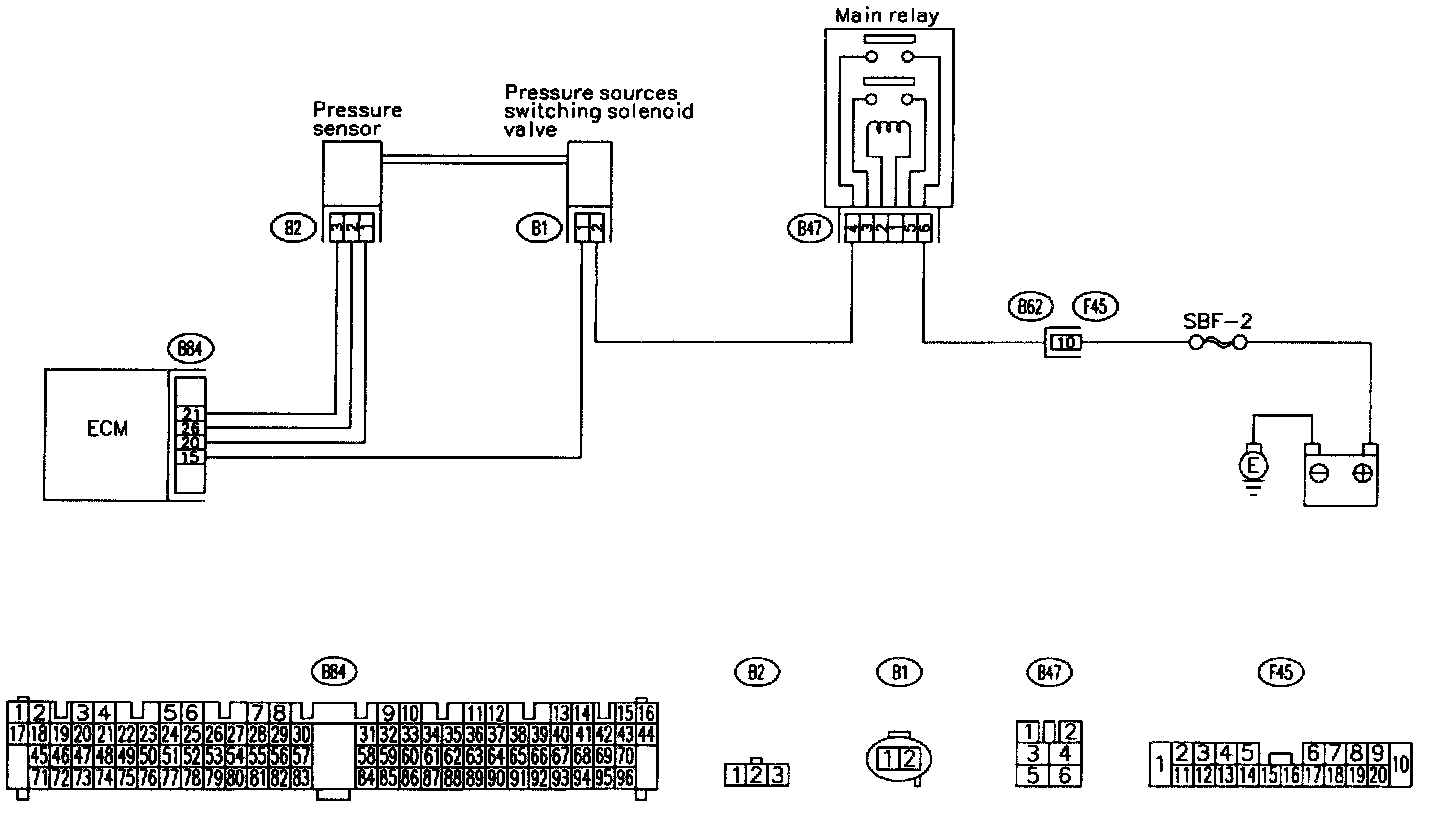

WIRING DIAGRAM
WIRING DIAGRAM
PROCEDURES
