P0107
DTC P0107: PRESSURE SENSOR CIRCUIT LOW INPUTDTC DETECTING CONDITION:
- Immediately at fault recognition
CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

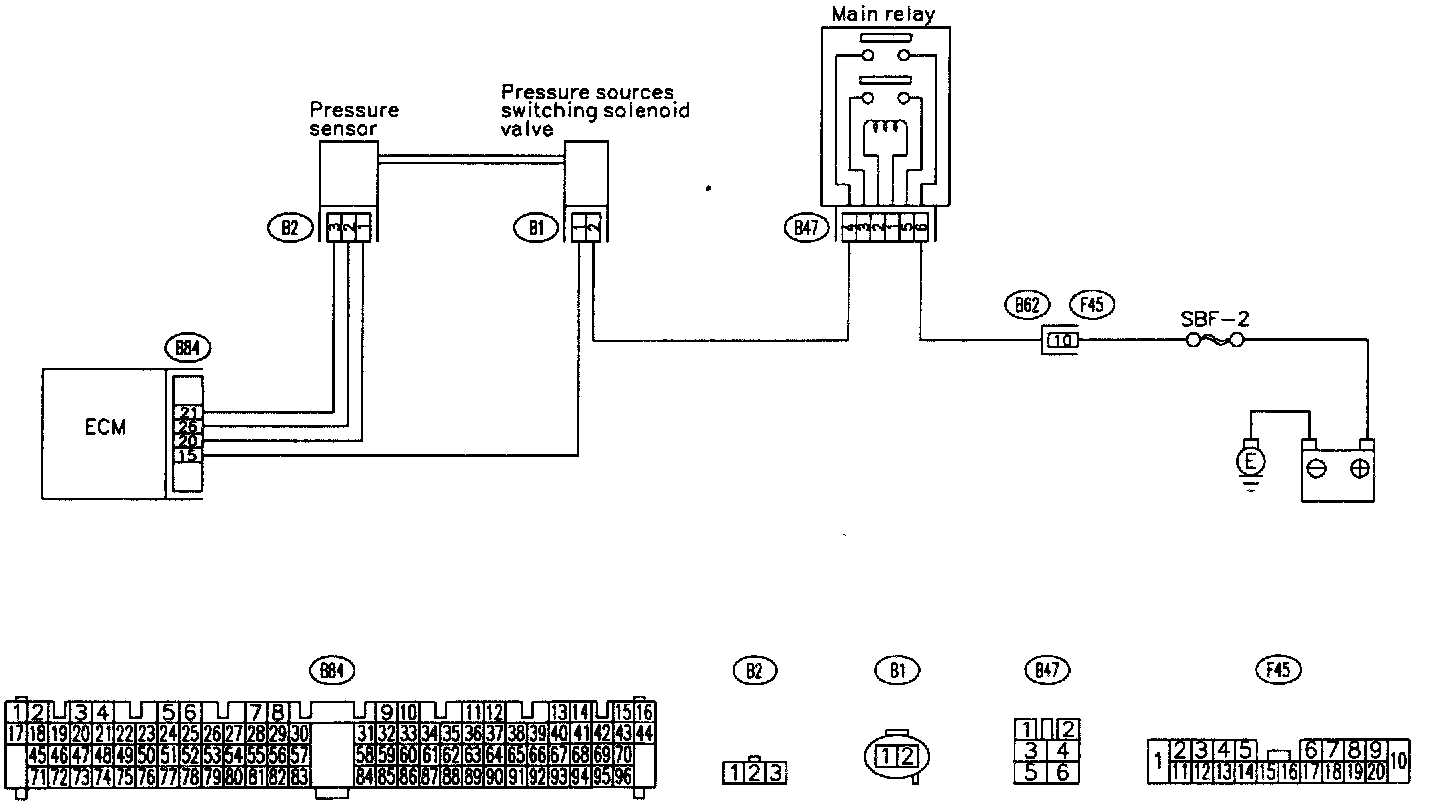

WIRING DIAGRAM (LHD)

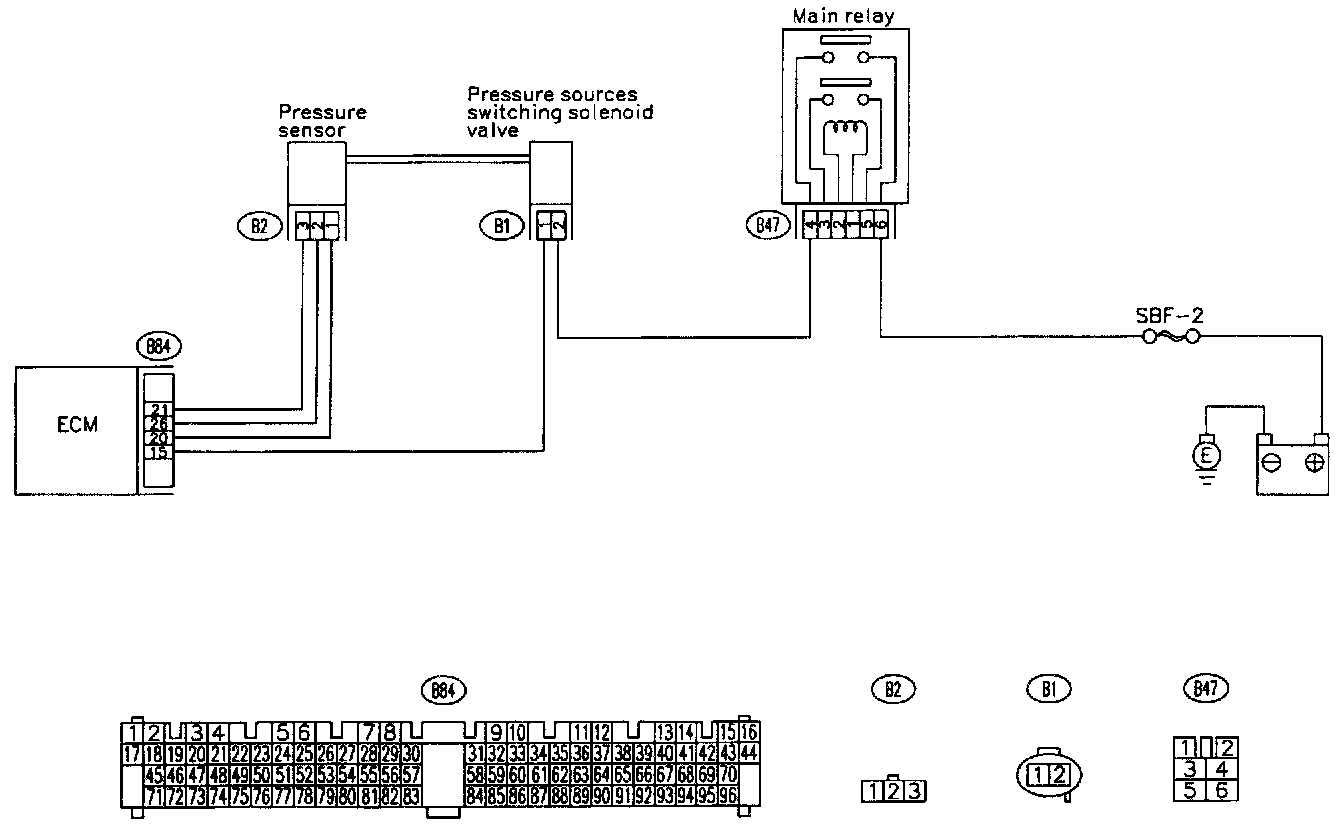

WIRING DIAGRAM (RHD)
PROCEDURES
