Open or Short Circuit In G Sensor Circuit

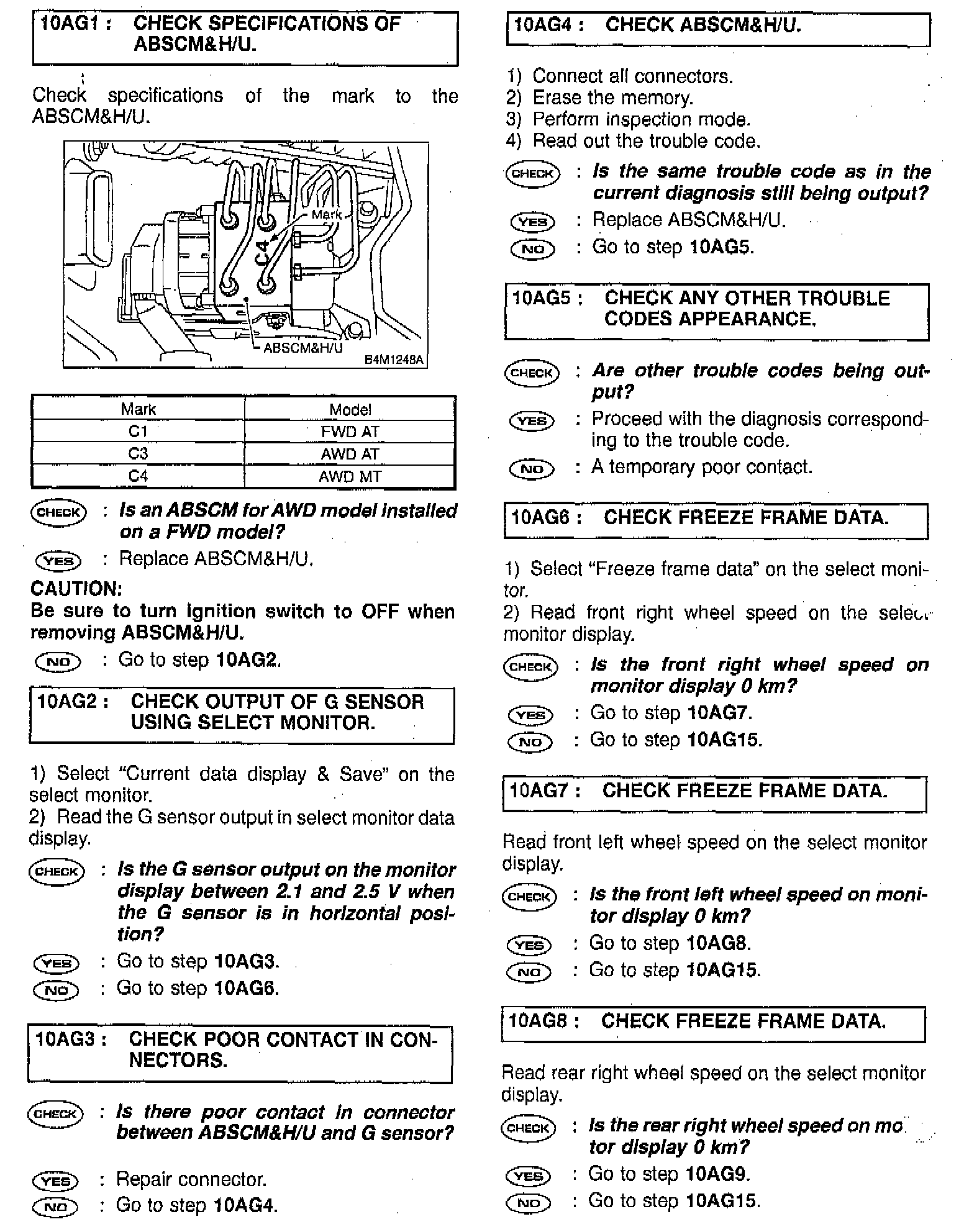

Part 1 Of 5:

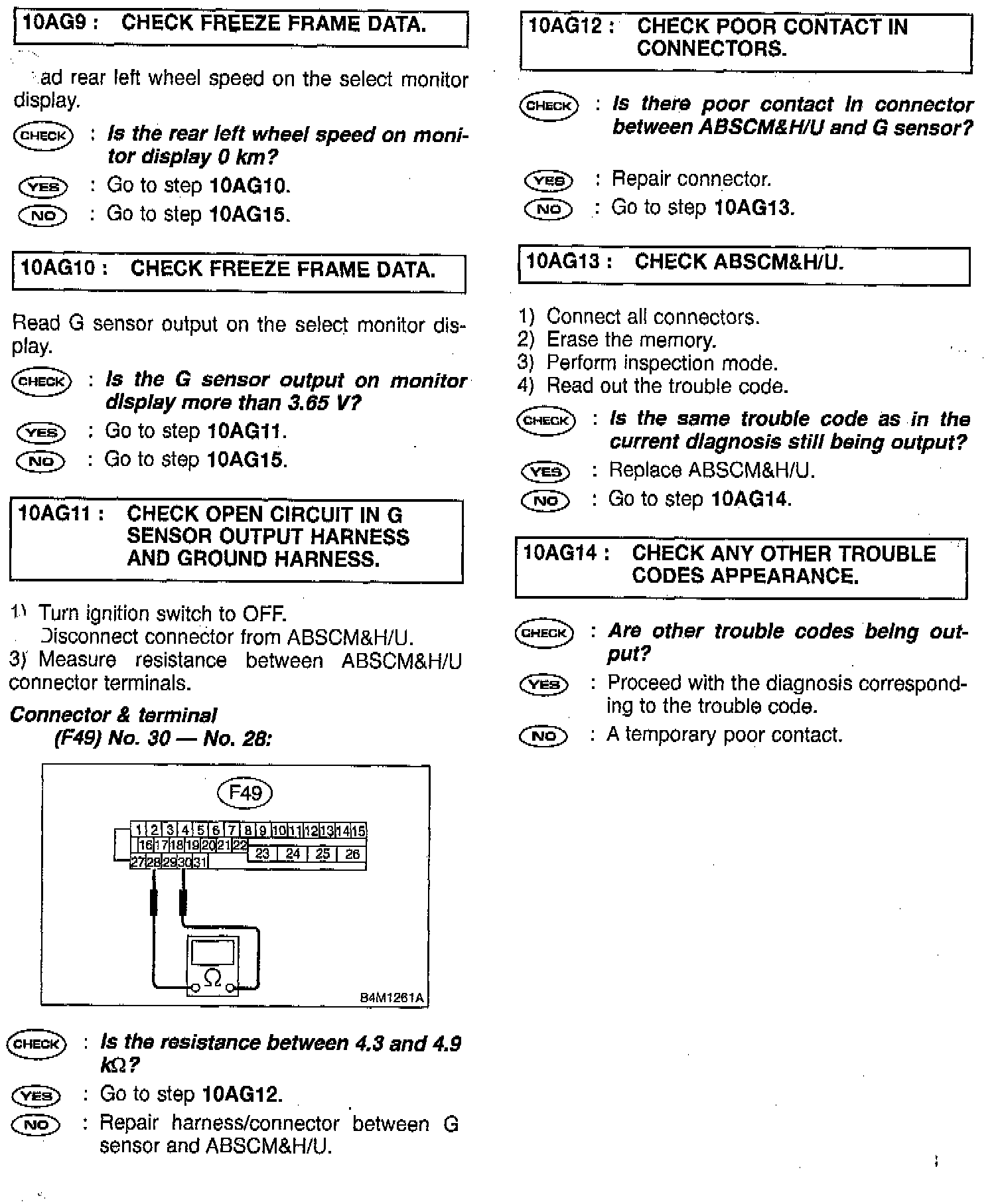

Part 2 Of 5:




Part 3 Of 5:

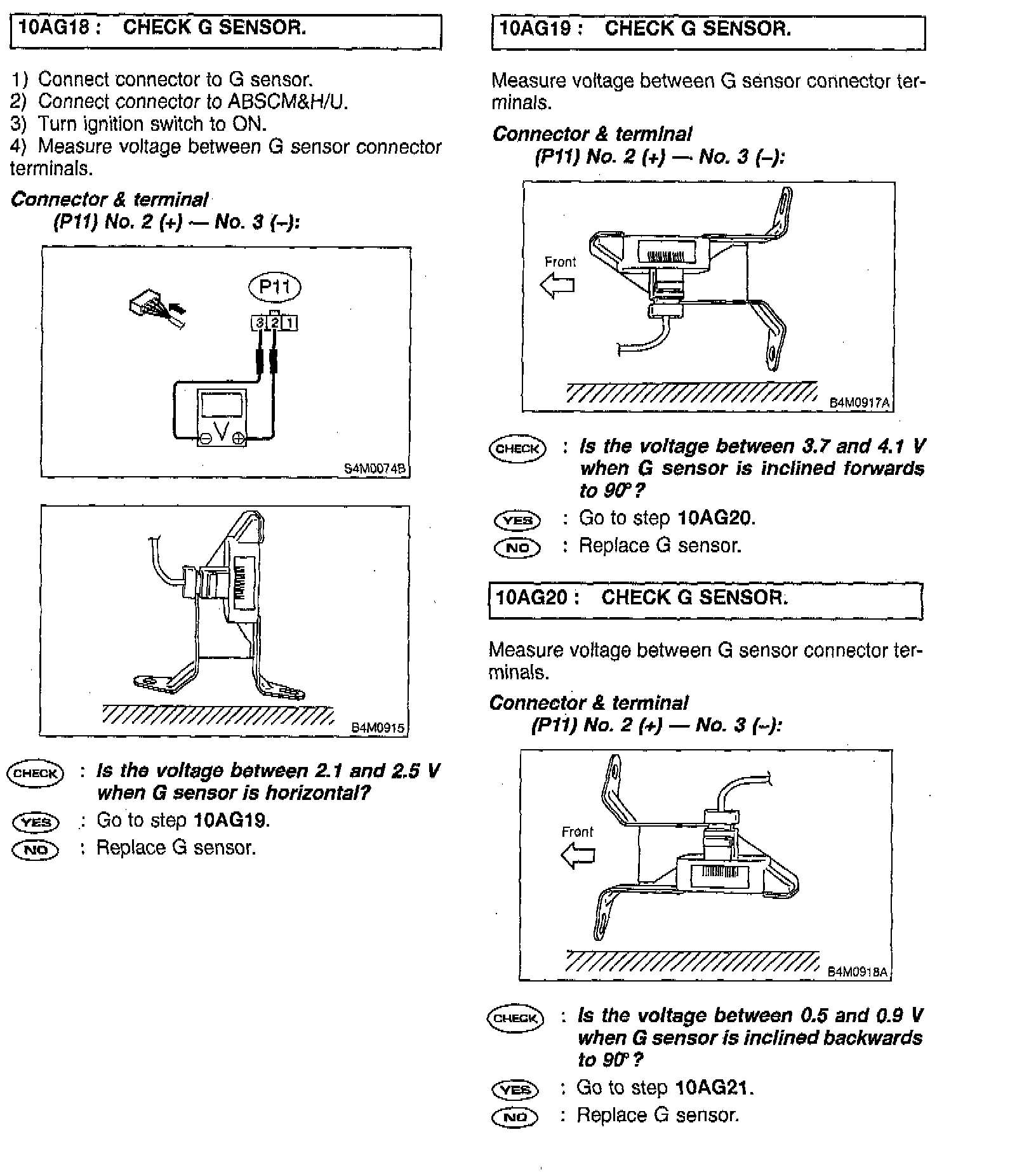

Part 4 Of 5:

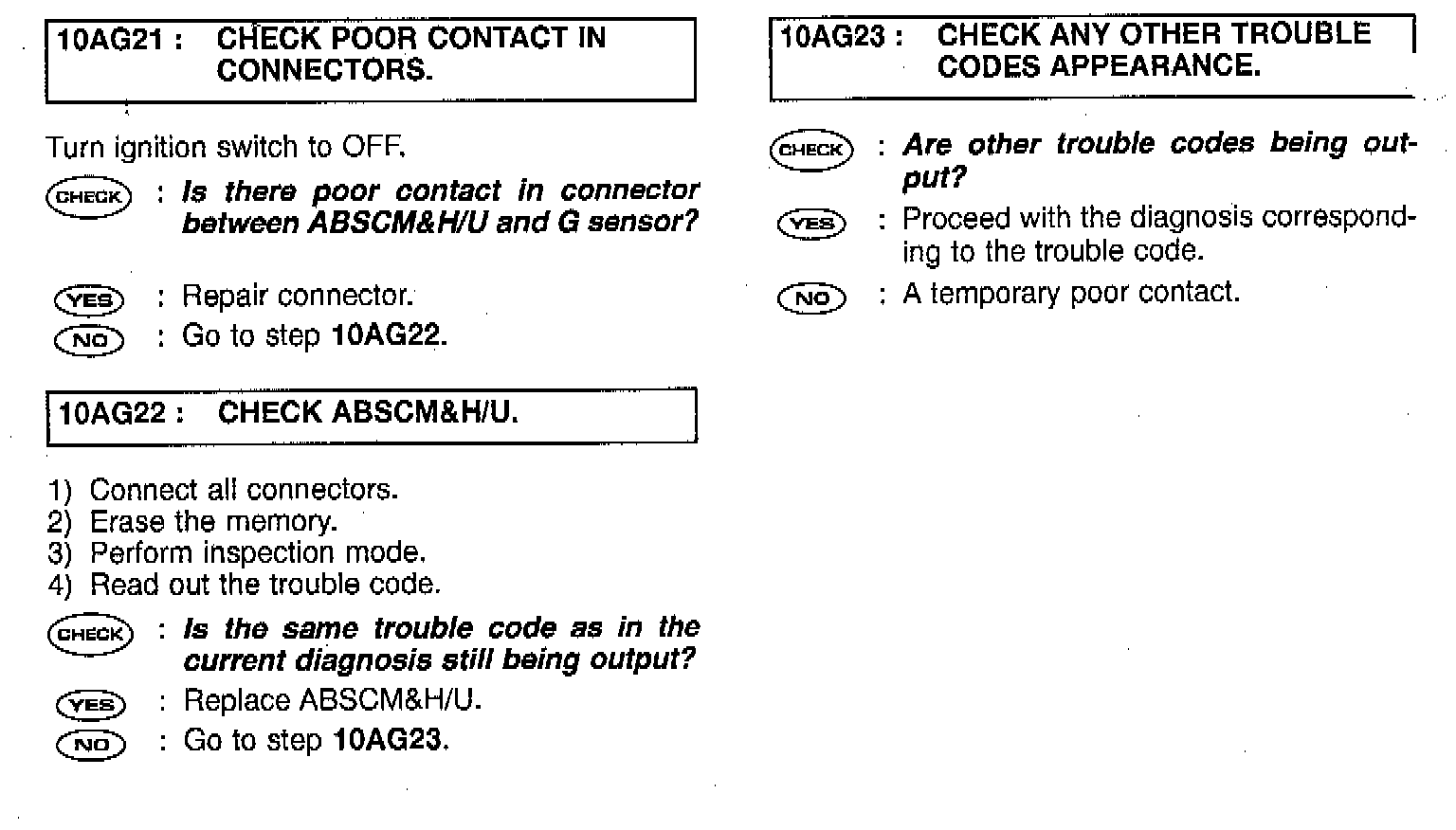

Part 5 Of 5:





DIAGNOSIS:
Faulty G sensor output voltage

TROUBLE SYMPTOM:
ABS does not operate.

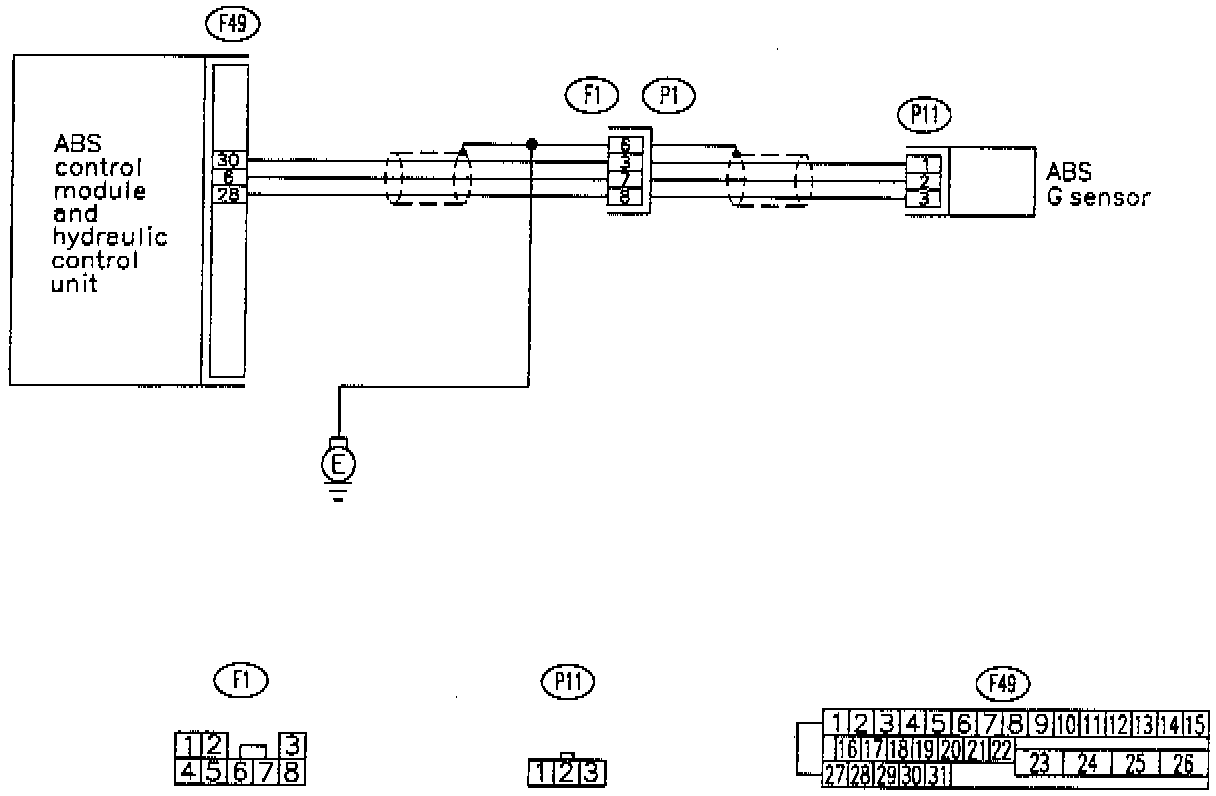

WIRING DIAGRAM:
