Home >> Subaru >> 1998 >> Legacy Outback AWD F4-2.5L DOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> DTC 56 >> ABS Trouble Code Charts For Warning Light Codes

ABS Trouble Code Charts For Warning Light Codes

Part 4 Of 4:

DIAGNOSIS:

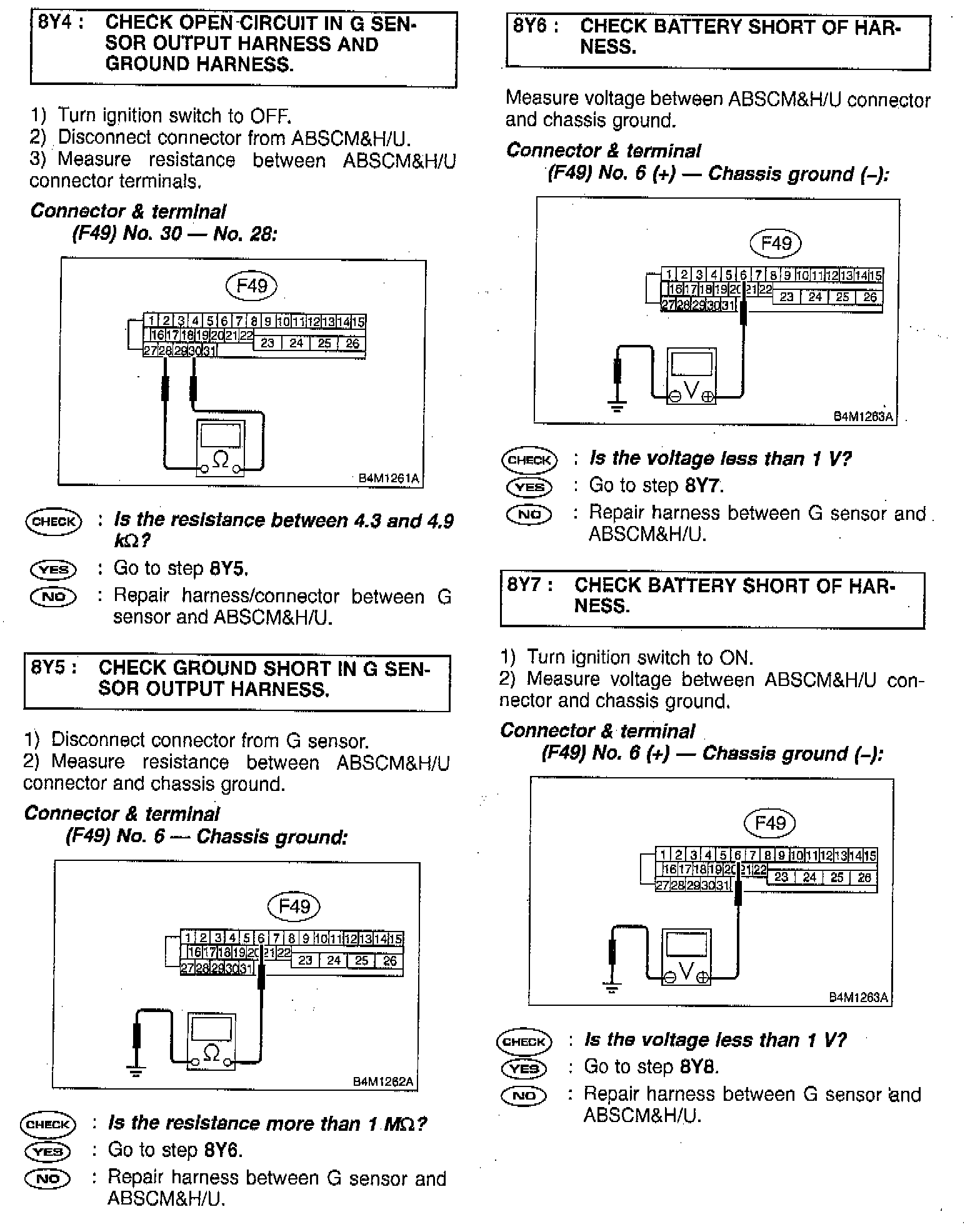

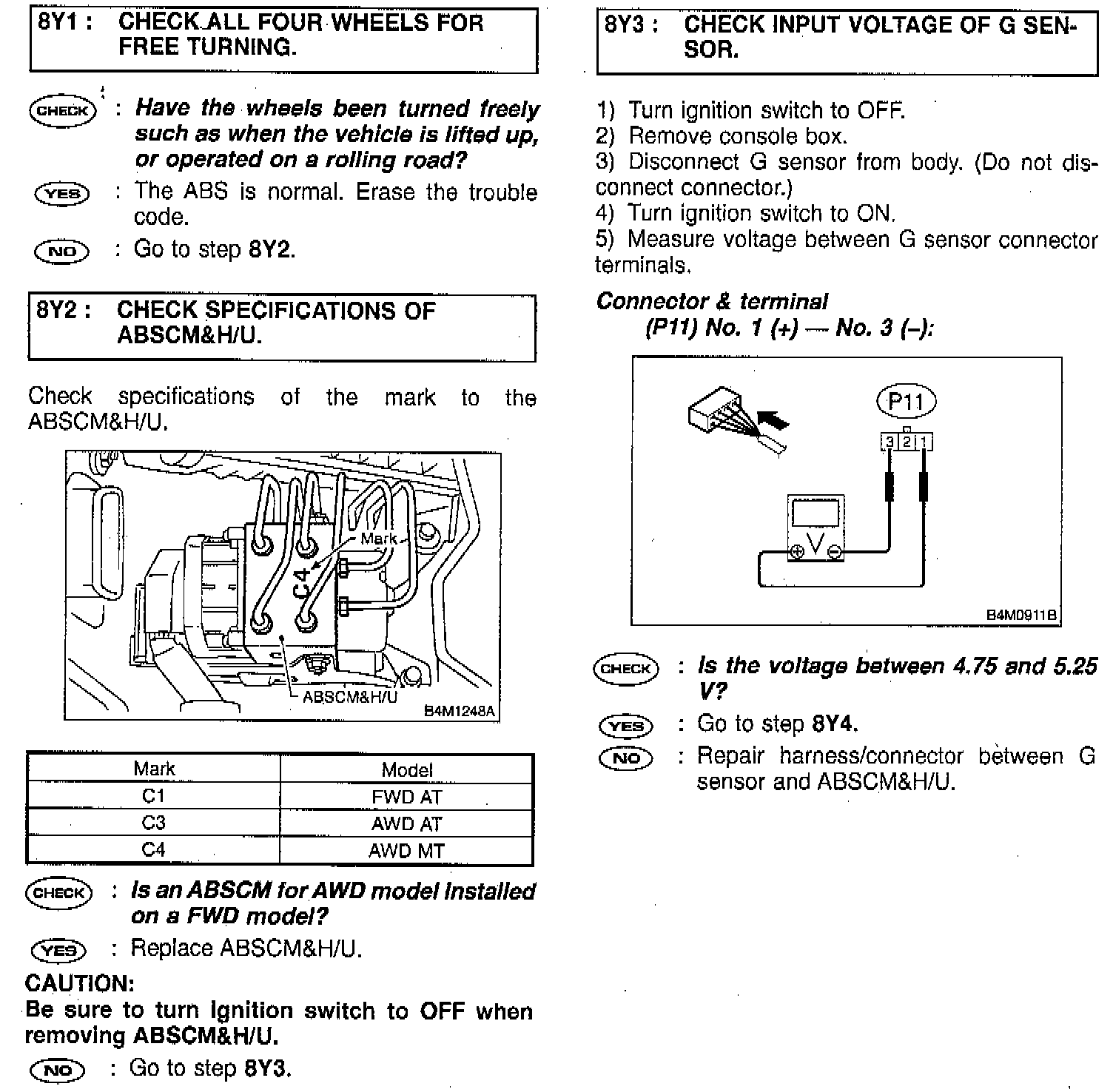

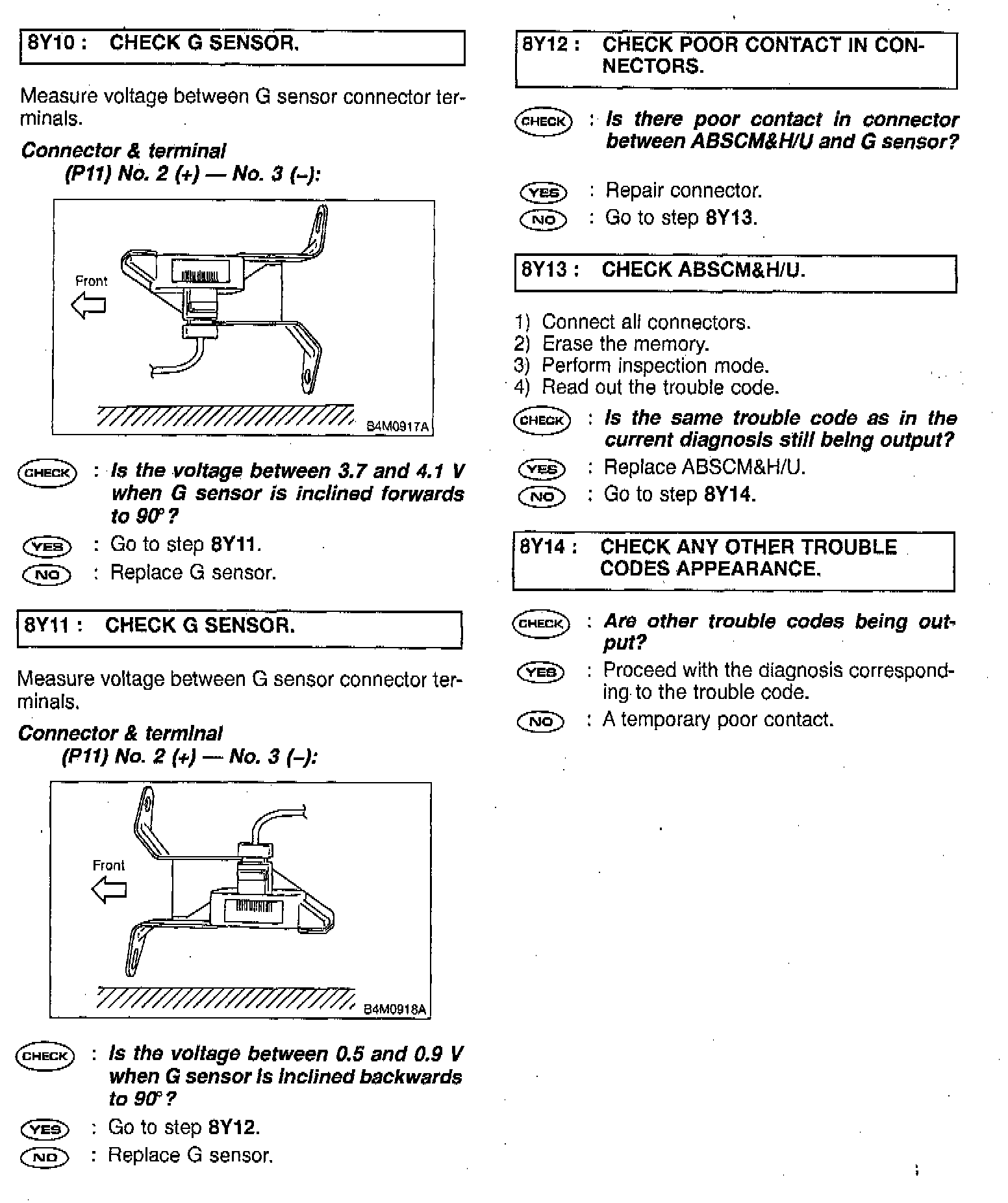

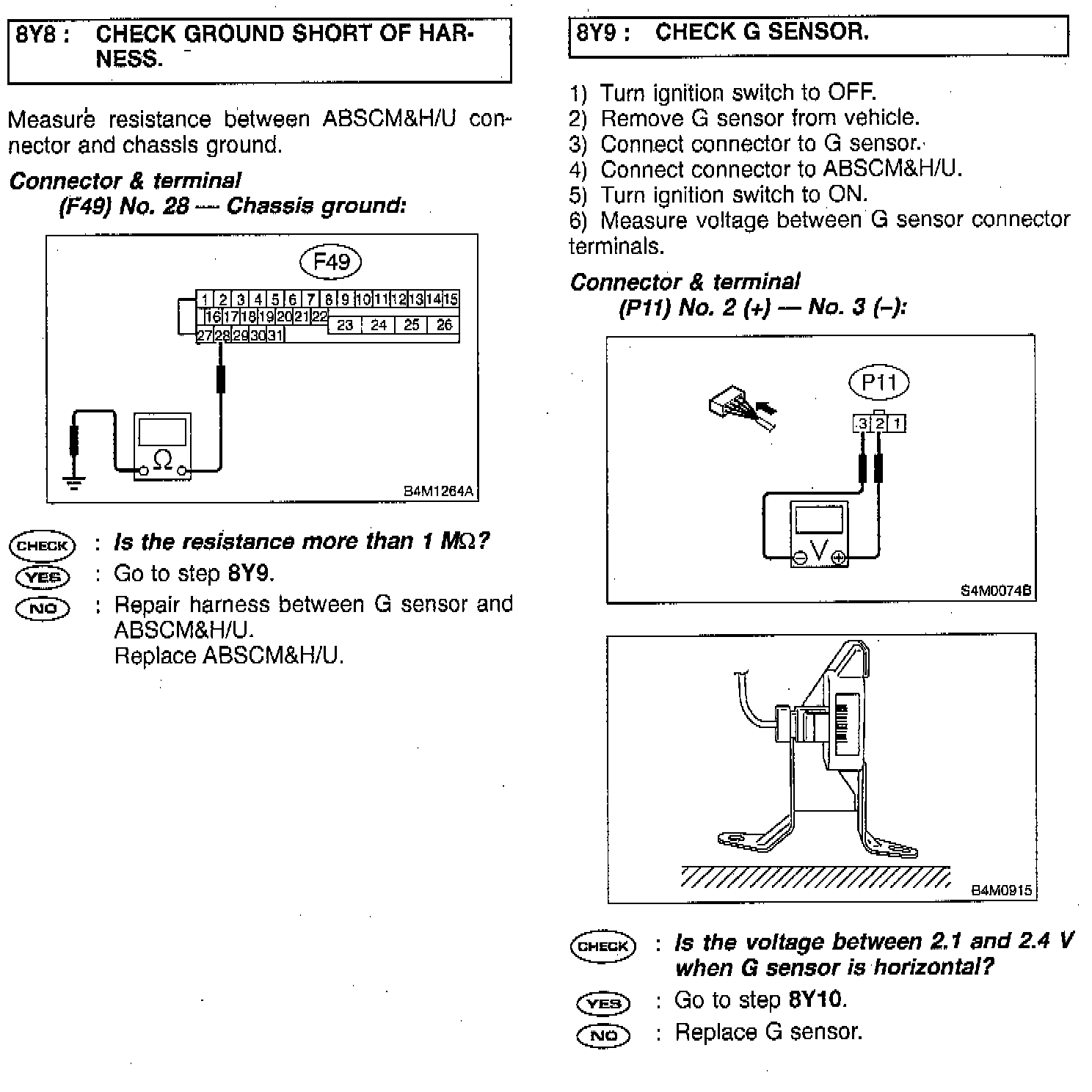

Faulty G sensor output voltage

TROUBLE SYMPTOM:
ABS does not operate.

WIRING DIAGRAM:
